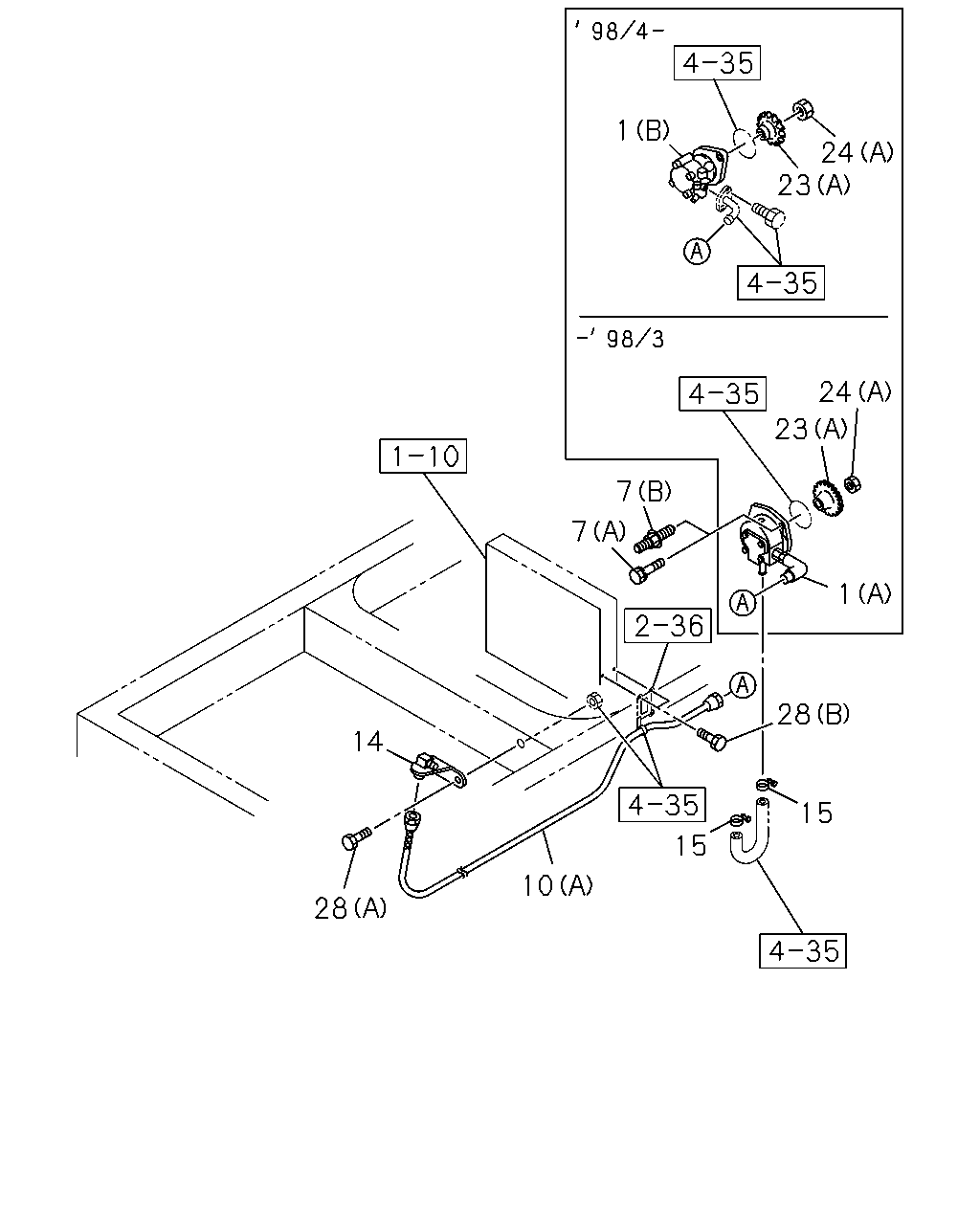

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#23255) — 61 parça

1 24 23 24 23 7 7 1 28 14 15 15 10 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (A)	1-19500-466-0	01	1	9601-9803	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	9804-0308	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	1-19500-548-1	01	1	0309-		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 STD ENG(37L) (C)	1-19500-504-1	01	1	9601-0308	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-9803	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) (A) M10X55 FLANGE	8-94399-863-1	01	1	9804-0308	●	●
7	BOLT; OIL PUMP,P/S (A) M10X55 FLANGE	8-94399-863-1	01	1	0309-0805		●
7	BOLT; OIL PUMP,P/S (A) M10X55 FLANGE	8-97365-449-0	01	1	0806-		●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) (B) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9805-0308	●	●
7	BOLT; OIL PUMP,P/S (B) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0309-		●
7	BOLT; OIL PUMP,P/S 6SD1 STD ENG(37L) (C) M12X75	9-01666-275-0	02	1	9601-0308	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) (A) L=875	1-09364-894-0	01	1	9601-9706	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) (A) L=875	1-09364-980-0	01	1	9707-9803	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) (A)	1-09364-983-1	01	1	9804-0308	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL (A)	1-09364-983-1	01	1	0309-		●
10	HOSE; FLEX,P/S OIL PUMP,INL 6SD1 STD ENG(37L) (B)	0-09539-520-0	01	1	9601-0308	●	●
14	UNION; FLEX HOSE,P/S 6HH1 STD ENG(65L)	1-47470-394-3	01	1	9601-0308	●	●
14	UNION; FLEX HOSE,P/S	1-47470-394-3	01	1	0309-		●
15	CLIP; OIL PIPE SUCTION 6HH1 STD ENG(65L) ID=32	1-09704-085-0	02	1	9601-0308	●	●
15	CLIP; OIL PIPE SUCTION ID=32	1-09704-085-0	02	1	0309-		●
23	GEAR; OIL PUMP 6HH1 STD ENG(65L) (A) Z=30	8-94396-957-3	01	1	9601-0308	●	●
23	GEAR; OIL PUMP (A) Z=30	8-94396-957-3	01	1	0309-		●
23	GEAR; OIL PUMP 6SD1 STD ENG(37L) (B) Z=17	1-19581-030-0	01	1	9601-0308	●	●
24	NUT; GEAR,P/S PUMP 6HH1 STD ENG(65L) (A) M14 FLANGE	0-91150-114-0	01	1	9601-0308	●	●
24	NUT; GEAR,P/S PUMP (A) M14 FLANGE	0-91150-114-0	01	1	0309-0712		●
24	NUT; GEAR,P/S PUMP (A) M14 FLANGE	0-91180-114-0	01	1	0801-		●
24	NUT; GEAR,P/S PUMP 6SD1 STD ENG(37L) (B) M16	9-19519-112-0	01	1	0210-0308	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9802-0308	●	●
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X20 FLANGE	0-28680-820-0	02	1	0309-0512		●
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9601-0308	●	●
28	BOLT; BRKT,FLEX HOSE,P/S (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0309-		●

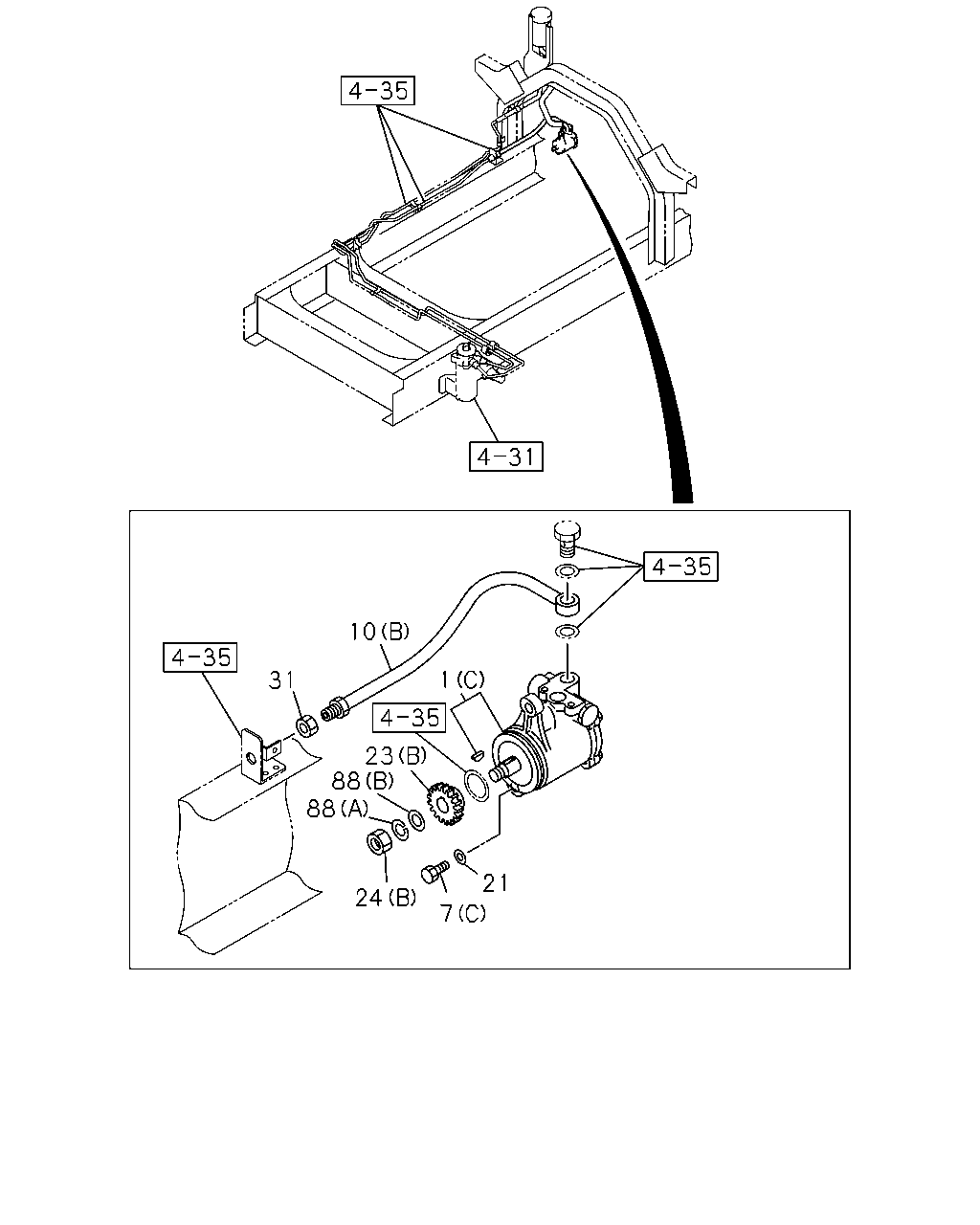

10 1 31 23 88 88 21 24 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (A)	1-19500-466-0	01	1	9601-9803	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	9804-0308	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. (B)	1-19500-548-1	01	1	0309-		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 STD ENG(37L) (C)	1-19500-504-1	01	1	9601-0308	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) (A) M10X55 FLANGE	8-94399-863-1	02	1	9601-9803	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) (A) M10X55 FLANGE	8-94399-863-1	01	1	9804-0308	●	●
7	BOLT; OIL PUMP,P/S (A) M10X55 FLANGE	8-94399-863-1	01	1	0309-0805		●
7	BOLT; OIL PUMP,P/S (A) M10X55 FLANGE	8-97365-449-0	01	1	0806-		●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) (B) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9805-0308	●	●
7	BOLT; OIL PUMP,P/S (B) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0309-		●
7	BOLT; OIL PUMP,P/S 6SD1 STD ENG(37L) (C) M12X75	9-01666-275-0	02	1	9601-0308	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) (A) L=875	1-09364-894-0	01	1	9601-9706	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) (A) L=875	1-09364-980-0	01	1	9707-9803	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) (A)	1-09364-983-1	01	1	9804-0308	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL (A)	1-09364-983-1	01	1	0309-		●
10	HOSE; FLEX,P/S OIL PUMP,INL 6SD1 STD ENG(37L) (B)	0-09539-520-0	01	1	9601-0308	●	●
21	WASHER; PL,P/S OIL PUMP 6SD1 STD ENG(37L) ID=12.5	9-09160-512-0	02	1	9601-0308	●	●
23	GEAR; OIL PUMP 6HH1 STD ENG(65L) (A) Z=30	8-94396-957-3	01	1	9601-0308	●	●
23	GEAR; OIL PUMP (A) Z=30	8-94396-957-3	01	1	0309-		●
23	GEAR; OIL PUMP 6SD1 STD ENG(37L) (B) Z=17	1-19581-030-0	01	1	9601-0308	●	●
24	NUT; GEAR,P/S PUMP 6HH1 STD ENG(65L) (A) M14 FLANGE	0-91150-114-0	01	1	9601-0308	●	●
24	NUT; GEAR,P/S PUMP (A) M14 FLANGE	0-91150-114-0	01	1	0309-0712		●
24	NUT; GEAR,P/S PUMP (A) M14 FLANGE	0-91180-114-0	01	1	0801-		●
24	NUT; GEAR,P/S PUMP 6SD1 STD ENG(37L) (B) M16	9-19519-112-0	01	1	0210-0308	●	●
31	NUT; FLEX HOSE 6SD1 STD ENG(37L) M20	9-99111-420-0	01	1	9601-0308	●	●
88	WASHER; GEAR,P/S PUMP 6SD1 STD ENG(37L) (A)	1-19519-293-0	01	1	0210-0308	●	●
88	WASHER; GEAR,P/S PUMP 6SD1 STD ENG(37L) (B)	9-09150-016-0	01	1	0210-0308	●	●
