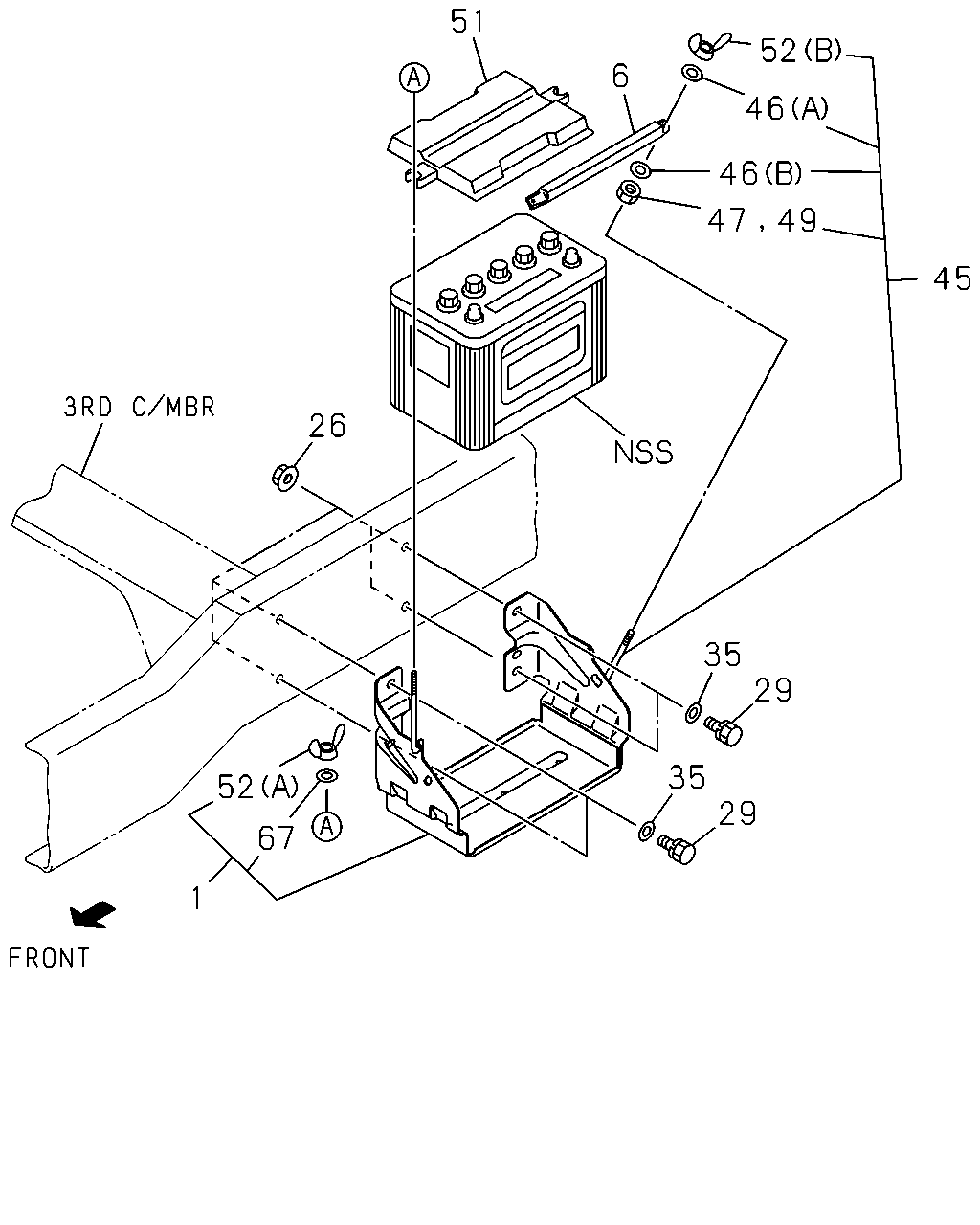

5-20 — BATTERY CARRIER (#23252) — 106 parça

51 52 6 46 46 45 26 35 29 35 29 52 67 1 47 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CARRIER; BATTERY THA	8-97916-810-0	01	1	0508-	●	●
6	BRACKET; BATTERY CARRIER 4JB1-TC ENG<RDT> THA	8-97915-637-0	01	1	0508-	●	●
26	NUT; BRKT 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-210-0	04	1	0508-	●
26	NUT; BRKT 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-210-0	02	1	0508-		●
26	NUT; BRKT 4HG1-T ENG<RDP> M10 FLANGE	0-91150-210-0	02	1	0508-			●
29	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X30 W/LK WASHER	0-50041-030-0	04	1	0508-0512	●	●
29	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X30 W/LK WASHER	0-50041-030-0	04	1	0508-0512			●
29	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●
29	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-			●
35	WASHER; PL,BATTERY CARRIER 4JB1-TC ENG<RDT> ID=10.5 OD=22	9-09160-610-0	04	1	0508-0605	●	●
35	WASHER; PL,BATTERY CARRIER 4HG1-T ENG<RDP> ID=10.5 OD=22	9-09160-610-0	04	1	0508-0605			●
35	WASHER; PL,BATTERY CARRIER 4JB1-TC ENG<RDT> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-	●	●
35	WASHER; PL,BATTERY CARRIER 4HG1-T ENG<RDP> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-			●
45	ROD; TENSION,BATTERY THA	8-97915-640-1	02	1	0508-1304	●	●	●
45	ROD; TENSION,BATTERY THA	8-97926-647-0	02	1	1305-	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18 THA	9-09160-608-0	02	1	0508-0605	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18	0-91610-608-0	02	1	0606-1304	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18	0-91614-608-0	02	1	1305-	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (B) ID=8.4 OD=22	9-09164-708-0	02	1	0508-0605	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (B) ID=8.4 OD=22 THA	0-91614-708-0	02	1	0606-	●	●	●
47	NUT; BRKT 4JB1-TC ENG<RDT> M8	9-09110-408-0	04	1	0508-0512	●	●
47	NUT; BRKT 4JB1-TC ENG<RDT> M8	0-91110-508-0	04	1	0601-	●	●
47	NUT; BRKT 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	02	1	0508-0602			●
47	NUT; BRKT 4HG1-T ENG<RDP> M8 FLANGE THA	0-91180-108-0	02	1	0603-			●
49	NUT; ROD,BATTERY M8	9-09110-408-0	02	1	0508-0512	●	●	●
49	NUT; ROD,BATTERY M8	0-91110-508-0	02	1	0601-	●	●	●
51	COVER; BATTERY 4JB1-TC ENG<RDT> THA	8-97915-670-0	01	1	0508-	●	●
51	COVER; BATTERY 4HG1-T ENG<RDP> THA	8-97915-940-0	01	1	0508-			●
52	NUT; WING,COVER FIX (A) THA	8-97918-019-1	02	1	0508-	●	●
52	NUT; WING,COVER FIX (B) M8 WING NUT	9-09118-408-0	02	1	0508-0512	●	●	●
52	NUT; WING,COVER FIX (B) M8 WING NUT THA	0-91118-408-0	02	1	0601-	●	●	●
67	WASHER; PL,CARRIER TO BRKT THA	8-97918-020-0	02	1	0508-	●	●

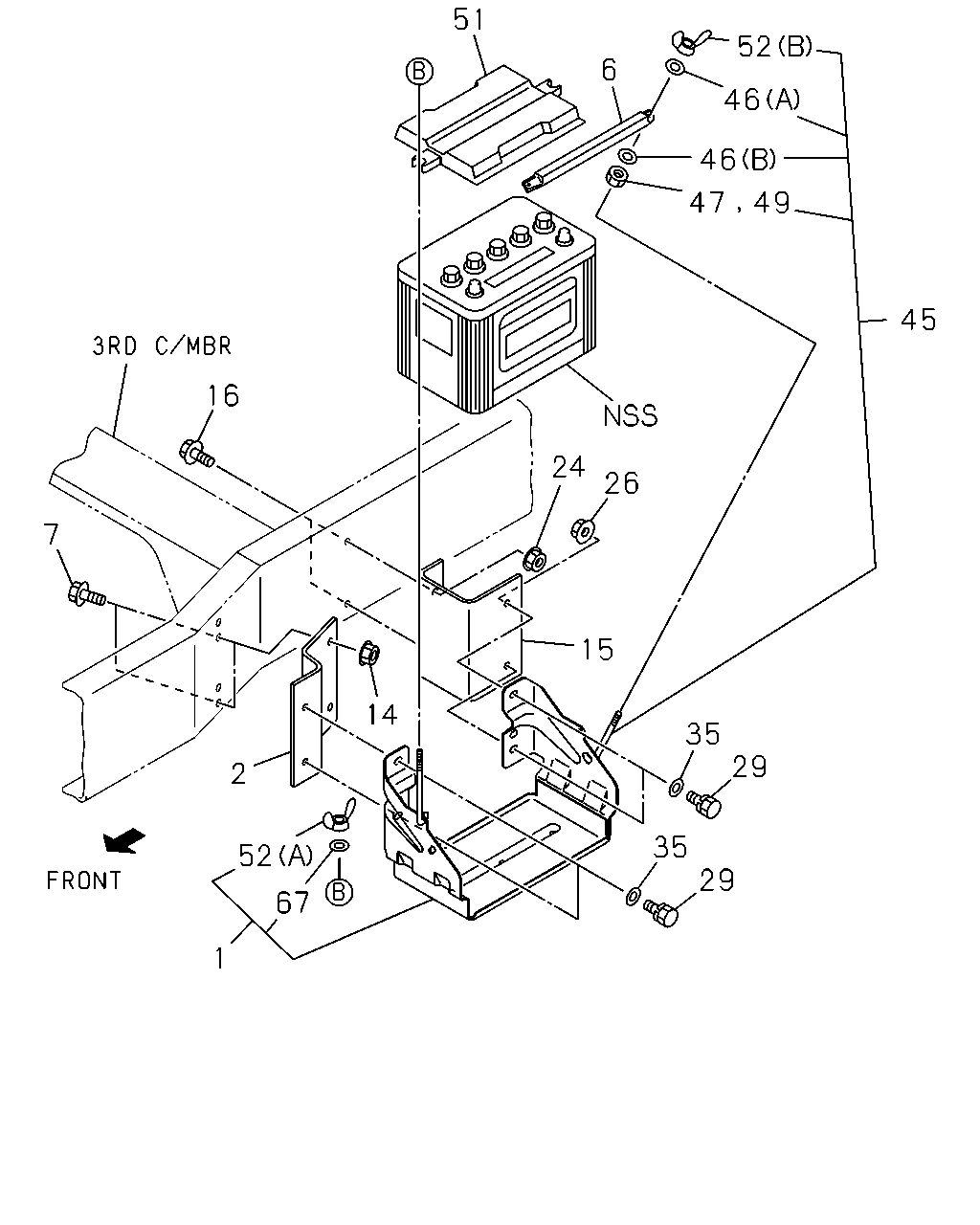

51 52 6 46 46 45 16 24 26 7 15 14 35 29 2 35 29 52 67 1 47 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CARRIER; BATTERY THA	8-97916-810-0	01	1	0508-	●	●
2	BRACKET; BATTERY 4JB1-TC ENG<RDT> THA	8-97916-775-0	01	1	0508-		●
6	BRACKET; BATTERY CARRIER 4JB1-TC ENG<RDT> THA	8-97915-637-0	01	1	0508-	●	●
7	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X25 FLANGE	0-28081-025-0	02	1	0508-0512		●
7	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X25 FLANGE THA	0-28051-025-0	02	1	0601-		●
14	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-210-0	02	1	0508-		●
15	BRACKET; BATTERY 4JB1-TC ENG<RDT> THA	8-97916-776-0	01	1	0508-		●
16	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X25 FLANGE	0-28081-025-0	02	1	0508-0512		●
16	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X25 FLANGE THA	0-28051-025-0	02	1	0601-		●
24	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-210-0	02	1	0508-		●
26	NUT; BRKT 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-210-0	04	1	0508-	●
26	NUT; BRKT 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-210-0	02	1	0508-		●
26	NUT; BRKT 4HG1-T ENG<RDP> M10 FLANGE	0-91150-210-0	02	1	0508-			●
29	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X30 W/LK WASHER	0-50041-030-0	04	1	0508-0512	●	●
29	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X30 W/LK WASHER	0-50041-030-0	04	1	0508-0512			●
29	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●
29	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-			●
35	WASHER; PL,BATTERY CARRIER 4JB1-TC ENG<RDT> ID=10.5 OD=22	9-09160-610-0	04	1	0508-0605	●	●
35	WASHER; PL,BATTERY CARRIER 4HG1-T ENG<RDP> ID=10.5 OD=22	9-09160-610-0	04	1	0508-0605			●
35	WASHER; PL,BATTERY CARRIER 4JB1-TC ENG<RDT> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-	●	●
35	WASHER; PL,BATTERY CARRIER 4HG1-T ENG<RDP> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-			●
45	ROD; TENSION,BATTERY THA	8-97915-640-1	02	1	0508-1304	●	●	●
45	ROD; TENSION,BATTERY THA	8-97926-647-0	02	1	1305-	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18 THA	9-09160-608-0	02	1	0508-0605	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18	0-91610-608-0	02	1	0606-1304	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18	0-91614-608-0	02	1	1305-	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (B) ID=8.4 OD=22	9-09164-708-0	02	1	0508-0605	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (B) ID=8.4 OD=22 THA	0-91614-708-0	02	1	0606-	●	●	●
47	NUT; BRKT 4JB1-TC ENG<RDT> M8	9-09110-408-0	04	1	0508-0512	●	●
47	NUT; BRKT 4JB1-TC ENG<RDT> M8	0-91110-508-0	04	1	0601-	●	●
47	NUT; BRKT 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	02	1	0508-0602			●
47	NUT; BRKT 4HG1-T ENG<RDP> M8 FLANGE THA	0-91180-108-0	02	1	0603-			●
49	NUT; ROD,BATTERY M8	9-09110-408-0	02	1	0508-0512	●	●	●
49	NUT; ROD,BATTERY M8	0-91110-508-0	02	1	0601-	●	●	●
51	COVER; BATTERY 4JB1-TC ENG<RDT> THA	8-97915-670-0	01	1	0508-	●	●
51	COVER; BATTERY 4HG1-T ENG<RDP> THA	8-97915-940-0	01	1	0508-			●
52	NUT; WING,COVER FIX (A) THA	8-97918-019-1	02	1	0508-	●	●
52	NUT; WING,COVER FIX (B) M8 WING NUT	9-09118-408-0	02	1	0508-0512	●	●	●
52	NUT; WING,COVER FIX (B) M8 WING NUT THA	0-91118-408-0	02	1	0601-	●	●	●
67	WASHER; PL,CARRIER TO BRKT THA	8-97918-020-0	02	1	0508-	●	●

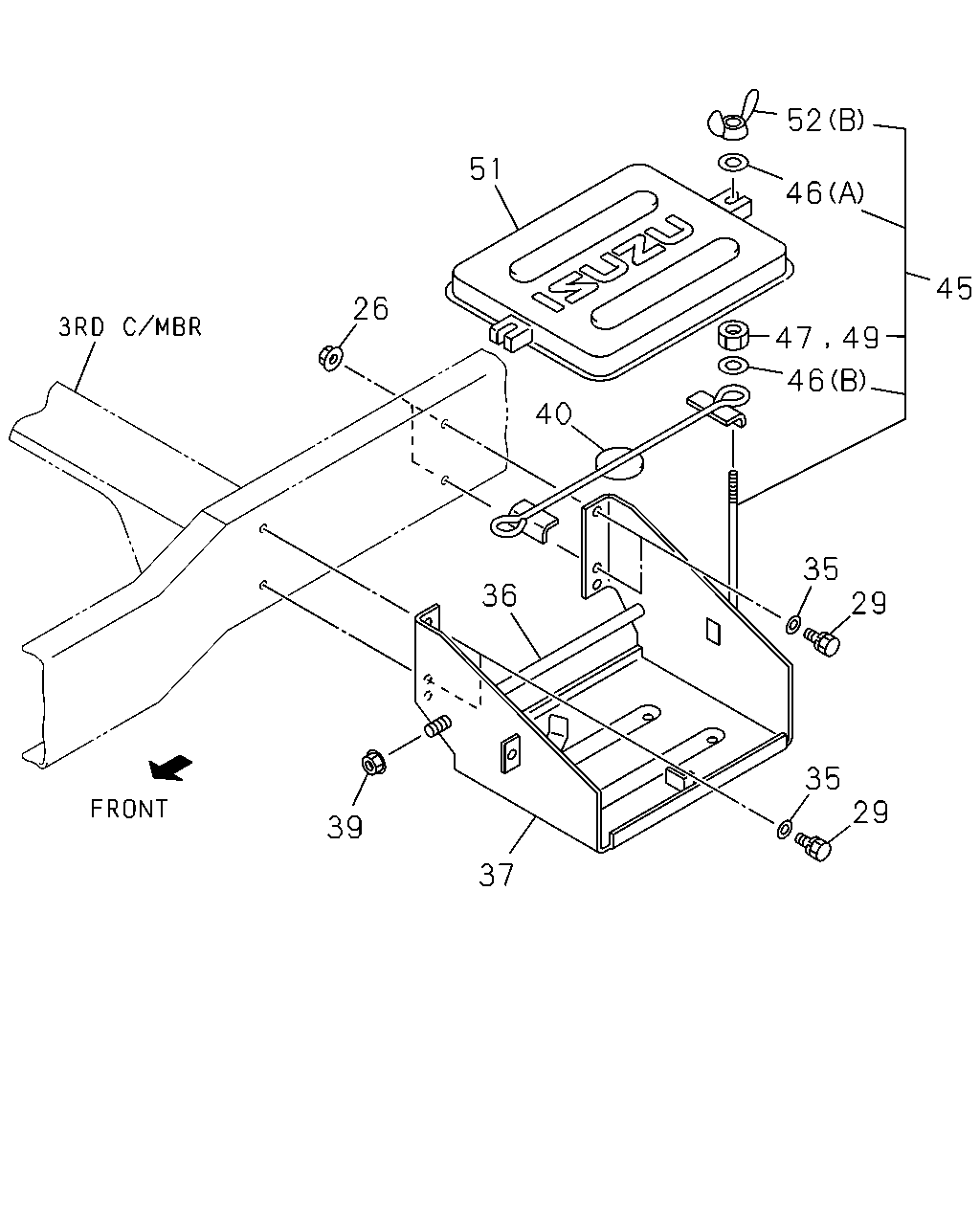

52 51 46 45 26 46 40 35 29 36 35 29 39 37 47 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	NUT; BRKT 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-210-0	04	1	0508-	●
26	NUT; BRKT 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-210-0	02	1	0508-		●
26	NUT; BRKT 4HG1-T ENG<RDP> M10 FLANGE	0-91150-210-0	02	1	0508-			●
29	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X30 W/LK WASHER	0-50041-030-0	04	1	0508-0512	●	●
29	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X30 W/LK WASHER	0-50041-030-0	04	1	0508-0512			●
29	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●
29	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-			●
35	WASHER; PL,BATTERY CARRIER 4JB1-TC ENG<RDT> ID=10.5 OD=22	9-09160-610-0	04	1	0508-0605	●	●
35	WASHER; PL,BATTERY CARRIER 4HG1-T ENG<RDP> ID=10.5 OD=22	9-09160-610-0	04	1	0508-0605			●
35	WASHER; PL,BATTERY CARRIER 4JB1-TC ENG<RDT> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-	●	●
35	WASHER; PL,BATTERY CARRIER 4HG1-T ENG<RDP> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-			●
36	STOPPER; BATTERY 4HG1-T ENG<RDP> EXC. BATTERY 80D26R<6KC> THA	8-94145-894-0	01	1	0508-			●
37	BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> THA	8-97915-703-2	01	1	0508-			●
39	NUT; STOPPER,BATTERY 4HG1-T ENG<RDP> EXC. BATTERY 80D26R<6KC> M6 FLANGE	0-91150-106-0	01	1	0508-0602			●
39	NUT; STOPPER,BATTERY 4HG1-T ENG<RDP> EXC. BATTERY 80D26R<6KC> M6 FLANGE THA	0-91180-106-0	01	1	0603-			●
40	CLAMP; BATTERY 4HG1-T ENG<RDP> THA	8-97910-232-0	01	1	0508-			●
45	ROD; TENSION,BATTERY THA	8-97915-640-1	02	1	0508-1304	●	●	●
45	ROD; TENSION,BATTERY THA	8-97926-647-0	02	1	1305-	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18 THA	9-09160-608-0	02	1	0508-0605	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18	0-91610-608-0	02	1	0606-1304	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (A) ID=8.4 OD=18	0-91614-608-0	02	1	1305-	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (B) ID=8.4 OD=22	9-09164-708-0	02	1	0508-0605	●	●	●
46	WASHER; PL,BATTERY TO CARRIER (B) ID=8.4 OD=22 THA	0-91614-708-0	02	1	0606-	●	●	●
47	NUT; BRKT 4JB1-TC ENG<RDT> M8	9-09110-408-0	04	1	0508-0512	●	●
47	NUT; BRKT 4JB1-TC ENG<RDT> M8	0-91110-508-0	04	1	0601-	●	●
47	NUT; BRKT 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	02	1	0508-0602			●
47	NUT; BRKT 4HG1-T ENG<RDP> M8 FLANGE THA	0-91180-108-0	02	1	0603-			●
49	NUT; ROD,BATTERY M8	9-09110-408-0	02	1	0508-0512	●	●	●
49	NUT; ROD,BATTERY M8	0-91110-508-0	02	1	0601-	●	●	●
51	COVER; BATTERY 4JB1-TC ENG<RDT> THA	8-97915-670-0	01	1	0508-	●	●
51	COVER; BATTERY 4HG1-T ENG<RDP> THA	8-97915-940-0	01	1	0508-			●
52	NUT; WING,COVER FIX (A) THA	8-97918-019-1	02	1	0508-	●	●
52	NUT; WING,COVER FIX (B) M8 WING NUT	9-09118-408-0	02	1	0508-0512	●	●	●
52	NUT; WING,COVER FIX (B) M8 WING NUT THA	0-91118-408-0	02	1	0601-	●	●	●
