Isuzu WW
▶
TRUCKS
▶
NKR
▶
51040 - NKR(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#23251) — 47 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀

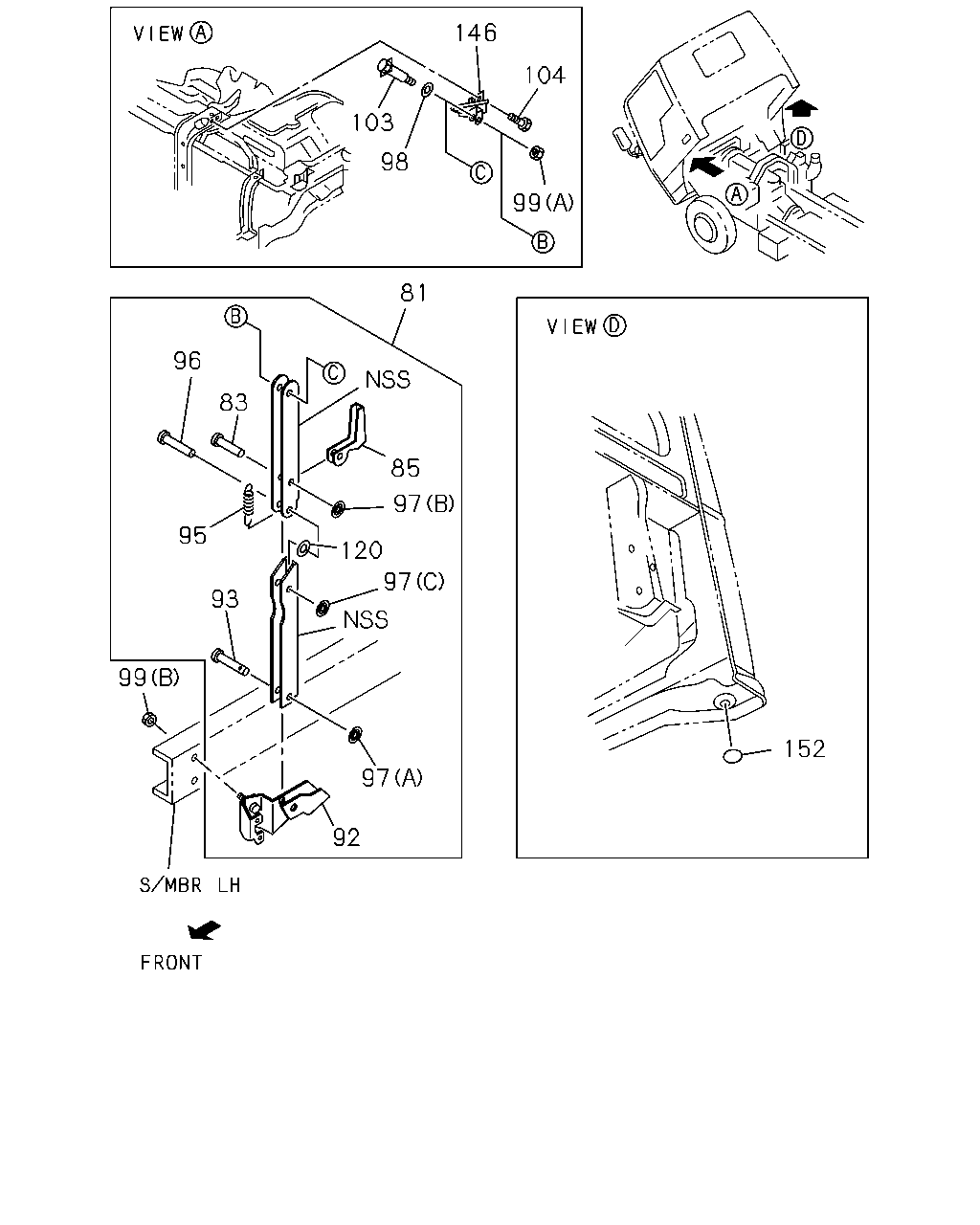

[515A] CAB STAY (21 parça)

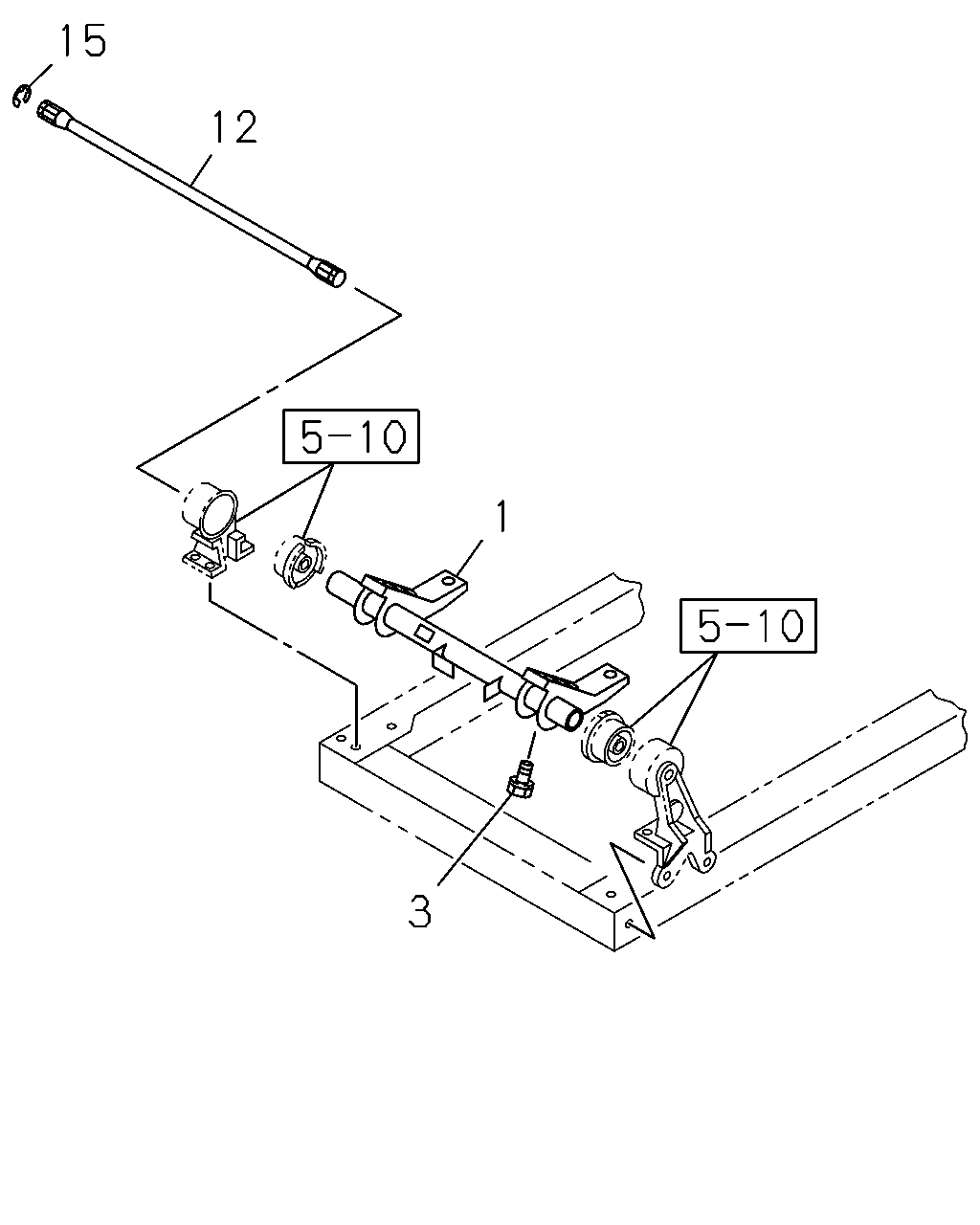

[515A] TORSION BAR (6 parça)

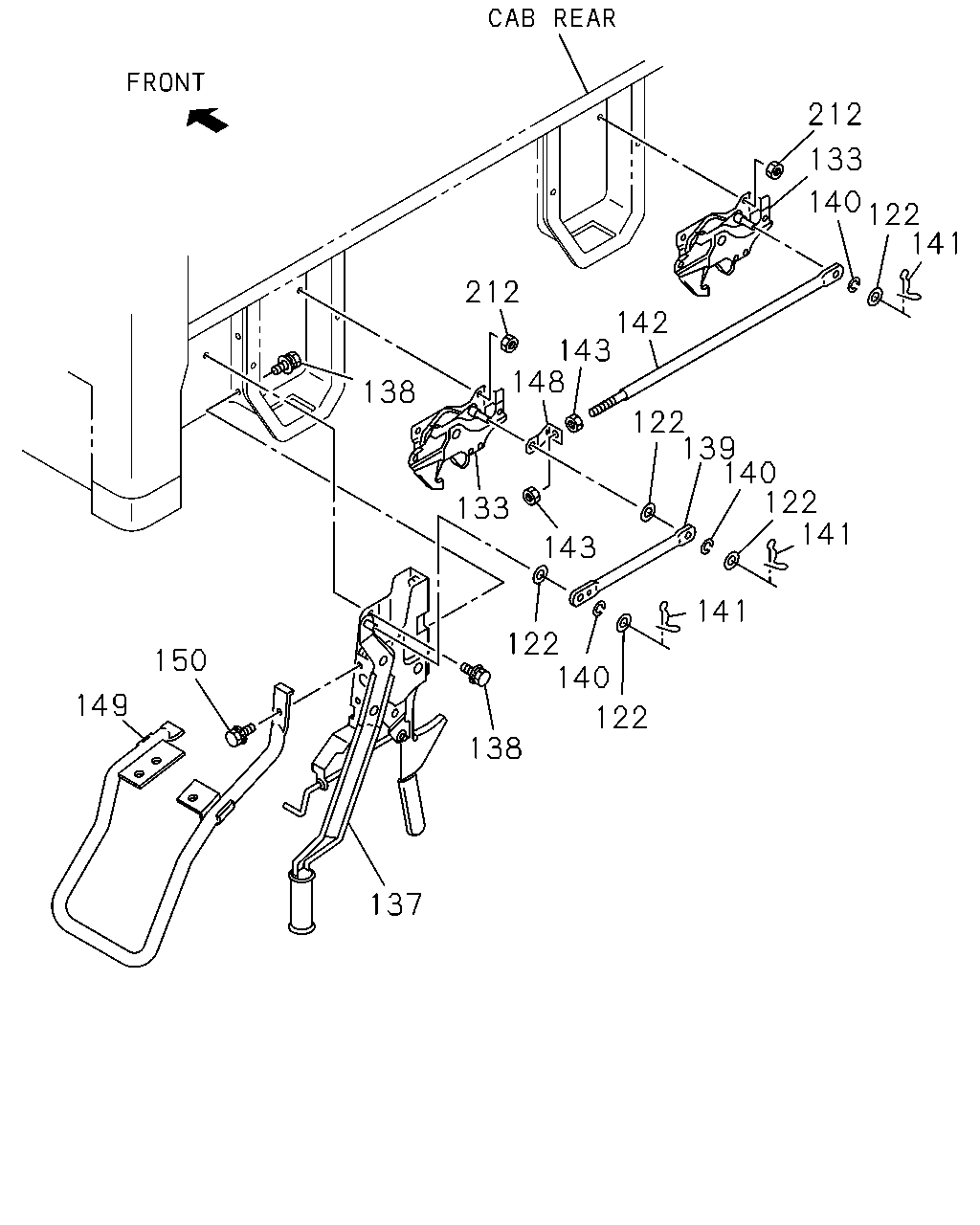

[515A] CAB LOCK (20 parça)
▶
146
104
103
98
99
81
96
83
85
97
95
120
97
93
99
152
97
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
81
STAY ASM; CAB TILT
8-97120-940-0
01
1
0508-
●
●
●
83
PIN; JOINT,CAB STAY
OD=8 L=32
8-97039-548-0
01
1
0508-
●
●
●
85
LEVER; LOCK,CAB STAY
8-94331-481-0
01
1
0508-
●
●
●
92
BRACKET; CAB STAY TO FRAME
8-97096-654-0
01
1
0508-
●
●
●
93
PIN; CAB STAY
OD=12 L=53
8-97218-926-0
01
1
0508-
●
●
●
95
SPRING; RETURN,CAB STAY
8-94160-167-2
01
1
0508-
●
●
●
96
PIN; JOINT
OD=10 L=36
8-97096-661-0
01
1
0508-
●
●
●
97
NUT; CAB STAY PIN
(B) ID=7.9 PUSH NUT
8-97022-565-0
01
1
0508-
●
●
●
97
NUT; CAB STAY PIN
(C) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0508-
●
●
●
97
NUT; CAB STAY PIN
(A) ID=11.9 PUSH NUT
8-97022-567-0
01
1
0508-
●
●
●
98
WASHER; CAB STAY
ID=10.5 OD=28.0
8-97184-701-0
01
1
0508-
●
●
●
99
NUT; CAB STAY
(B) M10 FLANGE
0-91150-110-0
02
1
0508-0602
●
●
●
99
NUT; CAB STAY
(B) M10 FLANGE THA
0-91180-110-0
02
1
0603-
●
●
●
99
NUT; CAB STAY
(A) M10
8-97185-205-1
01
1
0508-
●
●
●
103
PIN; JOINT,CAB STAY
M10X40
8-97184-683-0
01
1
0508-0805
●
●
●
103
PIN; JOINT,CAB STAY
M10X40
8-97359-151-0
01
1
0806-
●
●
●
104
BOLT; CAB STAY BRKT
M8X20 FLANGE
0-28690-820-0
03
1
0508-0512
●
●
●
104
BOLT; CAB STAY BRKT
M8X20 FLANGE
0-28660-820-0
03
1
0601-
●
●
●
120
WASHER; NYLON
ID=10 OD=20
8-97103-223-0
01
1
0508-
●
●
●
146
BRACKET ASM; CAB STAY UPR
THA
8-97912-576-0
01
1
0508-
●
●
●
152
GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=25 BLACK THA
1-76798-019-0
02
1
0508-
●
●
●
15
12
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
LEVER; TORSION BAR
8-97114-076-4
01
1
0508-
●
●
●
3
BOLT; LEVER
M12X37 W/LK&PL WASHER
8-97326-378-0
06
1
0508-0611
●
●
●
3
BOLT; LEVER
M12X37 W/LK&PL WASHER
8-97359-033-0
06
1
0612-
●
●
●
12
BAR; TORSION,UPR
8-97261-870-0
01
1
0508-
●
●
●
15
RING; SNAP,TORSION BAR
8-94258-173-0
02
1
0508-0610
●
●
●
15
RING; SNAP,TORSION BAR
8-97359-034-0
02
1
0611-
●
●
●
212
133
140
122
141
212
142
143
148
138
122
139
140
122
141
133
143
141
122
140
150
149
122
138
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
122
WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22
8-94279-627-0
05
1
0508-0707
●
●
●
122
WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22
0-91610-512-0
05
1
0708-
●
●
●
133
LOCK ASM; CAB
8-97853-055-9
01
1
0508-
●
●
●
133
LOCK ASM; CAB
8-97853-056-8
01
1
0508-
●
●
●
137
CONTROL UNIT; CAB LOCK
8-97890-630-5
01
1
0508-
●
●
●
138
BOLT; CAB LOCK CONT UNIT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0508-
●
●
●
139
ROD; CAB LOCK,LEVER TO HOOK
8-97997-597-0
01
1
0508-
●
●
●
140
WASHER; LK,CAB LOCK ROD
ID=13 OD=22
8-94279-629-0
03
1
0508-0611
●
●
●
140
WASHER; LK,CAB LOCK ROD
ID=13 OD=22
8-98060-839-0
03
1
0612-
●
●
●
141
PIN; SNAP,CAB LOCK ROD
1-09987-158-1
03
1
0508-
●
●
●
142
ROD; HOOK TO HOOK
8-97856-099-1
01
1
0508-
●
●
●
143
NUT; JAW JOINT,HOOK TO HOOK
M10
1-09984-142-0
02
1
0508-0909
●
●
●
143
NUT; JAW JOINT,HOOK TO HOOK
M10 THA
0-91110-510-0
02
1
0910-
●
●
●
148
JOINT; JAW,HOOK TO HOOK
8-97856-106-0
01
1
0508-
●
●
●
149
HANDLE; TILT
THA
8-97912-575-0
01
1
0508-
●
●
●
150
BOLT; TILT HANDLE
M8X25 FLANGE
0-28680-825-0
03
1
0508-0611
●
●
●
150
BOLT; TILT HANDLE
M8X25 FLANGE THA
0-28650-825-0
03
1
0612-
●
●
●
212
NUT; BRKT,CAB LOCK
M8 CUTTING NUT W/FLANGE
1-09985-340-0
08
1
0508-0711
●
●
●
212
NUT; BRKT,CAB LOCK
M8 FLANGE THA
0-91180-108-0
08
1
0712-0712
●
●
●
212
NUT; BRKT,CAB LOCK
M8 CUTTING NUT W/FLANGE
1-09985-340-0
08
1
0801-
●
●
●
