Isuzu WW
▶
TRUCKS
▶
NKR
▶
51040 - NKR(THAILAND)
▶
5 - Frame, Cab Mounting
▶

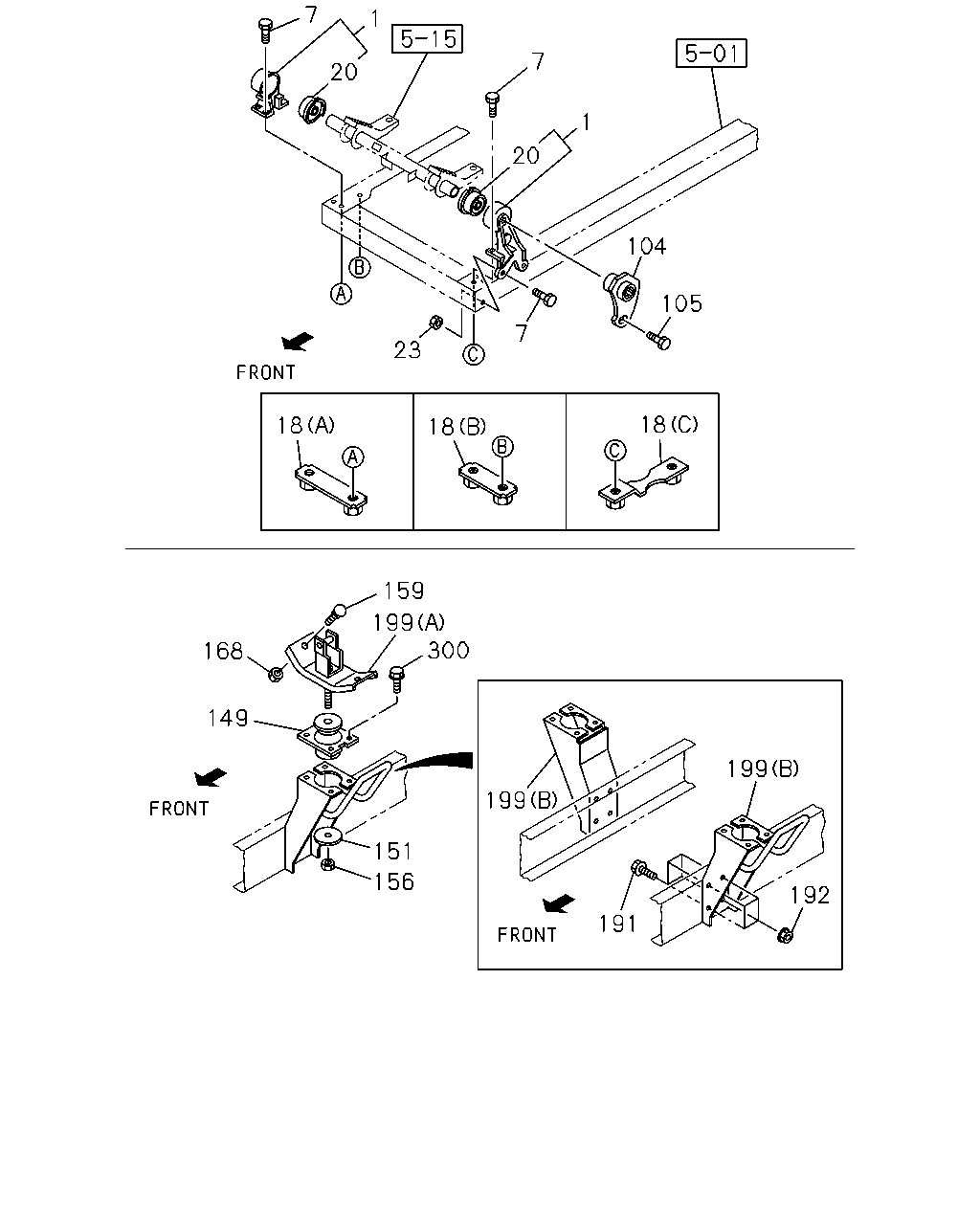

5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#23250) — 28 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
7
1
7
20
1
20
104
105
7
23
18
18
18
159
199
300
168
149
199
199
151
192
156
191
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BRACKET; CAB MTG
8-97096-894-1
01
1
0508-
●
●
●
1
BRACKET; CAB MTG
8-97170-220-0
01
1
0508-
●
●
●
7
BOLT; BRKT,CAB TILT
M12X40 FLANGE
0-28681-240-0
08
1
0508-0512
●
●
●
7
BOLT; BRKT,CAB TILT
M12X40 FLANGE
0-28651-240-0
08
1
0601-
●
●
●
18
PLATE; MTG BRKT FIX
(A)
8-97034-139-2
01
1
0508-
●
●
●
18
PLATE; MTG BRKT FIX
(B)
8-97034-140-2
01
1
0508-
●
●
●
18
PLATE; MTG BRKT FIX
(C)
8-97076-469-2
01
1
0508-
●
●
●
20
RUBBER; MTG,CAB BRKT
8-97096-893-1
02
1
0508-
●
●
●
23
NUT; MTG BRKT
M12 FLANGE
0-91150-112-0
02
1
0508-
●
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
8-97033-624-3
01
1
0508-
●
●
●
105
BOLT; BRKT TO CAB FRAME
M16X35 FLANGE
0-28881-635-0
01
1
0508-0512
●
●
●
105
BOLT; BRKT TO CAB FRAME
M16X35 FLANGE
0-28851-635-0
01
1
0601-
●
●
●
149
RUBBER; MTG,CAB,UPR RR
THA
8-97916-740-0
02
1
0508-
●
●
●
151
WASHER; CAB MTG,RR UPR
ID=16.4 OD=62
8-97034-382-0
02
1
0508-0611
●
●
●
151
WASHER; CAB MTG,RR UPR
ID=17 OD=62
8-97359-042-1
02
1
0612-
●
●
●
156
NUT; CAB MTG RR
M16
9-99111-416-0
02
1
0508-0512
●
●
●
156
NUT; CAB MTG RR
M16 THA
0-91111-516-0
02
1
0601-
●
●
●
159
RUBBER; CUSHION,CAB MTG
8-97113-340-0
04
1
0508-
●
●
●
168
NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE
0-91150-108-0
04
1
0508-0602
●
●
●
168
NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE THA
0-91180-108-0
04
1
0603-
●
●
●
191
BOLT; BRKT FIX
M12X35 FLANGE
0-28681-235-0
08
1
0508-0701
●
●
●
191
BOLT; BRKT FIX
M12X35 FLANGE THA
0-28651-235-0
08
1
0702-
●
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91150-112-0
08
1
0508-
●
●
●
199
BRACKET; CAB RR MTG
(A)
8-97035-310-4
02
1
0508-
●
●
●
199
BRACKET; CAB RR MTG
(B) THA
8-97910-253-0
01
1
0508-
●
●
●
199
BRACKET; CAB RR MTG
(B) THA
8-97910-266-1
01
1
0508-
●
●
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28681-020-0
08
1
0508-0611
●
●
●
300
BOLT; MTG RUBBER
M10X20 FLANGE THA
0-28651-020-0
08
1
0612-
●
●
●
