0-52B — OIL AND VACUUM PIPING; ENGINE (#2325) — 88 parça

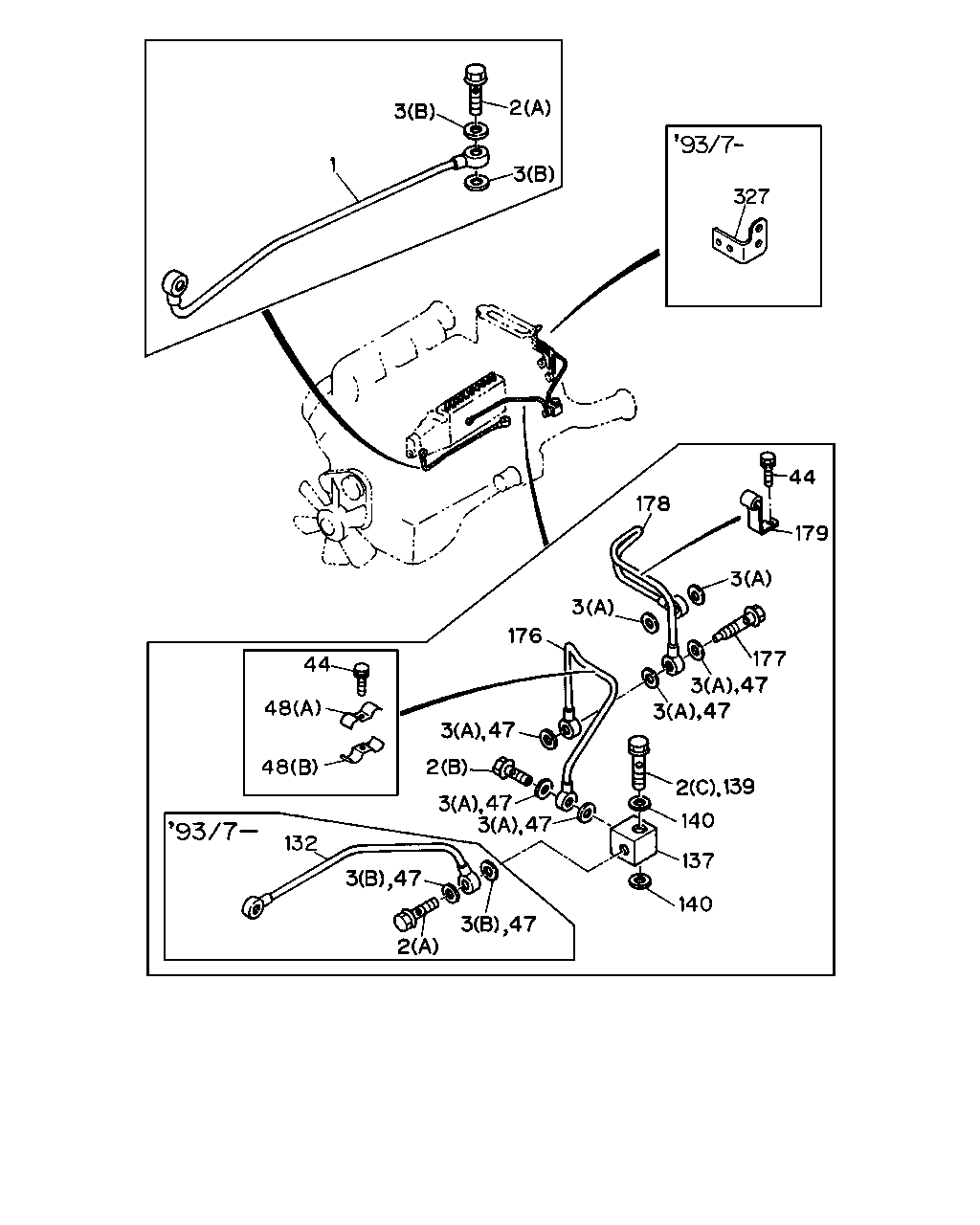

çizim 29017
132 3 47 2 47 3 3 3 2 47 47 47 3 48 48 44 176 3 140 140 137 2 139 3 47 3 47 3 177 178 44 179 327 1 3 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-711-1 01 1 9002-9306 ●
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-692-1 01 1 9002- ●
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-682-1 01 1 9307- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9002-9306 ●
2 BOLT; EYE,OIL PIPE
EXC. OIL FILLER CAB BACK DELETE<E6X> (A) M12X27 FLANGE 		1-09675-085-0 01 1 9002- ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 04 1 9307-9503 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 04 1 9504- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9002-9306 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9307- ●
2 BOLT; EYE,OIL PIPE
(C) M14X39 FLANGE 		1-09675-089-0 01 1 9307- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 02 1 9002- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 09 1 9002- ●
44 BOLT; CLIP,OIL PIPE
M6X22 		0-28020-622-0 02 1 9002-9005 ● ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28080-622-0 02 1 9006- ● ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 09 1 9002-9306 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9002- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 09 1 9307- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 		1-09630-085-0 02 1 9307- ●
48 CLIP; OIL PIPE
(A) ID=10 & 6 L=20 		1-09700-404-0 01 1 9002- ● ● ●
48 CLIP; OIL PIPE
(B) ID=10 & 6 L=20 W/NUT 		1-09700-405-0 01 1 9002- ● ● ●
48 CLIP; OIL PIPE
(A) ID=10 & 6 L=20 		1-09700-404-0 02 1 9307- ●
48 CLIP; OIL PIPE
(B) ID=10 & 6 L=20 W/NUT 		1-09700-405-0 02 1 9307- ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13311-623-0 01 1 9307- ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13311-568-0 01 1 9307- ●
137 UNION; OIL PIPE 1-09664-170-0 01 1 9002-9306 ● ●
137 UNION; OIL PIPE 1-09664-016-1 01 1 9307- ● ●
139 BOLT; EYE,UNION
M14X39 FLANGE 		1-09675-089-0 01 1 9002- ● ●
140 GASKET; EYE BOLT,UNION
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 9002- ● ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13312-953-0 01 1 9002-9306 ● ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13312-941-0 01 1 9307- ● ●
177 JET ASM; OIL,OIL PIPE 1-09679-010-0 01 1 9002- ● ● ●
178 PIPE ASM; OIL,CVR,HSG TO CMPR 1-13312-921-0 01 1 9002- ● ● ●
179 CLIP; PIPE,HSG TO CMPR 1-09700-876-0 01 1 9002- ● ● ●
327 BRACKET; UNION 1-22196-292-1 01 1 9002-9306 ●
327 BRACKET; UNION 1-22196-288-0 01 1 9002-9306 ●
327 BRACKET; UNION 1-22196-283-0 01 1 9307- ●

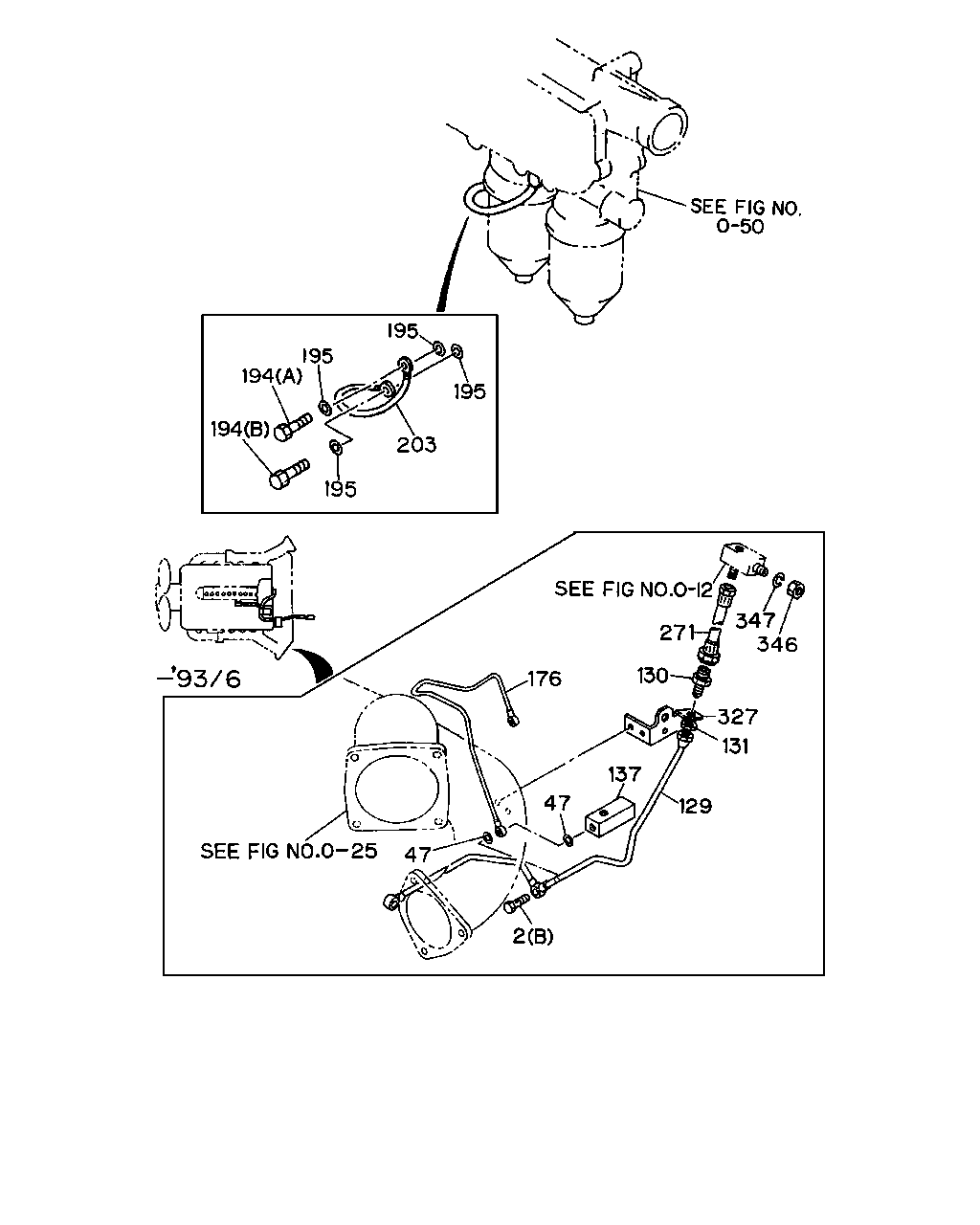

çizim 93744
2 47 47 129 137 176 130 131 327 271 346 347 195 203 195 194 194 195 195
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9002-9306 ●
2 BOLT; EYE,OIL PIPE
EXC. OIL FILLER CAB BACK DELETE<E6X> (A) M12X27 FLANGE 		1-09675-085-0 01 1 9002- ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 04 1 9307-9503 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 04 1 9504- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9002-9306 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9307- ●
2 BOLT; EYE,OIL PIPE
(C) M14X39 FLANGE 		1-09675-089-0 01 1 9307- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 09 1 9002-9306 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9002- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 09 1 9307- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 		1-09630-085-0 02 1 9307- ●
129 PIPE; OIL,INJ PUMP TO OIL PRESS UNIT 1-13312-960-2 01 1 9002-9306 ●
129 PIPE; OIL,INJ PUMP TO OIL PRESS UNIT 1-13312-927-1 01 1 9002-9306 ●
130 UNION; OIL PRESS UNIT 1-09654-278-1 01 1 9002-9306 ● ●
131 NUT; UNION
M12 		9-09840-280-0 01 1 9002-9306 ● ●
137 UNION; OIL PIPE 1-09664-170-0 01 1 9002-9306 ● ●
137 UNION; OIL PIPE 1-09664-016-1 01 1 9307- ● ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13312-953-0 01 1 9002-9306 ● ●
176 PIPE ASM; OIL,C/BL TO COVER 1-13312-941-0 01 1 9307- ● ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(B) M14X45 		1-09675-023-1 01 1 9002- ● ● ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(A) M14X33 FLANGE 		1-09675-088-0 01 1 9002- ● ● ●
195 GASKET; EYE BOLT,PARTIAL FILTER
ID=14.2 OD=19.2 		1-09630-085-0 04 1 9002- ● ● ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=550 		1-09364-707-0 01 1 9002-9102 ● ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=525 		1-09364-767-0 01 1 9103- ● ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=700 		1-09364-708-0 01 1 9307- ●
271 TUBE; FLEX,OIL PRESS UNIT
CAB UP 50MM(W60) 		1-09364-718-1 01 1 9002-9306 ● ●
271 TUBE; FLEX,OIL PRESS UNIT
EXC. CAB UP 50MM(W60) 		1-09364-715-1 01 1 9002-9306 ● ●
327 BRACKET; UNION 1-22196-292-1 01 1 9002-9306 ●
327 BRACKET; UNION 1-22196-288-0 01 1 9002-9306 ●
327 BRACKET; UNION 1-22196-283-0 01 1 9307- ●
346 NUT; CONNECTOR
M10 		9-09110-510-0 01 1 9002-9306 ● ●
347 WASHER; LK
ID=10.5 TOOTH LK INT 		9-09151-210-0 01 1 9002-9306 ● ●

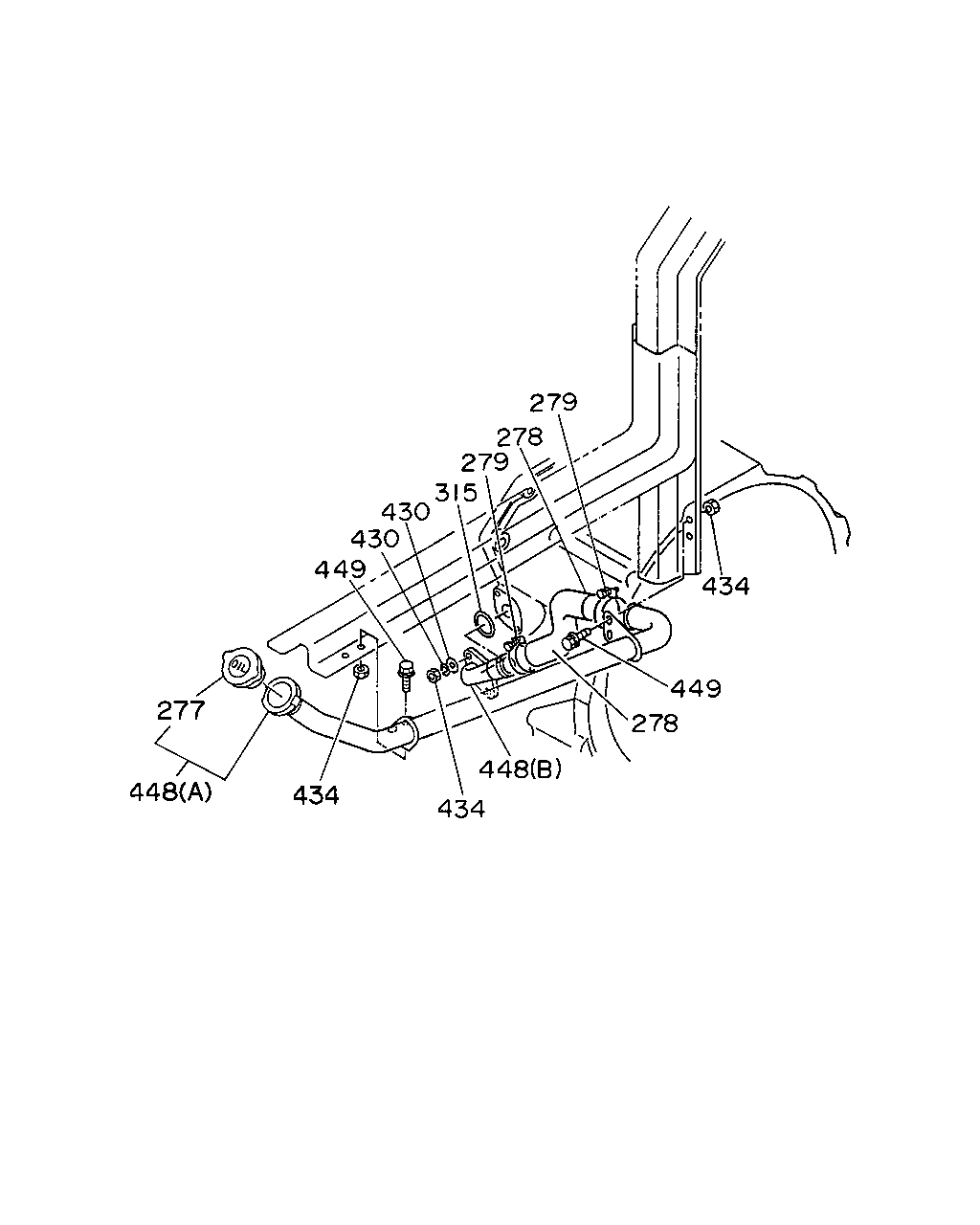

çizim 93768
448 277 434 434 448 278 449 434 279 278 279 315 430 430 449
BalonParca AdiParca NoAdetTipApplied Date A B C
277 CAP; OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> 		1-11750-024-1 01 1 9002- ● ● ●
278 HOSE; RUBBER,OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> 		1-11749-089-1 01 1 9002-9306 ●
278 HOSE; RUBBER,OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> 		1-11749-066-1 01 1 9002- ●
278 HOSE; RUBBER,OIL FILLER 1-11749-066-1 01 1 9002- ●
279 CLIP; RUBBER HOSE
EXC. OIL FILLER CAB BACK DELETE<E6X> ID=40 		9-09916-024-1 02 1 9002- ● ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL FILLER CAB BACK DELETE<E6X> ID=35.7 		1-09623-026-0 01 1 9002-9003 ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL FILLER CAB BACK DELETE<E6X> ID=35.7 		1-09623-416-0 01 1 9004-9503 ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. DESERT ZONE PACKAGE(W01) ID=35.7 		1-09623-416-0 01 1 9504- ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9002- ●
430 WASHER; LK,BRKT,OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> SPRING ID=10.2 		9-09150-510-0 02 1 9002-9306 ● ●
430 WASHER; LK,BRKT,OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> PLAIN ID=10.5 OD=18 		9-09160-510-0 02 1 9002-9306 ● ●
434 NUT; OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> M8 		9-09110-408-0 04 1 9002- ● ● ●
434 NUT; OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> M10 FLANGE 		0-91150-110-0 02 1 9002- ● ●
448 FILLER; OIL
EXC. OIL FILLER CAB BACK DELETE<E6X> (A) 		1-11740-212-1 01 1 9002- ● ● ●
448 FILLER; OIL
EXC. OIL FILLER CAB BACK DELETE<E6X> (B) 		1-13341-142-1 01 1 9002- ● ● ●
449 BOLT; OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9002-9204 ● ●
449 BOLT; OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9205-9304 ● ●
449 BOLT; OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER 		9-01960-825-0 02 1 9002-9204 ● ●
449 BOLT; OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9205-9304 ● ●
449 BOLT; OIL FILLER
EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE 		0-28080-820-0 04 1 9305- ● ● ●
