5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#23249) — 72 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀
[501A] CROSS MEMBER AND BRACKET(NO.1) (9 parça)
[501A] CROSS MEMBER AND BRACKET(NO.4) (9 parça)
[501A] RIVET,BOLT AND NUT (17 parça)
[501A] FRAME ASM (3 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (15 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (19 parça)
▶
17
20
17
2
34
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
MEMBER; CROSS,1ST
THA
8-97912-910-0
01
1
0508-
●
●
●
17
GUSSET; 1ST C/MBR
THA
8-97916-470-0
02
1
0508-
●
●
●
20
MEMBER; CROSS,2ND
4JB1-TC ENG<RDT> THA
8-97912-891-0
01
1
0508-
●
●
20
MEMBER; CROSS,2ND
4HG1-T ENG<RDP> THA
8-97922-321-0
01
1
0508-
●
34
MEMBER; CROSS,3RD
4JB1-TC ENG<RDT> THA
8-97916-507-0
01
1
0508-
●
34
MEMBER; CROSS,3RD
4JB1-TC ENG<RDT> THA
8-97916-509-0
01
1
0508-
●
34
MEMBER; CROSS,3RD
4HG1-T ENG<RDP> THA
8-97916-508-1
01
1
0508-
●
42
MEMBER; CROSS,ENG MTG
4JB1-TC ENG<RDT> THA
8-97916-300-0
01
1
0508-
●
●
42
MEMBER; CROSS,ENG MTG
4HG1-T ENG<RDP> THA
8-97917-486-0
01
1
0508-
●
217
142
142
103
103
173
147
147
229
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
103
STOPPER; SUB SPR
(A) THA
8-97223-749-0
02
1
0508-
●
●
103
STOPPER; SUB SPR
(B) THA
8-97223-751-0
02
1
0508-
●
●
142
BRACKET; FLEX HOSE,BRAKE
4JB1-TC ENG<RDT> (A) THA
8-97047-775-1
01
1
0508-
●
142
BRACKET; FLEX HOSE,BRAKE
(B) THA
8-97035-308-0
01
1
0508-
●
●
147
RUBBER; SUB SPRING
8-97254-387-0
04
1
0508-
●
●
173
STIFFENER; RR SPRING
REAR THA
8-97916-487-0
02
1
0508-
●
●
173
STIFFENER; RR SPRING
FRONT THA
8-97916-778-1
01
1
0508-
●
●
217
BRACKET; HELPER RUBBER,RR SPRING
4JB1-TC ENG<RDT> THA
8-97917-266-0
02
1
0508-
●
229
REINFORCEMENT; S/ABS RR,FRAME
4HG1-T ENG<RDP> THA
8-97205-441-0
01
1
0508-
●
376
376
376
376
376
376
376
376
376
376
376
376
376
176
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
118
NUT; STOPPER
M8 LOCK NUT
9-09131-508-0
04
1
0508-0601
●
●
118
NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
04
1
0602-
●
●
176
BOLT; C/MBR,ENG MTG
M10X25 FLANGE
0-28081-025-0
08
1
0508-0512
●
●
●
176
BOLT; C/MBR,ENG MTG
M10X25 FLANGE THA
0-28051-025-0
08
1
0601-
●
●
●
376
RIVET; FRAME
(A) D8X20 TAPER END
9-06750-820-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(B) D8X22 TAPER END
9-06750-822-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(C) D8X28 TAPER END
9-06750-828-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(D) D10X24 TAPER END
9-06751-024-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(E) D10X26 TAPER END
9-06751-026-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(F) D10X28 TAPER END
9-06751-028-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(G) D10X30 TAPER END
9-06751-030-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(H) D10X32 TAPER END
9-06751-032-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(I) D10X36 TAPER END
9-06751-036-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(J) D12X30 TAPER END
9-06751-230-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(K) D12X32 TAPER END
9-06751-232-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(L) D12X34 TAPER END
9-06751-234-0
AR
1
0508-
●
●
●
376
RIVET; FRAME
(M) D12X38 TAPER END
9-06751-238-0
AR
1
0508-
●
●
●

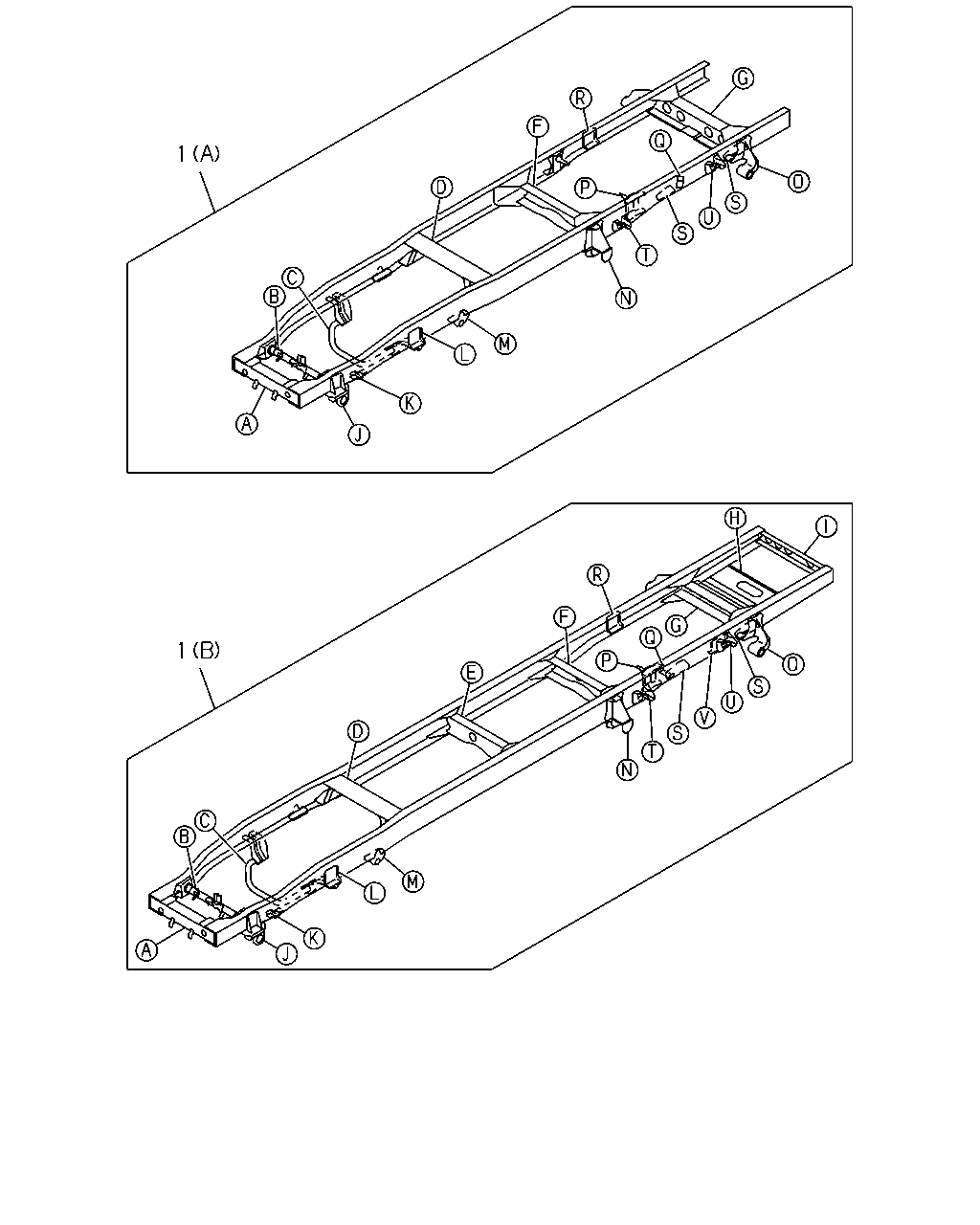

1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
FRAME ASM
4JB1-TC ENG<RDT> (A) THA
8-97922-322-0
01
1
0508-
●
1
FRAME ASM
4JB1-TC ENG<RDT> (A) THA
8-97922-323-0
01
1
0508-
●
1
FRAME ASM
4HG1-T ENG<RDP> (B) THA
8-97922-316-0
01
1
0508-
●

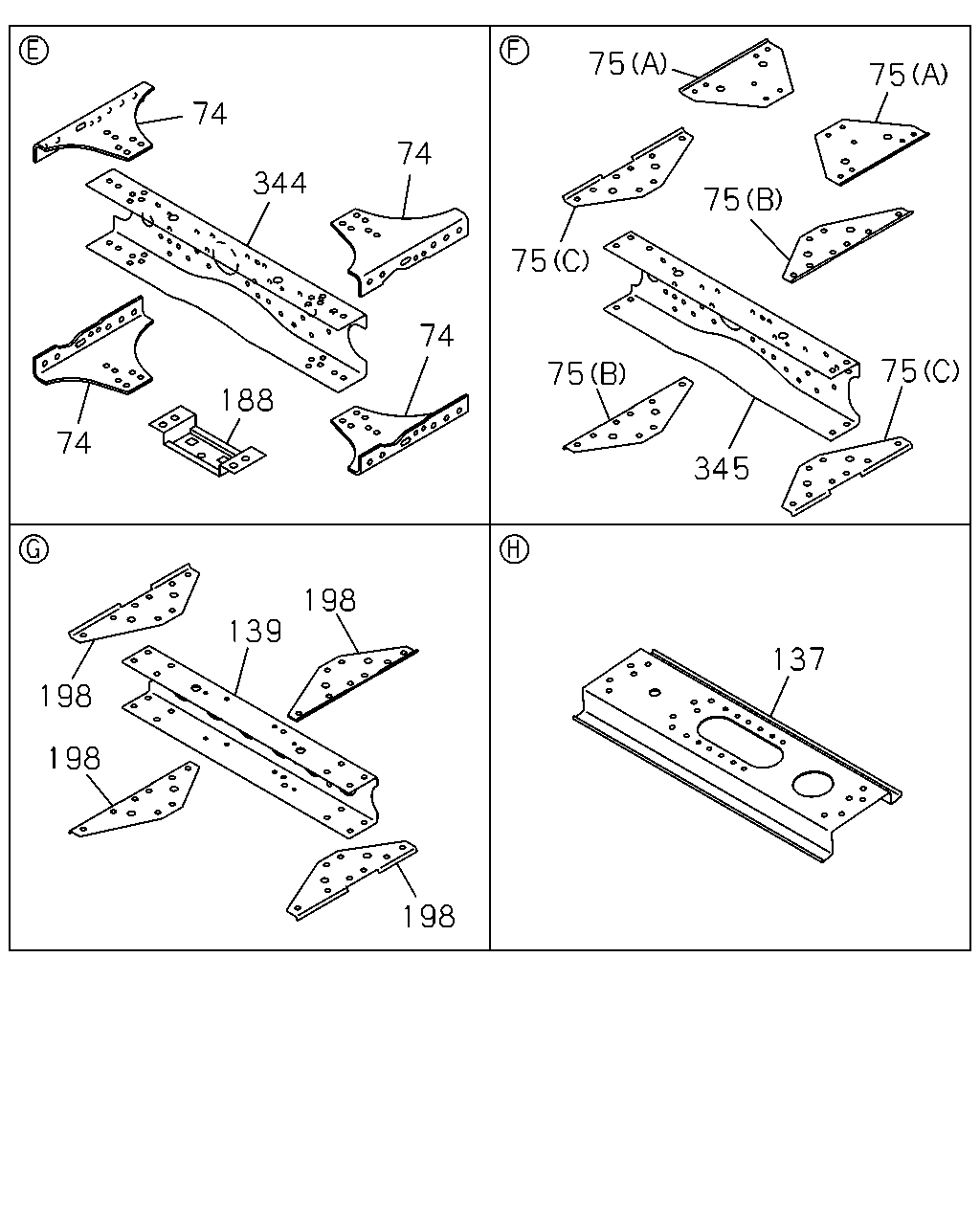

75
75
74
74
344
75
75
74
75
75
188
74
345
198
139
137
198
198
198
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
74
GUSSET; 4TH C/MBR
4HG1-T ENG<RDP> RH LOWER,LH UPPER THA
8-97916-812-0
02
1
0508-
●
74
GUSSET; 4TH C/MBR
4HG1-T ENG<RDP> RH UPPER,LH LOWER THA
8-97916-813-0
02
1
0508-
●
75
GUSSET; 5TH C/MBR
4JB1-TC ENG<RDT> (A) THA
8-97916-494-0
02
1
0508-
●
75
GUSSET; 5TH C/MBR
(B) THA
8-97916-481-0
02
1
0508-
●
●
75
GUSSET; 5TH C/MBR
(C) THA
8-97916-482-0
02
1
0508-
●
●
137
BRACKET; SPARE TIRE
4HG1-T ENG<RDP> THA
8-97205-235-1
01
1
0508-
●
139
MEMBER; CROSS,6TH
4JB1-TC ENG<RDT> THA
8-97916-988-0
01
1
0508-
●
139
MEMBER; CROSS,6TH
THA
8-97918-350-0
01
1
0508-
●
●
188
BRACKET; SUPPORT,CTR BRG
4HG1-T ENG<RDP> THA
8-97078-869-1
01
1
0508-
●
198
GUSSET; 6TH C/MBR
4JB1-TC ENG<RDT> THA
8-97916-495-0
02
1
0508-
●
198
GUSSET; 6TH C/MBR
RH UPPER,LH LOWER THA
8-97916-481-0
02
1
0508-
●
●
198
GUSSET; 6TH C/MBR
RH LOWER,LH UPPER THA
8-97916-482-0
02
1
0508-
●
●
344
MEMBER; CROSS,4TH
4HG1-T ENG<RDP> THA
8-97910-267-0
01
1
0508-
●
345
MEMBER; CROSS,5TH
4JB1-TC ENG<RDT> THA
8-97916-987-1
01
1
0508-
●
345
MEMBER; CROSS,5TH
THA
8-97916-876-1
01
1
0508-
●
●

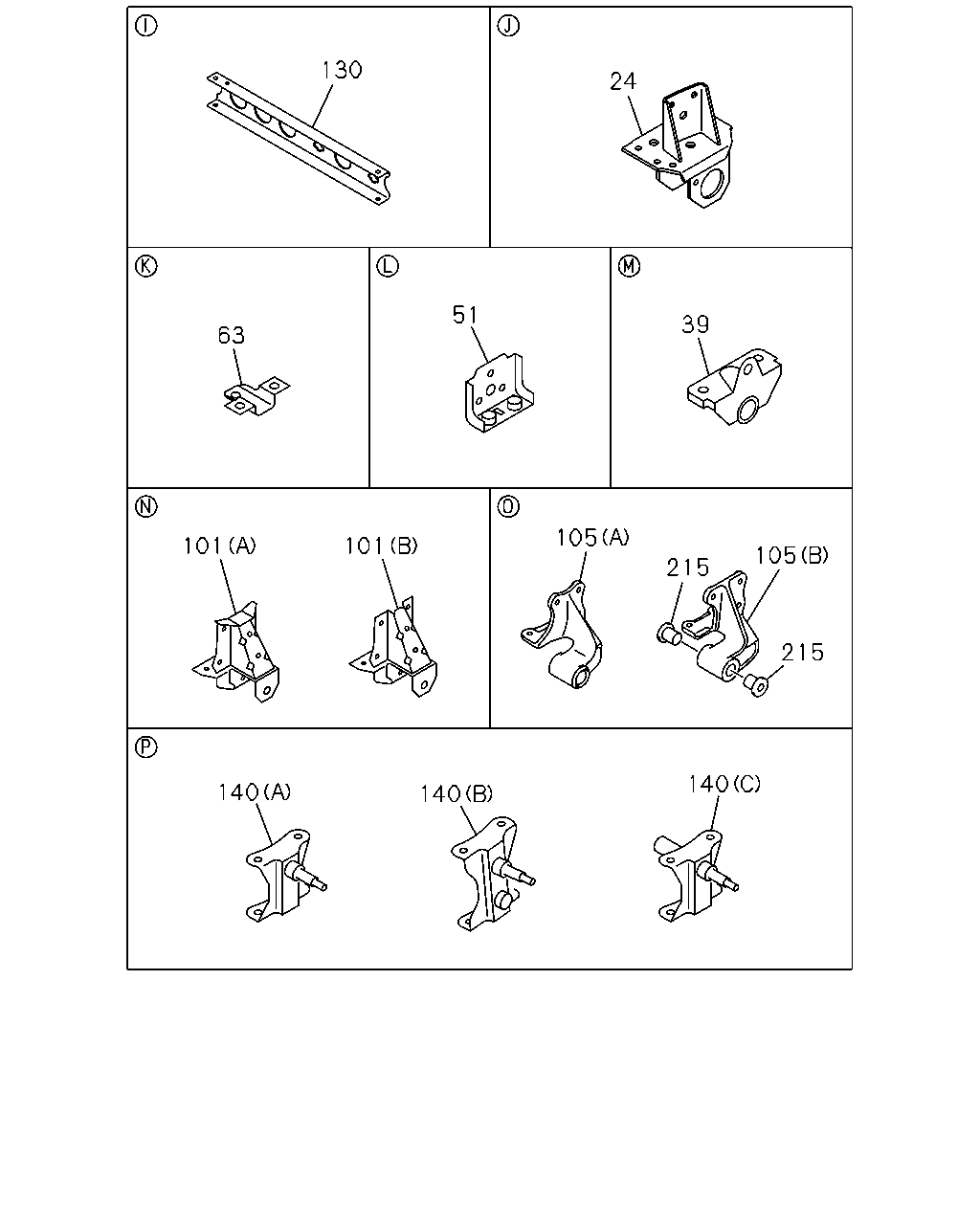

130
24
51
39
63
105
101
101
105
215
215
140
140
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
24
BRACKET; FRT SPR,FRT
4JB1-TC ENG<RDT> THA
8-94366-818-1
01
1
0508-
●
24
BRACKET; FRT SPR,FRT
4JB1-TC ENG<RDT> THA
8-97065-789-1
01
1
0508-
●
24
BRACKET; FRT SPR,FRT
THA
8-94366-816-1
01
1
0508-
●
●
24
BRACKET; FRT SPR,FRT
THA
8-97065-788-1
01
1
0508-
●
●
39
BRACKET; FRT SPR,RR
8-94258-091-0
02
1
0508-
●
●
●
51
BRACKET; ENG SUPPORT,OUTER
THA
8-97916-595-0
02
1
0508-
●
●
●
63
BRACKET; RAD MTG
THA
8-97916-925-0
01
1
0508-
●
●
●
101
BRACKET; RR SPR,FRT
4JB1-TC ENG<RDT> (A) THA
8-94258-093-1
02
1
0508-
●
101
BRACKET; RR SPR,FRT
(B)
8-97034-156-1
02
1
0508-
●
●
105
BRACKET; RR SPR,RR
4JB1-TC ENG<RDT> (A) THA
8-97915-066-0
01
1
0508-
●
105
BRACKET; RR SPR,RR
4JB1-TC ENG<RDT> (A) THA
8-97915-067-0
01
1
0508-
●
105
BRACKET; RR SPR,RR
(B) THA
8-97915-065-0
01
1
0508-
●
●
105
BRACKET; RR SPR,RR
(B) THA
8-97915-072-0
01
1
0508-
●
●
130
MEMBER; CROSS,END
4HG1-T ENG<RDP> THA
8-97916-497-0
01
1
0508-
●
140
BRACKET; S/ABS,RR
4JB1-TC ENG<RDT> (A) THA
8-94258-103-1
01
1
0508-
●
140
BRACKET; S/ABS,RR
4JB1-TC ENG<RDT> (A) THA
8-94258-104-1
01
1
0508-
●
140
BRACKET; S/ABS,RR
(C) THA
8-94101-303-0
01
1
0508-
●
●
140
BRACKET; S/ABS,RR
(B) THA
8-97012-285-0
01
1
0508-
●
●
215
BUSHING; BRKT,RR SPRING
THA
8-97184-699-1
04
1
0508-
●
●
