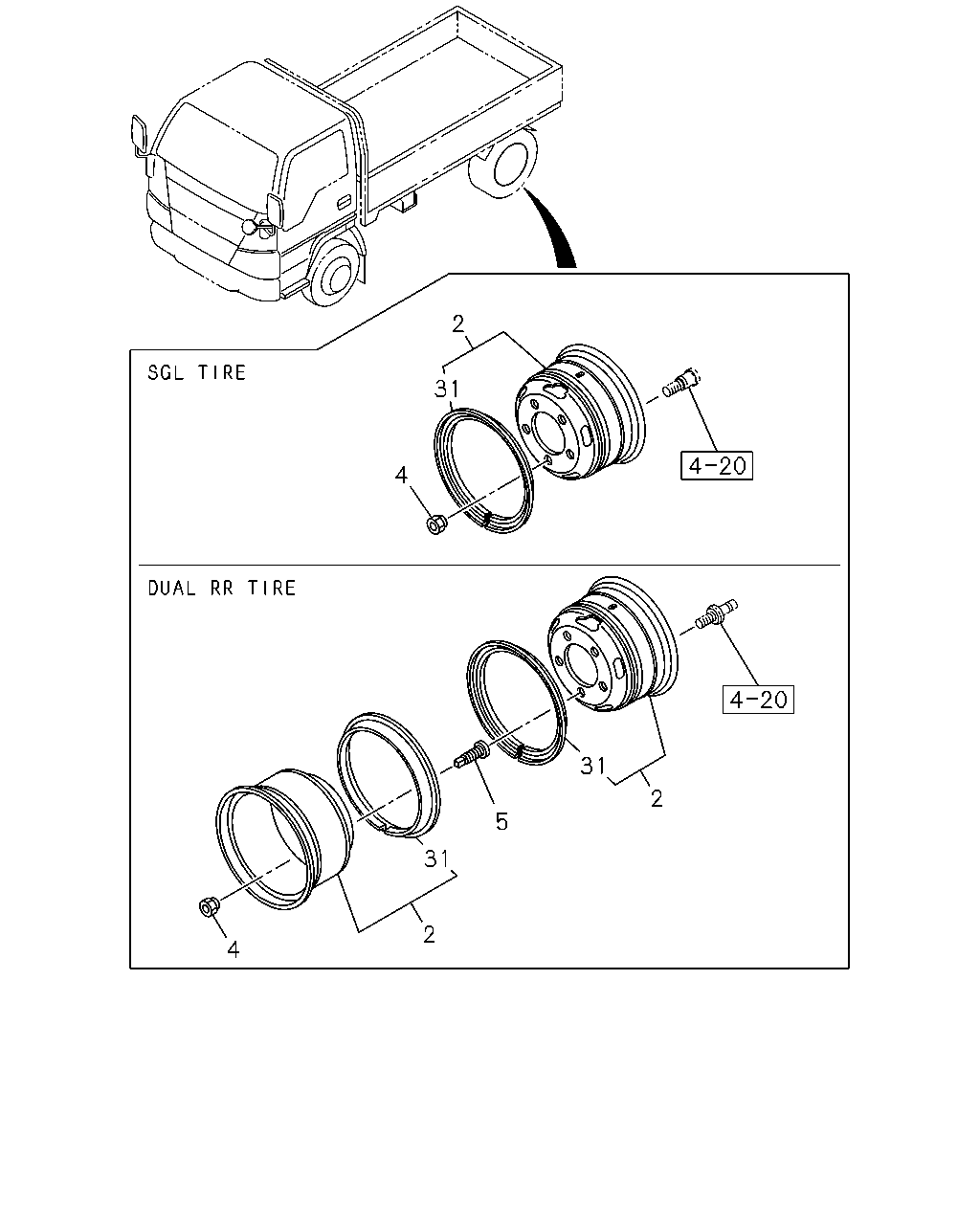

4-80 — ROAD WHEEL (#23248) — 48 parça

2 31 4 31 2 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC FRT&RR 7.5-15-10 THAILAND LOCALIZATION PART<AZJ> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-974-0	01	1	0508-	●
2	WHEEL; DISC FRT&RR 7.5-15-10 THAILAND LOCALIZATION PART<AZJ> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-974-0	04	1	0508-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-975-0	01	1	0508-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> REAR THA	8-97916-975-0	04	1	0508-		●
2	WHEEL; DISC FRONT THA	8-97916-975-0	02	1	0508-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	0508-			●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	0508-			●
4	NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	0508-0610	●
4	NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●
4	NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	0508-0610	●
4	NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	0508-0610		●	●
4	NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0611-		●	●
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	0508-0610		●	●
4	NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0611-		●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-94365-143-1	05	1	0508-0610		●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0611-		●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-94365-144-1	05	1	0508-0610		●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0611-		●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 THAILAND LOCALIZATION PART<AZJ> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-781-0	01	1	0508-	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-781-0	01	1	0508-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 THAILAND LOCALIZATION PART<AZJ> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-781-0	04	1	0508-	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-781-0	04	1	0508-		●
31	RING; SIDE,DISC WHEEL FRONT THA	8-97916-781-0	02	1	0508-		●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	0508-			●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	0508-			●

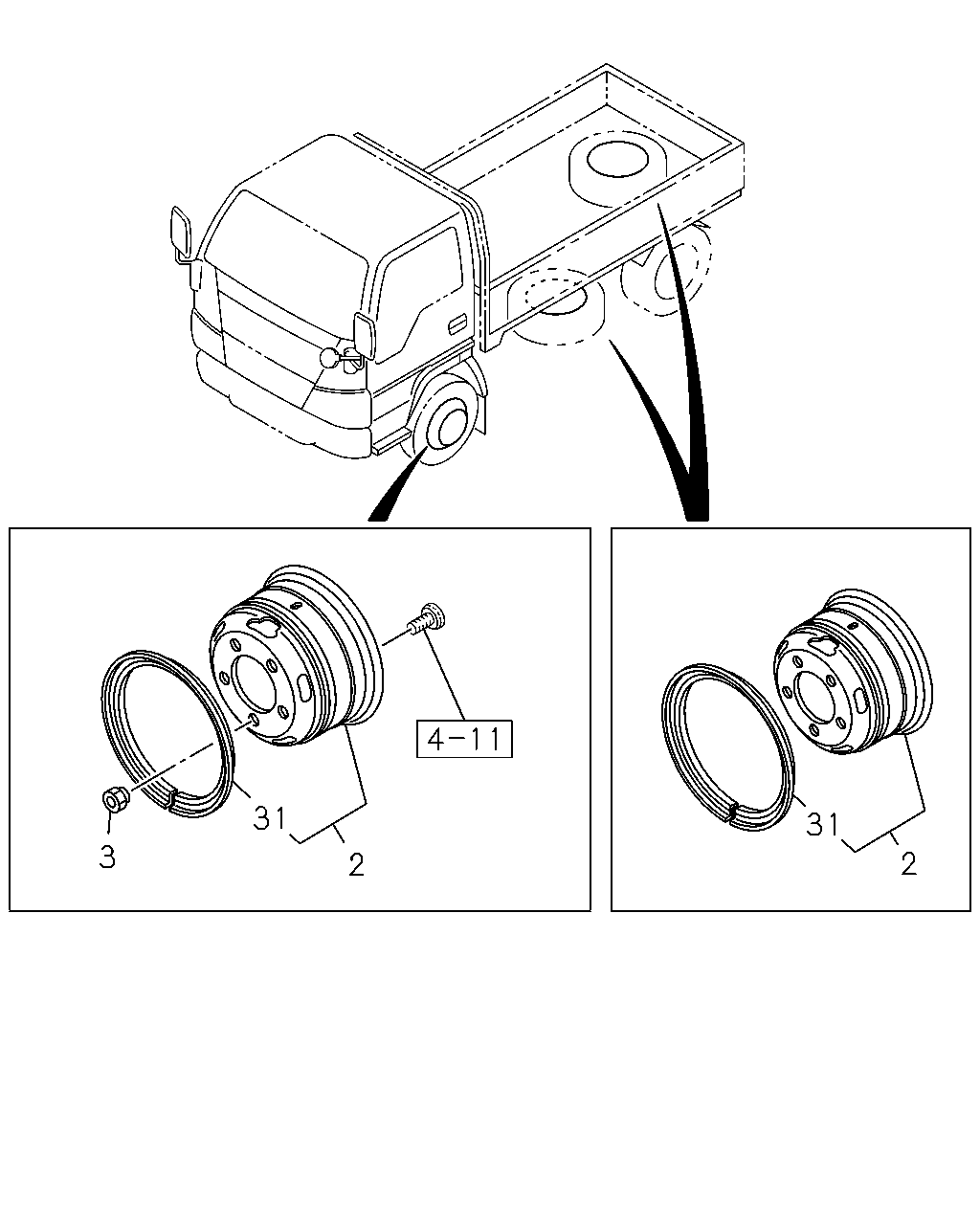

31 31 3 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	WHEEL; DISC FRT&RR 7.5-15-10 THAILAND LOCALIZATION PART<AZJ> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-974-0	01	1	0508-	●
2	WHEEL; DISC FRT&RR 7.5-15-10 THAILAND LOCALIZATION PART<AZJ> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-974-0	04	1	0508-	●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-975-0	01	1	0508-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> REAR THA	8-97916-975-0	04	1	0508-		●
2	WHEEL; DISC FRONT THA	8-97916-975-0	02	1	0508-		●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97915-709-0	01	1	0508-			●
2	WHEEL; DISC TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97915-709-0	06	1	0508-			●
3	NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0508-0610	●
3	NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●
3	NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0508-0610	●
3	NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	0508-0610		●	●
3	NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0611-		●	●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	0508-0610		●	●
3	NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0611-		●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 THAILAND LOCALIZATION PART<AZJ> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-781-0	01	1	0508-	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-781-0	01	1	0508-		●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 THAILAND LOCALIZATION PART<AZJ> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-781-0	04	1	0508-	●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-781-0	04	1	0508-		●
31	RING; SIDE,DISC WHEEL FRONT THA	8-97916-781-0	02	1	0508-		●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE THA	8-97916-782-0	01	1	0508-			●
31	RING; SIDE,DISC WHEEL TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR THA	8-97916-782-0	06	1	0508-			●
