◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65B - REAR LEAF SPRING ▶
4-65B — REAR LEAF SPRING (#23247) — 56 parça

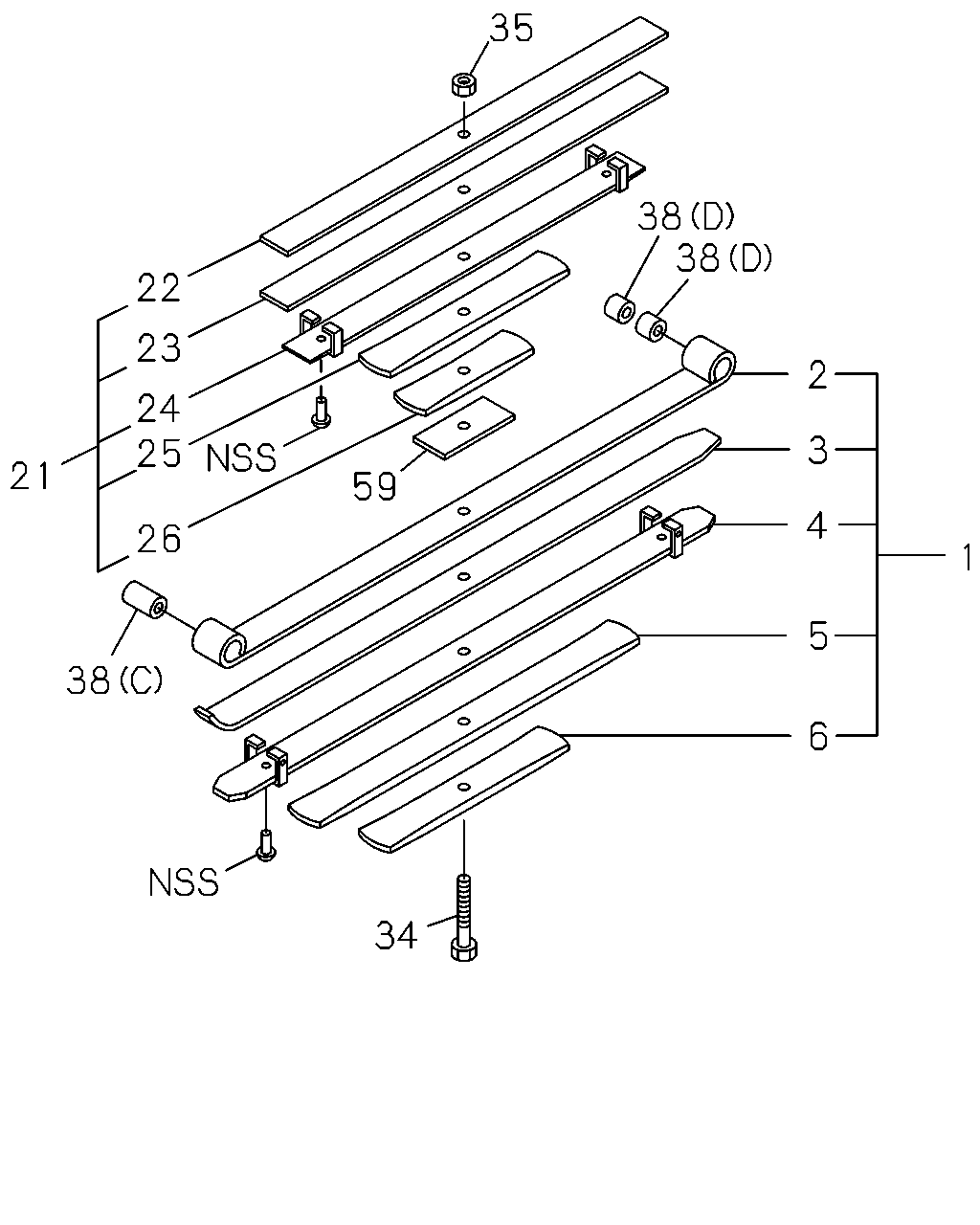

çizim 118976
35 38 38 22 23 2 24 25 3 21 59 4 26 1 5 38 6 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: B = 8-97073-224-1 		8-97103-035-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: A = 8-97070-509-1 		8-97108-417-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: D = 8-97912-813-0 		8-97912-840-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: C = 8-97910-222-0 		8-97918-690-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: B = 8-97073-224-1 		8-97103-036-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-97070-509-1 		8-97108-407-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: D = 8-97912-813-0 		8-97912-830-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: C = 8-97910-222-0 		8-97918-613-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: B = 8-97073-224-1 		8-97103-037-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-97070-509-1 		8-97108-408-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: D = 8-97912-813-0 		8-97912-831-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: C = 8-97910-222-0 		8-97918-614-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: B = 8-97073-224-1 		8-97103-038-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-97070-509-1 		8-97108-409-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: D = 8-97912-813-0 		8-97912-832-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: C = 8-97910-222-0 		8-97918-615-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: B = 8-97073-224-1 		8-97103-039-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: A = 8-97070-509-1 		8-97108-410-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: D = 8-97912-813-0 		8-97912-833-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: C = 8-97910-222-0 		8-97918-616-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: B = 8-97073-224-1 		8-97103-041-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: A = 8-97070-509-1 		8-97108-411-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: D = 8-97912-813-0 		8-97912-834-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
THA ASM PART: C = 8-97910-222-0 		8-97918-617-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: B = 8-97073-224-1 		8-97103-042-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: A = 8-97070-509-1 		8-97108-418-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: D = 8-97912-813-0 		8-97912-841-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: C = 8-97910-222-0 		8-97918-691-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: B = 8-97073-224-1 		8-97103-043-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: A = 8-97070-509-1 		8-97108-412-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: D = 8-97912-813-0 		8-97912-835-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: C = 8-97910-222-0 		8-97918-618-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: B = 8-97073-224-1 		8-97103-044-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: A = 8-97070-509-1 		8-97108-413-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: D = 8-97912-813-0 		8-97912-836-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: C = 8-97910-222-0 		8-97918-619-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: B = 8-97073-224-1 		8-97103-045-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: A = 8-97070-509-1 		8-97108-414-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: D = 8-97912-813-0 		8-97912-837-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: C = 8-97910-222-0 		8-97918-620-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: B = 8-97073-224-1 		8-97103-046-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: A = 8-97070-509-1 		8-97108-415-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: D = 8-97912-813-0 		8-97912-838-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: C = 8-97910-222-0 		8-97918-621-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: B = 8-97073-224-1 		8-97103-047-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: A = 8-97070-509-1 		8-97108-416-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: D = 8-97912-813-0 		8-97912-839-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: C = 8-97910-222-0 		8-97918-622-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=125, THA ASM PART: A = 8-97070-509-1, B = 8-97073-224-1 		8-94165-311-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=125, THA ASM PART: C = 8-97910-222-0, D = 8-97912-813-0 		8-97912-843-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97070-509-1, B = 8-97073-224-1, C = 8-97910-222-0, D = 8-97912-813-0 		9-99110-512-0 01 1 -
38 BUSHING; LEAF SPR,RR
OD=40 L=43.7, THA ASM PART: A = 8-97070-509-1, B = 8-97073-224-1 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(C), OD=42 L=81 ASM PART: A = 8-97070-509-1, B = 8-97073-224-1, C = 8-97910-222-0, D = 8-97912-813-0 		8-97074-826-0 01 1 -
38 BUSHING; LEAF SPR,RR
(D), THA ASM PART: C = 8-97910-222-0, D = 8-97912-813-0 		8-97184-699-0 02 1 -
59 SEAT; RR SPRING,SUB
T=6, THA ASM PART: A = 8-97070-509-1, B = 8-97073-224-1 		8-94367-965-1 01 1 -
59 SEAT; RR SPRING,SUB
T=6, THA ASM PART: C = 8-97910-222-0, D = 8-97912-813-0 		8-97918-623-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
