4-65A — REAR LEAF SPRING (#23246) — 23 parça

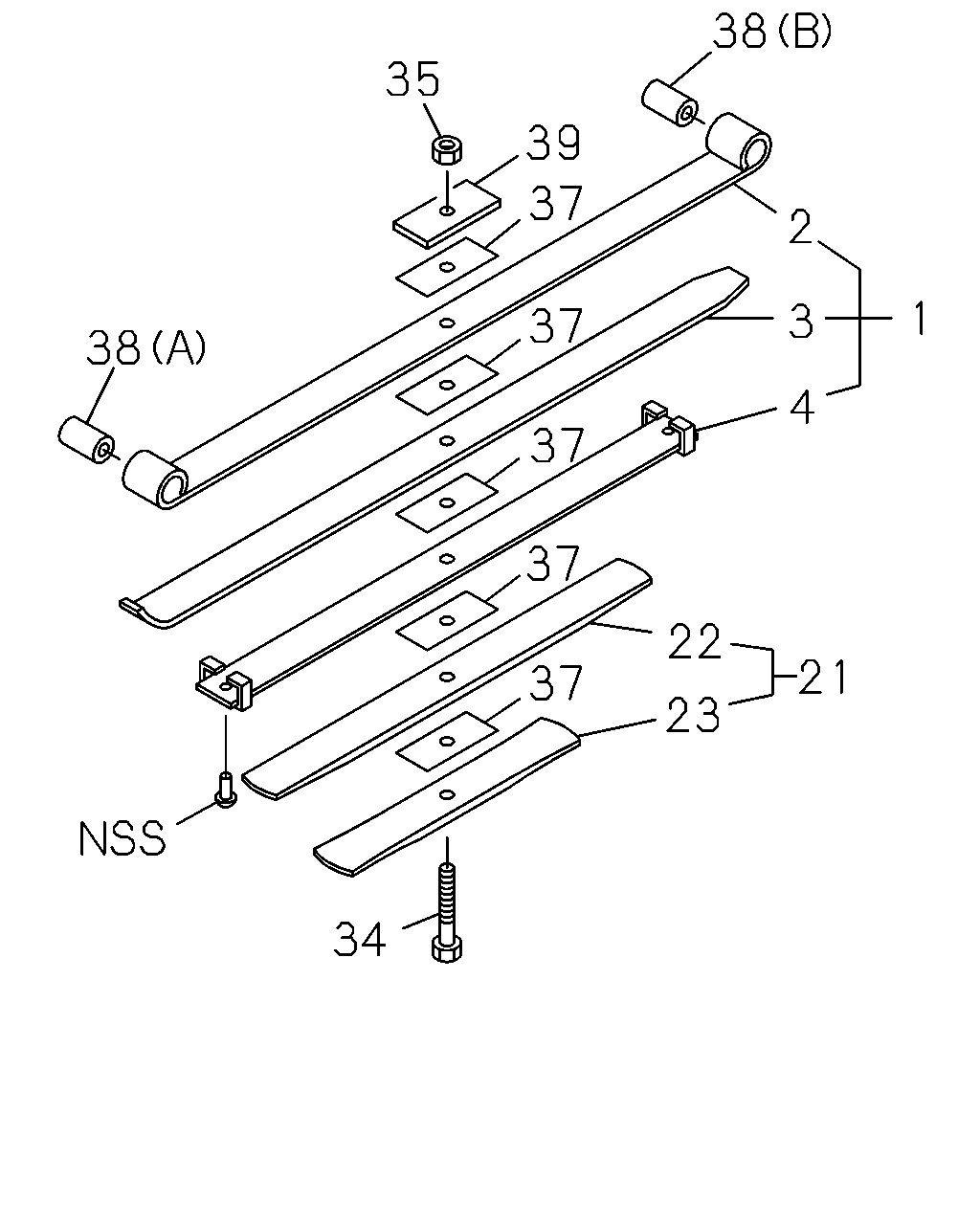

çizim 118972
38 35 39 37 2 1 3 37 38 4 37 37 22 21 37 23 34
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: A = 8-97033-505-1 		8-97085-589-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: B = 8-97910-223-0 		8-97918-692-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 8-97033-505-1 		8-97085-590-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: B = 8-97910-223-0 		8-97918-578-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 8-97033-505-1 		8-97085-591-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: B = 8-97910-223-0 		8-97918-582-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 8-97033-505-1 		8-97085-592-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: B = 8-97910-223-0 		8-97918-583-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: A = 8-97033-505-1 		8-97085-593-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: B = 8-97910-223-0 		8-97918-693-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: A = 8-97033-505-1 		8-97085-594-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: B = 8-97910-223-0 		8-97918-580-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: A = 8-97033-505-1 		8-97085-595-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: B = 8-97910-223-0 		8-97918-581-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=100, THA ASM PART: A = 8-97033-505-1 		8-94165-306-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=100, THA ASM PART: B = 8-97910-223-0 		8-97918-637-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-97033-505-1, B = 8-97910-223-0 		9-99110-512-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1, THA ASM PART: A = 8-97033-505-1 		8-94448-734-0 05 1 -
37 SPACER; CENTER,LEAF SPR,RR
THA ASM PART: B = 8-97910-223-0 		8-97918-632-0 05 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-97033-505-1, B = 8-97910-223-0 		8-94130-354-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=85.2 ASM PART: A = 8-97033-505-1, B = 8-97910-223-0 		8-97034-380-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12, THA ASM PART: A = 8-97033-505-1 		8-94407-146-1 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12, THA ASM PART: B = 8-97910-223-0 		8-97918-628-0 01 1 -
