4-61 — SHOCK ABSORBER; REAR SUSPENSION (#23245) — 24 parça

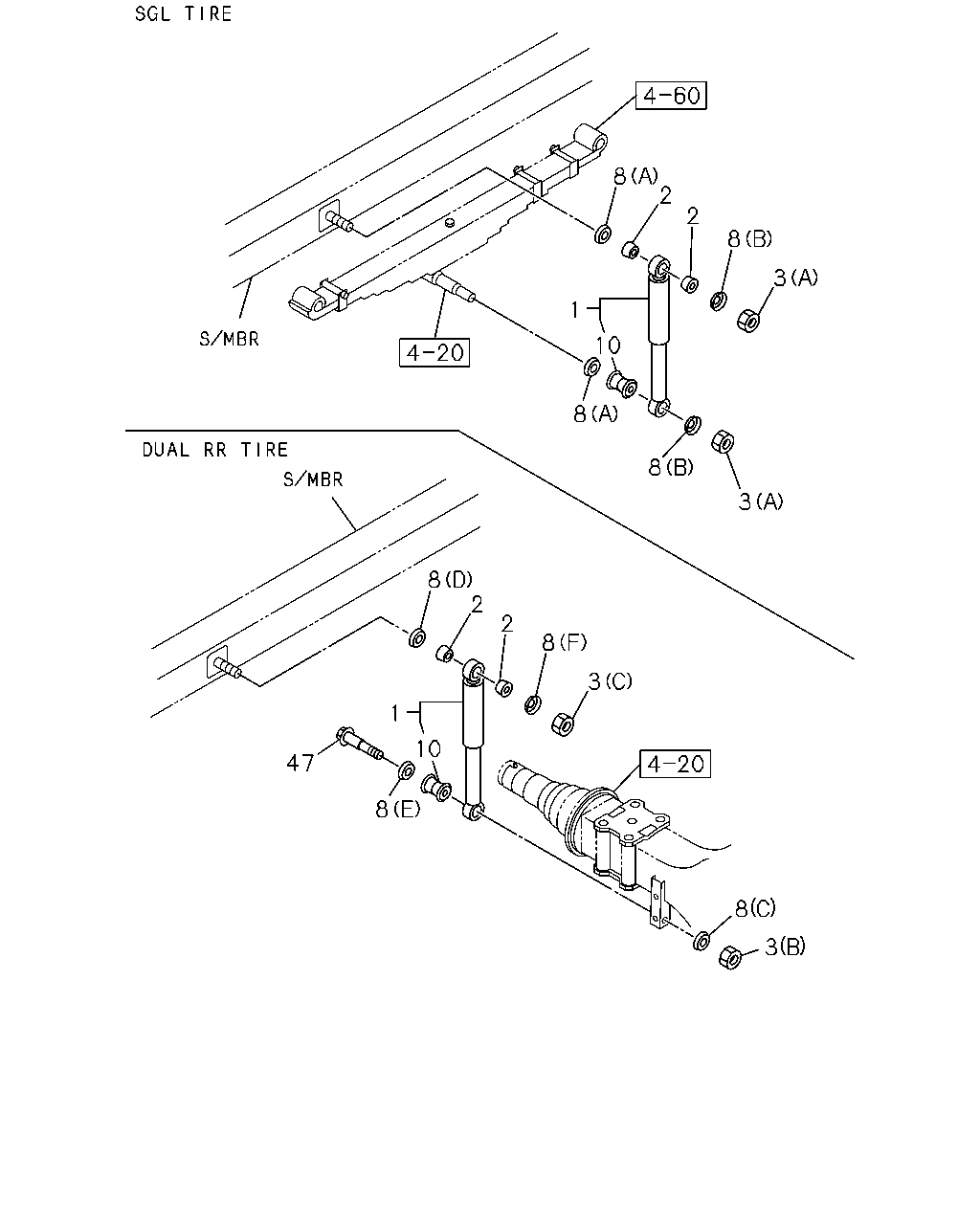

çizim 118974
8 2 2 8 3 1 10 8 8 3 8 2 2 8 3 1 10 8 47 8 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ABSORBER ASM; SHOCK,RR
THA 		8-97921-280-0 02 1 0508- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97921-281-0 02 1 0508- ● ●
2 BUSHING; RUBBER,S/ABS,LWR
THA 		8-97916-996-0 04 1 0508- ●
2 BUSHING; RUBBER,S/ABS,LWR
THA 		8-97916-997-0 04 1 0508- ● ●
3 NUT; S/ABS
(A) M12 		9-99110-412-0 04 1 0508-0512 ●
3 NUT; S/ABS
(A) M12 		0-91110-512-0 04 1 0601- ●
3 NUT; S/ABS
(C) M14 		9-99111-414-0 02 1 0508-0512 ● ●
3 NUT; S/ABS
(C) M14 		0-91111-514-0 02 1 0601-0612 ● ●
3 NUT; S/ABS
(C) M14 THA 		0-91110-514-0 02 1 0701- ● ●
3 NUT; S/ABS
(B) M16 		9-99111-516-0 02 1 0508-0512 ● ●
3 NUT; S/ABS
(B) M16 THA 		0-91111-516-0 02 1 0601- ● ●
8 WASHER; S/ABS
(A) ID=16.5 		9-51679-021-0 04 1 0508- ●
8 WASHER; S/ABS
(B) ID=12.5 		9-51679-022-0 04 1 0508- ●
8 WASHER; S/ABS
(E) ID=16.4 		8-94137-482-1 02 1 0508-0610 ● ●
8 WASHER; S/ABS
(E) ID=16.4 		8-97360-118-0 02 1 0611- ● ●
8 WASHER; S/ABS
(C) ID=16.5 		8-97070-925-1 02 1 0508-0611 ● ●
8 WASHER; S/ABS
(C) ID=16.5 		8-98011-489-0 02 1 0612- ● ●
8 WASHER; S/ABS
(F) ID=15.0 		9-51679-012-0 02 1 0508-0611 ● ●
8 WASHER; S/ABS
(F) ID=15 		8-97360-056-0 02 1 0612- ● ●
8 WASHER; S/ABS
(D) ID=20.0 		9-51679-013-0 02 1 0508-0611 ● ●
8 WASHER; S/ABS
(D) ID=20.0 		8-97360-057-0 02 1 0612- ● ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97918-633-0 02 1 0508- ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97918-645-0 02 1 0508- ● ●
47 PIN; S/ABS SETTING 8-97316-972-0 02 1 0508- ● ●
