4-60 — REAR SUSPENSION (#23244) — 65 parça

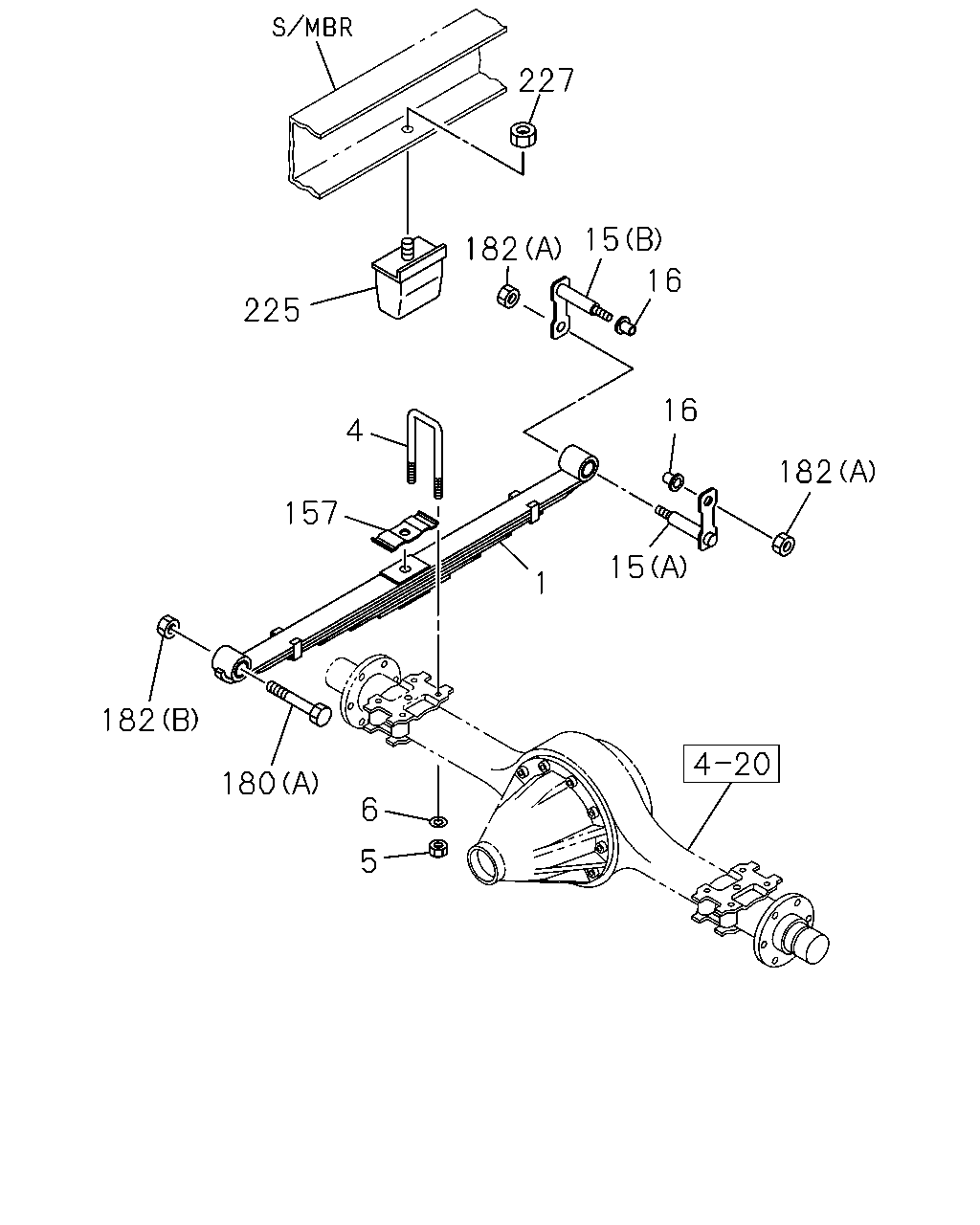

227 15 182 16 225 16 4 182 157 15 1 182 180 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF THA	8-97910-223-0	02	1	0508-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA	8-97910-222-0	02	1	0508-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA	8-97912-813-0	02	1	0508-			●
4	U-BOLT; RR SPR L=235 THA	8-97916-751-0	04	1	0508-	●
4	U-BOLT; RR SPR L=265 THA	8-97916-753-0	04	1	0508-		●
4	U-BOLT; RR SPR L=285 THA	8-97916-746-0	04	1	0508-			●
5	NUT; U-BOLT,RR SPR M16	8-94107-767-0	08	1	0508-0611	●	●	●
5	NUT; U-BOLT,RR SPR M16	8-97360-121-0	08	1	0612-	●	●	●
6	WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0508-0610	●	●	●
6	WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0611-	●	●	●
15	SHACKLE; RR SPR (A) OUTSIDE THA	8-97916-651-0	02	1	0508-	●
15	SHACKLE; RR SPR (B) INSIDE THA	8-97916-756-0	02	1	0508-	●
15	SHACKLE; RR SPR (C) THA	8-97916-534-0	02	1	0508-		●	●
15	SHACKLE; RR SPR (D) W/PIN THA	8-97916-652-0	02	1	0508-		●	●
16	BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	0508-	●
157	CLAMP; UPR,RR SPR L=130 T=4.5	8-94119-069-2	02	1	0508-	●	●
157	CLAMP; UPR,RR SPR L=140 T=4.5	8-94118-509-1	02	1	0508-			●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0508-0610	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97360-110-0	02	1	0611-	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0508-0610		●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0611-		●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) L=122 THA	8-97916-533-0	02	1	0508-	●	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) L=130 THA	8-97916-757-0	02	1	0508-		●	●
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97147-389-0	06	1	0508-0610	●
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97360-125-0	06	1	0611-	●
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97147-389-0	04	1	0508-0610		●	●
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97360-125-0	04	1	0611-		●	●
182	NUT; PIN,RR SPR (B) M18	9-99110-518-0	02	1	0508-0512		●	●
182	NUT; PIN,RR SPR (B) M18 THA	0-91110-518-0	02	1	0601-		●	●
225	RUBBER; CUSHION,RR SPR THA	8-97916-767-1	02	1	0508-	●
225	RUBBER; CUSHION,RR SPR THA	8-97916-766-0	02	1	0508-		●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-112-0	02	1	0508-	●	●	●

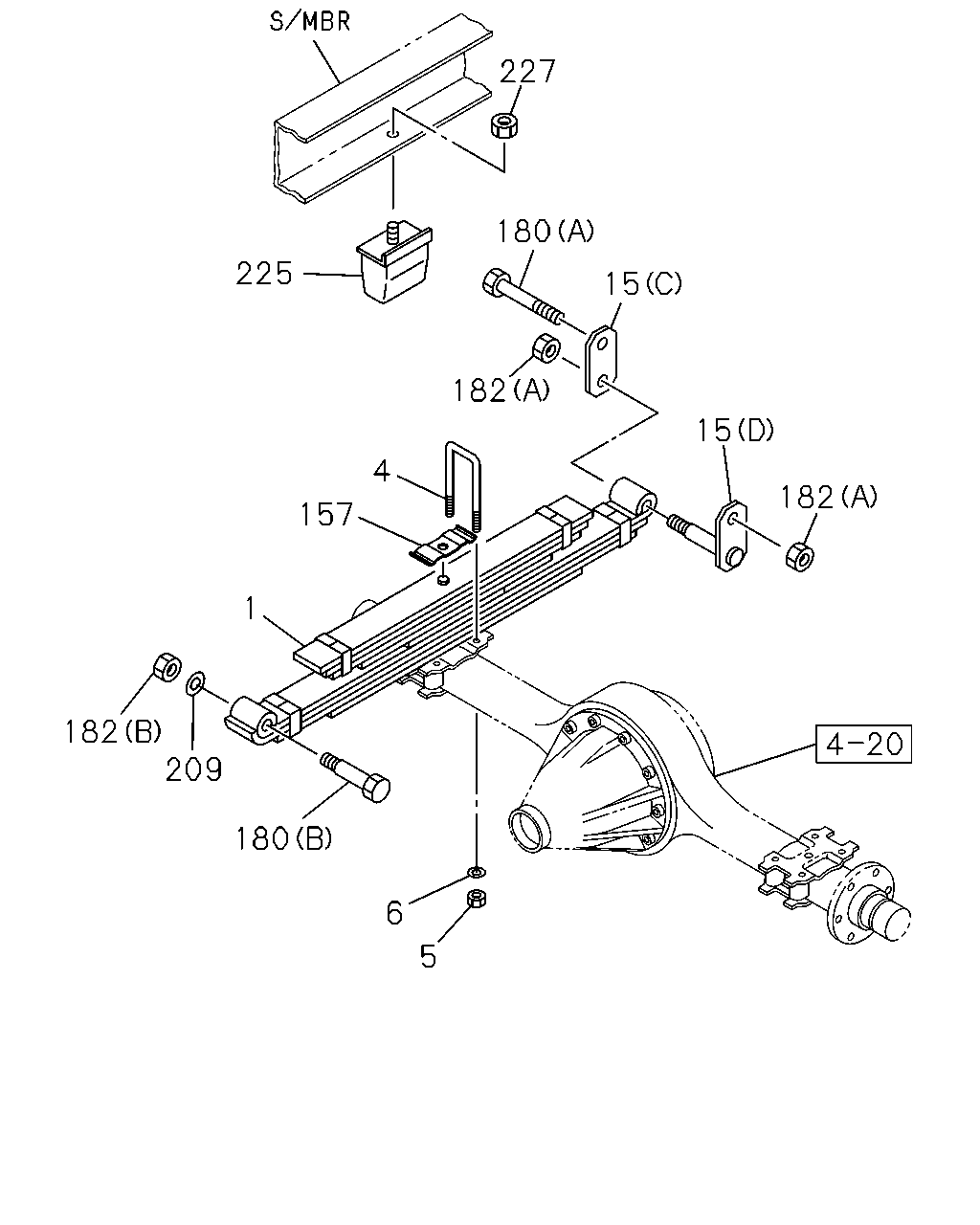

227 180 225 15 182 15 4 182 157 1 182 209 180 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF THA	8-97910-223-0	02	1	0508-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA	8-97910-222-0	02	1	0508-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF THA	8-97912-813-0	02	1	0508-			●
4	U-BOLT; RR SPR L=235 THA	8-97916-751-0	04	1	0508-	●
4	U-BOLT; RR SPR L=265 THA	8-97916-753-0	04	1	0508-		●
4	U-BOLT; RR SPR L=285 THA	8-97916-746-0	04	1	0508-			●
5	NUT; U-BOLT,RR SPR M16	8-94107-767-0	08	1	0508-0611	●	●	●
5	NUT; U-BOLT,RR SPR M16	8-97360-121-0	08	1	0612-	●	●	●
6	WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0508-0610	●	●	●
6	WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0611-	●	●	●
15	SHACKLE; RR SPR (A) OUTSIDE THA	8-97916-651-0	02	1	0508-	●
15	SHACKLE; RR SPR (B) INSIDE THA	8-97916-756-0	02	1	0508-	●
15	SHACKLE; RR SPR (C) THA	8-97916-534-0	02	1	0508-		●	●
15	SHACKLE; RR SPR (D) W/PIN THA	8-97916-652-0	02	1	0508-		●	●
157	CLAMP; UPR,RR SPR L=130 T=4.5	8-94119-069-2	02	1	0508-	●	●
157	CLAMP; UPR,RR SPR L=140 T=4.5	8-94118-509-1	02	1	0508-			●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0508-0610	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97360-110-0	02	1	0611-	●	●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0508-0610		●	●
180	PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0611-		●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (A) L=122 THA	8-97916-533-0	02	1	0508-	●	●	●
180	PIN; RR SPR KD PREPARATORY PACK<6HF> (B) L=130 THA	8-97916-757-0	02	1	0508-		●	●
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97147-389-0	06	1	0508-0610	●
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97360-125-0	06	1	0611-	●
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97147-389-0	04	1	0508-0610		●	●
182	NUT; PIN,RR SPR (A) M16 FLANGE	8-97360-125-0	04	1	0611-		●	●
182	NUT; PIN,RR SPR (B) M18	9-99110-518-0	02	1	0508-0512		●	●
182	NUT; PIN,RR SPR (B) M18 THA	0-91110-518-0	02	1	0601-		●	●
209	WASHER; PL ID=19	8-97073-435-1	02	1	0508-0611		●	●
209	WASHER; PL ID=19	8-97360-119-0	02	1	0612-		●	●
225	RUBBER; CUSHION,RR SPR THA	8-97916-767-1	02	1	0508-	●
225	RUBBER; CUSHION,RR SPR THA	8-97916-766-0	02	1	0508-		●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-112-0	02	1	0508-	●	●	●
