◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55C - FRONT LEAF SPRING ▶
4-55C — FRONT LEAF SPRING (#23243) — 39 parça

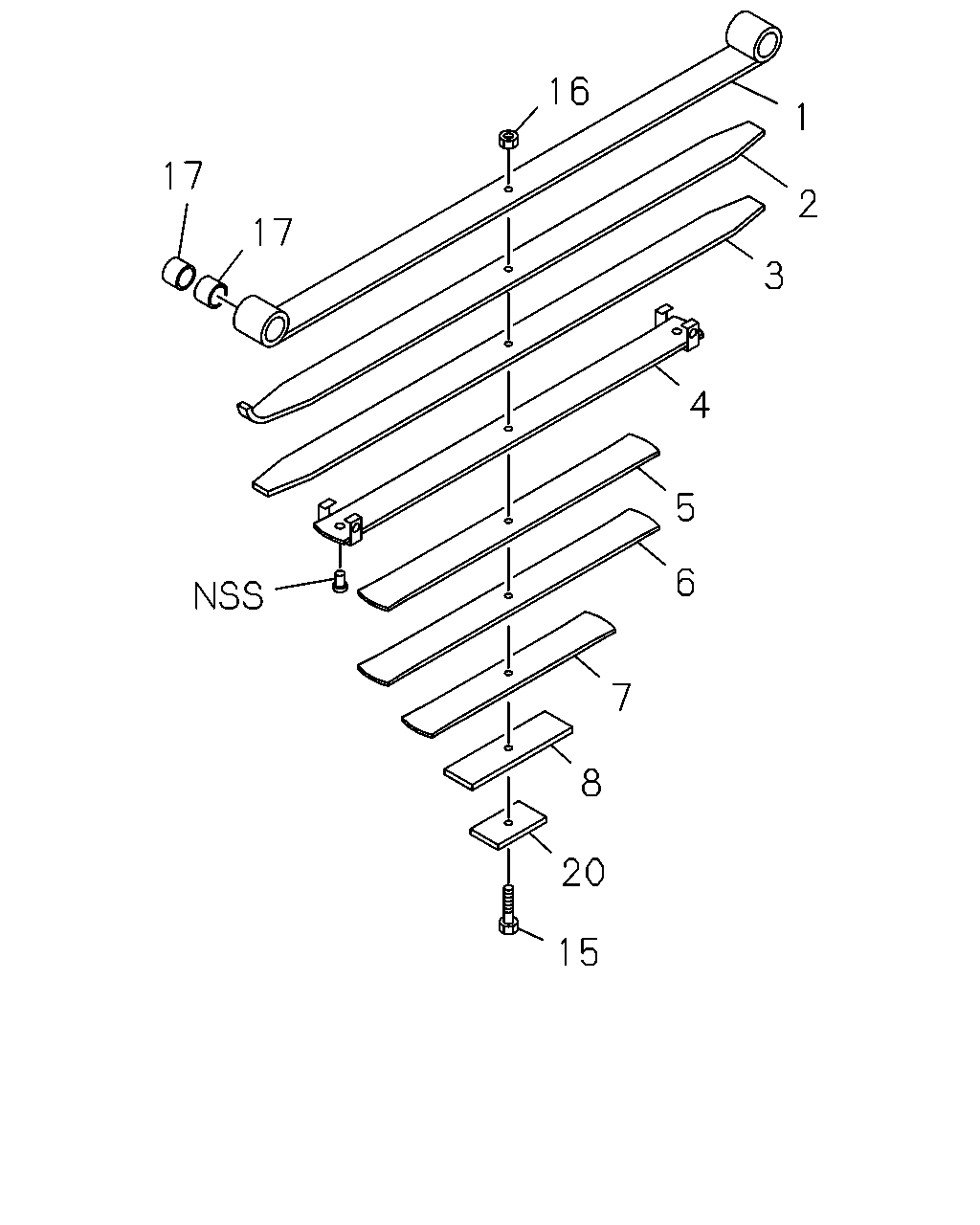

çizim 118963
16 1 17 2 17 3 4 5 6 7 8 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: A = 8-97070-510-1 		8-97108-419-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: B = 8-97070-511-1 		8-97108-427-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: C = 8-97912-811-0 		8-97912-814-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: D = 8-97912-812-0 		8-97912-822-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: A = 8-97070-510-1 		8-97108-420-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: B = 8-97070-511-1 		8-97108-428-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: C = 8-97912-811-0 		8-97912-815-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: D = 8-97912-812-0 		8-97912-823-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: A = 8-97070-510-1 		8-97108-421-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: B = 8-97070-511-1 		8-97108-429-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: C = 8-97912-811-0 		8-97912-816-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: D = 8-97912-812-0 		8-97912-824-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: A = 8-97070-510-1 		8-97108-422-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: B = 8-97070-511-1 		8-97108-430-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: C = 8-97912-811-0 		8-97912-817-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: D = 8-97912-812-0 		8-97912-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: A = 8-97070-510-1 		8-97108-423-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: B = 8-97070-511-1 		8-97108-431-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: C = 8-97912-811-0 		8-97912-818-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: D = 8-97912-812-0 		8-97912-826-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: A = 8-97070-510-1 		8-97108-424-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: B = 8-97070-511-1 		8-97108-432-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: C = 8-97912-811-0 		8-97912-819-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: D = 8-97912-812-0 		8-97912-827-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: A = 8-97070-510-1 		8-97108-425-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: B = 8-97070-511-1 		8-97108-433-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: C = 8-97912-811-0 		8-97912-820-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: D = 8-97912-812-0 		8-97912-828-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
THA ASM PART: A = 8-97070-510-1 		8-97108-426-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
THA ASM PART: B = 8-97070-511-1 		8-97108-434-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
THA ASM PART: C = 8-97912-811-0 		8-97912-821-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
THA ASM PART: D = 8-97912-812-0 		8-97912-829-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=95, THA ASM PART: A = 8-97070-510-1, B = 8-97070-511-1 		8-97108-550-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=95, THA ASM PART: C = 8-97912-811-0, D = 8-97912-812-0 		8-97912-842-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10, THA ASM PART: A = 8-97070-510-1, B = 8-97070-511-1, D = 8-97912-812-0 		1-09400-055-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
THA ASM PART: C = 8-97912-811-0 		8-97918-647-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=56, THA ASM PART: A = 8-97070-510-1, B = 8-97070-511-1, C = 8-97912-811-0, D = 8-97912-812-0 		8-94463-020-0 04 1 -
20 SEAT; LEAF SPR,FRT
T=8, THA ASM PART: A = 8-97070-510-1, B = 8-97070-511-1 		8-94360-988-1 01 1 -
20 SEAT; LEAF SPR,FRT
THA ASM PART: C = 8-97912-811-0, D = 8-97912-812-0 		8-97918-624-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
