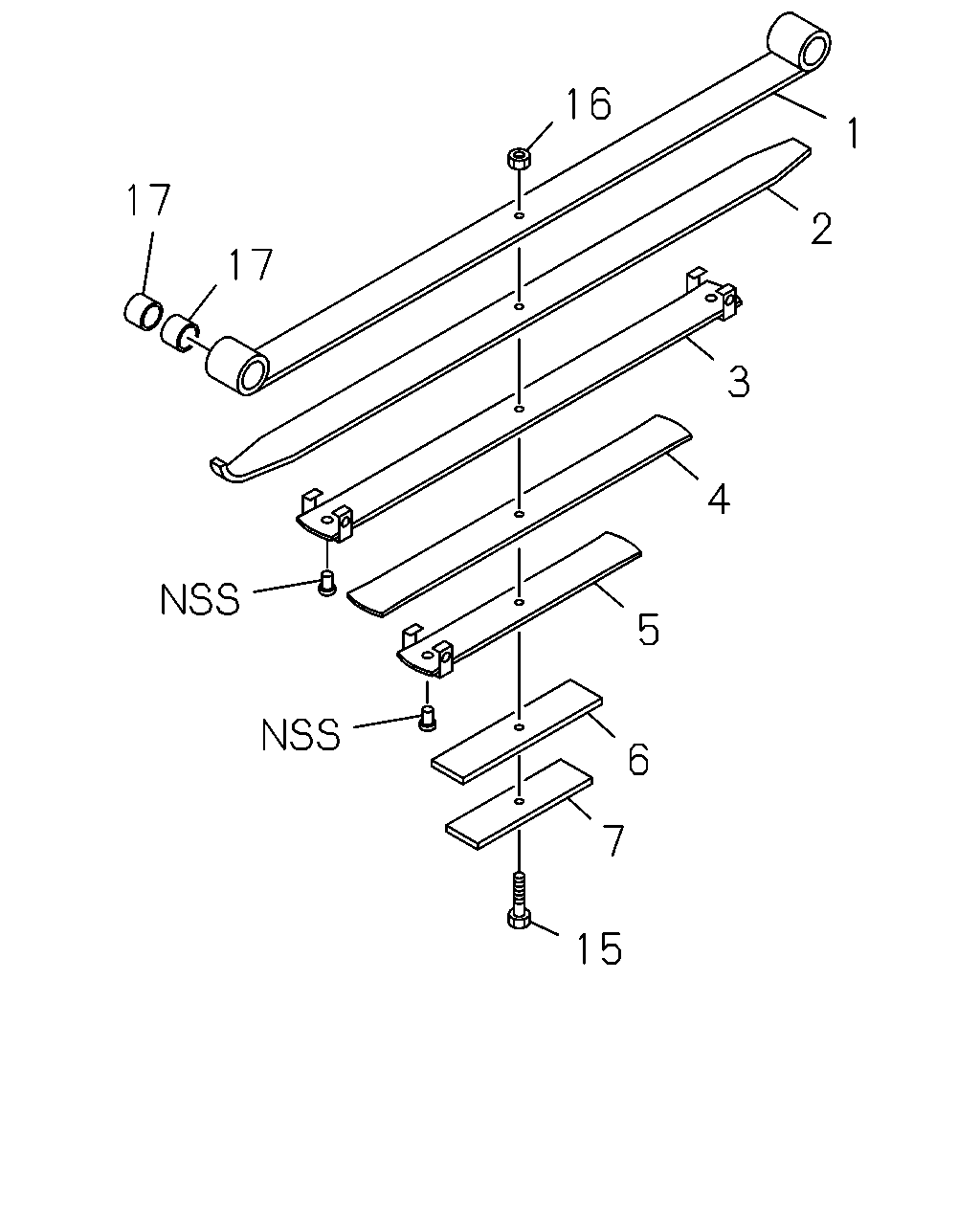

4-55B — FRONT LEAF SPRING (#23242) — 33 parça

16 1 17 2 17 3 4 5 6 7 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT THA ASM PART: A = 8-94343-094-3	8-94327-457-1	01	1	-
1	SPRING; LEAF,NO 1,FRT THA ASM PART: B = 8-94343-095-3	8-94327-458-1	01	1	-
1	SPRING; LEAF,NO 1,FRT THA ASM PART: C = 8-97910-224-0	8-97921-026-0	01	1	-
1	SPRING; LEAF,NO 1,FRT THA ASM PART: D = 8-97910-228-0	8-97921-033-0	01	1	-
2	SPRING; LEAF,NO 2,FRT THA ASM PART: B = 8-94343-095-3	8-94158-819-1	01	1	-
2	SPRING; LEAF,NO 2,FRT THA ASM PART: A = 8-94343-094-3	8-94158-826-1	01	1	-
2	SPRING; LEAF,NO 2,FRT THA ASM PART: C = 8-97910-224-0	8-97921-027-0	01	1	-
2	SPRING; LEAF,NO 2,FRT THA ASM PART: D = 8-97910-228-0	8-97921-034-0	01	1	-
3	SPRING; LEAF,NO 3,FRT THA ASM PART: B = 8-94343-095-3	8-94158-820-3	01	1	-
3	SPRING; LEAF,NO 3,FRT THA ASM PART: A = 8-94343-094-3	8-94158-827-3	01	1	-
3	SPRING; LEAF,NO 3,FRT THA ASM PART: C = 8-97910-224-0	8-97921-028-0	01	1	-
3	SPRING; LEAF,NO 3,FRT THA ASM PART: D = 8-97910-228-0	8-97921-035-0	01	1	-
4	SPRING; LEAF,NO 4,FRT THA ASM PART: B = 8-94343-095-3	8-94158-821-1	01	1	-
4	SPRING; LEAF,NO 4,FRT THA ASM PART: A = 8-94343-094-3	8-94158-828-1	01	1	-
4	SPRING; LEAF,NO 4,FRT THA ASM PART: C = 8-97910-224-0	8-97921-029-0	01	1	-
4	SPRING; LEAF,NO 4,FRT THA ASM PART: D = 8-97910-228-0	8-97921-036-0	01	1	-
5	SPRING; LEAF,NO 5,FRT THA ASM PART: B = 8-94343-095-3	8-94158-822-3	01	1	-
5	SPRING; LEAF,NO 5,FRT THA ASM PART: A = 8-94343-094-3	8-94158-829-3	01	1	-
5	SPRING; LEAF,NO 5,FRT THA ASM PART: C = 8-97910-224-0	8-97921-030-0	01	1	-
5	SPRING; LEAF,NO 5,FRT THA ASM PART: D = 8-97910-228-0	8-97921-037-0	01	1	-
6	SPRING; LEAF,NO 6,FRT THA ASM PART: B = 8-94343-095-3	8-94158-823-1	01	1	-
6	SPRING; LEAF,NO 6,FRT THA ASM PART: A = 8-94343-094-3	8-94158-830-0	01	1	-
6	SPRING; LEAF,NO 6,FRT THA ASM PART: C = 8-97910-224-0	8-97921-031-0	01	1	-
6	SPRING; LEAF,NO 6,FRT THA ASM PART: D = 8-97910-228-0	8-97921-038-0	01	1	-
7	SPRING; LEAF,NO 7,FRT THA ASM PART: B = 8-94343-095-3	8-94158-824-1	01	1	-
7	SPRING; LEAF,NO 7,FRT THA ASM PART: A = 8-94343-094-3	8-94158-831-1	01	1	-
7	SPRING; LEAF,NO 7,FRT THA ASM PART: C = 8-97910-224-0	8-97921-032-0	01	1	-
7	SPRING; LEAF,NO 7,FRT THA ASM PART: D = 8-97910-228-0	8-97921-039-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=72, THA ASM PART: A = 8-94343-094-3, B = 8-94343-095-3	8-94165-278-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=72, THA ASM PART: C = 8-97910-224-0, D = 8-97910-228-0	8-97921-024-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M10, THA ASM PART: A = 8-94343-094-3, B = 8-94343-095-3, C = 8-97910-224-0, D = 8-97910-228-0	9-09110-010-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=56, THA ASM PART: A = 8-94343-094-3, B = 8-94343-095-3	8-94463-020-0	04	1	-
17	BUSHING; LEAF SPR,FRT THA ASM PART: C = 8-97910-224-0, D = 8-97910-228-0	8-97921-023-0	04	1	-
