4-55A — FRONT LEAF SPRING (#23241) — 29 parça

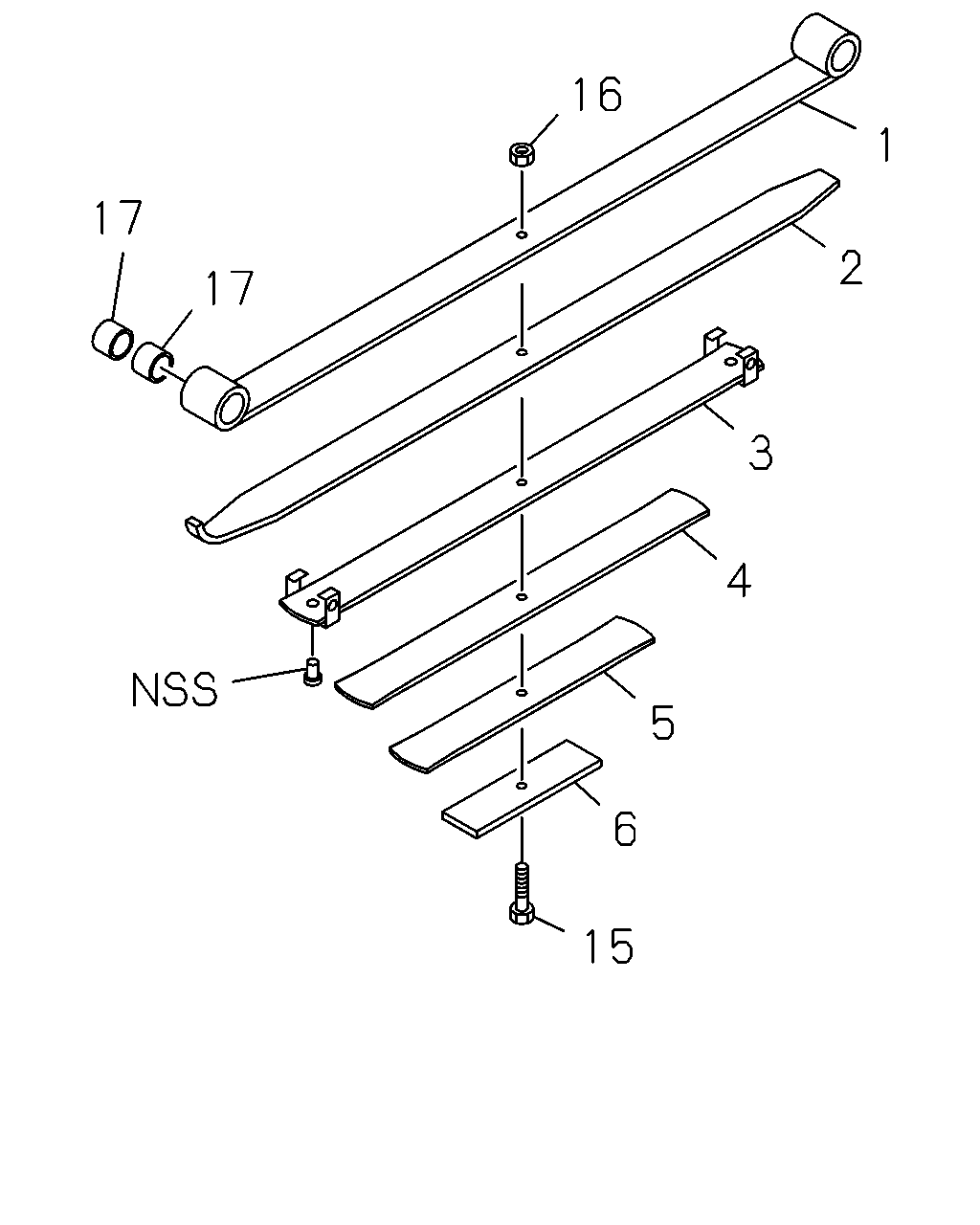

çizim 118962
16 1 17 2 17 3 4 5 6 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: A = 8-97071-625-2 		8-97075-476-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: B = 8-97071-626-2 		8-97075-482-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: C = 8-97910-225-0 		8-97921-040-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: D = 8-97910-227-0 		8-97921-046-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: A = 8-97071-625-2 		8-97075-477-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: B = 8-97071-626-2 		8-97075-483-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: C = 8-97910-225-0 		8-97921-041-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: D = 8-97910-227-0 		8-97921-047-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: A = 8-97071-625-2 		8-97075-478-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: B = 8-97071-626-2 		8-97075-484-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: C = 8-97910-225-0 		8-97921-042-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: D = 8-97910-227-0 		8-97921-048-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: A = 8-97071-625-2 		8-97075-479-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: B = 8-97071-626-2 		8-97075-485-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: C = 8-97910-225-0 		8-97921-043-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: D = 8-97910-227-0 		8-97921-049-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: A = 8-97071-625-2 		8-97075-480-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: B = 8-97071-626-2 		8-97075-486-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: C = 8-97910-225-0 		8-97921-044-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: D = 8-97910-227-0 		8-97921-050-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: A = 8-97071-625-2 		8-97075-481-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: B = 8-97071-626-2 		8-97075-487-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: C = 8-97910-225-0 		8-97921-045-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: D = 8-97910-227-0 		8-97921-051-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=64, THA ASM PART: A = 8-97071-625-2, B = 8-97071-626-2 		8-94165-274-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=64, THA ASM PART: C = 8-97910-225-0, D = 8-97910-227-0 		8-97921-025-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10, THA ASM PART: A = 8-97071-625-2, B = 8-97071-626-2, C = 8-97910-225-0, D = 8-97910-227-0 		9-09110-010-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=56, THA ASM PART: A = 8-97071-625-2, B = 8-97071-626-2 		8-94463-020-0 04 1 -
17 BUSHING; LEAF SPR,FRT
THA ASM PART: C = 8-97910-225-0, D = 8-97910-227-0 		8-97921-023-0 04 1 -
