4-50 — FRONT SUSPENSION (#23240) — 40 parça

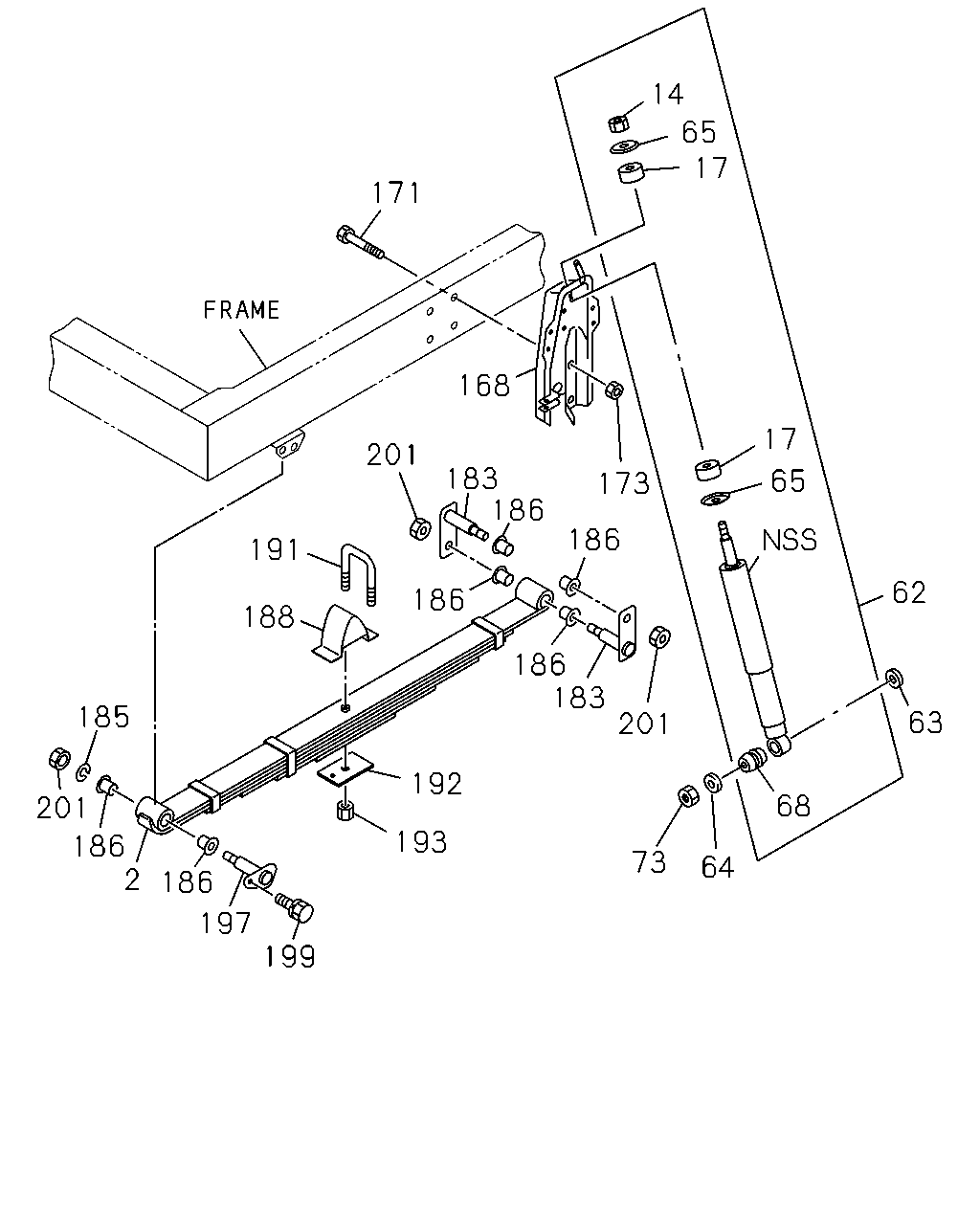

çizim 118971
14 65 17 171 168 17 201 183 186 65 173 186 191 62 186 188 186 183 185 63 201 192 68 201 193 186 2 73 64 186 197 199
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF THA 		8-97910-225-0 01 1 0508- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF THA 		8-97910-227-0 01 1 0508- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA 		8-97910-224-0 01 1 0508- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA 		8-97910-228-0 01 1 0508- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-97912-811-0 01 1 0508- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-97912-812-0 01 1 0508- ●
14 NUT; S/ABS,UPR
THA 		8-97913-313-0 02 1 0508- ● ● ●
17 BUSHING; RUBBER,S/ABS
THA 		8-97913-310-0 04 1 0508- ● ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97922-328-1 02 1 0508- ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97922-329-0 02 1 0508- ● ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		9-09164-616-0 02 1 0508-1011 ● ● ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ● ●
64 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 0508- ● ● ●
65 WASHER; S/ABS
THA 		8-97913-312-0 04 1 0508- ● ● ●
68 BUSHING; S/ABS
THA 		8-97918-633-0 02 1 0508- ● ● ●
73 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 0508-0512 ● ● ●
73 NUT; BRKT,SHOCK
M12 		0-91111-512-0 02 1 0601- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-007-1 01 1 0508- ● ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-015-1 01 1 0508- ● ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0508-0611 ● ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE THA 		0-28651-030-0 08 1 0612- ● ● ●
173 NUT; S/ABS
M10 FLANGE 		0-91150-210-0 08 1 0508- ● ● ●
183 SHACKLE; FRT SUSP
THA 		8-97916-535-0 04 1 0508- ● ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-97070-925-1 02 1 0508-0611 ● ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 02 1 0612- ● ● ●
186 BUSHING; SHACKLE 8-97081-531-0 12 1 0508- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97916-931-0 02 1 0508- ● ● ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=95 THA 		8-97304-073-1 02 1 0508- ●
191 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=105 THA 		8-97304-074-1 02 1 0508- ●
191 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=95 THA 		8-97916-748-0 04 1 0508- ●
191 U-BOLT; FRT SPR
L=105 THA 		8-97916-750-0 04 1 0508- ●
191 U-BOLT; FRT SPR
L=115 THA 		8-97916-747-0 04 1 0508- ●
192 PIECE; DIST 8-94249-413-1 02 1 0508- ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0508-0610 ● ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0611- ● ● ●
197 PIN; FRT SPR,FRT
THA 		8-97916-559-0 02 1 0508- ● ● ●
199 BOLT
M10X25 FLANGE 		0-28681-025-0 02 1 0508-0611 ● ● ●
199 BOLT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0612- ● ● ●
201 NUT; PIN LK
M16 FLANGE 		8-97147-389-0 06 1 0508-0610 ● ● ●
201 NUT; PIN LK
M16 FLANGE 		8-97360-125-0 06 1 0611- ● ● ●
