Sayfa 0-52A - Isuzu EPC

0-52A — OIL AND VACUUM PIPING; ENGINE (#2324) — 170 parça

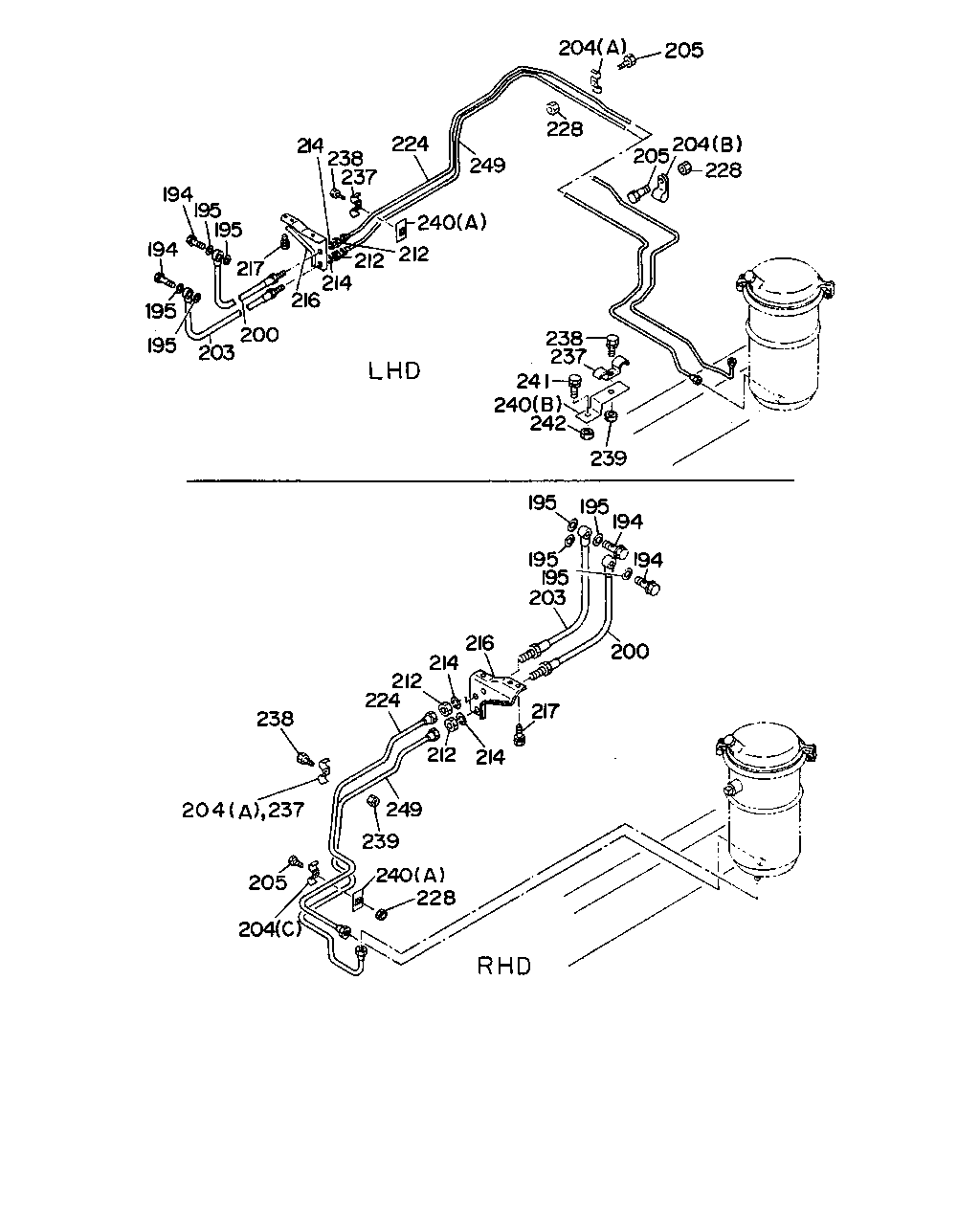

195 195 194 194 195 214 195 217 203 200 216 214 212 212 240 237 238 224 249 228 204 205 204 205 228 238 237 241 240 242 239 195 195 194 195 194 195 203 216 214 212 224 238 204 237 205 204 228 240 239 212 249 217 214 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-	●	●	●
195	GASKET; EYE BOLT,PARTIAL FILTER ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●	●	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY L=500	1-09364-487-0	01	1	9002-9310		●	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S> L=500	1-09364-487-0	01	1	9002-9310	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY L=440	1-09364-488-0	01	1	9311-			●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=500	1-09364-656-0	01	1	9002-9310		●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN EXC. OIL FILTER CENTRIFUGAL<E6S> L=500	1-09364-656-0	01	1	9002-9310	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=440	1-09364-657-0	01	1	9311-			●
204	CLIP; OIL PIPE (C) ID=11 & 11 L=15 & 15	1-09700-656-0	02	1	9002-		●	●
204	CLIP; OIL PIPE EXZ&RHD(EX5*) (C) ID=11 & 11 L=15 & 15	1-09700-656-0	02	1	9002-	●
204	CLIP; OIL PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9002-		●	●
204	CLIP; OIL PIPE EXC. OIL FILTER CENTRIFUGAL<E6S> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9002-	●
204	CLIP; OIL PIPE EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> (B) ID=11X2 L=20	9-09535-036-0	01	1	9002-9306	●
205	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9009		●	●
205	BOLT; CLIP EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9009	●
205	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9010-		●	●
205	BOLT; CLIP EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	01	1	9010-	●
205	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9010-9204		●	●
205	BOLT; CLIP EXZ&RHD(EX5*) M8X16 W/LK WASHER	9-01900-816-0	02	1	9010-9204	●
205	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-		●	●
205	BOLT; CLIP EXZ&RHD(EX5*) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●
212	NUT; FLEX HOSE,PARTIAL FILTER M16	9-99111-416-0	02	1	9002-		●	●
212	NUT; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M16	9-99111-416-0	02	1	9002-	●
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER ID=16.2	9-09150-516-0	02	1	9002-		●	●
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=16.2	9-09150-516-0	02	1	9002-	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER	1-47475-296-1	01	1	9002-9310		●	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-47475-296-1	01	1	9002-9310	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER	1-47475-782-0	01	1	9311-			●
217	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204		●	●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
217	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9205-9410		●	●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 FLANGE	0-28080-820-0	02	1	9205-9410	●
217	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9411-			●
224	PIPE; OIL,DELIVERY	1-13312-709-1	01	1	9002-9306		●	●
224	PIPE; OIL,DELIVERY EXZ&RHD(EX5*)	1-13312-709-1	01	1	9002-9306	●
224	PIPE; OIL,DELIVERY	1-13313-277-0	01	1	9307-9310			●
224	PIPE; OIL,DELIVERY	1-13313-472-0	01	1	9311-			●
224	PIPE; OIL,DELIVERY EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13312-790-0	01	1	9002-9007	●
224	PIPE; OIL,DELIVERY EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-027-0	01	1	9008-9306	●
228	NUT; CLIP M8	9-09110-408-0	01	1	9002-		●	●
228	NUT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9002-	●
228	NUT; CLIP M8	9-09110-408-0	02	1	9010-		●	●
228	NUT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	02	1	9010-	●
237	CLIP; FLEX HOSE,PARTIAL FILTER ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9103		●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9103	●
237	CLIP; FLEX HOSE,PARTIAL FILTER EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> ID=11 & 11 L=15 & 15	1-09700-656-0	04	1	9002-9306	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9103		●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9103	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9306	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER M8	9-09110-408-0	01	1	9002-9103		●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9002-9103	●
240	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	9002-		●	●
240	BRACKET; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> (A) L=50	1-47475-299-2	01	1	9002-	●
240	BRACKET; CLIP (A) L=50	1-47475-299-2	02	1	9010-		●	●
240	BRACKET; CLIP EXZ&RHD(EX5*) (A) L=50	1-47475-299-2	02	1	9010-	●
240	BRACKET; CLIP EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> (A) L=50	1-47475-299-2	04	1	9002-9306	●
240	BRACKET; CLIP EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> (B)	1-47475-601-0	02	1	9002-9306	●
241	BOLT; CLIP BRKT EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
241	BOLT; CLIP BRKT EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●
242	NUT; CLIP BRKT EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	02	1	9002-9306	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE	1-13312-677-1	01	1	9002-9306		●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXZ&RHD(EX5*)	1-13312-677-1	01	1	9002-9306	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13312-791-0	01	1	9002-9007	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXZ&LHD(EX6*) EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-028-0	01	1	9008-9306	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE	1-13313-279-0	01	1	9307-9310			●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE	1-13313-473-0	01	1	9311-			●

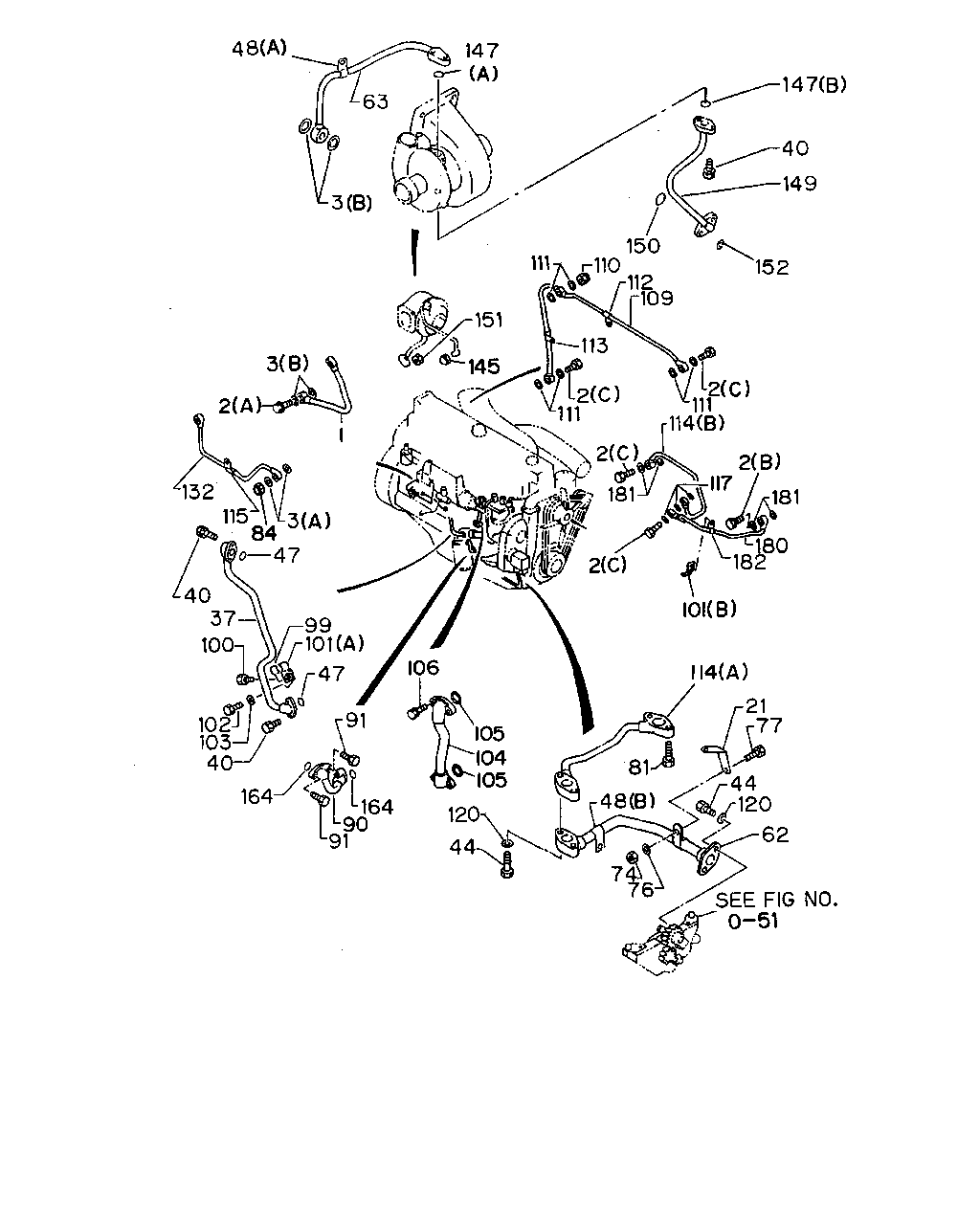

164 40 102 103 91 91 90 164 47 101 99 100 40 47 37 84 115 132 3 1 2 3 3 63 147 48 147 40 149 152 150 110 111 151 145 113 112 109 2 111 2 111 114 2 2 117 181 2 181 180 182 101 114 21 77 44 120 62 81 48 74 76 44 120 105 106 104 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	1-13312-205-0	01	1	9002-		●	●
1	PIPE; OIL,INJ PUMP TO C/BL	9-13312-675-0	01	1	9002-9306	●
2	BOLT; EYE,OIL PIPE (B) M10X32	1-09675-119-0	01	1	9002-	●	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	04	1	9002-9306	●	●	●
2	BOLT; EYE,OIL PIPE EXC. OIL FILLER CAB BACK DELETE<E6X> (A) M12X27 FLANGE	1-09675-085-0	01	1	9002-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	04	1	9307-9503			●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	04	1	9504-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	04	1	9002-	●	●	●
21	STAY; OIL PIPE	1-13345-105-1	01	1	9002-	●	●	●
37	PIPE; OIL,FILTER TO COOLER	1-13311-848-0	01	1	9002-	●	●	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	02	1	9004-9005		●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-9306		●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9002-9005	●	●	●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-	●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9002-9005	●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-9306	●	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	02	1	9002-9005		●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	03	1	9006-	●	●	●
40	BOLT; OIL PIPE M10X30 W/LK WASHER	0-50051-030-0	02	1	9002-			●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9002-	●	●	●
44	BOLT; CLIP,OIL PIPE M8X70	9-01055-870-0	02	1	9002-9005	●	●	●
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9006-	●	●	●
44	BOLT; CLIP,OIL PIPE M10X55	9-01656-055-0	01	1	9002-9004	●	●	●
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9005-	●	●	●
44	BOLT; CLIP,OIL PIPE M8X20	9-01970-820-0	01	1	9002-9005	●	●	●
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9006-	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-170-0	02	1	9002-9003	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9004-	●	●	●
48	CLIP; OIL PIPE (B)	1-09700-377-0	01	1	9002-	●	●	●
48	CLIP; OIL PIPE (A)	1-09700-113-0	01	1	9002-		●	●
62	PIPE; OIL,PUMP TO C/BL	1-13311-871-1	01	1	9002-	●	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13312-064-0	01	1	9002-9306		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13312-408-0	01	1	9002-			●
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	9002-	●	●	●
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9002-	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005	●	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●	●	●
84	NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9002-	●	●	●
90	PIPE ASM; OIL,C/BL TO FILTER	1-13311-849-1	01	1	9002-	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22	9-01910-822-0	02	1	9002-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005	●	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	02	1	9006-	●	●	●
99	CLIP; OIL PIPE,FILTER TO COOLER ID=23.6 L=35	1-09700-634-0	01	1	9002-	●	●	●
100	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-	●	●	●
100	BOLT; CLIP M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005	●	●	●
100	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●	●
101	BRACKET; CLIP (A)	1-13345-118-0	01	1	9002-	●	●	●
101	BRACKET; CLIP (B)	1-23219-106-0	01	1	9010-	●	●	●
102	BOLT; BRKT M14X25	9-92351-425-0	01	1	9002-9005	●	●	●
102	BOLT; BRKT M14X25	0-23801-425-0	01	1	9006-	●	●	●
103	WASHER; LK,BRKT ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-304-1	01	1	9002-	●	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003	●	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	02	1	9002-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	9-01910-828-0	02	1	9002-9005	●	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-	●	●	●
109	PIPE ASM; OIL,BODY TO HD	1-13312-057-0	01	1	9002-9306	●	●
109	PIPE ASM; OIL,BODY TO HD	1-13312-360-0	01	1	9002-			●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	01	1	9002-9306	●	●
110	NUT; CAP OIL PIPE M12	9-09844-632-1	01	1	9002-			●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	9002-9306	●	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	9307-			●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9307-			●
112	CLIP; OIL PIPE,TAP CHAMBER CVR	1-09700-144-0	01	1	9002-	●	●	●
113	CLIP; WATER OUTLET PIPE	1-09700-444-0	01	1	9002-	●	●	●
114	PIPE ASM; OIL,BODY (A)	1-13311-703-1	01	1	9002-	●	●	●
114	PIPE ASM; OIL,BODY (B)	1-13312-144-0	01	1	9002-	●	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-411-0	01	1	9002-9401	●	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-649-0	01	1	9402-			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	03	1	9002-	●	●	●
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	9002-	●	●	●
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	9002-	●	●	●
145	NUT; CAP,OIL PIPE,TURBOCHARGER FEED M12	9-09844-632-1	01	1	9002-		●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9002-		●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-359-0	01	1	9002-		●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13312-815-0	01	1	9002-		●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	9002-		●	●
151	NUT; PIPE,TURBOCHARGER RETAINER M8	9-09110-408-0	02	1	9002-		●	●
152	WASHER; LK,OIL PIPE,TURBOCHARGER ID=8.2	9-09150-508-0	02	1	9002-		●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003	●	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●	●
180	PIPE ASM; OIL,FAN CENTER	1-13311-967-0	01	1	9002-9306		●
180	PIPE ASM; OIL,FAN CENTER	1-13312-463-0	01	1	9002-	●		●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-	●	●	●
182	CLIP; OIL PIPE TO ELBOW ID=7 L=20	9-09524-635-0	02	1	9002-	●	●	●

434 449 449 434 448 279 278 279 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
277	CAP; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11750-024-1	01	1	9002-	●	●	●
278	HOSE; RUBBER,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11749-077-0	01	1	9002-9306	●	●
278	HOSE; RUBBER,OIL FILLER	1-11749-084-0	01	1	9307-			●
279	CLIP; RUBBER HOSE EXC. OIL FILLER CAB BACK DELETE<E6X> ID=40	9-09916-024-1	02	1	9002-	●	●	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8	9-09110-408-0	04	1	9002-	●	●	●
448	FILLER; OIL EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11740-213-1	01	1	9002-	●	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9304	●	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-9204	●	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-9304	●	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE	0-28080-820-0	04	1	9305-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
