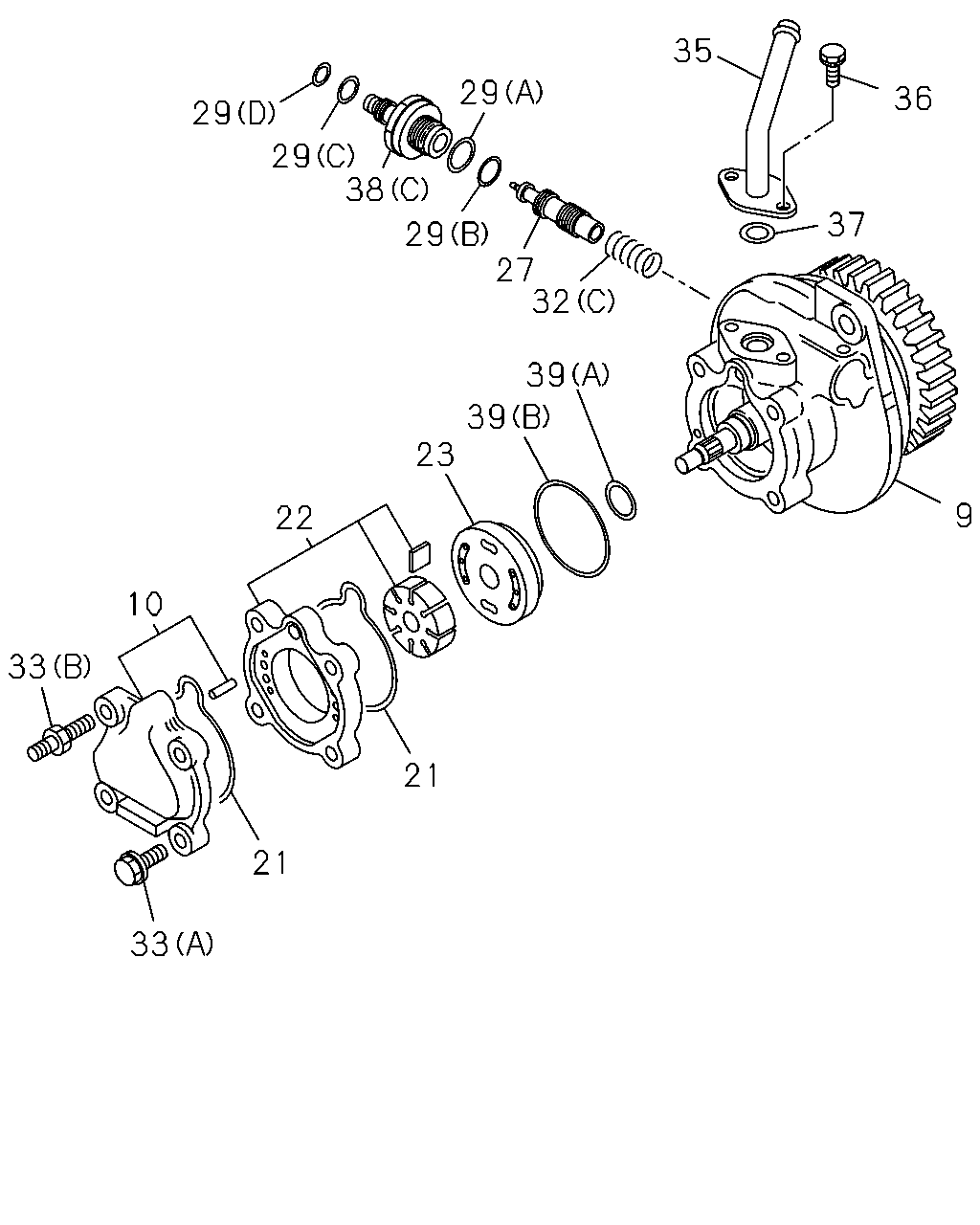

4-42 — POWER STEERING OIL PUMP (#23239) — 69 parça

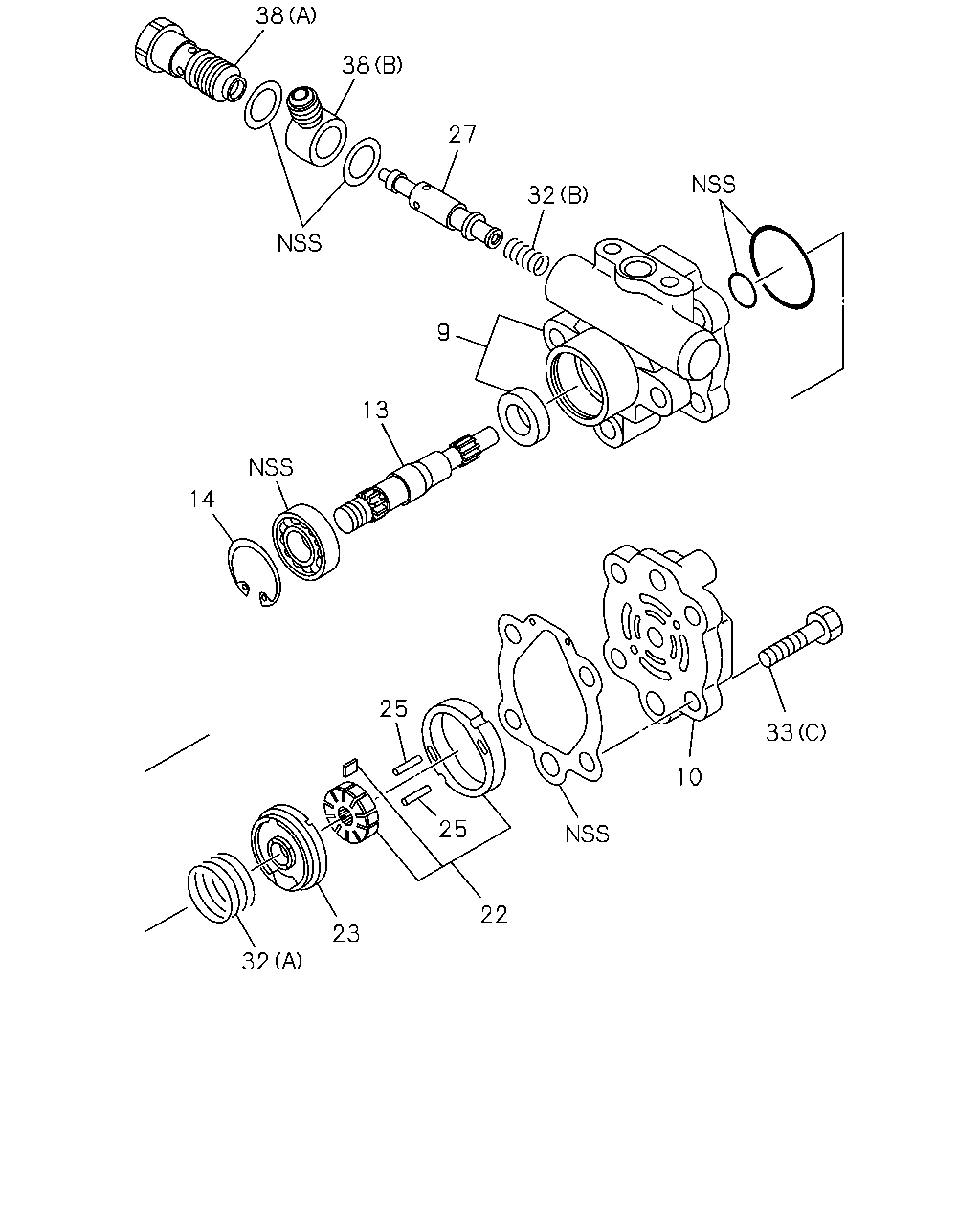

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

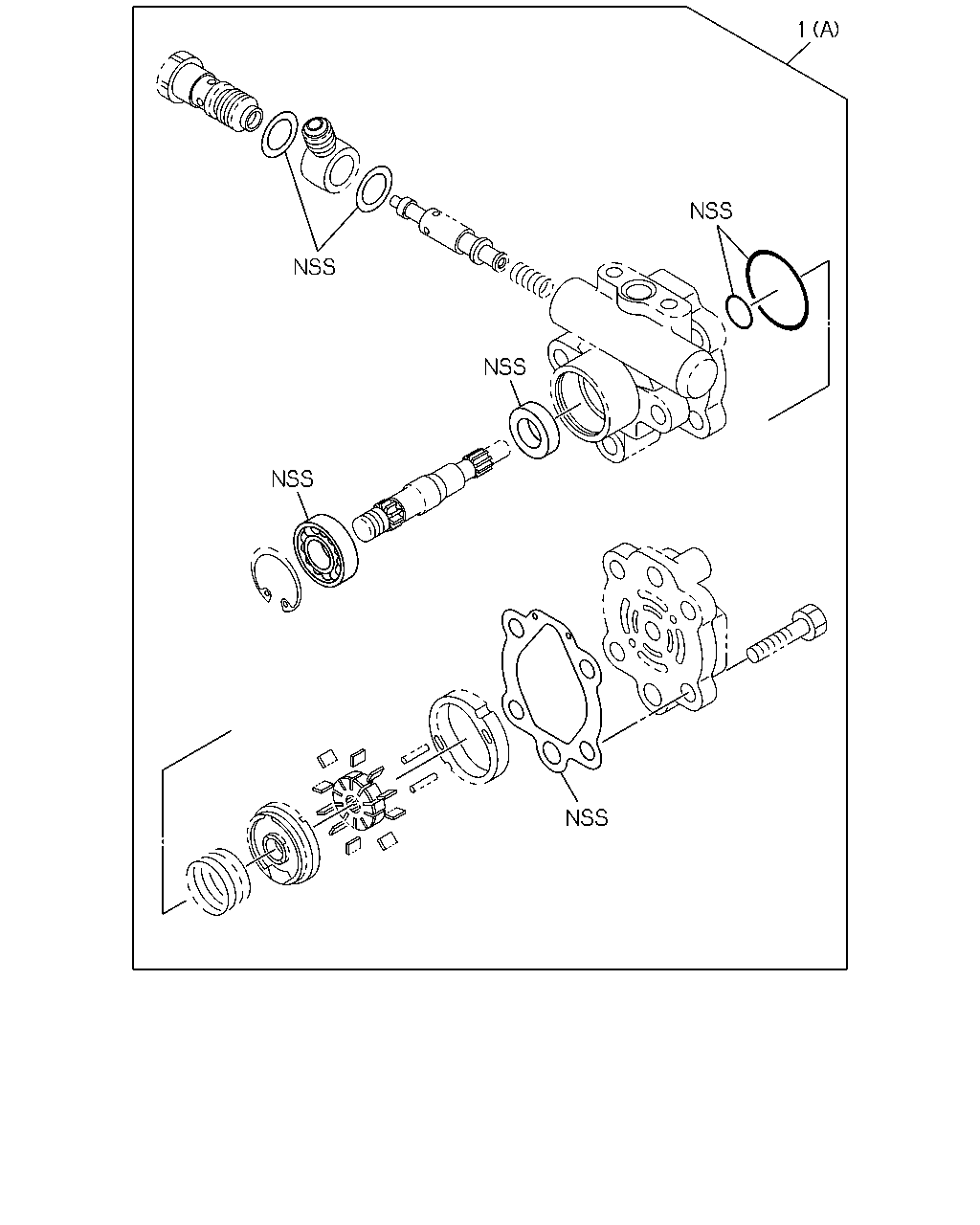

1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-1	8-97354-944-0	01	1	-
1	REPAIR KIT; OIL PUMP (C) ASM PART: B = 8-97388-650-1	8-97388-648-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-97388-650-1	8-97388-649-0	01	1	-

38 38 27 32 9 13 14 25 33 10 25 22 23 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1	8-97354-933-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97388-650-1	8-97388-641-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97388-650-1	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1	8-97102-294-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97354-730-1	8-97354-935-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 8-97354-730-1	8-97064-620-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97388-650-1	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1	8-97313-095-0	01	1	-0808
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1	8-97357-499-0	01	1	0809-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 8-97388-650-1	8-97147-453-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97354-730-1	8-97354-679-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97354-730-1	8-97081-859-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97388-650-1	8-97075-586-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1	8-97094-142-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: B = 8-97388-650-1	8-94379-654-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1	8-97064-987-0	01	1	-
33	BOLT; COVER (B) ASM PART: B = 8-97388-650-1	8-97029-773-0	03	1	-
33	BOLT; COVER (C) ASM PART: A = 8-97354-730-1	8-97064-979-0	04	1	-
33	BOLT; COVER (A) ASM PART: B = 8-97388-650-1	8-97075-585-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: B = 8-97388-650-1	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1	8-97354-941-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1	8-97354-943-0	01	1	-

1 37 29 29 21 21 1 37 29 29 29 29 21 21 39 39

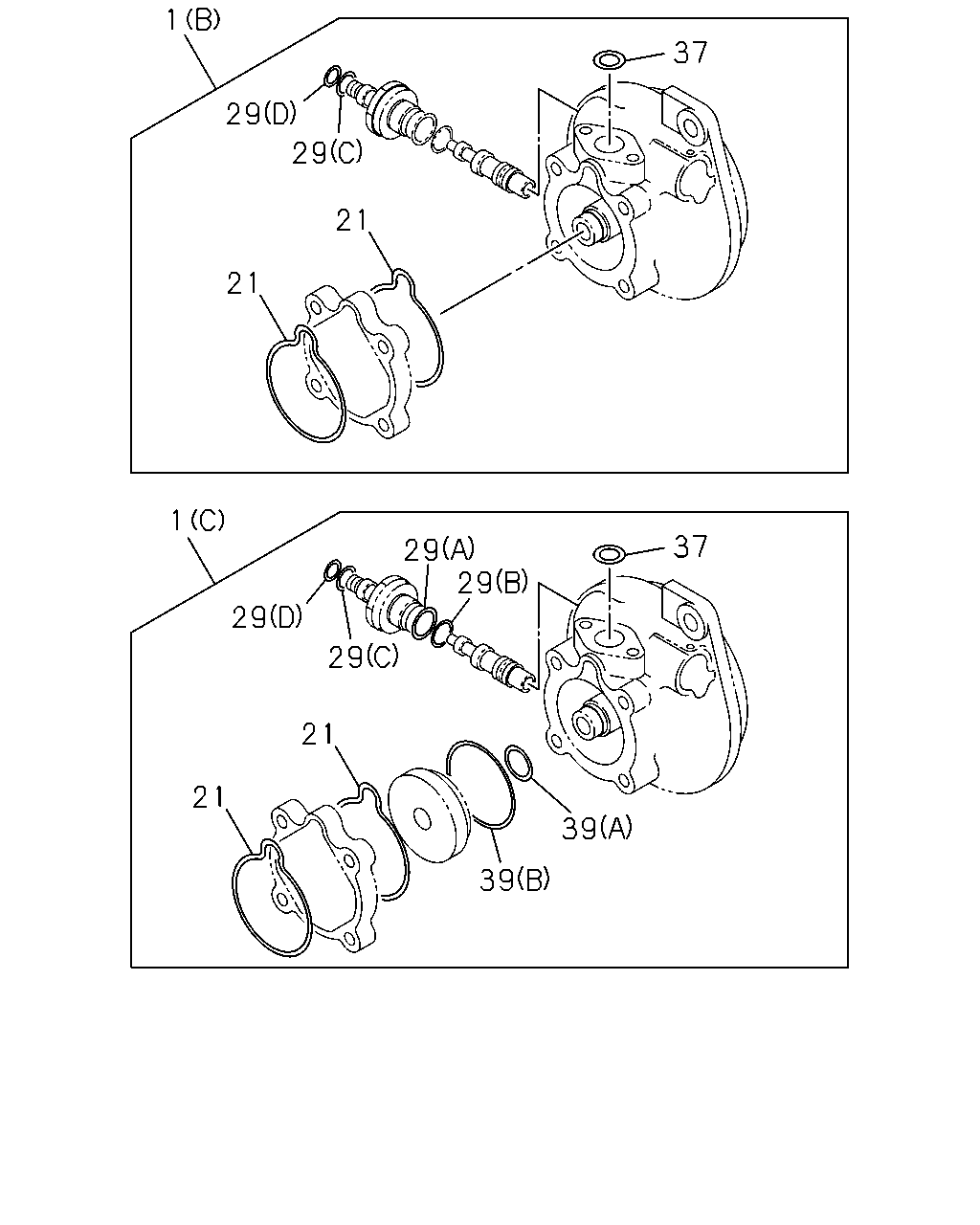

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-1	8-97354-944-0	01	1	-
1	REPAIR KIT; OIL PUMP (C) ASM PART: B = 8-97388-650-1	8-97388-648-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-97388-650-1	8-97388-649-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: B = 8-97388-650-1	8-97062-329-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: B = 8-97388-650-1	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: B = 8-97388-650-1	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: B = 8-97388-650-1	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: B = 8-97388-650-1	8-97075-581-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-97388-650-1	8-97184-767-0	01	1	-0805
37	GASKET; PIPE CONN,OIL PUMP THA ASM PART: B = 8-97388-650-1	8-97357-781-0	01	1	0806-
39	GASKET; OIL PUMP (B) ASM PART: B = 8-97388-650-1	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 8-97388-650-1	8-97147-441-0	01	1	-

35 29 36 29 29 38 37 29 27 32 39 39 23 9 22 10 33 21 21 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1	8-97354-933-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97388-650-1	8-97388-641-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-97388-650-1	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1	8-97102-294-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: B = 8-97388-650-1	8-97062-329-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97388-650-1	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1	8-97313-095-0	01	1	-0808
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1	8-97357-499-0	01	1	0809-
23	PLATE; SIDE,OIL PUMP ASM PART: B = 8-97388-650-1	8-97147-453-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97354-730-1	8-97354-679-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97388-650-1	8-97075-586-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1	8-97094-142-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: B = 8-97388-650-1	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: B = 8-97388-650-1	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: B = 8-97388-650-1	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: B = 8-97388-650-1	8-97075-581-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: B = 8-97388-650-1	8-94379-654-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1	8-97064-987-0	01	1	-
33	BOLT; COVER (B) ASM PART: B = 8-97388-650-1	8-97029-773-0	03	1	-
33	BOLT; COVER (C) ASM PART: A = 8-97354-730-1	8-97064-979-0	04	1	-
33	BOLT; COVER (A) ASM PART: B = 8-97388-650-1	8-97075-585-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97388-650-1	8-97388-640-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: B = 8-97388-650-1	8-94379-664-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-97388-650-1	8-97184-767-0	01	1	-0805
37	GASKET; PIPE CONN,OIL PUMP THA ASM PART: B = 8-97388-650-1	8-97357-781-0	01	1	0806-
38	CONNECTOR; OIL PUMP (C) ASM PART: B = 8-97388-650-1	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1	8-97354-941-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1	8-97354-943-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 8-97388-650-1	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 8-97388-650-1	8-97147-441-0	01	1	-
