◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#23237) — 50 parça

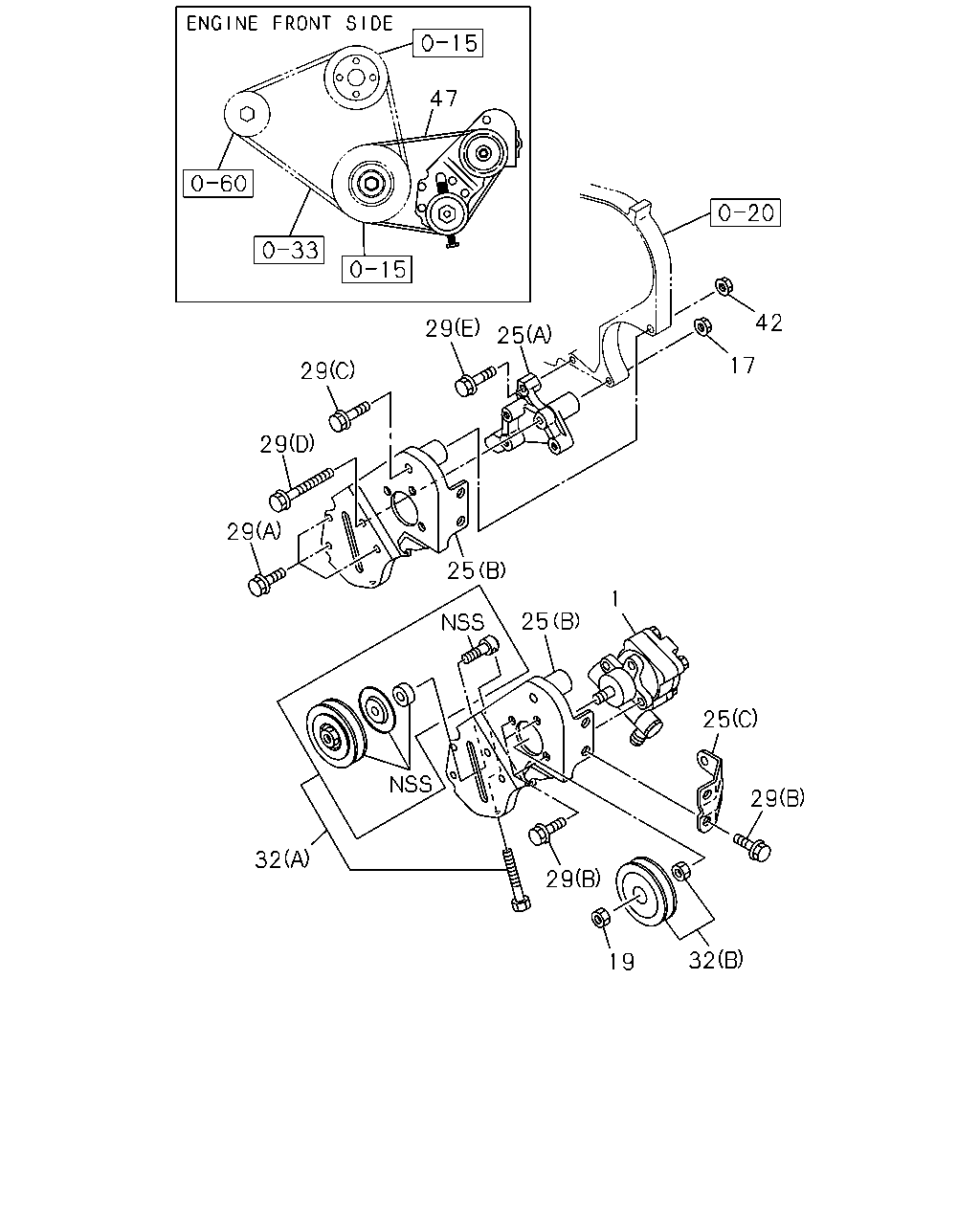

çizim 118950
47 42 29 25 17 29 29 29 25 1 25 25 29 32 29 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG<RDT> POWER STEERING<N40> 		8-97354-730-1 01 1 0508- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG<RDP> POWER STEERING<N40> 		8-97388-650-1 01 1 0508- ●
17 NUT; POWER STRG PUMP
4JB1-TC ENG<RDT> POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0508- ● ●
19 NUT; PULLEY,OIL PUMP
4JB1-TC ENG<RDT> POWER STEERING<N40> M12 		8-94139-015-0 01 1 0508-0610 ● ●
19 NUT; PULLEY,OIL PUMP
4JB1-TC ENG<RDT> POWER STEERING<N40> M12 		8-97360-126-0 01 1 0611- ● ●
25 BRACKET; P/S PUMP
4JB1-TC ENG<RDT> POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0508- ● ●
25 BRACKET; P/S PUMP
4JB1-TC ENG<RDT> POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0508- ● ●
25 BRACKET; P/S PUMP
4JB1-TC ENG<RDT> POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0508- ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (D) M8X100 FLANGE 		0-28080-800-0 01 1 0508-0512 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (D) M8X100 FLANGE THA 		0-28050-800-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (E) M8X60 FLANGE 		0-28080-860-0 01 1 0508-0512 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (E) M8X60 FLANGE THA 		0-28050-860-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (C) M10X100 FLANGE 		0-28081-000-0 01 1 0508-0512 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (C) M10X100 FLANGE 		0-28051-000-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
4HG1-T ENG<RDP> POWER STEERING<N40> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0508-0512 ●
29 BOLT; BRKT,POWER STRG
4HG1-T ENG<RDP> POWER STEERING<N40> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0601- ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (A) M8X16 FLANGE 		0-28080-816-0 03 1 0508-0611 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (A) M8X16 FLANGE THA 		0-28050-816-0 03 1 0612- ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (B) M10X20 FLANGE 		0-28681-020-0 05 1 0508-0611 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (B) M10X20 FLANGE THA 		0-28651-020-0 05 1 0612- ● ●
32 PULLEY; IDLER,P/S
4JB1-TC ENG<RDT> POWER STEERING<N40> (A) 		8-94128-866-0 01 1 0508- ● ●
32 PULLEY; IDLER,P/S
4JB1-TC ENG<RDT> POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0508- ● ●
42 NUT; ADJ PLATE
4JB1-TC ENG<RDT> POWER STEERING<N40> M10 FLANGE 		0-91150-110-0 01 1 0508-0602 ● ●
42 NUT; ADJ PLATE
4JB1-TC ENG<RDT> POWER STEERING<N40> M10 FLANGE THA 		0-91180-110-0 01 1 0603- ● ●
42 NUT; ADJ PLATE
4HG1-T ENG<RDP> POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ●
42 NUT; ADJ PLATE
4HG1-T ENG<RDP> POWER STEERING<N40> M8 FLANGE THA 		0-91180-108-0 02 1 0603- ●
47 BELT; P/S PUMP
4JB1-TC ENG<RDT> POWER STEERING<N40> 		8-97085-131-0 01 1 0508- ● ●
47 BELT; P/S PUMP
4JB1-TC ENG<RDT> POWER STEERING<N40> BEST VALUE PARTS 		5-87610-096-0 01 1 0508- ● ●
çizim 118958
36 42 1 7 29
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG<RDT> POWER STEERING<N40> 		8-97354-730-1 01 1 0508- ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG<RDP> POWER STEERING<N40> 		8-97388-650-1 01 1 0508- ●
7 BOLT; OIL PUMP,P/S
4HG1-T ENG<RDP> POWER STEERING<N40> M10X28 FLANGE 		0-28181-028-0 02 1 0508-0805 ●
7 BOLT; OIL PUMP,P/S
4HG1-T ENG<RDP> POWER STEERING<N40> M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ●
7 BOLT; OIL PUMP,P/S
4HG1-T ENG<RDP> POWER STEERING<N40> M10X30 FLANGE 		0-28751-030-0 02 1 1011- ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (D) M8X100 FLANGE 		0-28080-800-0 01 1 0508-0512 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (D) M8X100 FLANGE THA 		0-28050-800-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (E) M8X60 FLANGE 		0-28080-860-0 01 1 0508-0512 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (E) M8X60 FLANGE THA 		0-28050-860-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (C) M10X100 FLANGE 		0-28081-000-0 01 1 0508-0512 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (C) M10X100 FLANGE 		0-28051-000-0 01 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
4HG1-T ENG<RDP> POWER STEERING<N40> (F) M14X20 FLANGE 		0-28881-420-0 01 1 0508-0512 ●
29 BOLT; BRKT,POWER STRG
4HG1-T ENG<RDP> POWER STEERING<N40> (F) M14X20 FLANGE 		0-28851-420-0 01 1 0601- ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (A) M8X16 FLANGE 		0-28080-816-0 03 1 0508-0611 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (A) M8X16 FLANGE THA 		0-28050-816-0 03 1 0612- ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (B) M10X20 FLANGE 		0-28681-020-0 05 1 0508-0611 ● ●
29 BOLT; BRKT,POWER STRG
4JB1-TC ENG<RDT> POWER STEERING<N40> (B) M10X20 FLANGE THA 		0-28651-020-0 05 1 0612- ● ●
36 BRACKET; PLATE,P/S PUMP
4HG1-T ENG<RDP> POWER STEERING<N40> 		8-97112-866-0 01 1 0508- ●
42 NUT; ADJ PLATE
4JB1-TC ENG<RDT> POWER STEERING<N40> M10 FLANGE 		0-91150-110-0 01 1 0508-0602 ● ●
42 NUT; ADJ PLATE
4JB1-TC ENG<RDT> POWER STEERING<N40> M10 FLANGE THA 		0-91180-110-0 01 1 0603- ● ●
42 NUT; ADJ PLATE
4HG1-T ENG<RDP> POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ●
42 NUT; ADJ PLATE
4HG1-T ENG<RDP> POWER STEERING<N40> M8 FLANGE THA 		0-91180-108-0 02 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
