4-30 — STEERING WHEEL AND COWL (#23233) — 33 parça

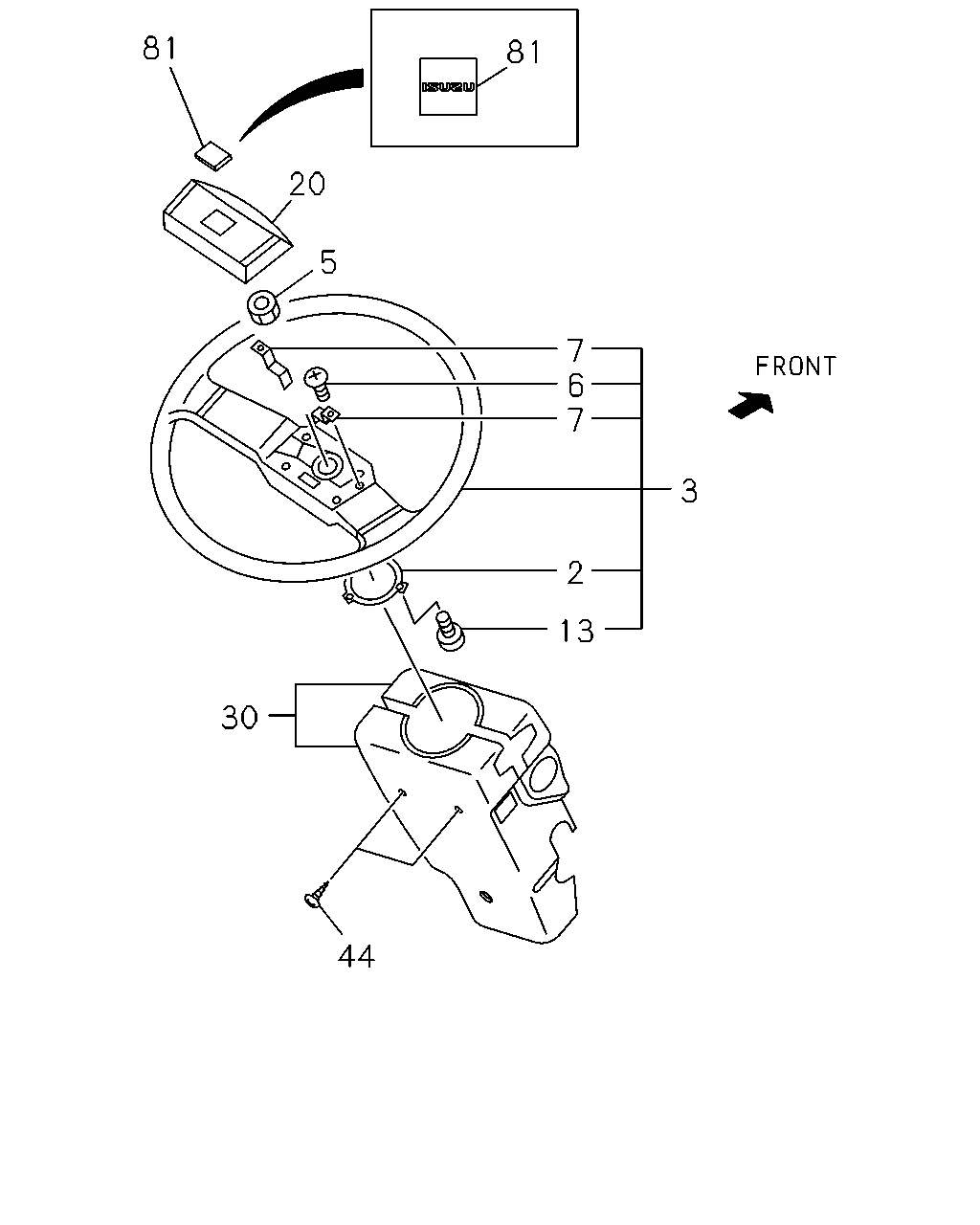

çizim 118946
81 81 20 5 7 6 7 3 2 13 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C
2 RING; HORN CONTACT
EXC. POWER STEERING<N40> THA 		8-97915-937-0 01 1 0508- ● ● ●
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0508- ● ● ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> THA 		8-97922-859-0 01 1 0508- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0508-0512 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ● ●
6 SCREW; HORN SPR CONTACT
EXC. POWER STEERING<N40> THA 		8-97918-678-0 02 1 0508- ● ● ●
7 SPRING; HORN CONTACT
EXC. POWER STEERING<N40> THA 		8-97915-936-0 01 1 0508- ● ● ●
13 SCREW; CONTACT RING
EXC. POWER STEERING<N40> THA 		8-97918-678-0 03 1 0508- ● ● ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0508- ● ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> THA 		8-97922-793-0 01 1 0508- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE<V66> DARK GRAY 		8-97582-825-8 01 1 0508- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE<V66> DARK GRAY 		8-97582-824-8 01 1 0508- ● ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE<V66> EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0508- ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE<V66> THA 		8-97922-854-0 01 1 0508- ● ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0508- ● ● ●
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-060-0 01 1 0508- ● ● ●
81 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-397-0 01 1 0508- ● ● ●

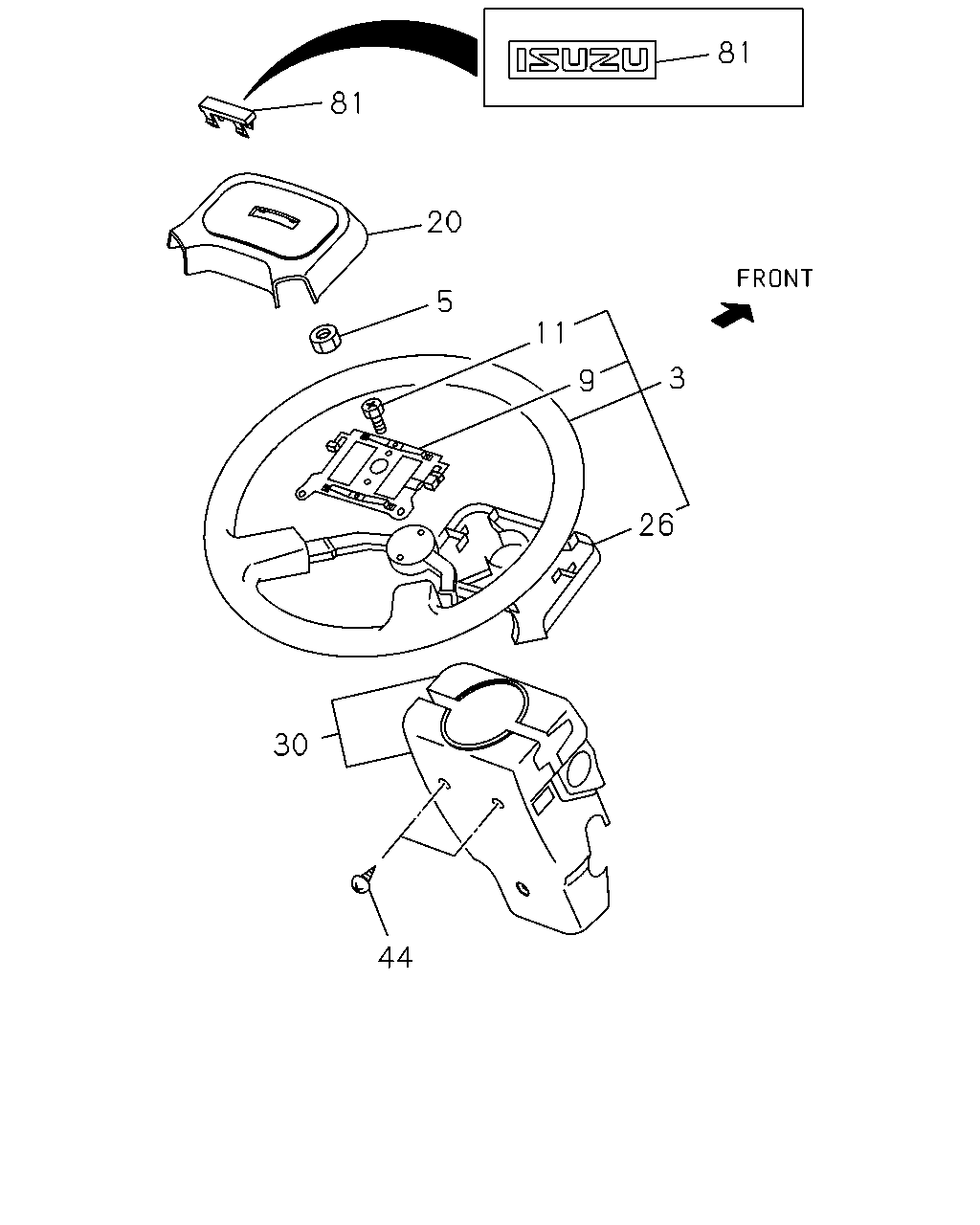

çizim 118948
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C
3 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 0508- ● ● ●
3 WHEEL; STRG
EXC. POWER STEERING<N40> THA 		8-97922-859-0 01 1 0508- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0508-0512 ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ● ●
9 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 0508- ● ● ●
11 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 01 1 0508- ● ● ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 0508- ● ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> THA 		8-97922-793-0 01 1 0508- ● ● ●
26 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97400-089-1 01 1 0508- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE<V66> DARK GRAY 		8-97582-825-8 01 1 0508- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE<V66> DARK GRAY 		8-97582-824-8 01 1 0508- ● ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE<V66> EXC. TILT STEERING<N33> DARK GRAY 		8-97588-867-7 01 1 0508- ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE<V66> THA 		8-97922-854-0 01 1 0508- ● ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0508- ● ● ●
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-060-0 01 1 0508- ● ● ●
81 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-397-0 01 1 0508- ● ● ●
