◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶

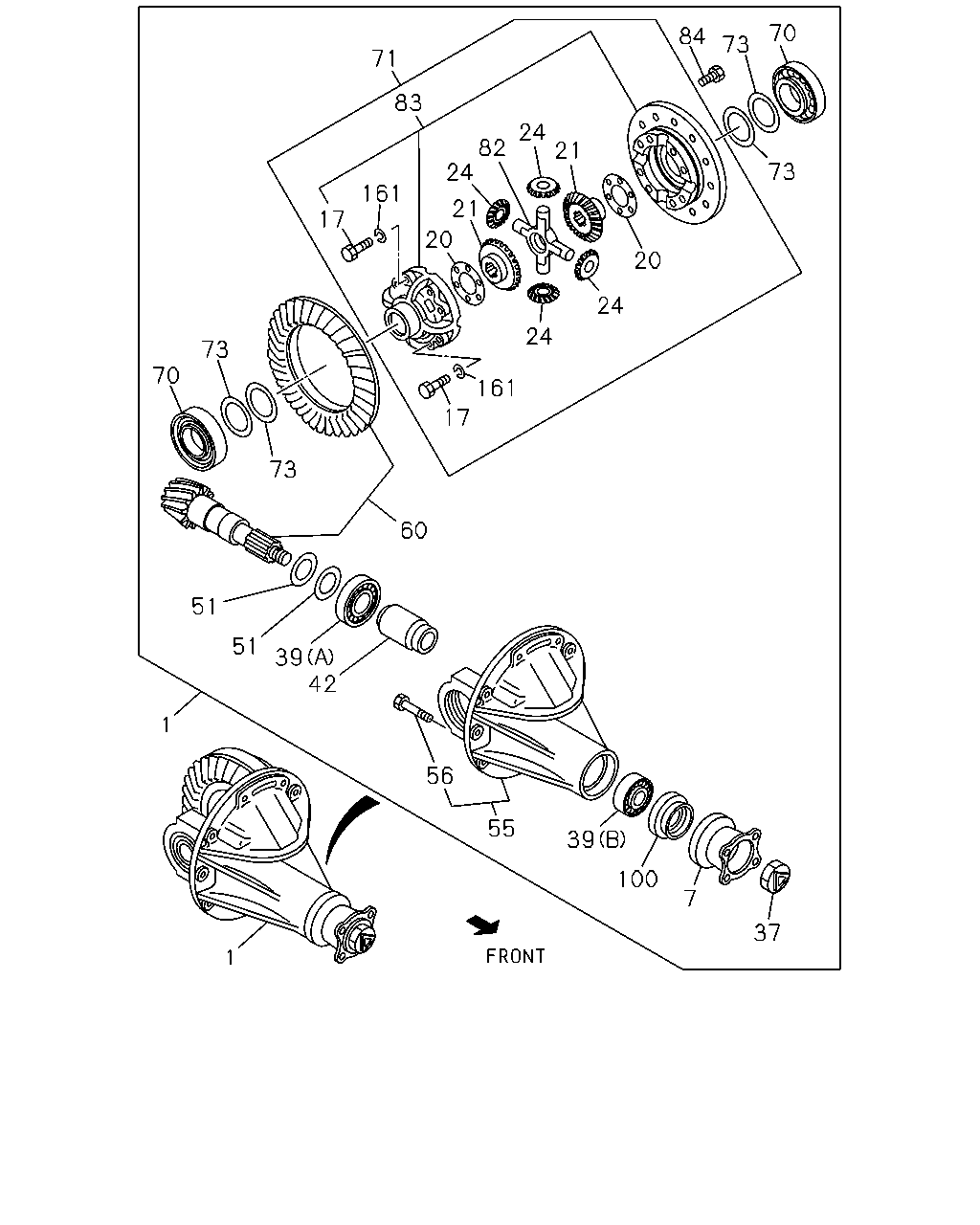

4-25 — REAR FINAL DRIVE (#23232) — 167 parça

70 84 73 71 83 24 21 82 24 73 161 21 17 20 20 24 24 73 70 161 17 73 60 51 51 39 42 56 55 39 100 7 37 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97367-502-0	01	1	0508-	●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 39/7<GV1> 39/7	8-97363-116-0	01	1	0508-0510		●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 39/7<GV1> 39/7	8-98015-145-0	01	1	0511-		●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 43/7<R42> 43/7	8-97363-118-0	01	1	0508-0510		●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 43/7<R42> 43/7	8-98015-147-0	01	1	0511-		●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 43/8<R40> 43/8	8-97363-098-0	01	1	0508-0510			●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 43/8<R40> 43/8	8-98015-127-0	01	1	0511-			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97367-501-0	01	1	0508-	●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 41/7<R41> 41/7	8-97363-117-0	01	1	0508-0510		●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 41/7<R41> 41/7	8-98015-146-0	01	1	0511-		●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1> 41/8	8-97363-097-0	01	1	0508-0510			●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1> 41/8	8-98015-126-0	01	1	0511-			●
7	FLANGE; FINAL	8-97075-216-3	01	1	0508-	●
7	FLANGE; FINAL	8-94426-787-4	01	1	0508-		●
7	FLANGE; FINAL	8-94477-723-4	01	1	0508-			●
17	BOLT; DIFF CAGE SETTING M12X58	8-97314-497-0	08	1	0508-	●
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0508-		●	●
20	WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	0508-	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0508-		●	●
21	GEAR; SIDE,DIFF Z=18	8-97226-764-0	02	1	0508-1105	●
21	GEAR; SIDE,DIFF Z=18	8-98190-383-1	02	1	1106-	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	0508-		●
21	GEAR; SIDE,DIFF Z=20	8-97362-598-1	02	1	0508-			●
24	GEAR; PINION,DIFF Z=10	8-97226-762-0	04	1	0508-1105	●
24	GEAR; PINION,DIFF Z=10	8-98186-829-0	04	1	1106-	●
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0508-0510		●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-		●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	0508-	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0508-		●	●
39	BEARING; FINAL PINION (B) NSK	9-00093-078-0	01	1	0508-	●
39	BEARING; FINAL PINION (A) KOYO	9-00093-079-1	01	1	0508-	●
42	COLLAR; DIST,COLLAPSIBLE L=53.35	9-41219-634-1	01	1	0508-	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0508-		●	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.12	9-41219-608-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.16	9-41219-610-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.20	9-41219-612-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.24	9-41219-614-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.28	9-41219-616-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.32	9-41219-618-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.36	9-41219-620-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.40	9-41219-622-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.44	9-41219-624-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.48	9-41219-626-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.52	9-41219-628-0	01	1	0508-	●
51	SHIM; PINION,FINAL DRIVE OD=89.5 T=2.56	9-41219-630-0	01	1	0508-	●
55	CARRIER; DIFF	8-94376-227-3	01	1	0508-	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0508-		●	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0508-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97035-433-0	01	1	0508-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97076-938-0	01	1	0508-	●
60	GEAR SET; FINAL DRIVE,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 39/7<GV1> 39/7	8-97319-160-0	01	1	0508-		●
60	GEAR SET; FINAL DRIVE,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 41/7<R41> 41/7	8-97319-161-0	01	1	0508-1201		●
60	GEAR SET; FINAL DRIVE,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 41/7<R41> 41/7	8-98092-031-1	01	1	1202-		●
60	GEAR SET; FINAL DRIVE,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 43/7<R42> 43/7	8-97320-103-0	01	1	0508-		●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1> 41/8	8-97319-158-0	01	1	0508-			●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 43/8<R40> 43/8	8-97319-159-0	01	1	0508-			●
70	BEARING; DIFF CAGE KOYO	8-98003-043-0	02	1	0508-	●
70	BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	0508-	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0508-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97228-309-0	01	1	0508-1105	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98191-996-1	01	1	1106-	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-159-0	01	1	0508-0510		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	0511-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-156-0	01	1	0508-0510			●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-179-1	01	1	0511-			●
73	SHIM; DIFF SIDE BRG T=0.50	9-41519-009-0	AR	1	0508-	●
73	SHIM; DIFF SIDE BRG T=0.25	9-41519-010-0	AR	1	0508-	●
73	SHIM; DIFF SIDE BRG T=0.30	9-41519-601-0	AR	1	0508-	●
73	SHIM; DIFF SIDE BRG T=0.35	9-41519-602-0	AR	1	0508-	●
82	SPIDER; DIFF PINION	9-41521-611-0	01	1	0508-	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0508-		●	●
83	CAGE ASM; DIFF	9-41510-610-0	01	1	0508-	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0508-		●	●
84	BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	0508-	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0508-		●	●
100	SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	0508-	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0508-		●	●
161	WASHER; LK ID=12.2	9-09150-612-0	08	1	0508-0603	●
161	WASHER; LK ID=12.2	0-91510-612-0	08	1	0604-	●

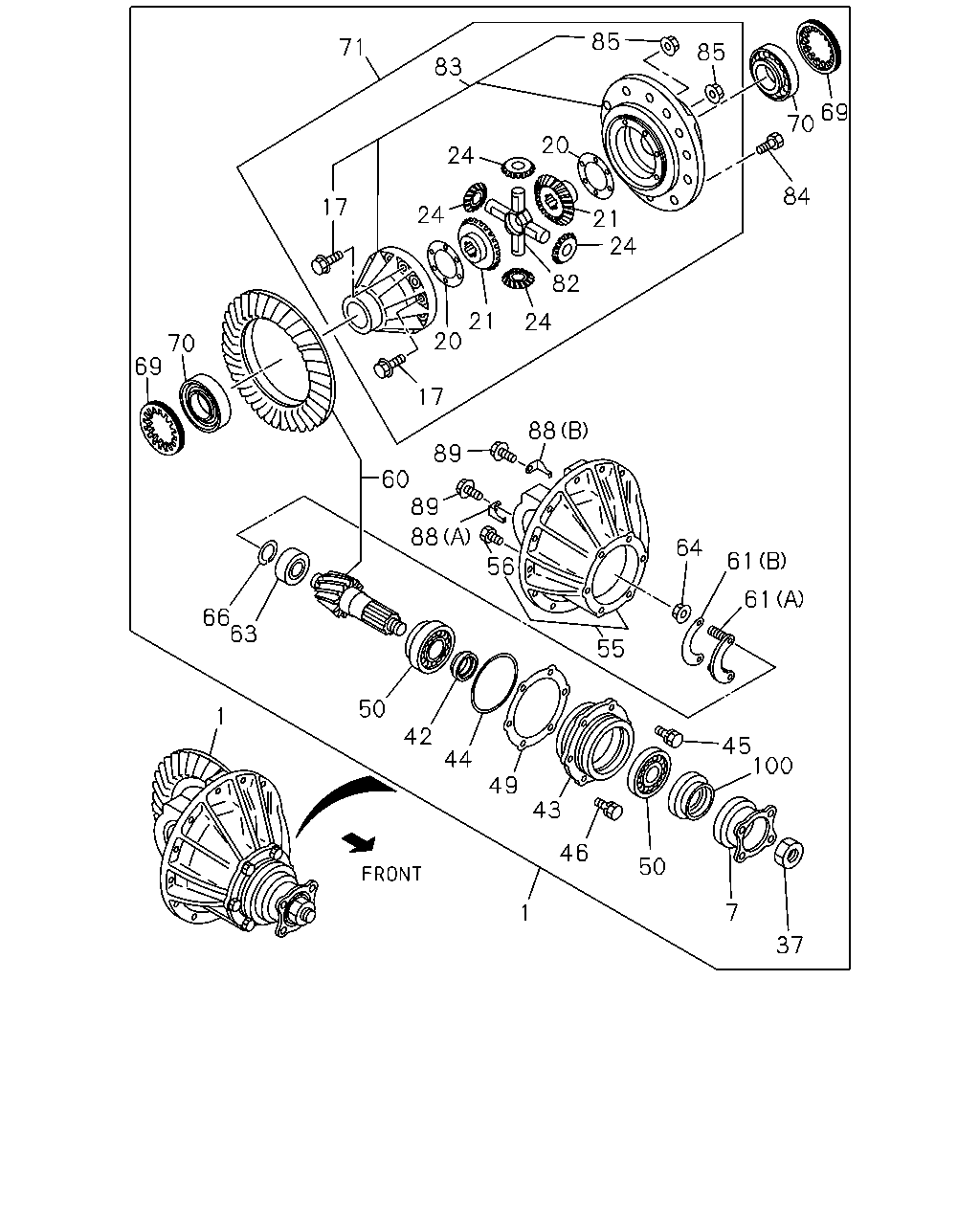

85 71 85 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 17 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97367-502-0	01	1	0508-	●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 39/7<GV1> 39/7	8-97363-116-0	01	1	0508-0510		●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 39/7<GV1> 39/7	8-98015-145-0	01	1	0511-		●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 43/7<R42> 43/7	8-97363-118-0	01	1	0508-0510		●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 43/7<R42> 43/7	8-98015-147-0	01	1	0511-		●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 43/8<R40> 43/8	8-97363-098-0	01	1	0508-0510			●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 43/8<R40> 43/8	8-98015-127-0	01	1	0511-			●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97367-501-0	01	1	0508-	●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 41/7<R41> 41/7	8-97363-117-0	01	1	0508-0510		●
1	DRIVE ASM; FINAL,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 41/7<R41> 41/7	8-98015-146-0	01	1	0511-		●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1> 41/8	8-97363-097-0	01	1	0508-0510			●
1	DRIVE ASM; FINAL,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1> 41/8	8-98015-126-0	01	1	0511-			●
7	FLANGE; FINAL	8-97075-216-3	01	1	0508-	●
7	FLANGE; FINAL	8-94426-787-4	01	1	0508-		●
7	FLANGE; FINAL	8-94477-723-4	01	1	0508-			●
17	BOLT; DIFF CAGE SETTING M12X58	8-97314-497-0	08	1	0508-	●
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	0508-		●	●
20	WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	0508-	●
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0508-		●	●
21	GEAR; SIDE,DIFF Z=18	8-97226-764-0	02	1	0508-1105	●
21	GEAR; SIDE,DIFF Z=18	8-98190-383-1	02	1	1106-	●
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	0508-		●
21	GEAR; SIDE,DIFF Z=20	8-97362-598-1	02	1	0508-			●
24	GEAR; PINION,DIFF Z=10	8-97226-762-0	04	1	0508-1105	●
24	GEAR; PINION,DIFF Z=10	8-98186-829-0	04	1	1106-	●
24	GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0508-0510		●	●
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-		●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	0508-	●
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0508-		●	●
42	COLLAR; DIST,COLLAPSIBLE L=53.35	9-41219-634-1	01	1	0508-	●
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0508-		●	●
43	CAGE; FINAL PINION	8-94400-890-0	01	1	0508-		●	●
44	GASKET; PINION CAGE	9-09720-505-0	01	1	0508-		●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0508-0909		●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1311		●	●
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●	●
46	BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0508-0909		●	●
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-		●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0508-		●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0508-		●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0508-		●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0508-		●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0508-		●	●
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0508-		●	●
50	BEARING; FINAL PINION KOYO	5-09812-062-1	02	1	0508-		●	●
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	0508-		●	●
55	CARRIER; DIFF	8-94376-227-3	01	1	0508-	●
55	CARRIER; DIFF	8-97307-760-0	01	1	0508-		●	●
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	0508-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7<GV1> 39/7	8-97035-433-0	01	1	0508-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7<R41> 41/7	8-97076-938-0	01	1	0508-	●
60	GEAR SET; FINAL DRIVE,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 39/7<GV1> 39/7	8-97319-160-0	01	1	0508-		●
60	GEAR SET; FINAL DRIVE,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 41/7<R41> 41/7	8-97319-161-0	01	1	0508-1201		●
60	GEAR SET; FINAL DRIVE,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 41/7<R41> 41/7	8-98092-031-1	01	1	1202-		●
60	GEAR SET; FINAL DRIVE,RR 4JB1-TC ENG<RDT> FINAL GEAR RATIO 43/7<R42> 43/7	8-97320-103-0	01	1	0508-		●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 41/8<RU1> 41/8	8-97319-158-0	01	1	0508-			●
60	GEAR SET; FINAL DRIVE,RR 4HG1-T ENG<RDP> FINAL GEAR RATIO 43/8<R40> 43/8	8-97319-159-0	01	1	0508-			●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0508-		●	●
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0508-		●	●
63	BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0508-		●	●
63	BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0508-		●	●
64	NUT; RET M6 FLANGE	0-91150-106-0	02	1	0508-0602		●	●
64	NUT; RET M6 FLANGE THA	0-91180-106-0	02	1	0603-		●	●
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0508-		●	●
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0508-		●	●
70	BEARING; DIFF CAGE KOYO	8-98003-043-0	02	1	0508-	●
70	BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	0508-	●
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0508-		●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97228-309-0	01	1	0508-1105	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98191-996-1	01	1	1106-	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-159-0	01	1	0508-0510		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	0511-		●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97363-156-0	01	1	0508-0510			●
71	CAGE ASM; DIFF,FINAL DRIVE	8-98015-179-1	01	1	0511-			●
82	SPIDER; DIFF PINION	9-41521-611-0	01	1	0508-	●
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	0508-		●	●
83	CAGE ASM; DIFF	9-41510-610-0	01	1	0508-	●
83	CAGE ASM; DIFF	8-97319-396-1	01	1	0508-		●	●
84	BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	0508-	●
84	BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	0508-		●	●
85	NUT; DIFF CAGE SETTING M10 FLANGE	0-91150-210-0	12	1	0508-0602		●	●
85	NUT; DIFF CAGE SETTING M10 FLANGE THA	0-91180-210-0	12	1	0603-		●	●
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0508-		●	●
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0508-		●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	02	1	0508-0512		●	●
89	BOLT; LK PLATE M8X16 FLANGE THA	0-28050-816-0	02	1	0601-		●	●
100	SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	0508-	●
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0508-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
