4-10 — FRONT AXLE (#23229) — 73 parça

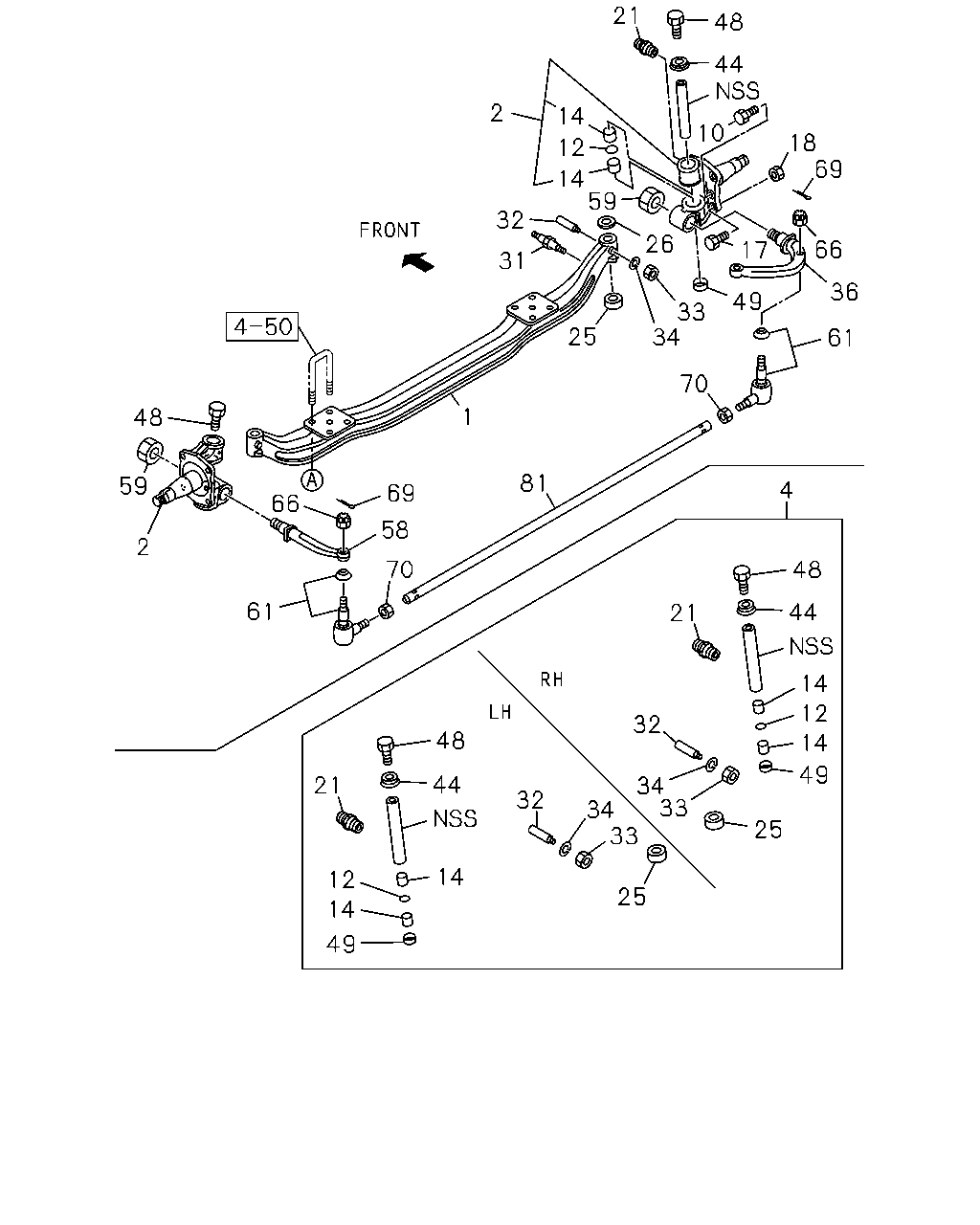

21 48 44 2 14 10 18 69 12 14 59 32 26 66 17 31 36 49 33 34 25 61 70 1 48 59 66 81 4 69 58 2 70 48 61 44 21 14 12 32 48 14 49 44 21 34 33 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT	8-97137-585-4	01	1	0508-	●	●	●
2	KNUCKLE; FRT AXLE	8-97261-545-1	01	1	0508-	●	●	●
2	KNUCKLE; FRT AXLE	8-97261-546-1	01	1	0508-	●	●	●
4	KING PIN KIT	5-87832-183-2	01	1	0508-0610	●	●	●
4	KING PIN KIT	5-87832-209-0	01	1	0611-0707	●	●	●
4	KING PIN KIT	5-87832-220-2	01	1	0708-	●	●	●
10	PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0508-0610	●	●	●
10	PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0611-	●	●	●
12	GASKET; KNUCKLE	9-09561-230-0	02	1	0508-0707	●	●	●
12	GASKET; KNUCKLE	8-98084-500-0	02	1	0708-	●	●	●
14	BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0508-	●	●	●
14	BUSHING; KING PIN JBK	8-94127-925-2	04	1	0508-0809	●	●	●
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0508-0611	●	●	●
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE M12	9-99111-512-0	03	1	0508-0512	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE M12	0-91111-512-0	03	1	0601-	●	●	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	04	1	0508-0607	●	●	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT THA	0-90301-406-0	04	1	0608-	●	●	●
25	BEARING; THRUST,KING PIN	8-94248-883-2	01	1	0508-	●	●	●
25	BEARING; THRUST,KING PIN	8-97141-943-0	01	1	0508-	●	●	●
26	SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	0508-	●	●	●
26	SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	0508-	●	●	●
26	SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	0508-	●	●	●
26	SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	0508-	●	●	●
26	SHIM; KING PIN,BRG T=1.95	8-94168-490-0	01	1	0508-	●	●	●
26	SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	0508-	●	●	●
26	SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	0508-	●	●	●
26	SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	0508-	●	●	●
31	PIN; S/ABS,LWR	8-97141-944-0	02	1	0508-	●	●	●
32	BOLT; KEY,KING PIN	8-97141-945-1	02	1	0508-	●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0508-0512	●	●	●
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	0601-	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0508-0603	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●	●
36	ARM; KNUCKLE	8-97204-075-4	01	1	0508-	●	●	●
44	COVER; KING PIN OD=36	8-94248-675-1	02	1	0508-0611	●	●	●
44	COVER; KING PIN OD=36	8-97360-023-0	02	1	0612-	●	●	●
48	BOLT; COVER M10X12 FLANGE	0-28081-012-0	02	1	0508-0512	●	●	●
48	BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●	●
49	CAP; KNUCKLE	8-97261-587-0	02	1	0508-0611	●	●	●
49	CAP; KNUCKLE	8-97360-024-0	02	1	0612-	●	●	●
58	ARM; TIE ROD	8-97138-303-0	01	1	0508-	●	●	●
59	NUT; TIE ROD ARM	8-94247-724-0	02	1	0508-0611	●	●	●
59	NUT; TIE ROD ARM	8-97360-123-0	02	1	0612-	●	●	●
61	ROD END; TIE ROD	8-97142-100-1	01	1	0508-	●	●	●
61	ROD END; TIE ROD	8-97142-101-1	01	1	0508-	●	●	●
66	NUT; TIE ROD END M16 SLOTTED	9-99116-516-0	02	1	0508-0605	●	●	●
66	NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0606-1204	●	●	●
66	NUT; TIE ROD END M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	9-08114-020-0	02	1	0508-0606	●	●	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0607-	●	●	●
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0508-	●	●	●
70	NUT; TIE ROD END M20	9-99111-420-0	01	1	0508-0512	●	●	●
70	NUT; TIE ROD END M20	0-91111-520-0	01	1	0601-0610	●	●	●
70	NUT; TIE ROD END M20	8-98043-530-0	01	1	0611-	●	●	●
81	ROD; TIE	8-97142-023-0	01	1	0508-	●	●	●

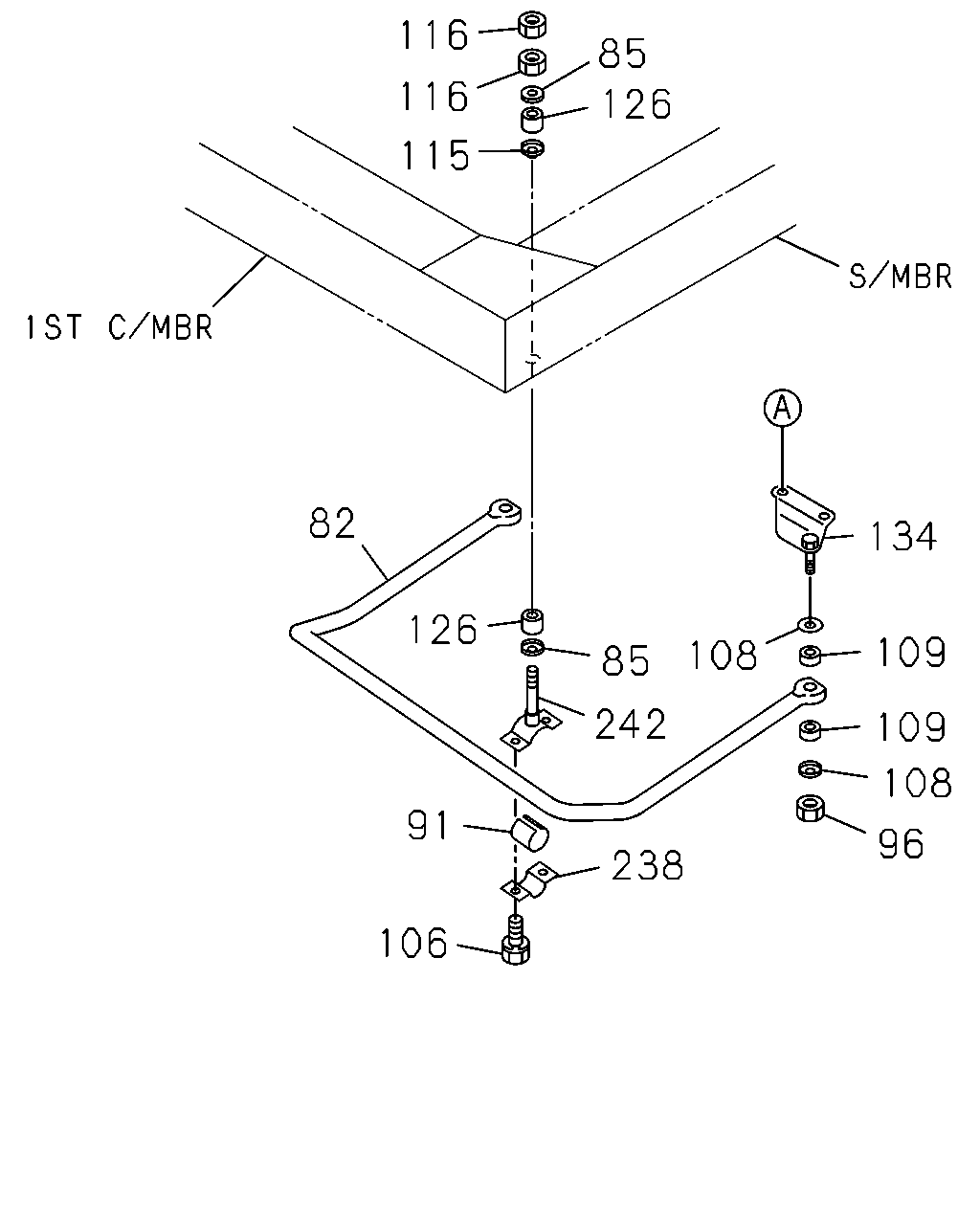

116 85 126 116 115 82 134 126 109 108 85 242 109 108 91 96 238 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-97170-624-1	01	1	0508-	●
85	WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59>	9-51779-027-0	04	1	0508-	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-752-0	02	1	0508-	●
96	NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	9-09131-510-0	02	1	0508-0603	●
96	NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	0-91370-010-0	02	1	0604-	●
106	BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER	0-50041-030-0	02	1	0508-0512	●
106	BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER	0-50541-030-0	02	1	0601-	●
108	CAP FRONT STABILIZER SHAFT<F59>	8-97170-631-0	04	1	0508-	●
109	BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-622-0	04	1	0508-	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> ID=15.0 OD=32	8-97387-669-0	02	1	0508-	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	9-09131-510-0	02	1	0508-0603	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M10 LOCK NUT	0-91370-010-0	02	1	0604-	●
126	RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> THA	5-51631-017-0	04	1	0508-	●
134	BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97304-055-0	01	1	0508-	●
134	BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97304-056-0	01	1	0508-	●
238	ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59>	8-97170-751-0	02	1	0508-	●
242	CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97170-746-0	02	1	0508-	●
