4-01 — PROPELLER SHAFT (#23228) — 85 parça

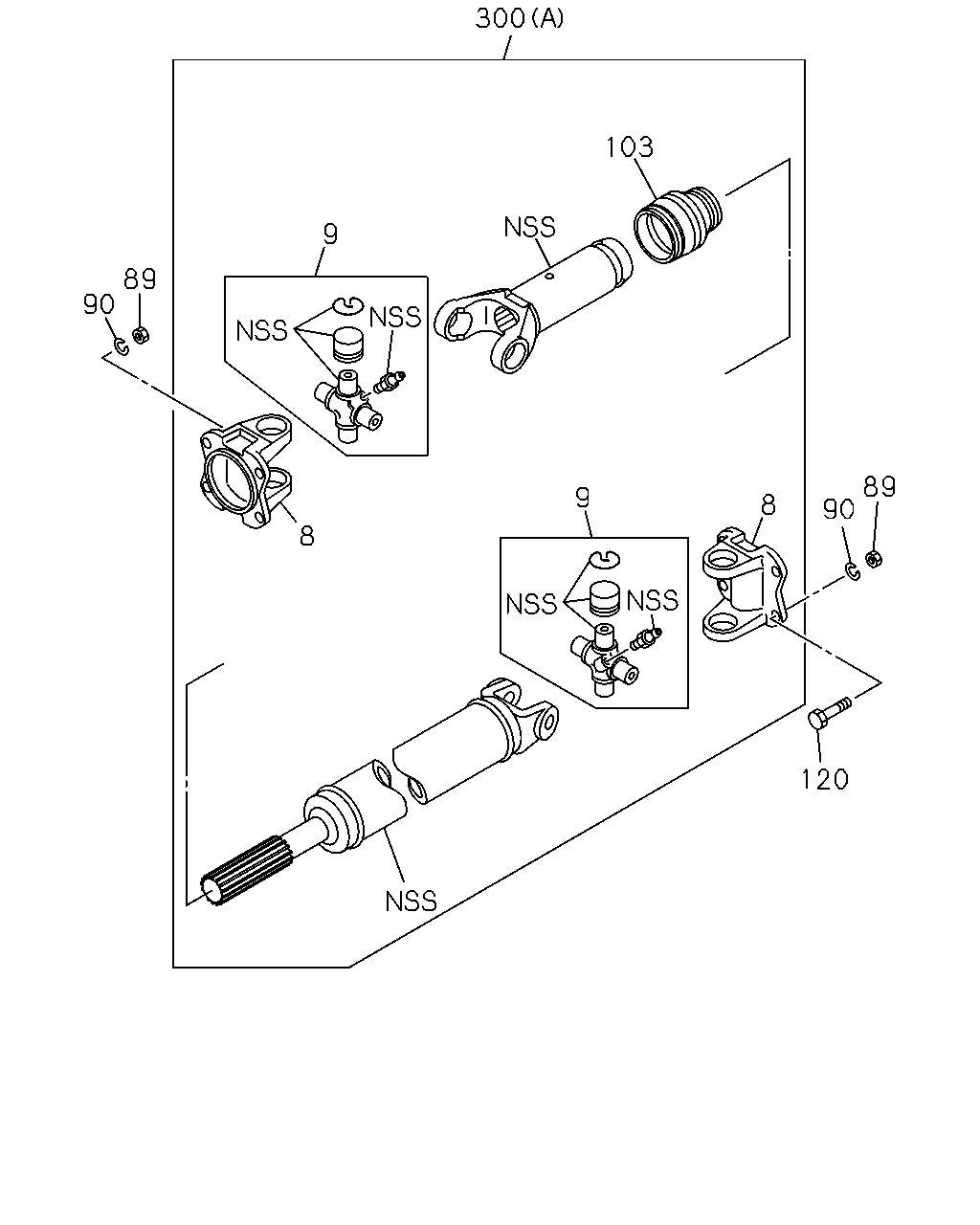

300 103 9 89 90 89 90 9 8 8 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	YOKE; FLANGE,PROP SHAFT 4HG1-T ENG<RDP> THA	8-97322-663-0	02	1	0508-	●
8	YOKE; FLANGE,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> THA	8-97322-663-0	01	1	0508-	●
8	YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5S<R45> THA	8-97020-281-0	02	1	0508-		●
8	YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5M<RM5> THA	8-97020-281-0	02	1	0508-			●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG<RDP>	8-97322-749-0	02	1	0508-0612	●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG<RDP> THA	8-98033-605-1	02	1	0701-	●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM>	8-97322-749-0	01	1	0508-0612	●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> THA	8-98033-605-1	01	1	0701-	●
9	JOURNAL ASM; PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5S<R45> THA	8-97185-603-0	02	1	0508-		●
9	JOURNAL ASM; PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5M<RM5> THA	8-97185-603-0	02	1	0508-			●
89	NUT; YOKE TO RR AXLE 4JB1-TC ENG<RDT> M10	8-94159-009-1	08	1	0508-0610		●	●
89	NUT; YOKE TO RR AXLE 4JB1-TC ENG<RDT> M10	8-98056-949-0	08	1	0611-		●	●
89	NUT; YOKE TO RR AXLE 4HG1-T ENG<RDP> M12	8-94477-841-0	12	1	0508-0610	●
89	NUT; YOKE TO RR AXLE 4HG1-T ENG<RDP> M12	8-97365-450-1	12	1	0611-	●
90	WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG<RDT> ID=10.2	9-09150-610-0	08	1	0508-0603		●	●
90	WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG<RDT> ID=10.2	0-91510-610-0	08	1	0604-		●	●
90	WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG<RDP> ID=12.2	9-09150-812-0	12	1	0508-0603	●
90	WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG<RDP> ID=12.2	0-91510-812-0	12	1	0604-	●
103	BOOT; PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5S<R45> THA	8-97182-164-0	01	1	0508-		●
103	BOOT; PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5M<RM5> THA	8-97182-164-0	01	1	0508-			●
120	BOLT; YOKE TO RR AXLE 4JB1-TC ENG<RDT> M10X29 THA	8-97168-458-1	04	1	0508-0610		●	●
120	BOLT; YOKE TO RR AXLE 4JB1-TC ENG<RDT> M10X29	8-98056-948-0	04	1	0611-		●	●
120	BOLT; YOKE TO RR AXLE 4HG1-T ENG<RDP> M12X35	8-94477-842-0	08	1	0508-0610	●
120	BOLT; YOKE TO RR AXLE 4HG1-T ENG<RDP> M12X35	8-97365-451-1	08	1	0611-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG<RDP> (C) L=1059	8-97308-060-3	01	1	0508-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG<RDP> M/T MYY5T<RSM> (B) L=802	8-97308-048-4	01	1	0508-	●
300	SHAFT ASM; PROP,RR 4JB1-TC ENG<RDT> M/T MSB5S<R45> (A) L=1118 THA	8-97940-282-1	01	1	0508-		●
300	SHAFT ASM; PROP,RR 4JB1-TC ENG<RDT> M/T MSB5M<RM5> (A) L=1104 THA	8-97940-283-1	01	1	0508-			●

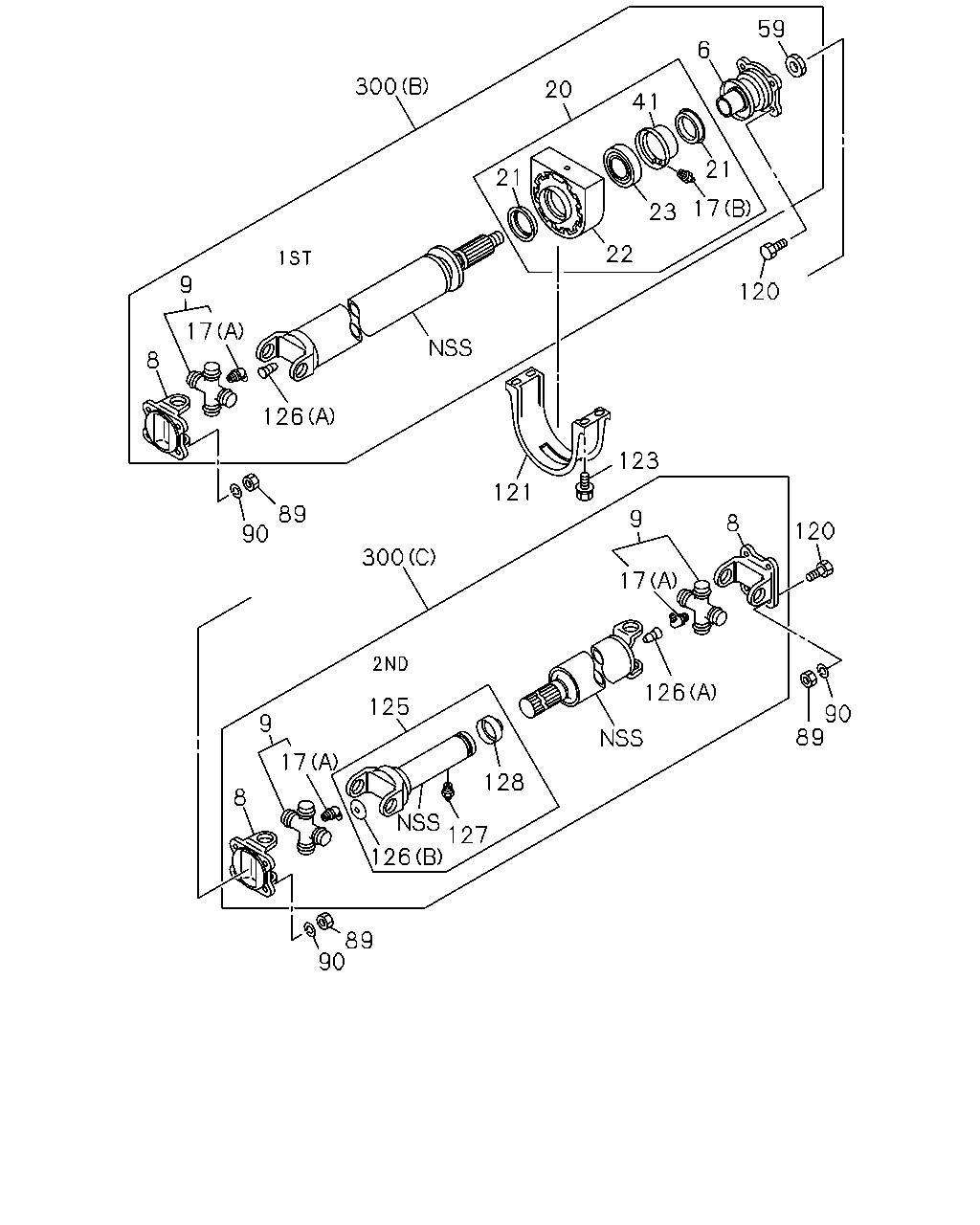

59 6 300 20 41 21 21 17 23 22 9 120 17 8 126 123 121 89 90 9 8 120 300 17 126 125 90 89 9 17 128 8 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	COUPLING ASM; DRIVER,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> THA	8-97036-123-0	01	1	0508-	●
8	YOKE; FLANGE,PROP SHAFT 4HG1-T ENG<RDP> THA	8-97322-663-0	02	1	0508-	●
8	YOKE; FLANGE,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> THA	8-97322-663-0	01	1	0508-	●
8	YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5S<R45> THA	8-97020-281-0	02	1	0508-		●
8	YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5M<RM5> THA	8-97020-281-0	02	1	0508-			●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG<RDP>	8-97322-749-0	02	1	0508-0612	●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG<RDP> THA	8-98033-605-1	02	1	0701-	●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM>	8-97322-749-0	01	1	0508-0612	●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> THA	8-98033-605-1	01	1	0701-	●
9	JOURNAL ASM; PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5S<R45> THA	8-97185-603-0	02	1	0508-		●
9	JOURNAL ASM; PROP SHAFT 4JB1-TC ENG<RDT> M/T MSB5M<RM5> THA	8-97185-603-0	02	1	0508-			●
17	NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG<RDP> (A) 2ND PT1/8 ELBOW	9-09031-210-0	02	1	0508-0512	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG<RDP> (A) 2ND PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> (B) M6 STRAIGHT	9-09031-006-0	01	1	0508-0607	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> (B) M6 STRAIGHT THA	0-90301-406-0	01	1	0608-	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> (A) 1ST PT1/8 ELBOW	9-09031-210-0	01	1	0508-0512	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> (A) 1ST PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●
20	BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0508-0702	●
20	BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> THA	8-98020-880-0	01	1	0703-	●
21	SEAL; OIL,CENTER BRG 4HG1-T ENG<RDP> M/T MYY5T<RSM> ID=49 THA	5-09625-067-1	02	1	0508-	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HG1-T ENG<RDP> M/T MYY5T<RSM>	5-37516-005-2	01	1	0508-0612	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HG1-T ENG<RDP> M/T MYY5T<RSM> THA	8-98020-875-0	01	1	0701-	●
23	BEARING; CENTER,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> OD=80	5-09800-068-0	01	1	0508-	●
41	COVER; CENTER BRG,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> THA	5-37512-004-0	01	1	0508-0612	●
41	COVER; CENTER BRG,PROP SHAFT 4HG1-T ENG<RDP> M/T MYY5T<RSM> THA	8-98020-795-0	01	1	0701-	●
59	NUT; RET TO SUPPORT 4HG1-T ENG<RDP> M/T MYY5T<RSM> M27 H=25	8-97253-126-0	01	1	0508-0612	●
59	NUT; RET TO SUPPORT 4HG1-T ENG<RDP> M/T MYY5T<RSM> M27 H=25	8-97360-410-0	01	1	0701-	●
89	NUT; YOKE TO RR AXLE 4JB1-TC ENG<RDT> M10	8-94159-009-1	08	1	0508-0610		●	●
89	NUT; YOKE TO RR AXLE 4JB1-TC ENG<RDT> M10	8-98056-949-0	08	1	0611-		●	●
89	NUT; YOKE TO RR AXLE 4HG1-T ENG<RDP> M12	8-94477-841-0	12	1	0508-0610	●
89	NUT; YOKE TO RR AXLE 4HG1-T ENG<RDP> M12	8-97365-450-1	12	1	0611-	●
90	WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG<RDT> ID=10.2	9-09150-610-0	08	1	0508-0603		●	●
90	WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG<RDT> ID=10.2	0-91510-610-0	08	1	0604-		●	●
90	WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG<RDP> ID=12.2	9-09150-812-0	12	1	0508-0603	●
90	WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG<RDP> ID=12.2	0-91510-812-0	12	1	0604-	●
120	BOLT; YOKE TO RR AXLE 4JB1-TC ENG<RDT> M10X29 THA	8-97168-458-1	04	1	0508-0610		●	●
120	BOLT; YOKE TO RR AXLE 4JB1-TC ENG<RDT> M10X29	8-98056-948-0	04	1	0611-		●	●
120	BOLT; YOKE TO RR AXLE 4HG1-T ENG<RDP> M12X35	8-94477-842-0	08	1	0508-0610	●
120	BOLT; YOKE TO RR AXLE 4HG1-T ENG<RDP> M12X35	8-97365-451-1	08	1	0611-	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0508-	●
123	BOLT; RET M10X25 FLANGE	0-28681-025-0	04	1	0508-0611	●
123	BOLT; RET M10X25 FLANGE THA	0-28651-025-0	04	1	0612-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG<RDP> L=183	8-97327-979-1	01	1	0508-	●
126	PLUG; SPLINED YOKE 4HG1-T ENG<RDP> (B) THA	8-94366-900-0	01	1	0508-	●
126	PLUG; SPLINED YOKE 4HG1-T ENG<RDP> M/T MYY5T<RSM> (A) THA	1-09600-023-0	01	1	0508-	●
126	PLUG; SPLINED YOKE 4HG1-T ENG<RDP> (A) THA	1-09600-023-0	01	1	0508-	●
127	NIPPLE; GREASE,SPLINED YOKE 4JB1-TC ENG<RDT> M/T MSB5S<R45> M6 STRAIGHT	9-09031-006-0	01	1	0508-0607		●
127	NIPPLE; GREASE,SPLINED YOKE 4JB1-TC ENG<RDT> M/T MSB5M<RM5> M6 STRAIGHT	9-09031-006-0	01	1	0508-0607			●
127	NIPPLE; GREASE,SPLINED YOKE 4HG1-T ENG<RDP> M6 STRAIGHT	9-09031-006-0	01	1	0508-0607	●
127	NIPPLE; GREASE,SPLINED YOKE 4JB1-TC ENG<RDT> M/T MSB5S<R45> M6 STRAIGHT THA	0-90301-406-0	01	1	0608-		●
127	NIPPLE; GREASE,SPLINED YOKE 4JB1-TC ENG<RDT> M/T MSB5M<RM5> M6 STRAIGHT THA	0-90301-406-0	01	1	0608-			●
127	NIPPLE; GREASE,SPLINED YOKE 4HG1-T ENG<RDP> M6 STRAIGHT THA	0-90301-406-0	01	1	0608-	●
128	SEAL; SLEEVE 4HG1-T ENG<RDP> THA	8-97145-746-0	01	1	0508-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG<RDP> (C) L=1059	8-97308-060-3	01	1	0508-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG<RDP> M/T MYY5T<RSM> (B) L=802	8-97308-048-4	01	1	0508-	●
300	SHAFT ASM; PROP,RR 4JB1-TC ENG<RDT> M/T MSB5S<R45> (A) L=1118 THA	8-97940-282-1	01	1	0508-		●
300	SHAFT ASM; PROP,RR 4JB1-TC ENG<RDT> M/T MSB5M<RM5> (A) L=1104 THA	8-97940-283-1	01	1	0508-			●
