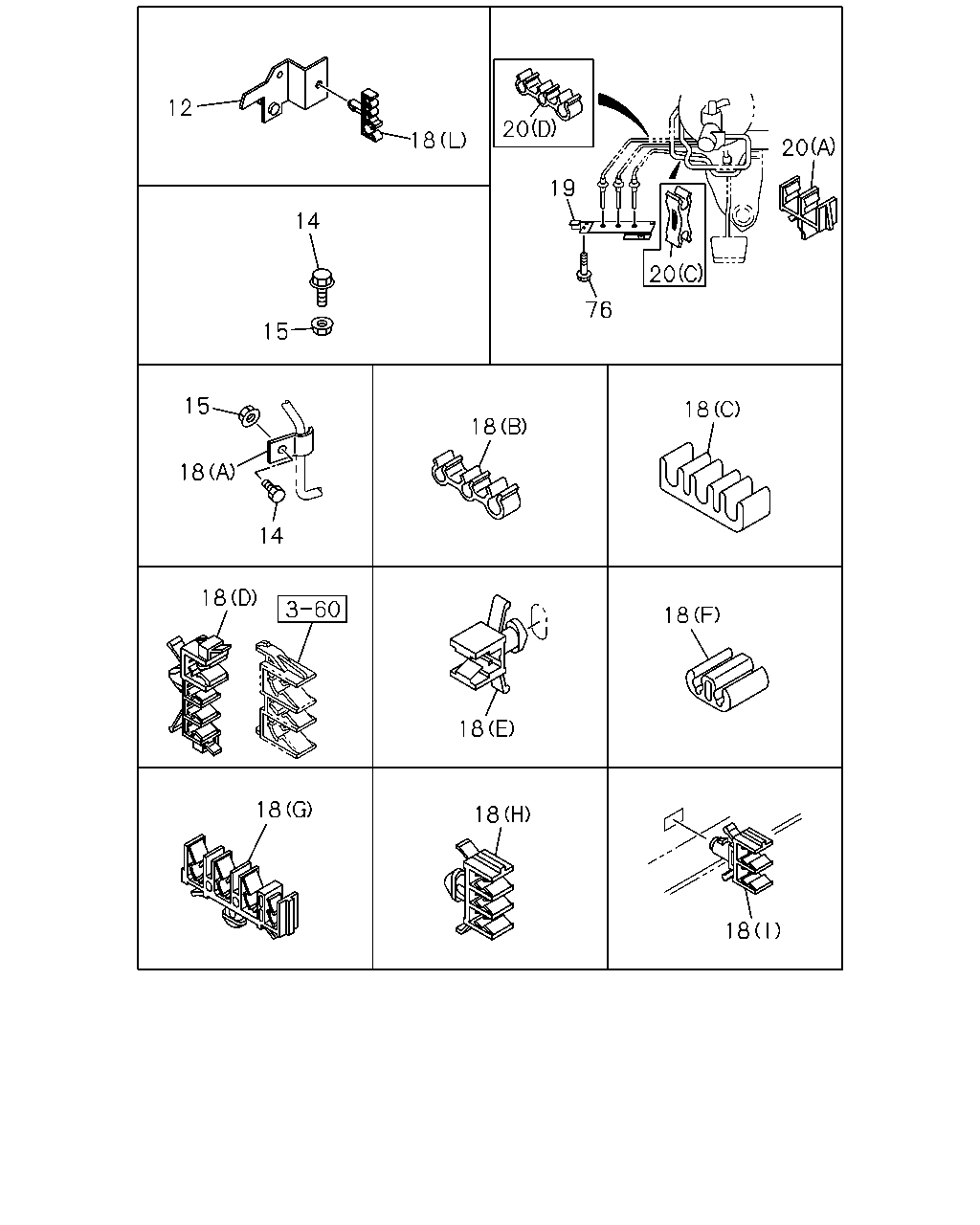

3-58 — FIXING PARTS; OIL PIPING (#23226) — 59 parça

12 20 18 20 19 14 20 76 15 15 18 18 18 14 18 18 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	BRACKET; OIL PIPE 4HG1-T ENG<RDP>	8-97349-917-1	01	1	0508-	●
14	BOLT; CLIP,OIL PIPE 4HG1-T ENG<RDP> M8X20 FLANGE	0-28680-820-0	01	1	0508-0611	●
14	BOLT; CLIP,OIL PIPE 4HG1-T ENG<RDP> M8X20 FLANGE THA	0-28650-820-0	01	1	0612-	●
15	NUT; CLIP,OIL PIPE 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	01	1	0508-	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (I) ID=4.8X2	8-94316-410-0	02	1	0508-		●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (M) ID=10 & 4.76X3	8-97168-820-0	02	1	0508-		●
18	CLIP; BRK PIPE (H) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0508-	●	●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (H) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0508-		●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (C) ID=4.76X3	8-94122-333-0	01	1	0508-		●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (K) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0508-		●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (J) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0508-		●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (E) ID=4.8 H=26	8-94249-685-0	02	1	0508-		●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (E) ID=4.8 H=26	8-94249-685-0	02	1	0508-			●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (J) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0508-		●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (J) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0508-	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (E) ID=4.8 H=26	8-94249-685-0	01	1	0508-			●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (I) ID=4.8X2	8-94316-410-0	01	1	0508-			●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (G) ID=8 & 6.5X2 &4.8	8-94492-600-1	01	1	0508-			●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (J) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0508-			●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (A) B=18 L=20	1-09700-372-0	01	1	0508-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0508-0508	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (B) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0509-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (F) ID=4.8X2 THA	8-94389-060-0	01	1	0508-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (L) ID=10 & 4.76X3	8-97168-819-0	04	1	0508-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (D) ID=10 & 4.76X3	8-97326-158-1	11	1	0508-	●
19	BRACKET; OIL PIPE THA	8-97916-603-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (C) ID=4.6X2 THA	8-94241-454-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0508-	●	●	●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●	●
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●	●

18 18 18 18 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (I) ID=4.8X2	8-94316-410-0	02	1	0508-		●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (M) ID=10 & 4.76X3	8-97168-820-0	02	1	0508-		●
18	CLIP; BRK PIPE (H) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0508-	●	●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (H) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0508-		●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (C) ID=4.76X3	8-94122-333-0	01	1	0508-		●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (K) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0508-		●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (J) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0508-		●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (E) ID=4.8 H=26	8-94249-685-0	02	1	0508-		●	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (E) ID=4.8 H=26	8-94249-685-0	02	1	0508-			●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (J) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0508-		●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (J) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0508-	●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (E) ID=4.8 H=26	8-94249-685-0	01	1	0508-			●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (I) ID=4.8X2	8-94316-410-0	01	1	0508-			●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (G) ID=8 & 6.5X2 &4.8	8-94492-600-1	01	1	0508-			●
18	CLIP; BRK PIPE 4JB1-TC ENG<RDT> (J) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0508-			●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (A) B=18 L=20	1-09700-372-0	01	1	0508-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0508-0508	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (B) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0509-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (F) ID=4.8X2 THA	8-94389-060-0	01	1	0508-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (L) ID=10 & 4.76X3	8-97168-819-0	04	1	0508-	●
18	CLIP; BRK PIPE 4HG1-T ENG<RDP> (D) ID=10 & 4.76X3	8-97326-158-1	11	1	0508-	●
20	CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (C) ID=4.6X2 THA	8-94241-454-0	01	1	0508-	●	●	●
20	CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0508-	●	●	●
