◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#23224) — 32 parça

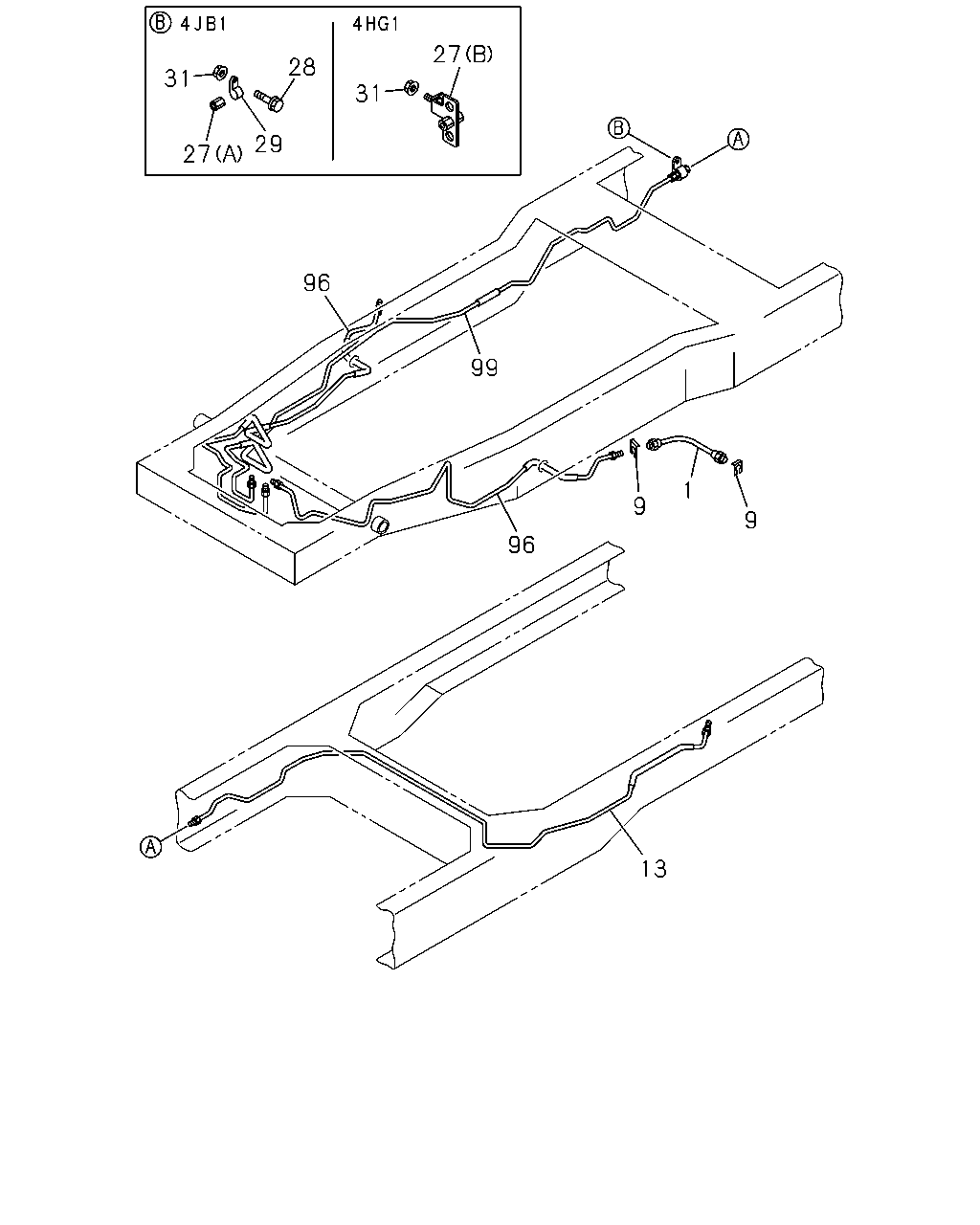

çizim 118934
27 28 31 31 29 27 96 99 1 9 9 96 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0508- ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0508-0610 ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ●
13 PIPE; OIL,UNION TO UNION
4JB1-TC ENG<RDT> THA 		8-97922-325-0 01 1 0508- ●
13 PIPE; OIL,UNION TO UNION
THA 		8-97914-142-0 01 1 0508- ●
13 PIPE; OIL,UNION TO UNION
4HG1-T ENG<RDP> THA 		8-97922-326-0 01 1 0508- ●
27 UNION; BRK PIPE
4JB1-TC ENG<RDT> (A) M10 STRAIGHT 		9-09227-005-0 01 1 0508-0607 ● ●
27 UNION; BRK PIPE
4JB1-TC ENG<RDT> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608- ● ●
27 UNION; BRK PIPE
4HG1-T ENG<RDP> (B) 		8-97287-444-1 01 1 0508- ●
28 BOLT; UNION CLIP
4JB1-TC ENG<RDT> M6X25 FLANGE THA 		0-28650-625-0 01 1 0601-0611 ● ●
28 BOLT; UNION CLIP
4JB1-TC ENG<RDT> M6X25 FLANGE THA 		0-28650-625-0 02 1 0612- ● ●
28 BOLT; UNION CLIP
4JB1-TC ENG<RDT> M6X25 FLANGE 		0-28680-625-0 01 1 0508-0510 ● ●
28 BOLT; UNION CLIP
4JB1-TC ENG<RDT> M6X25 FLANGE 		0-28680-625-0 02 1 0511-0512 ● ●
28 BOLT; UNION CLIP
4JB1-TC ENG<RDT> M6X25 FLANGE 		0-28680-625-0 01 1 0601-0611 ● ●
29 CLIP; UNION
4JB1-TC ENG<RDT> ID=16 L=20 		9-09525-532-0 01 1 0508-0606 ● ●
29 CLIP; UNION
4JB1-TC ENG<RDT> ID=16 L=20 		0-95235-532-0 01 1 0607- ● ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 0508-0605 ● ● ●
31 NUT; UNION CLIP
M6 FLANGE THA 		0-91180-106-0 01 1 0606- ● ● ●
96 PIPE ASM; 6 WAY
4JB1-TC ENG<RDT> THA 		8-97916-826-1 01 1 0508- ● ●
96 PIPE ASM; 6 WAY
4JB1-TC ENG<RDT> THA 		8-97917-994-0 01 1 0508- ● ●
96 PIPE ASM; 6 WAY
4HG1-T ENG<RDP> THA 		8-97922-301-0 01 1 0508- ●
96 PIPE ASM; 6 WAY
4HG1-T ENG<RDP> THA 		8-97922-327-0 01 1 0508- ●
99 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG<RDT> THA 		8-97917-995-0 01 1 0508- ●
99 PIPE ASM; 4/5/6 WAY
4JB1-TC ENG<RDT> THA 		8-97917-996-0 01 1 0508- ●
99 PIPE ASM; 4/5/6 WAY
4HG1-T ENG<RDP> THA 		8-97922-324-0 01 1 0508- ●

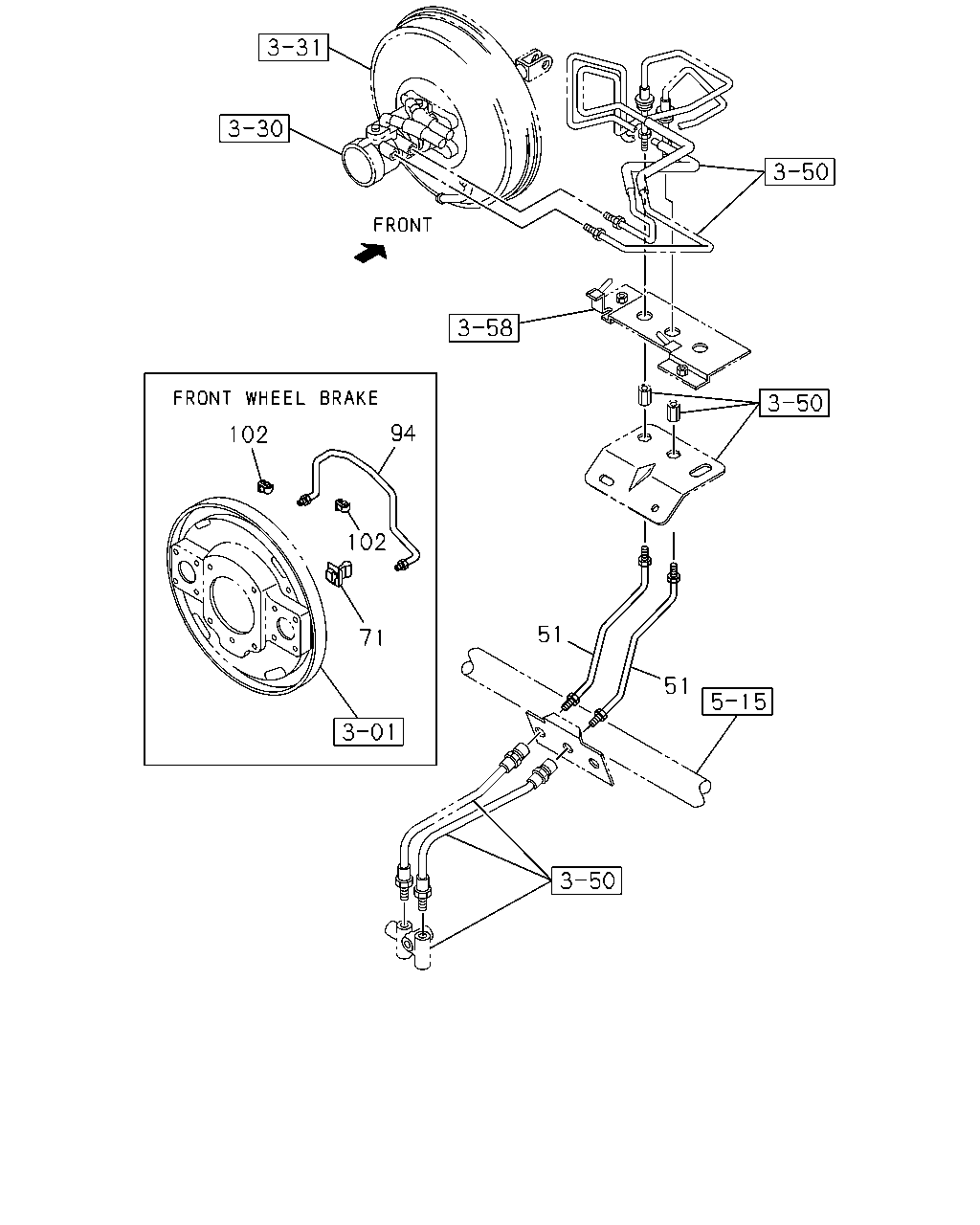

çizim 118935
94 102 102 51 71 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 PIPE; BRK
THA 		8-97916-832-0 02 1 0508- ● ● ●
71 GROMMET; OIL PIPE 9-09756-034-0 02 1 0508- ● ● ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-699-0 01 1 0508- ● ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-700-0 01 1 0508- ● ●
94 PIPE; BRK,W/C TO W/C
THA 		8-97940-696-0 02 1 0508- ●
102 CLIP; PIPE 8-94128-306-0 02 1 0508- ● ●
102 CLIP; PIPE 8-94128-306-0 01 1 0508- ●
