Isuzu WW
▶
TRUCKS
▶
NKR
▶
51040 - NKR(THAILAND)
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#23221) — 23 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀

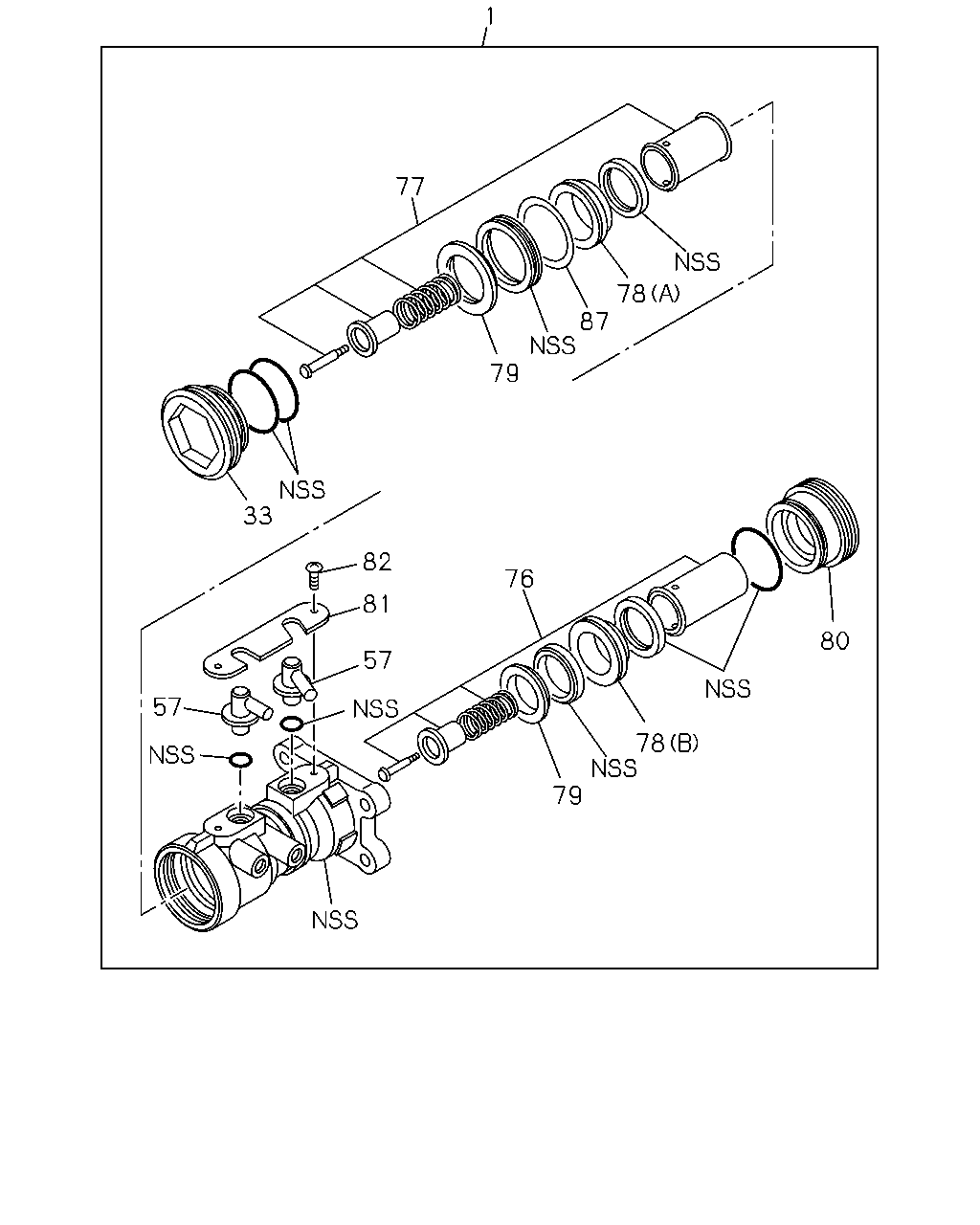

[330A] COMPONENT (21 parça)

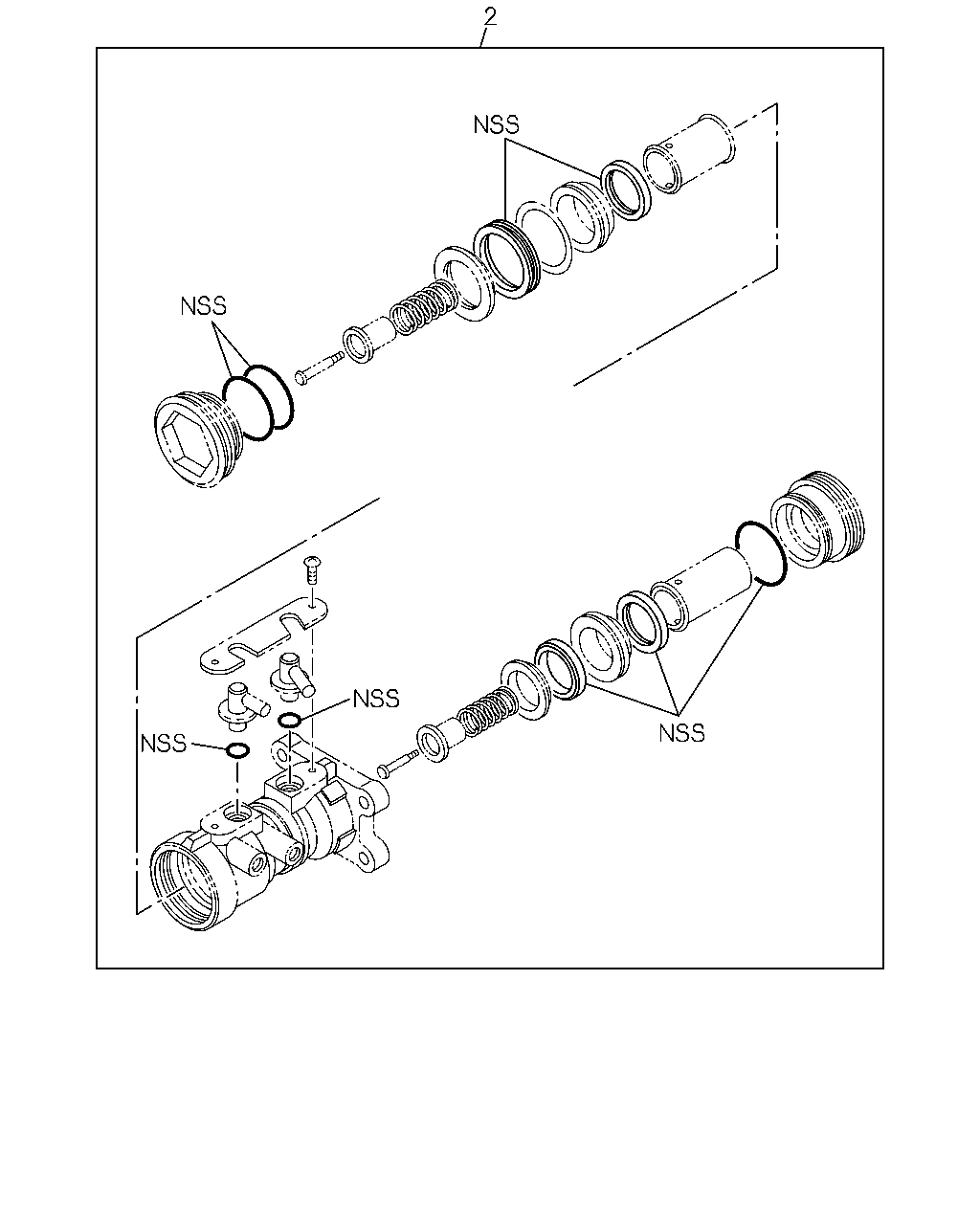

[330A] REPAIR KIT (2 parça)
▶
1
77
78
87
79
33
82
76
81
80
57
57
78
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CYLINDER ASM; BRK MASTER
8-97224-373-0
01
1
0508-
●
●
1
CYLINDER ASM; BRK MASTER
8-97224-370-0
01
1
0508-
●
33
PLUG; END,M/CYL
8-97186-696-0
01
1
0508-
●
●
33
PLUG; END,M/CYL
8-97186-697-0
01
1
0508-
●
57
NIPPLE; BRK M/CYL
8-97130-442-0
02
1
0508-
●
●
●
76
PISTON ASM; PRIMARY
8-97224-636-0
01
1
0508-
●
●
76
PISTON ASM; PRIMARY
8-97224-643-0
01
1
0508-
●
77
PISTON ASM; SECONDARY
8-97224-635-0
01
1
0508-
●
●
77
PISTON ASM; SECONDARY
8-97224-642-0
01
1
0508-
●
78
BUSHING; MASTER CYL
(A)
8-97130-454-0
01
1
0508-
●
●
78
BUSHING; MASTER CYL
(B)
8-97217-310-0
01
1
0508-
●
●
78
BUSHING; MASTER CYL
(A)
8-97130-455-0
01
1
0508-
●
78
BUSHING; MASTER CYL
(B)
8-97217-312-0
01
1
0508-
●
79
SUPPORTER; CUP
8-97130-462-0
02
1
0508-
●
●
79
SUPPORTER; CUP
8-97130-463-0
02
1
0508-
●
80
COVER; MASTER CYL
8-97130-448-0
01
1
0508-
●
●
80
COVER; MASTER CYL
8-97130-449-0
01
1
0508-
●
81
HOLDER; NIPPLE
8-97130-445-0
01
1
0508-
●
●
●
82
SCREW; HOLDER
8-97130-446-0
02
1
0508-
●
●
●
87
SPACER; CUP
8-97130-458-0
01
1
0508-
●
●
87
SPACER; CUP
8-97130-459-0
01
1
0508-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
REPAIR KIT; BRK,M/CYL
8-97130-470-0
01
1
0508-
●
●
2
REPAIR KIT; BRK,M/CYL
8-97130-471-0
01
1
0508-
●
