◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#23219) — 42 parça
çizim 118923
49 324 89 181 236 225 91 224
BalonParca AdiParca NoAdetTipApplied Date A B C
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0508- ● ● ●
49 CABLE; PARKING BRK
4JB1-TC ENG<RDT> THA 		8-97940-537-0 01 1 0508- ● ●
49 CABLE; PARKING BRK
4HG1-T ENG<RDP> THA 		8-97922-332-0 01 1 0508- ●
89 BRACKET; CLIP
4JB1-TC ENG<RDT> 		8-97113-984-1 01 1 0508- ● ●
91 CLIP; PARKING BRK CABLE
4JB1-TC ENG<RDT> ID=13 L=50 		9-09525-286-0 01 1 0508-0606 ● ●
91 CLIP; PARKING BRK CABLE
4JB1-TC ENG<RDT> ID=13 L=50 		0-95235-286-0 01 1 0607- ● ●
91 CLIP; PARKING BRK CABLE
4HG1-T ENG<RDP> ID=13 L=20 		1-09701-138-1 01 1 0508- ●
181 BOLT; BRKT
4JB1-TC ENG<RDT> M8X25 FLANGE 		0-28680-825-0 01 1 0508-0611 ● ●
181 BOLT; BRKT
4JB1-TC ENG<RDT> M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ● ●
224 BOLT; CABLE CLIP
4JB1-TC ENG<RDT> M8X25 FLANGE 		0-28680-825-0 01 1 0508-0611 ● ●
224 BOLT; CABLE CLIP
4JB1-TC ENG<RDT> M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ● ●
224 BOLT; CABLE CLIP
4HG1-T ENG<RDP> M10X25 FLANGE 		0-28681-025-0 01 1 0508-0611 ●
224 BOLT; CABLE CLIP
4HG1-T ENG<RDP> M10X25 FLANGE THA 		0-28651-025-0 01 1 0612- ●
225 NUT; CABLE CLIP
4JB1-TC ENG<RDT> M8 FLANGE 		0-91150-108-0 01 1 0508- ● ●
225 NUT; CABLE CLIP
4HG1-T ENG<RDP> M10 FLANGE 		0-91150-110-0 01 1 0508-0602 ●
225 NUT; CABLE CLIP
4HG1-T ENG<RDP> M10 FLANGE THA 		0-91180-110-0 01 1 0603- ●
236 BOLT; BRKT TO FRAME
4HG1-T ENG<RDP> M8X25 FLANGE 		0-28680-825-0 02 1 0508-0611 ●
236 BOLT; BRKT TO FRAME
4HG1-T ENG<RDP> M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ●
324 BRACKET
4HG1-T ENG<RDP> 		8-97357-242-0 01 1 0508- ●

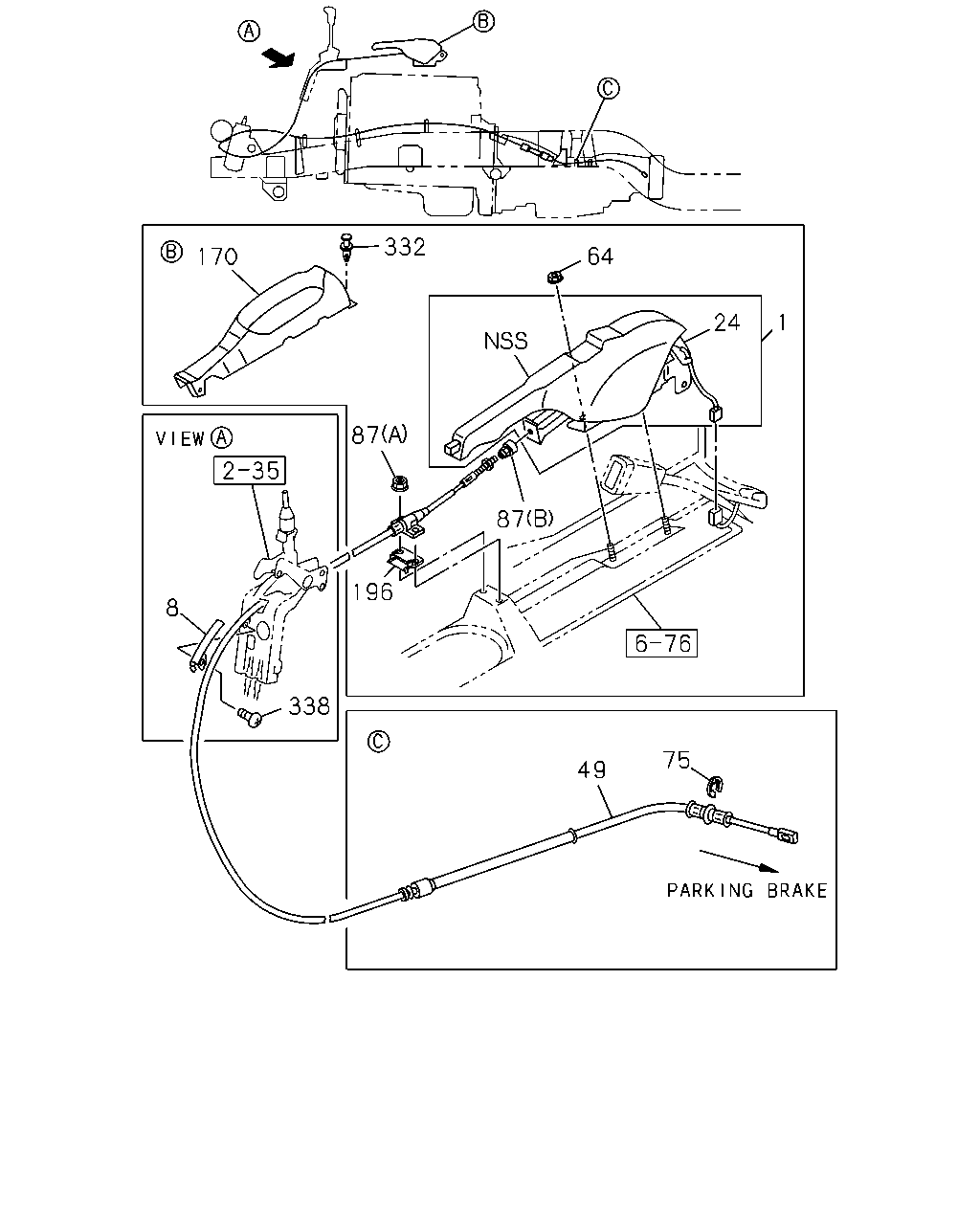

çizim 118933
332 64 170 24 1 87 196 8 338 75 49 87
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
GRAY 		8-97582-333-2 01 1 0508-0610 ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97409-386-0 01 1 0611-1305 ● ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97427-545-0 01 1 1306- ● ● ●
8 GUIDE; PARKING BRK 8-97190-672-0 01 1 0508- ● ● ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0508-1305 ● ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0508- ● ● ●
49 CABLE; PARKING BRK
4JB1-TC ENG<RDT> THA 		8-97940-537-0 01 1 0508- ● ●
49 CABLE; PARKING BRK
4HG1-T ENG<RDP> THA 		8-97922-332-0 01 1 0508- ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0508-0610 ● ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 0508-0604 ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605- ● ● ●
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0508- ● ● ●
87 NUT
(B) M6 		1-71996-312-0 01 1 0508-0611 ● ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ●
170 COVER; PARKING BRK LEVER
GRAY 		8-97396-940-1 01 1 0508-0702 ● ● ●
170 COVER; PARKING BRK LEVER
GRAY 		8-97409-480-0 01 1 0703- ● ● ●
196 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 0508-0611 ● ● ●
196 SPACER; CABLE TO LEVER 8-98034-201-0 01 1 0612- ● ● ●
332 CLIP; COVER
D6X12.5 		8-94146-425-0 01 1 0508- ● ● ●
338 SCREW; GUIDE
M6X10 		9-03497-610-0 01 1 0508-0604 ● ● ●
338 SCREW; GUIDE
M6X10 		0-34218-610-0 01 1 0605- ● ● ●
