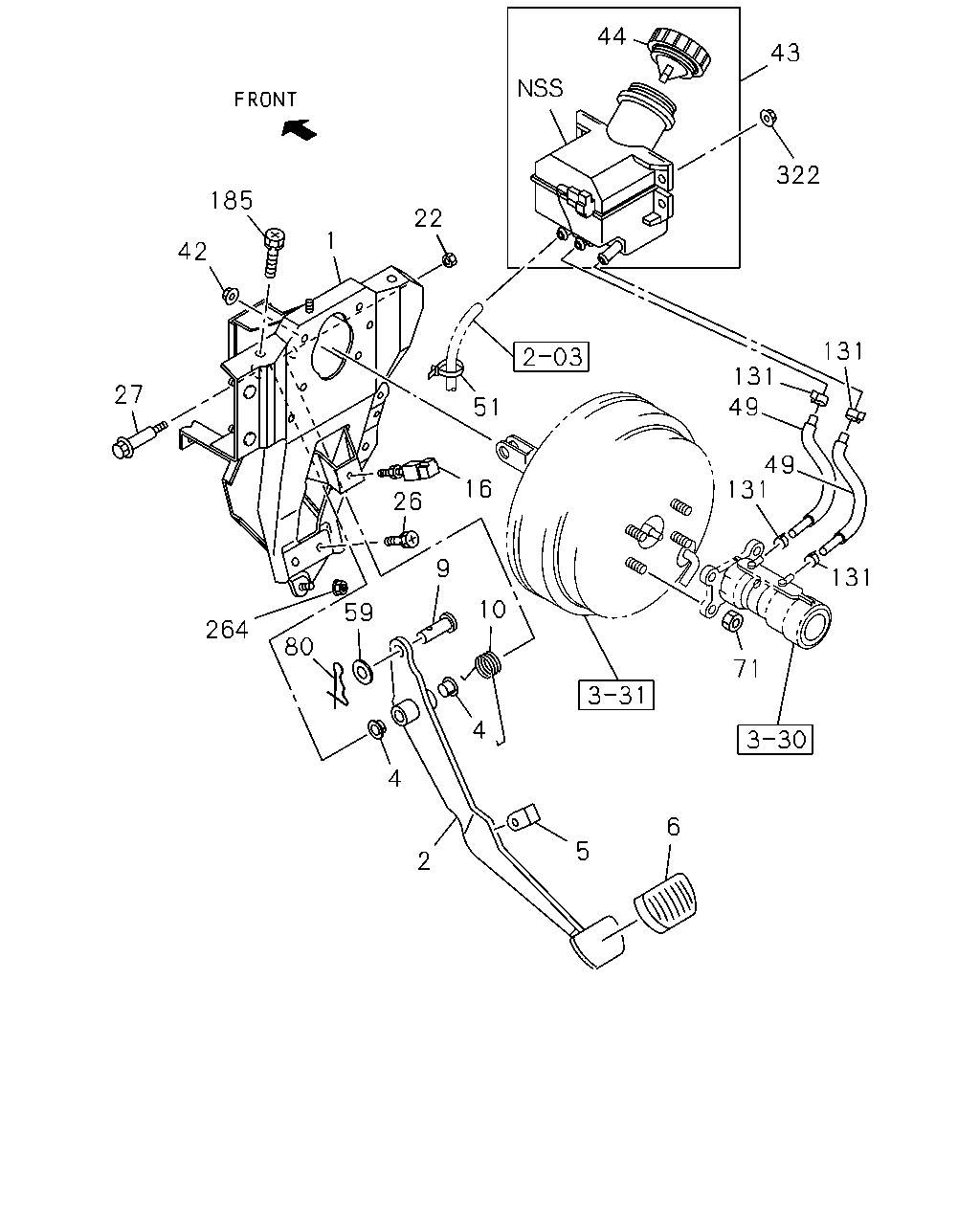

3-10 — BRAKE PEDAL AND CONTROL (#23218) — 28 parça
çizim 118936
44 43 322 185 22 1 42 131 131 27 49 51 49 131 16 26 9 131 59 10 264 80 71 4 4 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET ASM; PEDAL 8-97896-968-0 01 1 0508- ● ● ●
2 PEDAL; BRK
THA 		8-97916-493-0 01 1 0508- ● ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0508- ● ● ●
5 STOPPER; BRK PEDAL
THA 		8-97853-602-1 01 1 0508- ● ● ●
6 COVER; BRK PEDAL 8-97853-413-2 01 1 0508- ● ● ●
9 PIN; JAW JOINT 8-94410-276-0 01 1 0508-1406 ● ● ●
9 PIN; JAW JOINT 8-97359-812-0 01 1 1407- ● ● ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 0508- ● ● ●
16 SWITCH; STOP LAMP
THA 		8-97855-187-0 01 1 0508- ● ● ●
22 NUT; SHAFT
M10 FLANGE 		1-09440-022-0 01 1 0508- ● ● ●
26 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 02 1 0508- ● ● ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 0508- ● ● ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 0508- ● ● ●
43 TANK ASM; OIL 8-97179-813-1 01 1 0508- ● ● ●
44 CAP; OIL TANK 8-97178-291-1 01 1 0508- ● ● ●
49 HOSE; OIL TANK TO BRK M/CYL 8-97129-582-0 02 1 0508- ● ● ●
51 CLIP; HOSE,OIL TANK
L=140 		5-09707-031-1 01 1 0508- ● ● ●
59 WASHER; PL,JAW JOINT
ID=15 		9-09160-514-0 01 1 0508-0605 ● ● ●
59 WASHER; PL,JAW JOINT
ID=15 		0-91610-514-0 01 1 0606- ● ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 0508- ● ● ●
80 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 0508- ● ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY 8-97130-480-0 04 1 0508- ● ● ●
185 BOLT; BRKT
M10X25 FLANGE 		0-28691-025-0 02 1 0508-0512 ● ● ●
185 BOLT; BRKT
M10X25 FLANGE THA 		0-28661-025-0 02 1 0601- ● ● ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE 		8-97046-127-0 01 1 0508-0610 ● ● ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91150-106-0 02 1 0508-0605 ● ● ●
322 NUT; OIL TANK
M6 FLANGE THA 		0-91180-106-0 02 1 0606- ● ● ●
