3-01 — FRONT WHEEL BRAKE (#23215) — 59 parça

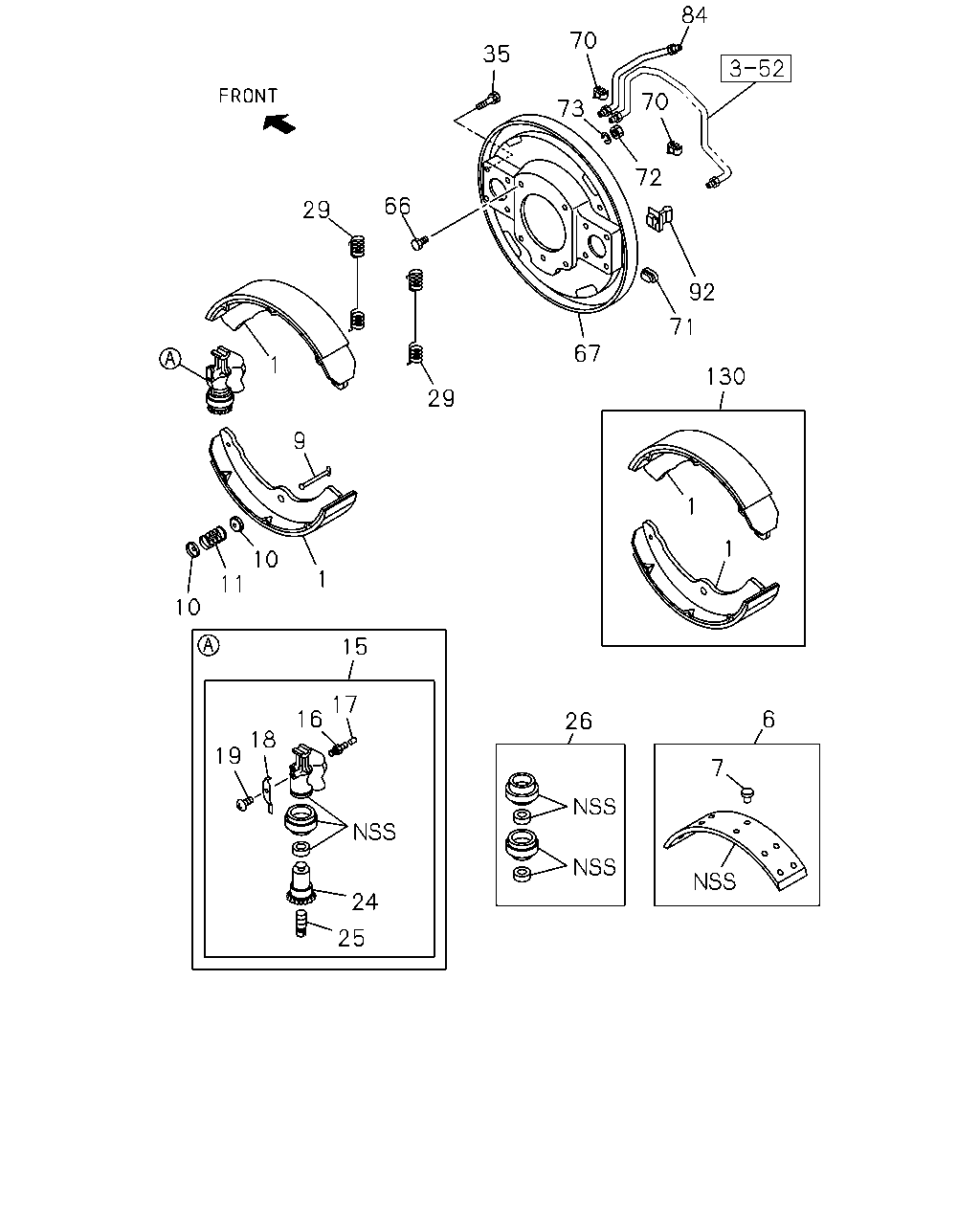

çizim 118918
84 70 35 70 73 72 66 29 92 71 67 1 130 29 9 1 1 10 1 11 10 15 17 16 6 26 18 19 7 24 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,FRT 8-97035-085-1 04 1 0508- ● ●
1 SHOE; BRK,FRT 8-97287-778-0 04 1 0508- ●
6 LINING KIT; FRT BRK 5-87831-801-0 01 1 0508- ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 40 1 0508- ●
9 PIN; SHOE HOLDER 9-47162-607-0 04 1 0508- ●
9 PIN; SHOE HOLDER 8-97019-207-0 04 1 0508- ●
9 PIN; SHOE HOLDER 5-47162-001-0 04 1 0508- ●
10 CUP; SHOE HOLDING 9-47162-033-0 08 1 0508- ● ●
10 CUP; SHOE HOLDING 9-47165-096-0 08 1 0508- ●
11 SPRING; SHOE HOLDING 9-09940-989-1 04 1 0508- ● ●
11 SPRING; SHOE HOLDING 5-09580-101-1 04 1 0508- ●
15 CYLINDER; WHEEL,FRT BRK
REAR IMA 		8-97179-357-0 01 1 0508- ● ●
15 CYLINDER; WHEEL,FRT BRK
REAR IMA 		8-97179-358-0 01 1 0508- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT IMA 		8-97179-359-0 01 1 0508- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT IMA 		8-97179-360-0 01 1 0508- ● ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-810-0 01 1 0508- ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-811-0 01 1 0508- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-812-0 01 1 0508- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-813-0 01 1 0508- ●
16 SCREW; BLEEDER,FRT BRK 9-47615-027-0 02 1 0508-0711 ● ● ●
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 0712- ● ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 02 1 0508-0711 ● ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0712- ● ● ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0508- ● ● ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0508- ● ● ●
24 PISTON; FRT WHEEL CYL
IMA 		8-97078-621-0 04 1 0508- ● ●
24 PISTON; FRT WHEEL CYL 8-94414-700-1 04 1 0508- ●
25 SCREW; ADJ,FRT WHEEL CYL
IMA 		8-97078-623-0 04 1 0508- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 8-94414-702-0 04 1 0508- ●
26 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 0508- ● ●
26 CUP SET; FRT WHEEL CYL 5-87831-598-0 01 1 0508- ●
29 SPRING; RETURN,FRT BRK SHOE
IMA 		8-97078-739-0 04 1 0508- ● ●
29 SPRING; RETURN,FRT BRK SHOE 5-09583-118-0 04 1 0508- ●
35 BOLT; FRT WHEEL CYL 5-09030-036-1 16 1 0508- ●
35 BOLT; FRT WHEEL CYL 8-97025-734-0 16 1 0508- ●
35 BOLT; FRT WHEEL CYL 8-97078-643-0 16 1 0508- ●
66 BOLT; OIL SHIELD COVER
M12X33 		9-09600-043-3 08 1 0508-0611 ● ● ●
66 BOLT; OIL SHIELD COVER
M12X33 		8-98009-493-2 08 1 0612- ● ● ●
67 PLATE; BACK,FRT BRK 8-97302-584-0 01 1 0508- ●
67 PLATE; BACK,FRT BRK 8-97302-585-0 01 1 0508- ●
67 PLATE; BACK,FRT BRK 8-97302-586-0 01 1 0508- ●
67 PLATE; BACK,FRT BRK 8-97302-587-0 01 1 0508- ●
67 PLATE; BACK,FRT BRK 8-97302-592-0 01 1 0508- ●
67 PLATE; BACK,FRT BRK 8-97302-593-0 01 1 0508- ●
70 CLIP; PIPE HOLD 8-94128-306-0 02 1 0508- ● ●
70 CLIP; PIPE HOLD 8-94128-306-0 01 1 0508- ●
71 GROMMET; CHECK HOLE 8-94171-287-0 02 1 0508- ● ● ●
72 NUT; OIL SHIELD COVER
M12 		9-99110-512-0 08 1 0508-0512 ● ● ●
72 NUT; OIL SHIELD COVER
M12 		0-91110-512-0 08 1 0601- ● ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		9-09150-612-0 08 1 0508-0603 ● ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-612-0 08 1 0604-0611 ● ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-812-0 08 1 0612- ● ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
THA 		8-97940-701-0 01 1 0508- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
THA 		8-97940-702-0 01 1 0508- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
THA 		8-97940-697-0 01 1 0508- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
THA 		8-97940-698-0 01 1 0508- ●
92 GROMMET; ADJ HOLE 9-09756-034-0 02 1 0508- ● ● ●
130 SHOE KIT; BRK,FRT 5-87832-045-0 01 1 0508- ● ●
130 SHOE KIT; BRK,FRT 5-87832-047-0 01 1 0508- ●
