2-85 — POWER TAKE OFF CONTROL (#23214) — 97 parça

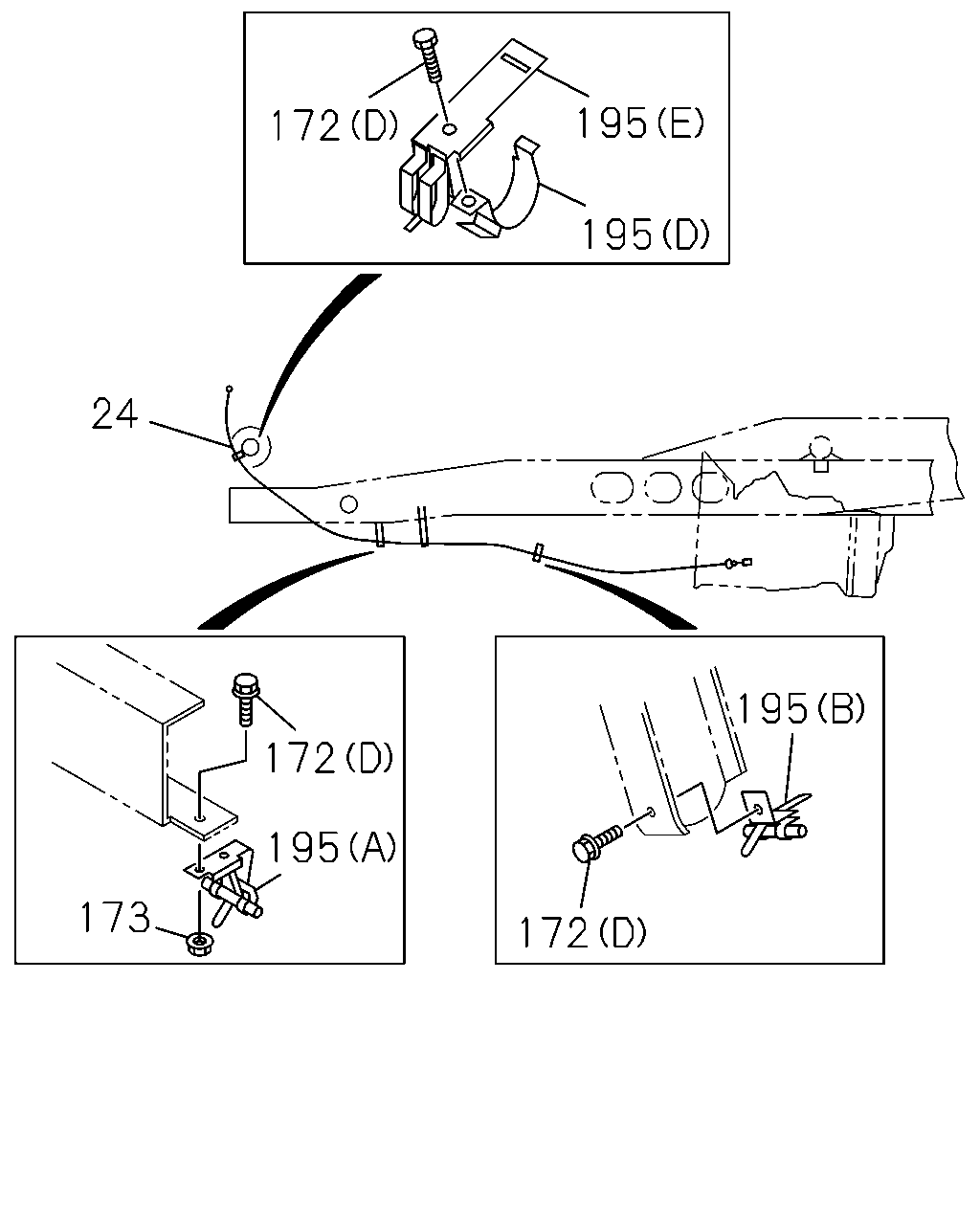

195 172 195 24 195 172 195 173 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CABLE; PTO CONT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> L=2690	8-97142-482-0	01	1	0508-	●	●
24	CABLE; PTO CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> L=2760	8-97351-942-1	01	1	0508-			●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (C) M8X16 FLANGE	0-28080-816-0	01	1	0508-0512	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0601-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (D) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0601-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0508-0512	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0508-0604	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●	●	●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> M8 FLANGE	0-91150-108-0	01	1	0508-0602	●	●	●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (A)	8-97076-429-6	01	1	0508-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (D)	8-97079-557-3	01	1	0508-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (E)	8-97079-558-3	01	1	0508-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (B)	8-97085-695-3	01	1	0508-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (C)	8-97088-407-1	01	1	0508-	●	●	●

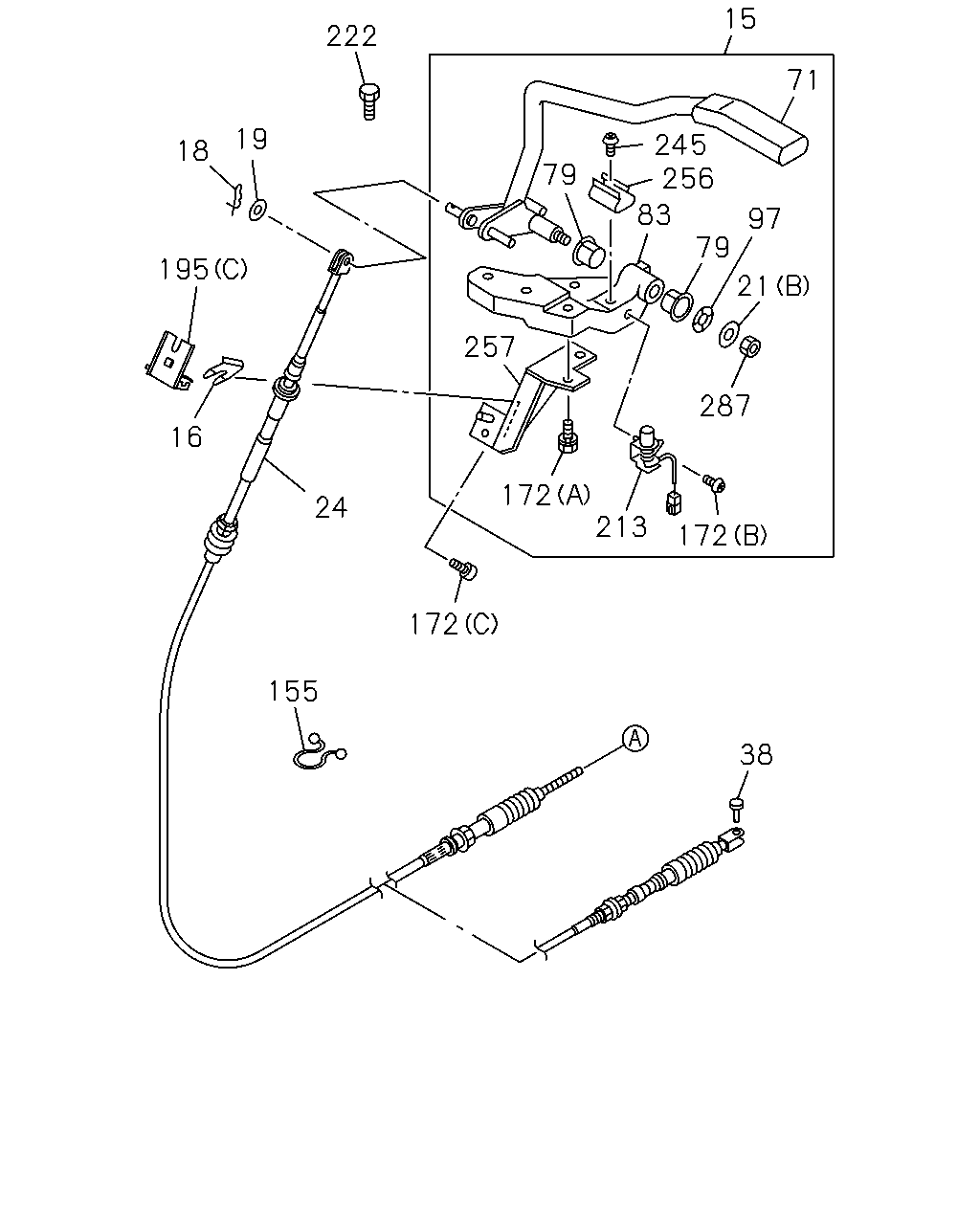

15 222 71 19 245 256 18 79 83 97 79 195 21 257 287 16 172 213 24 172 172 155 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-805-3	01	1	0508-	●	●	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE<V66>	8-94152-900-0	01	1	0508-	●	●	●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0508-	●	●	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE<V66> ID=8.4 THA	9-09160-508-0	01	1	0508-0605	●	●	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE<V66> ID=8.4 OD=16 THA	0-91610-508-0	01	1	0606-	●	●	●
21	WASHER; PL,CONT LEVER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> (A) ID=8.4 THA	9-09160-508-0	01	1	0508-0605	●	●
21	WASHER; PL,CONT LEVER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=16 THA	0-91610-508-0	01	1	0606-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	9-09160-708-0	01	1	0508-0605	●	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●
21	WASHER; PL,CONT LEVER 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0508-0605			●
21	WASHER; PL,CONT LEVER 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22 THA	0-91614-708-0	01	1	0606-			●
24	CABLE; PTO CONT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> L=2690	8-97142-482-0	01	1	0508-	●	●
24	CABLE; PTO CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> L=2760	8-97351-942-1	01	1	0508-			●
38	PIN; JOINT,CABLE TO LEVER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66>	8-94153-035-0	01	1	0508-	●	●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-806-1	01	1	0508-	●	●	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-94238-596-0	02	1	0508-	●	●	●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-97117-352-0	01	1	0508-	●	●	●
97	WASHER; LK PTO TRANSMISSION SIDE<V66> ID=15 OD=25	8-11053-111-0	01	1	0508-	●	●	●
155	CLIP; CABLE PTO TRANSMISSION SIDE<V66> ID=15	1-09709-003-0	01	1	0508-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (C) M8X16 FLANGE	0-28080-816-0	01	1	0508-0512	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (C) M8X16 FLANGE THA	0-28050-816-0	01	1	0601-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (D) M8X25 FLANGE	0-28680-825-0	02	1	0508-0512	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (D) M8X25 FLANGE THA	0-28650-825-0	02	1	0601-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	0508-0512	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (A) M8X16 W/LK WASHER	0-50540-816-0	02	1	0601-	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0508-0604	●	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> (B) M6X12 W/LK&PL WASHER	0-36230-612-0	01	1	0605-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (A)	8-97076-429-6	01	1	0508-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (D)	8-97079-557-3	01	1	0508-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (E)	8-97079-558-3	01	1	0508-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (B)	8-97085-695-3	01	1	0508-	●	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (C)	8-97088-407-1	01	1	0508-	●	●	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97370-568-0	01	1	0508-	●	●	●
222	BOLT; LEVER PTO TRANSMISSION SIDE<V66> M8X14 FLANGE	0-28080-814-0	04	1	0508-	●	●	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE<V66> M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0508-0604	●	●	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE<V66> M4X10 W/LK&PL WASHER THA	0-36230-410-0	01	1	0605-	●	●	●
256	PLATE; LOCK PTO TRANSMISSION SIDE<V66>	8-97117-351-0	01	1	0508-	●	●	●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE<V66>	8-97088-406-3	01	1	0508-	●	●	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE<V66> M8 W/LK WASHER	8-94279-050-0	01	1	0508-	●	●	●

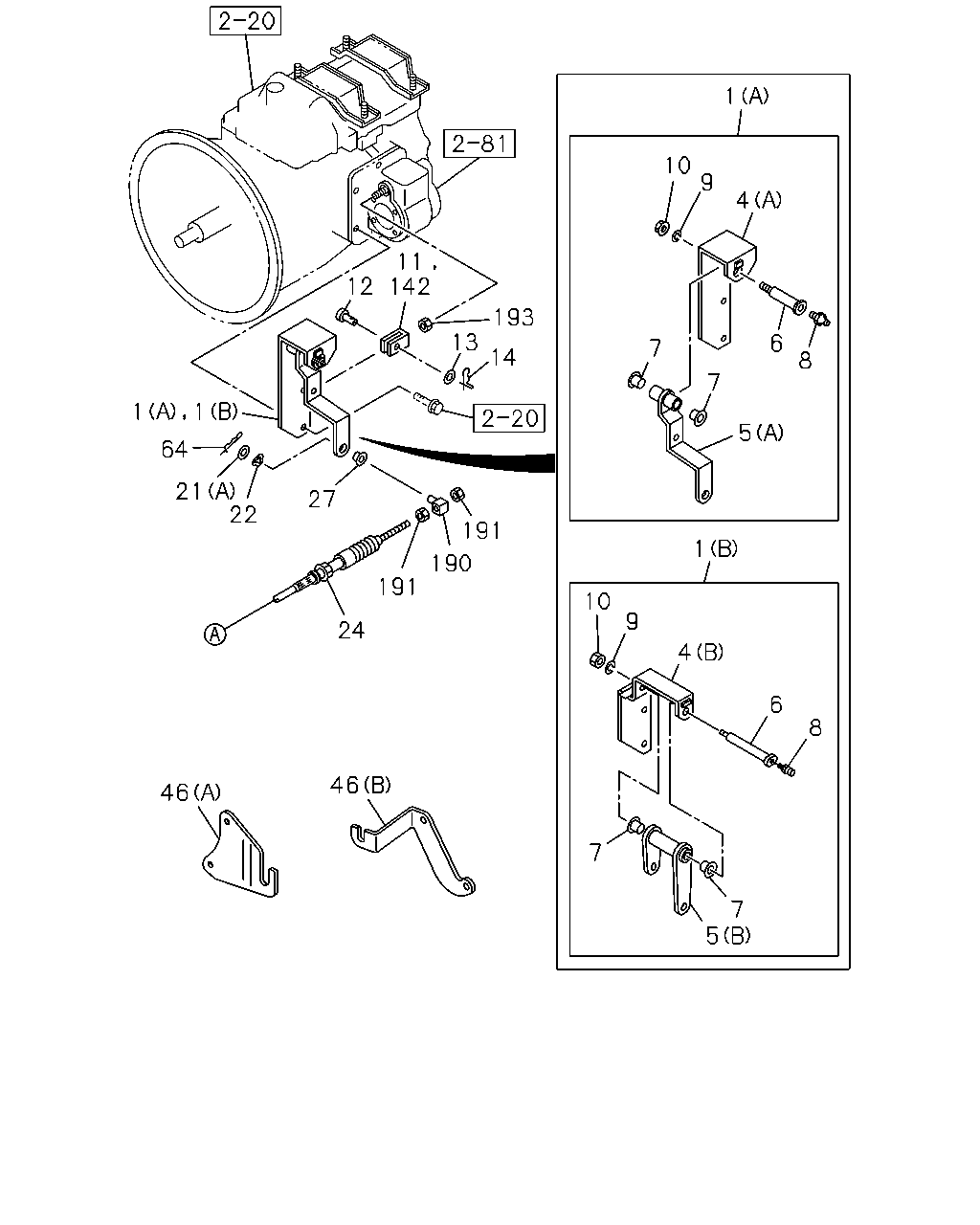

1 10 9 4 11 142 12 193 13 6 7 14 8 7 1 1 5 64 21 22 27 191 1 190 191 10 9 24 4 6 8 46 46 7 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE<V66> (B)	8-94169-638-3	01	1	0508-	●	●
1	LEVER ASM; PTO & DUMP CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	8-97310-741-0	01	1	0508-			●
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE<V66> (B)	8-94169-639-0	01	1	0508-	●	●
4	BRACKET; PTO CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	8-97310-740-0	01	1	0508-			●
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE<V66> (B)	8-94147-828-0	01	1	0508-	●	●
5	LEVER; PTO SHIFT CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	8-97310-747-0	01	1	0508-			●
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE<V66>	8-94147-829-1	01	1	0508-	●	●
6	SHAFT; PTO CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97204-596-0	01	1	0508-			●
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	5-33659-053-0	02	1	0508-	●	●	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE<V66> M6 STRAIGHT	9-09031-006-0	01	1	0508-0607	●	●	●
8	NIPPLE; GREASE PTO TRANSMISSION SIDE<V66> M6 STRAIGHT THA	0-90301-406-0	01	1	0608-	●	●	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE<V66> ID=8.2	9-09150-508-0	01	1	0508-0603	●	●	●
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE<V66> ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE<V66> M8	9-09110-408-0	01	1	0508-0512	●	●	●
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE<V66> M8	0-91110-508-0	01	1	0601-	●	●	●
11	JOINT; JAW,YOKE PTO TRANSMISSION SIDE<V66>	8-94342-085-0	01	1	0508-	●	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE<V66>	8-94174-099-0	01	1	0508-0610	●	●	●
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE<V66>	8-98031-692-0	01	1	0611-	●	●	●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE<V66> ID=12.5	9-09160-512-0	01	1	0508-0605	●	●	●
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE<V66> ID=12.5 OD=22	0-91610-512-0	01	1	0606-	●	●	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66>	1-09987-158-1	01	1	0508-0805	●	●	●
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE<V66>	8-97581-216-0	01	1	0806-	●	●	●
21	WASHER; PL,CONT LEVER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> (A) ID=8.4 THA	9-09160-508-0	01	1	0508-0605	●	●
21	WASHER; PL,CONT LEVER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=16 THA	0-91610-508-0	01	1	0606-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	9-09160-708-0	01	1	0508-0605	●	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●
21	WASHER; PL,CONT LEVER 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0508-0605			●
21	WASHER; PL,CONT LEVER 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22 THA	0-91614-708-0	01	1	0606-			●
22	WASHER; LK,LEVER 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=8.5 T=0.3	5-09509-001-0	01	1	0508-			●
24	CABLE; PTO CONT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> L=2690	8-97142-482-0	01	1	0508-	●	●
24	CABLE; PTO CONT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> L=2760	8-97351-942-1	01	1	0508-			●
27	BUSHING; LEVER,PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-94367-367-0	01	1	0508-			●
46	BRACKET; PTO,TRANS SIDE 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> (A)	8-94157-541-0	01	1	0508-	●	●
46	BRACKET; PTO,TRANS SIDE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (B)	8-97264-954-1	01	1	0508-			●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0508-	●	●	●
142	CLEVIS; CONT BOX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97327-588-0	01	1	0508-			●
190	BOSS; LEVER,PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-94366-842-2	01	1	0508-			●
191	NUT; BOSS 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M6	9-09110-506-0	02	1	0508-0512			●
191	NUT; BOSS 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M6	0-91110-506-0	02	1	0601-			●
193	NUT PTO TRANSMISSION SIDE<V66> M12	9-99111-412-0	01	1	0508-0512	●	●	●
193	NUT PTO TRANSMISSION SIDE<V66> M12	0-91111-512-0	01	1	0601-	●	●	●
