Sayfa 2-81 - Isuzu EPC

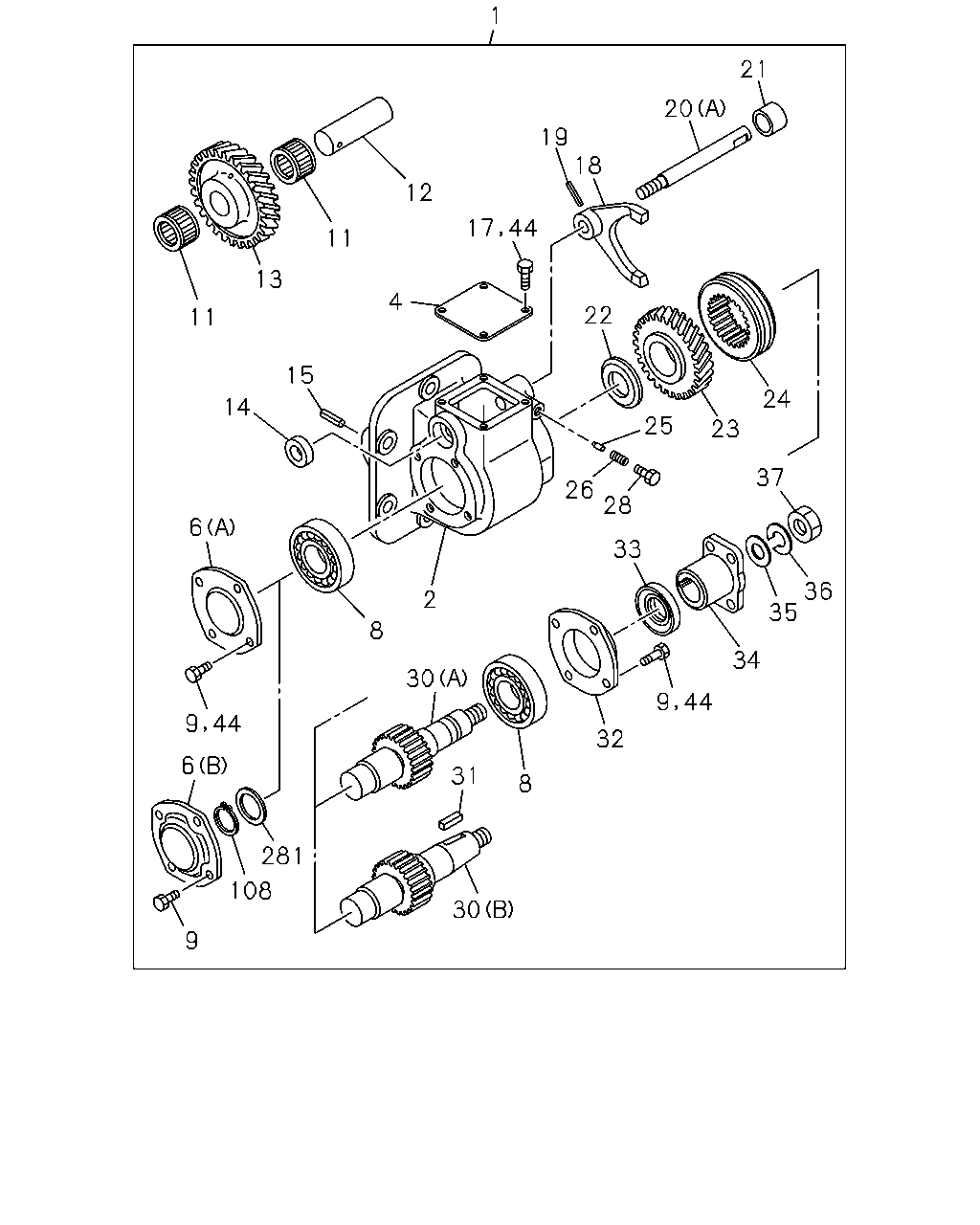

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#23213) — 183 parça

21 1 12 11 13 11 14 6 9 15 4 17 44 19 20 18 22 25 24 23 37 28 26 2 8 31 32 44 9 34 35 36 33 30 30 8 281 108 9 44 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE<V66> IDENTIFICATION=B	8-97313-682-4	01	1	0508-1210	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE<V66> IDENTIFICATION=B	8-98223-525-0	01	1	1211-1305	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE<V66> IDENTIFICATION=B	8-98233-782-0	01	1	1306-	●	●
1	POWER TAKE OFF ASM; TRANS SIDE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> IDENTIFICATION=YG	8-97286-908-7	01	1	0508-1210			●
1	POWER TAKE OFF ASM; TRANS SIDE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305			●
1	POWER TAKE OFF ASM; TRANS SIDE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> IDENTIFICATION=YG	8-98233-783-0	01	1	1306-			●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97319-357-1	01	1	0508-	●	●
2	CASE; GEAR,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97308-689-2	01	1	0508-			●
4	COVER; UPR,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-98046-613-0	01	1	0512-0611			●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98046-613-0	01	1	0612-	●	●	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97106-718-1	01	1	0508-0511	●	●	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97106-718-1	01	1	0512-0611	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	8-98046-612-0	01	1	0512-0611			●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-98046-612-0	01	1	0612-1305	●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (B)	8-98233-778-0	01	1	1306-	●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-97333-347-0	01	1	0508-0511	●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-97333-347-0	01	1	0512-0611	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=25 OD=62	8-94343-031-1	02	1	0508-	●	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE<V66> M8X16 FLANGE THA	0-28050-816-0	08	1	1211-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8X25 FLANGE	0-28680-825-0	08	1	0508-0511			●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8X20 FLANGE THA	0-28050-820-0	08	1	0512-			●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> NSK	9-00096-646-0	02	1	0508-	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> NSK	8-97106-734-0	02	1	0508-			●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	9-38211-606-0	01	1	0508-	●	●	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> Z=34	9-38241-614-1	01	1	0508-	●	●
13	GEAR; IDLE,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> Z=31	8-97308-700-0	01	1	0508-			●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-98028-789-0	01	1	0510-0510			●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98028-789-0	01	1	0511-	●	●	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	9-09724-015-0	01	1	0508-0509	●	●	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	9-09724-015-0	01	1	0510-0510	●	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> L=16	9-09878-613-0	01	1	0508-	●	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M8X16 FLANGE THA	0-28050-816-0	04	1	1211-	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8X25 FLANGE	0-28680-825-0	04	1	0508-0511			●
17	BOLT; UPR COVER,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8X20 FLANGE THA	0-28050-820-0	04	1	0512-			●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97027-045-0	01	1	0511-0611	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97224-702-0	01	1	0508-0510	●	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97224-702-0	01	1	0511-0611			●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97224-702-0	01	1	0612-	●	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> L=25 OD=5	8-94135-771-0	01	1	0508-	●	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-97224-714-0	01	1	0508-0611	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-98046-622-0	01	1	0612-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (B)	8-97308-707-0	01	1	0508-0511			●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (B)	8-98046-623-0	01	1	0512-			●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	9-33545-602-0	01	1	0508-0611	●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98046-617-0	01	1	0612-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE<V66>	9-38245-603-1	01	1	0508-	●	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> Z=22	9-38241-612-1	01	1	0508-0805	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> Z=22	8-98120-612-0	01	1	0806-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> Z=27	8-97308-714-0	01	1	0508-0805			●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> Z=27	8-98120-609-0	01	1	0806-			●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97231-316-1	01	1	0508-	●	●	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE<V66>	8-94169-071-0	01	1	0508-	●	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	9-09940-380-0	01	1	0508-	●	●	●
28	BOLT; SPRING,SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8	8-98038-424-0	01	1	0512-0611			●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66> M8	8-98038-424-0	01	1	0612-	●	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97318-428-0	01	1	0508-0511	●	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97318-428-0	01	1	0512-0611	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-97118-183-1	01	1	0508-1210	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (B)	8-98223-518-0	01	1	1211-1305	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (B)	8-98233-777-0	01	1	1306-	●	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> L=25	8-98068-088-0	01	1	1211-	●	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	1-38152-024-0	01	1	0508-0611	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98046-610-0	01	1	0612-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97350-757-3	01	1	0508-0511			●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97305-794-0	01	1	0512-			●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	1-38159-007-0	01	1	0508-	●	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97118-184-0	01	1	0508-0710	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97350-755-0	01	1	0508-0511			●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-98046-624-0	01	1	0512-0710			●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98046-624-0	01	1	0711-1210	●	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98223-519-0	01	1	1211-	●	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=15	0-91610-514-0	01	1	0512-0611			●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=15	0-91610-514-0	01	1	0612-	●	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=15	9-09160-514-0	01	1	0508-0511	●	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=15	9-09160-514-0	01	1	0512-0611	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=14.2	0-91510-814-0	01	1	0512-0611			●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=14.2	0-91510-814-0	01	1	0612-	●	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=14.2	9-09150-514-0	01	1	0508-0511	●	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=14.2	9-09150-514-0	01	1	0512-0611	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M14	0-91111-514-0	01	1	0512-0611			●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M14	0-91111-514-0	01	1	0612-	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M14	9-99111-414-0	01	1	0508-0511	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M14	9-99111-414-0	01	1	0512-0611	●	●
44	BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M8X16 FLANGE	0-28080-816-0	12	1	0508-0611	●	●
44	BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M8X16 FLANGE THA	0-28050-816-0	12	1	0612-1210	●	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=23.2	9-09180-025-0	01	1	1306-	●	●	●
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE<V66> T=1.85	8-97106-729-0	01	1	1306-	●	●	●

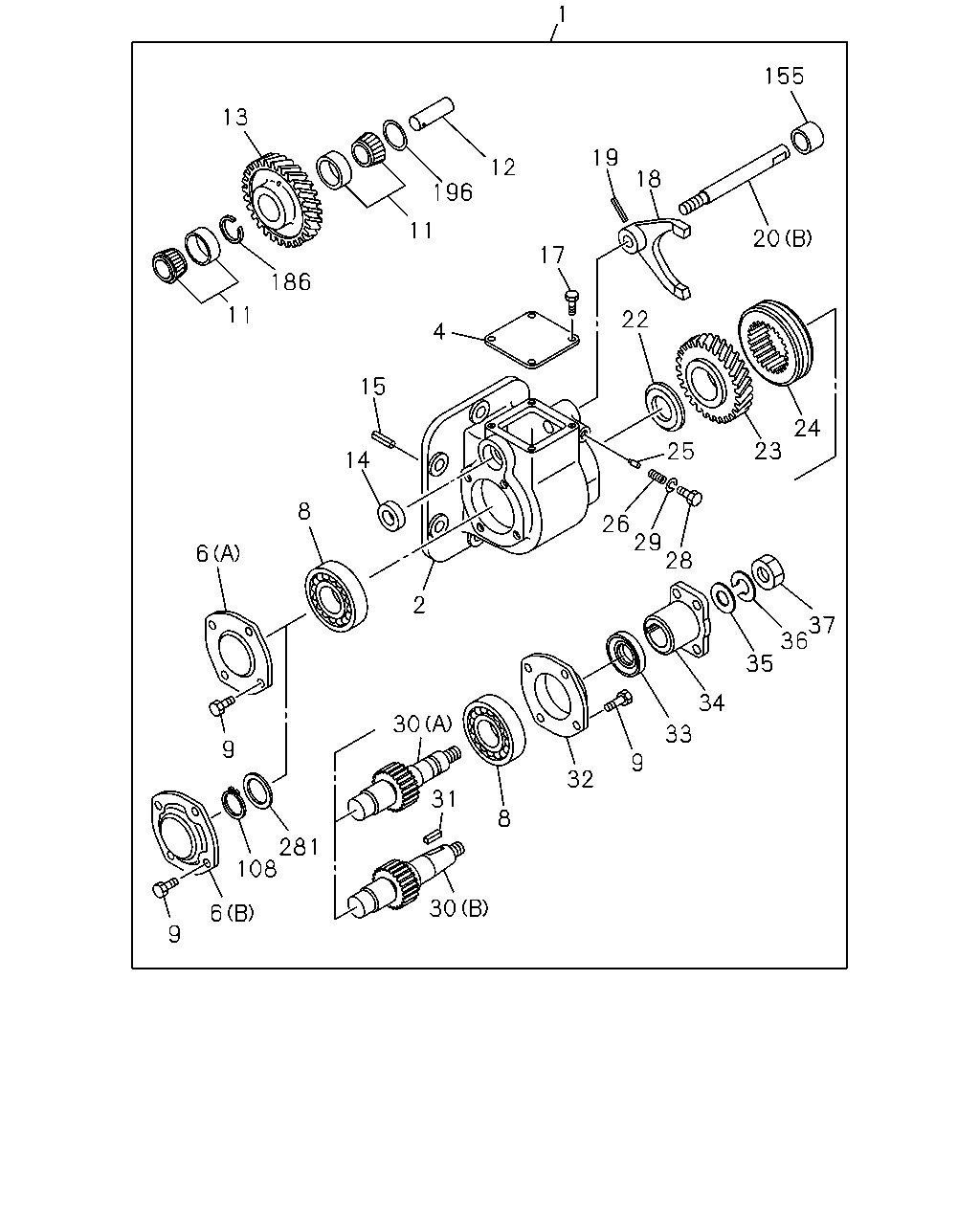

1 13 11 186 11 196 12 155 18 19 20 17 4 15 14 22 24 23 25 28 29 26 2 8 6 9 281 108 6 9 30 31 30 8 37 36 35 34 33 9 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE<V66> IDENTIFICATION=B	8-97313-682-4	01	1	0508-1210	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE<V66> IDENTIFICATION=B	8-98223-525-0	01	1	1211-1305	●	●
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE<V66> IDENTIFICATION=B	8-98233-782-0	01	1	1306-	●	●
1	POWER TAKE OFF ASM; TRANS SIDE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> IDENTIFICATION=YG	8-97286-908-7	01	1	0508-1210			●
1	POWER TAKE OFF ASM; TRANS SIDE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305			●
1	POWER TAKE OFF ASM; TRANS SIDE 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> IDENTIFICATION=YG	8-98233-783-0	01	1	1306-			●
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97319-357-1	01	1	0508-	●	●
2	CASE; GEAR,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97308-689-2	01	1	0508-			●
4	COVER; UPR,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-98046-613-0	01	1	0512-0611			●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98046-613-0	01	1	0612-	●	●	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97106-718-1	01	1	0508-0511	●	●	●
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97106-718-1	01	1	0512-0611	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (A)	8-98046-612-0	01	1	0512-0611			●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-98046-612-0	01	1	0612-1305	●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (B)	8-98233-778-0	01	1	1306-	●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-97333-347-0	01	1	0508-0511	●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-97333-347-0	01	1	0512-0611	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=25 OD=62	8-94343-031-1	02	1	0508-	●	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE<V66> M8X16 FLANGE THA	0-28050-816-0	08	1	1211-	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8X25 FLANGE	0-28680-825-0	08	1	0508-0511			●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8X20 FLANGE THA	0-28050-820-0	08	1	0512-			●
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> NSK	9-00096-646-0	02	1	0508-	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> NSK	8-97106-734-0	02	1	0508-			●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	9-38211-606-0	01	1	0508-	●	●	●
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> Z=34	9-38241-614-1	01	1	0508-	●	●
13	GEAR; IDLE,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> Z=31	8-97308-700-0	01	1	0508-			●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-98028-789-0	01	1	0510-0510			●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98028-789-0	01	1	0511-	●	●	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	9-09724-015-0	01	1	0508-0509	●	●	●
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	9-09724-015-0	01	1	0510-0510	●	●
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> L=16	9-09878-613-0	01	1	0508-	●	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M8X16 FLANGE THA	0-28050-816-0	04	1	1211-	●	●
17	BOLT; UPR COVER,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8X25 FLANGE	0-28680-825-0	04	1	0508-0511			●
17	BOLT; UPR COVER,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8X20 FLANGE THA	0-28050-820-0	04	1	0512-			●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97027-045-0	01	1	0511-0611	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97224-702-0	01	1	0508-0510	●	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97224-702-0	01	1	0511-0611			●
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97224-702-0	01	1	0612-	●	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> L=25 OD=5	8-94135-771-0	01	1	0508-	●	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-97224-714-0	01	1	0508-0611	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-98046-622-0	01	1	0612-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (B)	8-97308-707-0	01	1	0508-0511			●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> (B)	8-98046-623-0	01	1	0512-			●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE<V66>	9-38245-603-1	01	1	0508-	●	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> Z=22	9-38241-612-1	01	1	0508-0805	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> Z=22	8-98120-612-0	01	1	0806-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> Z=27	8-97308-714-0	01	1	0508-0805			●
23	GEAR; OUTPUT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> Z=27	8-98120-609-0	01	1	0806-			●
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97231-316-1	01	1	0508-	●	●	●
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE<V66>	8-94169-071-0	01	1	0508-	●	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	9-09940-380-0	01	1	0508-	●	●	●
28	BOLT; SPRING,SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M8	8-98038-424-0	01	1	0512-0611			●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66> M8	8-98038-424-0	01	1	0612-	●	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97318-428-0	01	1	0508-0511	●	●	●
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97318-428-0	01	1	0512-0611	●	●
29	WASHER; LK,SPRING,SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=8.2 THA	0-91510-808-0	01	1	0512-0611			●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66> ID=8.2 THA	0-91510-808-0	01	1	0612-	●	●	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66> ID=8.2	9-09150-508-0	01	1	0508-0511	●	●	●
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE<V66> ID=8.2	9-09150-508-0	01	1	0512-0611	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (A)	8-97118-183-1	01	1	0508-1210	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (B)	8-98223-518-0	01	1	1211-1305	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> (B)	8-98233-777-0	01	1	1306-	●	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> L=25	8-98068-088-0	01	1	1211-	●	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	1-38152-024-0	01	1	0508-0611	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98046-610-0	01	1	0612-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97350-757-3	01	1	0508-0511			●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97305-794-0	01	1	0512-			●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	1-38159-007-0	01	1	0508-	●	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-97118-184-0	01	1	0508-0710	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97350-755-0	01	1	0508-0511			●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-98046-624-0	01	1	0512-0710			●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98046-624-0	01	1	0711-1210	●	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66>	8-98223-519-0	01	1	1211-	●	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=15	0-91610-514-0	01	1	0512-0611			●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=15	0-91610-514-0	01	1	0612-	●	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=15	9-09160-514-0	01	1	0508-0511	●	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=15	9-09160-514-0	01	1	0512-0611	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> ID=14.2	0-91510-814-0	01	1	0512-0611			●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=14.2	0-91510-814-0	01	1	0612-	●	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=14.2	9-09150-514-0	01	1	0508-0511	●	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=14.2	9-09150-514-0	01	1	0512-0611	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M14	0-91111-514-0	01	1	0512-0611			●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M14	0-91111-514-0	01	1	0612-	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M14	9-99111-414-0	01	1	0508-0511	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> M14	9-99111-414-0	01	1	0512-0611	●	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE<V66> ID=23.2	9-09180-025-0	01	1	1306-	●	●	●
155	PLUG; SHIFTER ROD 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97374-349-0	01	1	0508-0511			●
155	PLUG; SHIFTER ROD 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-98037-770-0	01	1	0512-			●
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66>	8-97106-730-0	01	1	0508-			●
196	PIECE; THRUST 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> T=1.50	8-97106-724-0	02	1	0508-			●
196	PIECE; THRUST 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> T=1.60	8-97106-725-0	02	1	0508-			●
196	PIECE; THRUST 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> T=1.65	8-97106-726-0	02	1	0508-			●
196	PIECE; THRUST 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> T=1.70	8-97106-727-0	02	1	0508-			●
196	PIECE; THRUST 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> T=1.80	8-97106-728-0	02	1	0508-			●
196	PIECE; THRUST 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> T=1.85	8-97106-729-0	02	1	0508-			●
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE<V66> T=1.85	8-97106-729-0	01	1	1306-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
