2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#23211) — 173 parça

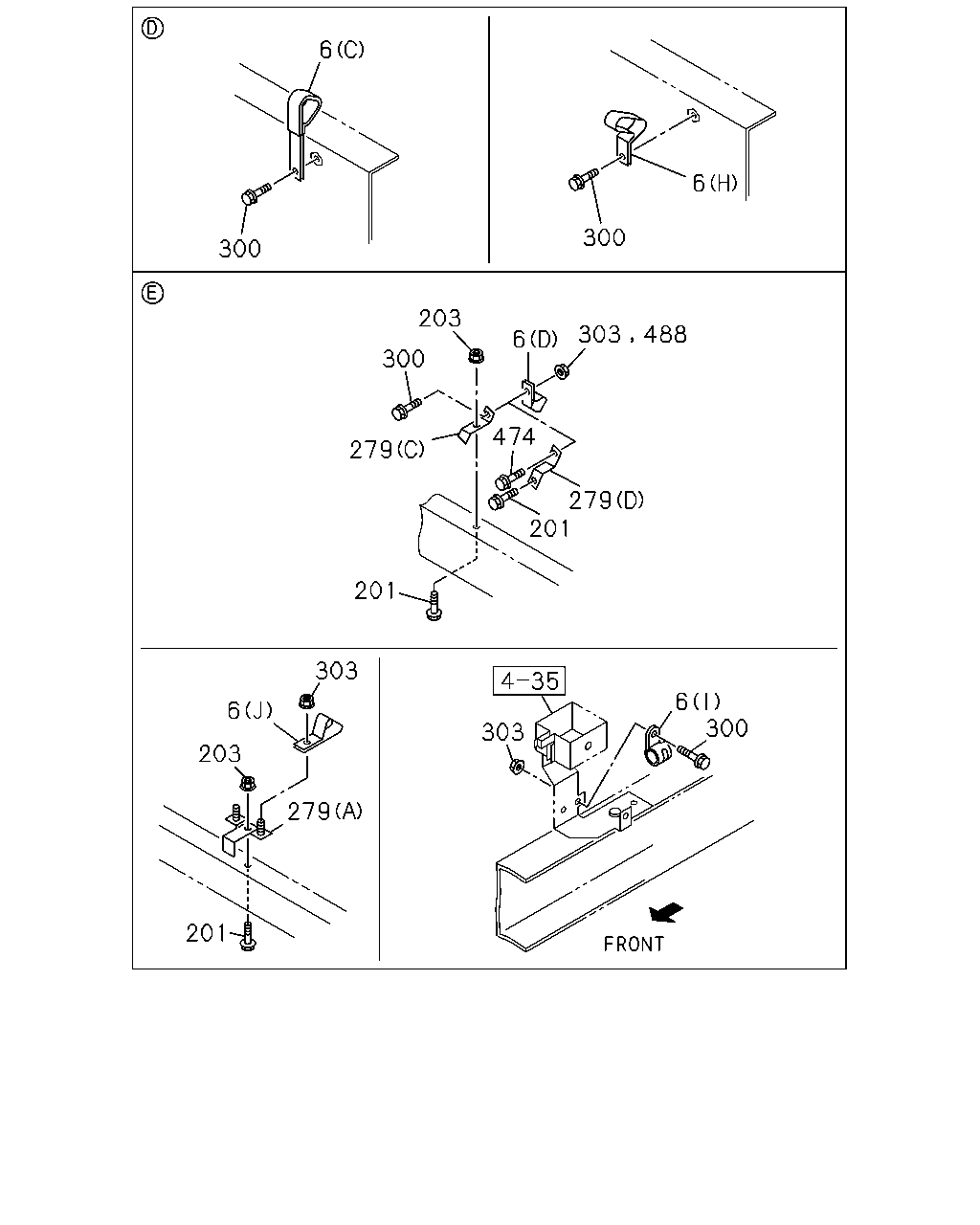

6 6 300 300 203 6 300 474 279 279 201 201 303 6 300 6 303 203 279 201 303 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	CLIP; CABLE POWER STEERING<N40> (A)	8-97036-334-2	01	1	0508-	●	●	●
6	CLIP; CABLE EXC. POWER STEERING<N40> (B)	8-97036-333-1	01	1	0508-	●	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (B)	8-97036-333-1	01	1	0508-	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (C)	8-97036-329-2	01	1	0508-	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (D)	8-97036-332-1	01	1	0508-	●	●
6	CLIP; CABLE (E) ID=19.2	8-97211-011-0	02	1	0508-	●	●
6	CLIP; CABLE (F)	8-97011-448-0	02	1	0508-	●	●	●
6	CLIP; CABLE (G)	8-97147-985-0	01	1	0508-	●	●	●
6	CLIP; CABLE 4HG1-T ENG<RDP> (H)	8-97039-295-0	01	1	0508-			●
6	CLIP; CABLE 4HG1-T ENG<RDP> (I)	8-97039-296-1	01	1	0508-			●
6	CLIP; CABLE 4HG1-T ENG<RDP> (J)	8-97039-517-1	01	1	0508-			●
6	CLIP; CABLE (E) ID=22.2	1-09701-209-1	01	1	0508-			●
6	CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0508-			●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0508-0508	●	●
201	BOLT; BRKT 4HG1-T ENG<RDP> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0508-0508			●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X30 FLANGE	0-28680-830-0	01	1	0508-0611	●	●
201	BOLT; BRKT 4HG1-T ENG<RDP> POWER STEERING<N40> M8X30 FLANGE	0-28680-830-0	01	1	0508-0611			●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-	●	●
201	BOLT; BRKT 4HG1-T ENG<RDP> POWER STEERING<N40> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-			●
203	NUT; BRKT FIX 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0508-	●	●
203	NUT; BRKT FIX 4HG1-T ENG<RDP> POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0508-			●
279	BRACKET; CABLE TO FRAME 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> (B)	8-97047-898-0	01	1	0508-	●	●
279	BRACKET; CABLE TO FRAME 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> (C)	8-97103-234-0	01	1	0508-	●	●
279	BRACKET; CABLE TO FRAME 4HG1-T ENG<RDP> (D)	8-97205-549-1	01	1	0508-			●
279	BRACKET; CABLE TO FRAME 4HG1-T ENG<RDP> POWER STEERING<N40> (A)	8-97028-496-1	01	1	0508-			●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●	●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●	●
300	BOLT; CLIP 4JB1-TC ENG<RDT> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●
300	BOLT; CLIP 4HG1-T ENG<RDP> EXC. POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611			●
300	BOLT; CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●	●
300	BOLT; CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●	●
300	BOLT; CLIP 4JB1-TC ENG<RDT> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
300	BOLT; CLIP 4HG1-T ENG<RDP> EXC. POWER STEERING<N40> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-			●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0508-0611	●	●	●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●	●	●
303	NUT; CLIP POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0508-	●	●	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0508-	●	●	●
303	NUT; CLIP 4HG1-T ENG<RDP> EXC. POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0508-			●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
474	BOLT; BRKT 4HG1-T ENG<RDP> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611			●
474	BOLT; BRKT 4HG1-T ENG<RDP> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-			●
488	NUT; CABLE 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	01	1	0508-			●
536	DAMPER; CABLE THA	8-98097-681-0	01	1	0508-	●	●	●

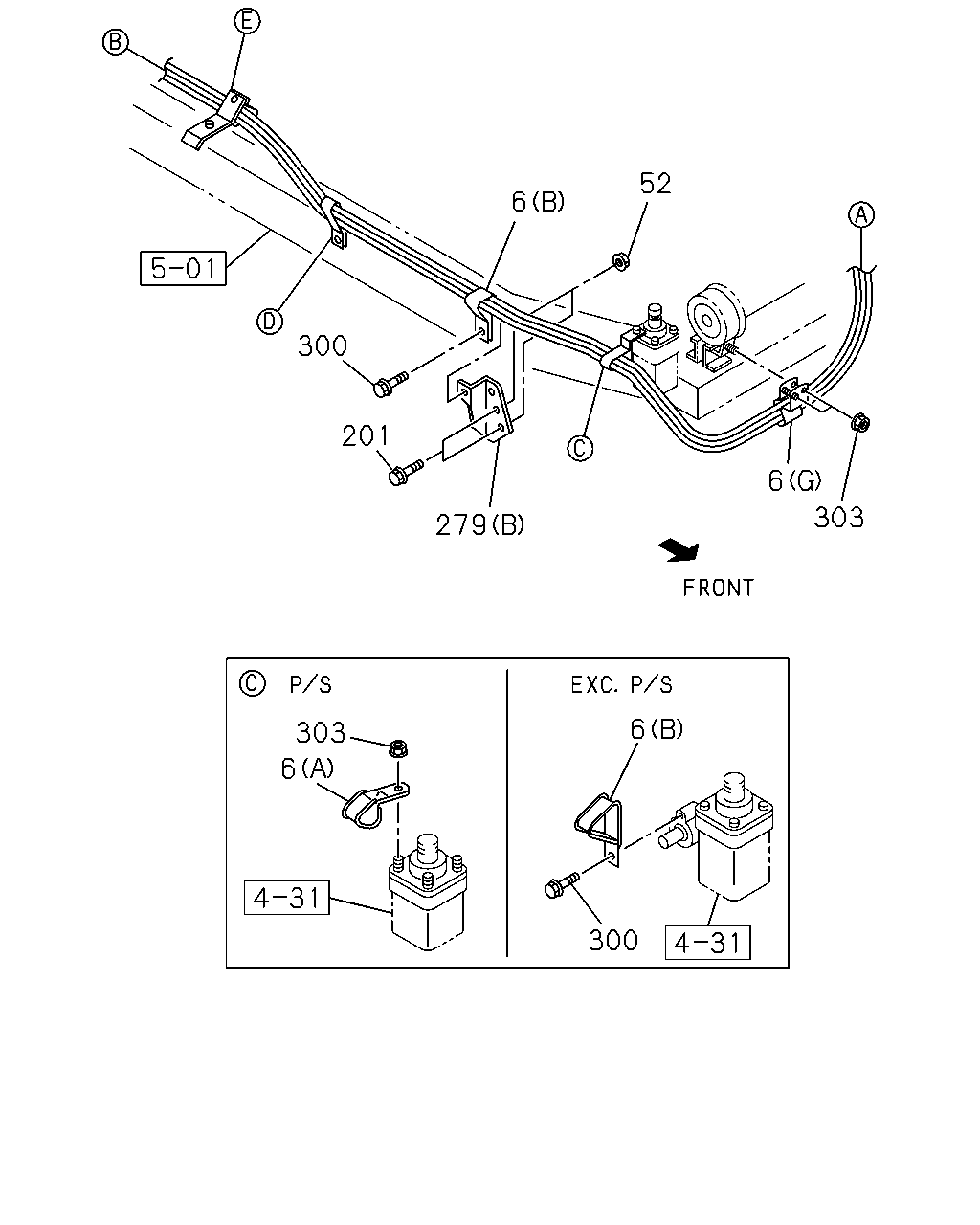

52 6 300 201 6 303 279 6 303 6 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	CLIP; CABLE POWER STEERING<N40> (A)	8-97036-334-2	01	1	0508-	●	●	●
6	CLIP; CABLE EXC. POWER STEERING<N40> (B)	8-97036-333-1	01	1	0508-	●	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (B)	8-97036-333-1	01	1	0508-	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (C)	8-97036-329-2	01	1	0508-	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (D)	8-97036-332-1	01	1	0508-	●	●
6	CLIP; CABLE (E) ID=19.2	8-97211-011-0	02	1	0508-	●	●
6	CLIP; CABLE (F)	8-97011-448-0	02	1	0508-	●	●	●
6	CLIP; CABLE (G)	8-97147-985-0	01	1	0508-	●	●	●
6	CLIP; CABLE 4HG1-T ENG<RDP> (H)	8-97039-295-0	01	1	0508-			●
6	CLIP; CABLE 4HG1-T ENG<RDP> (I)	8-97039-296-1	01	1	0508-			●
6	CLIP; CABLE 4HG1-T ENG<RDP> (J)	8-97039-517-1	01	1	0508-			●
6	CLIP; CABLE (E) ID=22.2	1-09701-209-1	01	1	0508-			●
6	CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0508-			●
52	NUT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8 FLANGE	0-91150-108-0	02	1	0508-	●	●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0508-0508	●	●
201	BOLT; BRKT 4HG1-T ENG<RDP> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0508-0508			●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X30 FLANGE	0-28680-830-0	01	1	0508-0611	●	●
201	BOLT; BRKT 4HG1-T ENG<RDP> POWER STEERING<N40> M8X30 FLANGE	0-28680-830-0	01	1	0508-0611			●
201	BOLT; BRKT 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-	●	●
201	BOLT; BRKT 4HG1-T ENG<RDP> POWER STEERING<N40> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-			●
279	BRACKET; CABLE TO FRAME 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> (B)	8-97047-898-0	01	1	0508-	●	●
279	BRACKET; CABLE TO FRAME 4JB1-TC ENG<RDT> EXC. POWER STEERING<N40> (C)	8-97103-234-0	01	1	0508-	●	●
279	BRACKET; CABLE TO FRAME 4HG1-T ENG<RDP> (D)	8-97205-549-1	01	1	0508-			●
279	BRACKET; CABLE TO FRAME 4HG1-T ENG<RDP> POWER STEERING<N40> (A)	8-97028-496-1	01	1	0508-			●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●	●
300	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●	●
300	BOLT; CLIP 4JB1-TC ENG<RDT> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611	●	●
300	BOLT; CLIP 4HG1-T ENG<RDP> EXC. POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611			●
300	BOLT; CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●	●
300	BOLT; CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●	●
300	BOLT; CLIP 4JB1-TC ENG<RDT> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●	●
300	BOLT; CLIP 4HG1-T ENG<RDP> EXC. POWER STEERING<N40> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-			●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0508-0611	●	●	●
300	BOLT; CLIP EXC. POWER STEERING<N40> M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●	●	●
303	NUT; CLIP POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0508-	●	●	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0508-	●	●	●
303	NUT; CLIP 4HG1-T ENG<RDP> EXC. POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0508-			●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
536	DAMPER; CABLE THA	8-98097-681-0	01	1	0508-	●	●	●

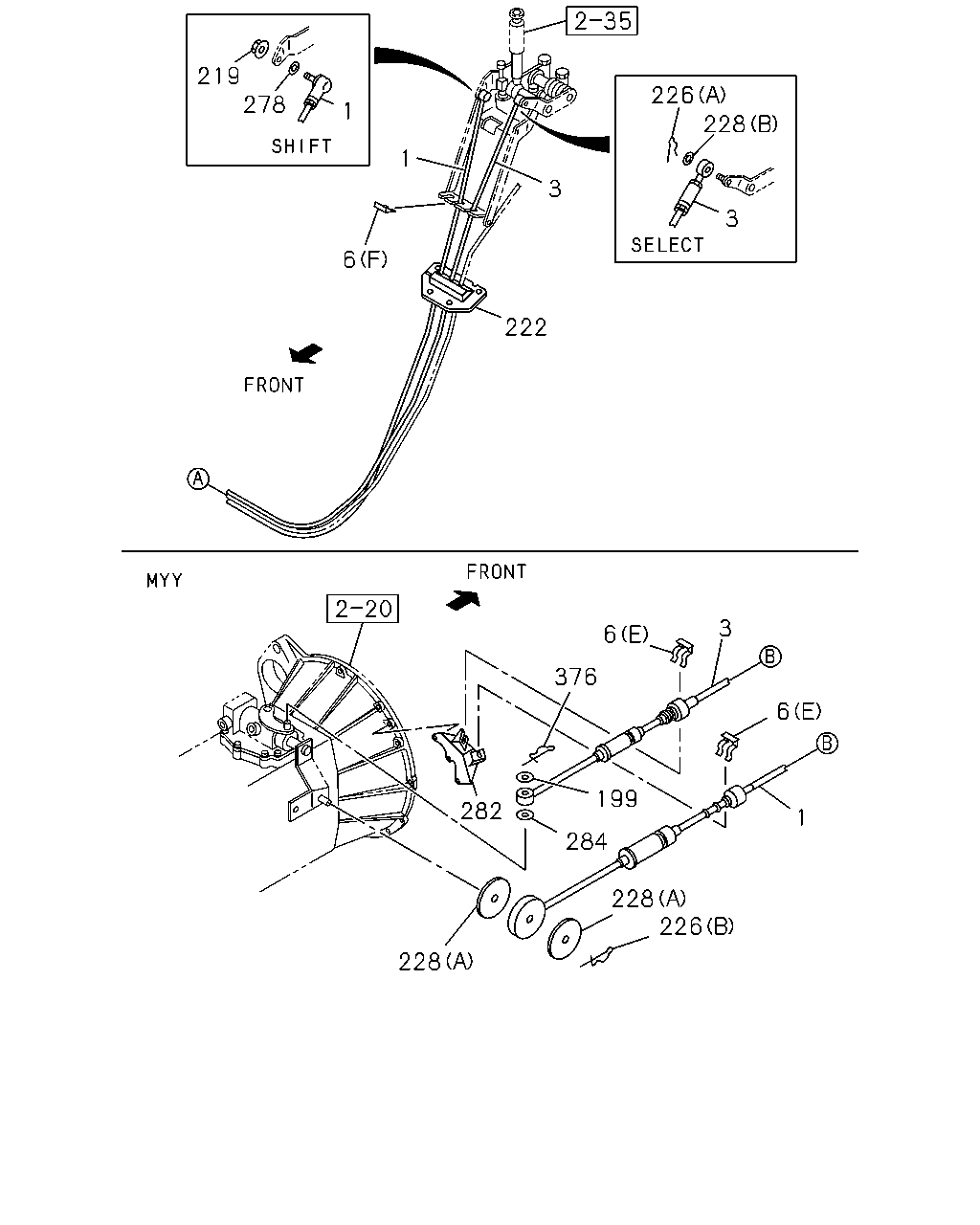

219 278 226 228 1 1 3 3 6 222 3 6 376 6 199 282 1 284 228 226 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT L=2643	8-97176-466-1	01	1	0508-0911	●	●
1	CABLE; SHIFT,TRANS CONT L=2643	8-98146-810-0	01	1	0912-	●	●
1	CABLE; SHIFT,TRANS CONT L=2855	8-97361-330-1	01	1	0508-			●
3	CABLE; SELECT,TRANS CONT L=2810	8-97176-474-0	01	1	0508-	●	●
3	CABLE; SELECT,TRANS CONT L=2917	8-97361-331-0	01	1	0508-			●
6	CLIP; CABLE POWER STEERING<N40> (A)	8-97036-334-2	01	1	0508-	●	●	●
6	CLIP; CABLE EXC. POWER STEERING<N40> (B)	8-97036-333-1	01	1	0508-	●	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (B)	8-97036-333-1	01	1	0508-	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (C)	8-97036-329-2	01	1	0508-	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (D)	8-97036-332-1	01	1	0508-	●	●
6	CLIP; CABLE (E) ID=19.2	8-97211-011-0	02	1	0508-	●	●
6	CLIP; CABLE (F)	8-97011-448-0	02	1	0508-	●	●	●
6	CLIP; CABLE (G)	8-97147-985-0	01	1	0508-	●	●	●
6	CLIP; CABLE 4HG1-T ENG<RDP> (H)	8-97039-295-0	01	1	0508-			●
6	CLIP; CABLE 4HG1-T ENG<RDP> (I)	8-97039-296-1	01	1	0508-			●
6	CLIP; CABLE 4HG1-T ENG<RDP> (J)	8-97039-517-1	01	1	0508-			●
6	CLIP; CABLE (E) ID=22.2	1-09701-209-1	01	1	0508-			●
6	CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0508-			●
199	WASHER; PL,SELECT ID=8.4 THA	9-09160-508-0	01	1	0508-0605	●	●	●
199	WASHER; PL,SELECT ID=8.4 OD=16 THA	0-91610-508-0	01	1	0606-	●	●	●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0	8-94363-045-0	01	1	0508-	●	●	●
222	GROMMET; CABLE	8-97061-403-2	01	1	0508-	●	●	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0508-	●	●	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0508-	●	●	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0508-	●	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0508-0605	●	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-	●	●	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0508-0604	●	●	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-	●	●	●
282	BRACKET; TRANS SIDE 4JB1-TC ENG<RDT>	8-97034-142-1	01	1	0508-	●	●
282	BRACKET; TRANS SIDE 4HG1-T ENG<RDP>	8-97311-441-1	01	1	0508-			●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0508-	●	●	●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0508-	●	●	●
536	DAMPER; CABLE THA	8-98097-681-0	01	1	0508-	●	●	●

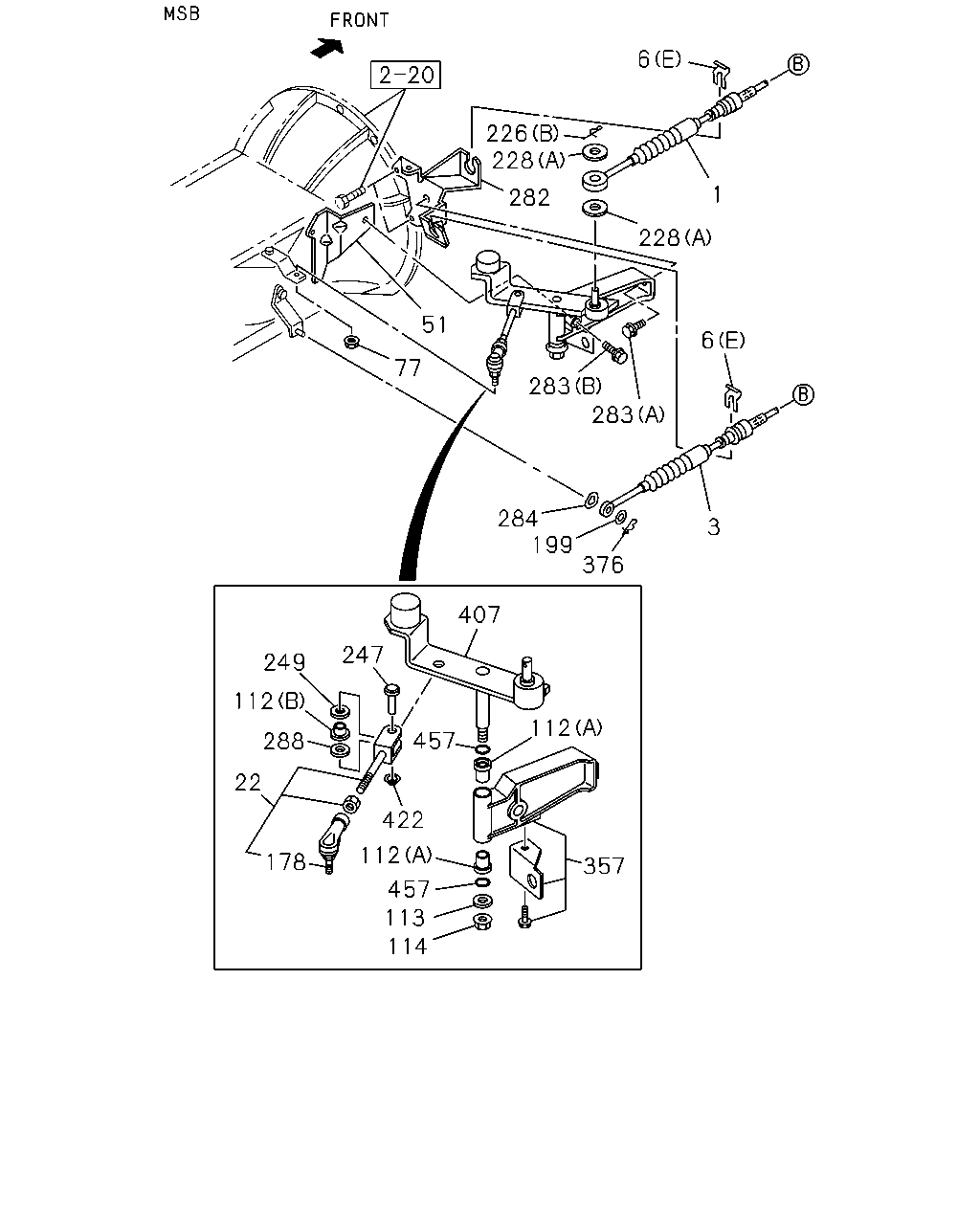

6 226 228 1 282 228 51 6 77 283 283 284 199 3 376 407 247 249 457 112 112 288 22 422 112 178 357 457 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; SHIFT,TRANS CONT L=2643	8-97176-466-1	01	1	0508-0911	●	●
1	CABLE; SHIFT,TRANS CONT L=2643	8-98146-810-0	01	1	0912-	●	●
1	CABLE; SHIFT,TRANS CONT L=2855	8-97361-330-1	01	1	0508-			●
3	CABLE; SELECT,TRANS CONT L=2810	8-97176-474-0	01	1	0508-	●	●
3	CABLE; SELECT,TRANS CONT L=2917	8-97361-331-0	01	1	0508-			●
6	CLIP; CABLE POWER STEERING<N40> (A)	8-97036-334-2	01	1	0508-	●	●	●
6	CLIP; CABLE EXC. POWER STEERING<N40> (B)	8-97036-333-1	01	1	0508-	●	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (B)	8-97036-333-1	01	1	0508-	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (C)	8-97036-329-2	01	1	0508-	●	●
6	CLIP; CABLE 4JB1-TC ENG<RDT> (D)	8-97036-332-1	01	1	0508-	●	●
6	CLIP; CABLE (E) ID=19.2	8-97211-011-0	02	1	0508-	●	●
6	CLIP; CABLE (F)	8-97011-448-0	02	1	0508-	●	●	●
6	CLIP; CABLE (G)	8-97147-985-0	01	1	0508-	●	●	●
6	CLIP; CABLE 4HG1-T ENG<RDP> (H)	8-97039-295-0	01	1	0508-			●
6	CLIP; CABLE 4HG1-T ENG<RDP> (I)	8-97039-296-1	01	1	0508-			●
6	CLIP; CABLE 4HG1-T ENG<RDP> (J)	8-97039-517-1	01	1	0508-			●
6	CLIP; CABLE (E) ID=22.2	1-09701-209-1	01	1	0508-			●
6	CLIP; CABLE (E) ID=19.2	8-97211-011-0	01	1	0508-			●
22	ROD; CONT,SHIFT	8-97134-286-1	01	1	0508-	●	●
51	BRACKET; GEAR CONT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-335-1	01	1	1211-	●	●
51	BRACKET; GEAR CONT 4JB1-TC ENG<RDT>	8-97029-286-0	01	1	0508-1210	●	●
51	BRACKET; GEAR CONT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97029-286-0	01	1	1211-	●	●
77	NUT; LK,BALL JOINT,CONT ROD M8 T=8.0	8-94363-045-0	01	1	0508-	●	●
112	BUSHING; RELAY LEVER (B)	8-97085-157-0	01	1	0508-	●	●
112	BUSHING; RELAY LEVER (A)	8-97174-057-0	02	1	0508-	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=22	9-09160-610-0	01	1	0508-0605	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0606-	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0508-0602	●	●
114	NUT; RELAY LEVER M10 FLANGE THA	0-91180-110-0	01	1	0603-	●	●
178	JOINT; BALL,LINK ROD L=45.5	1-09760-118-1	01	1	0508-	●	●
199	WASHER; PL,SELECT ID=8.4 THA	9-09160-508-0	01	1	0508-0605	●	●	●
199	WASHER; PL,SELECT ID=8.4 OD=16 THA	0-91610-508-0	01	1	0606-	●	●	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0508-	●	●	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0508-	●	●	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0508-	●	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0508-0605	●	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-	●	●	●
247	PIN; CONT ROD TO LEVER	8-97373-728-0	01	1	0508-	●	●
249	WASHER; RUBBER,CONT ROD TO LEVER ID=8.5 T=1.5	9-09851-889-0	01	1	0508-	●	●
282	BRACKET; TRANS SIDE 4JB1-TC ENG<RDT>	8-97034-142-1	01	1	0508-	●	●
282	BRACKET; TRANS SIDE 4HG1-T ENG<RDP>	8-97311-441-1	01	1	0508-			●
283	BOLT; RELAY LEVER (A) M10X25 FLANGE	0-28681-025-0	01	1	0508-0611	●	●
283	BOLT; RELAY LEVER (A) M10X25 FLANGE THA	0-28651-025-0	01	1	0612-	●	●
283	BOLT; RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	01	1	0508-0611	●	●
283	BOLT; RELAY LEVER (B) M10X35 FLANGE THA	0-28651-035-0	01	1	0612-	●	●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0508-	●	●	●
288	WASHER; CABLE TO RELAY LEVER	8-97373-819-0	01	1	0508-	●	●
357	BRACKET; RELAY LEVER	8-97182-166-0	01	1	0508-	●	●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0508-	●	●	●
407	LEVER; RELAY,SHIFT	8-97174-055-2	01	1	0508-	●	●
422	NUT; CONT ROD TO LEVER	8-97373-729-0	01	1	0508-	●	●
457	GASKET ID=13.8	9-09561-114-0	02	1	0508-	●	●
536	DAMPER; CABLE THA	8-98097-681-0	01	1	0508-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
