2-30 — GEAR SHIFTER AND QUADRANT BOX (#23209) — 223 parça

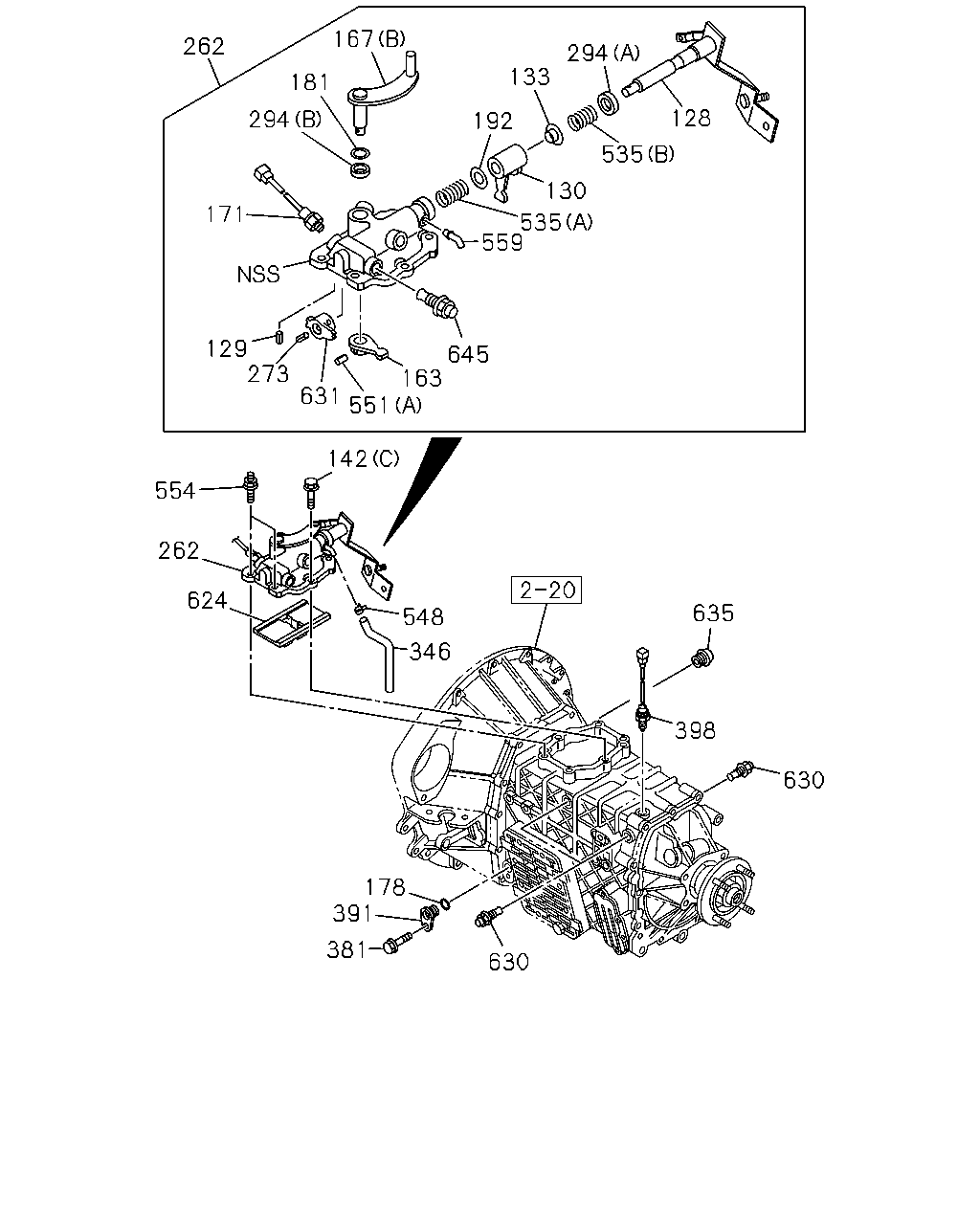

çizim 118905
128 294 133 535 192 130 535 559 167 181 294 262 171 645 163 551 631 273 129 554 142 262 624 548 346 635 398 630 630 178 391 381
BalonParca AdiParca NoAdetTipApplied Date A B C
128 LEVER; SHIFT,EXTERNAL
4HG1-T ENG<RDP> 		8-97305-725-0 01 1 0508- ●
129 PIN; SPR,SHIFT
4HG1-T ENG<RDP> L=30 OD=4 		1-09748-031-0 01 1 0508- ●
130 LEVER; SHIFT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-340-0 01 1 1211- ● ●
130 LEVER; SHIFT,INTERNAL
4JB1-TC ENG<RDT> 		8-94105-141-2 01 1 0508-1210 ● ●
130 LEVER; SHIFT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94105-141-2 01 1 1211- ● ●
130 LEVER; SHIFT,INTERNAL
4HG1-T ENG<RDP> 		8-97306-647-0 01 1 0508- ●
133 SEAT; SPR
4HG1-T ENG<RDP> 		8-97305-667-0 01 1 0508- ●
142 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25 FLANGE THA 		0-28050-825-0 08 1 1211- ● ●
142 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> (B) M8X30 FLANGE THA 		0-28050-830-0 02 1 1211- ● ●
142 BOLT; QUAD BOX
4JB1-TC ENG<RDT> (A) M8X25 		8-94128-786-0 08 1 0508-1210 ● ●
142 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25 		8-94128-786-0 08 1 1211- ● ●
142 BOLT; QUAD BOX
4JB1-TC ENG<RDT> (B) M8X30 		8-97029-705-0 02 1 0508-1210 ● ●
142 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) M8X30 		8-97029-705-0 02 1 1211- ● ●
142 BOLT; QUAD BOX
4HG1-T ENG<RDP> (C) M8X22 FLANGE 		8-94448-815-3 04 1 0508-0604 ●
142 BOLT; QUAD BOX
4HG1-T ENG<RDP> (C) M8X22 FLANGE 		8-97365-376-0 04 1 0605- ●
163 LEVER; SELECT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-302-0 01 1 1211- ● ●
163 LEVER; SELECT,INTERNAL
4JB1-TC ENG<RDT> 		8-94159-268-1 01 1 0508-1210 ● ●
163 LEVER; SELECT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94159-268-1 01 1 1211- ● ●
163 LEVER; SELECT,INTERNAL
4HG1-T ENG<RDP> 		8-97305-663-0 01 1 0508- ●
167 LEVER; SELECT,EXTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> (A) 		8-98190-276-0 01 1 1211- ● ●
167 LEVER; SELECT,EXTERNAL
4JB1-TC ENG<RDT> (A) 		8-97035-560-1 01 1 0508-1210 ● ●
167 LEVER; SELECT,EXTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) 		8-97035-560-1 01 1 1211- ● ●
167 LEVER; SELECT,EXTERNAL
4HG1-T ENG<RDP> (B) 		8-97306-648-0 01 1 0508-0611 ●
167 LEVER; SELECT,EXTERNAL
4HG1-T ENG<RDP> (B) 		8-98039-434-0 01 1 0612- ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97165-946-1 01 1 0709-0802 ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-227-0 01 1 0803-1210 ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-415-0 01 1 1211- ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> 		8-97165-946-1 01 1 0508-0707 ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> 		8-98037-159-0 01 1 0708-0708 ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-159-0 01 1 0709- ● ●
171 SWITCH; NEUTRAL
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> 		8-97316-688-1 01 1 0508-0611 ●
171 SWITCH; NEUTRAL
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> 		8-98023-050-0 01 1 0612-1312 ●
171 SWITCH; NEUTRAL
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> 		8-98242-172-1 01 1 1401- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> 		9-09567-113-0 01 1 0508- ●
181 WASHER; PL,SELECT LEVER
4HG1-T ENG<RDP> 		8-97367-327-0 01 1 0508- ●
192 WASHER; PL
4HG1-T ENG<RDP> 		8-97305-661-0 01 1 0508- ●
262 BOX ASM; SHIFT CONT
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> 		8-97362-750-2 01 1 0508-1312 ●
262 BOX ASM; SHIFT CONT
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> 		8-98240-999-1 01 1 1401- ●
262 BOX ASM; SHIFT CONT
4HG1-T ENG<RDP> EXC. EXHAUST BRAKE<NF8> 		8-97362-755-2 01 1 0508- ●
273 PIN; SPR,STOPPER
4HG1-T ENG<RDP> D=4.2 L=25 		8-97103-142-0 01 1 0508- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> (B) 		8-97305-662-0 01 1 0508- ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> (A) 		8-97363-225-0 01 1 0508- ●
346 HOSE; AIR
4HG1-T ENG<RDP> 		8-97309-855-0 01 1 0508- ●
381 BOLT
4HG1-T ENG<RDP> M6X16 FLANGE 		0-28680-616-0 01 1 0508-0512 ●
381 BOLT
4HG1-T ENG<RDP> M6X16 FLANGE THA 		0-28650-616-0 01 1 0601- ●
391 PLUG; SW HOLE
4HG1-T ENG<RDP> 		8-97300-273-1 01 1 0508- ●
398 SWITCH; REV LAMP
4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-229-0 01 1 0803-1210 ● ●
398 SWITCH; REV LAMP
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-417-0 01 1 1211- ● ●
398 SWITCH; REV LAMP
4JB1-TC ENG<RDT> 		8-97165-947-1 01 1 0508-0707 ● ●
398 SWITCH; REV LAMP
4JB1-TC ENG<RDT> 		8-98037-160-0 01 1 0708-0802 ● ●
398 SWITCH; REV LAMP
4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-160-0 01 1 0803- ● ●
398 SWITCH; REV LAMP
4HG1-T ENG<RDP> 		8-97316-688-1 01 1 0508-0604 ●
398 SWITCH; REV LAMP
4HG1-T ENG<RDP> 		8-98023-050-0 01 1 0605-1312 ●
398 SWITCH; REV LAMP
4HG1-T ENG<RDP> 		8-98242-173-1 01 1 1401- ●
535 SPRING; LEVER
4HG1-T ENG<RDP> (A) 		8-97323-771-0 01 1 0508- ●
535 SPRING; LEVER
4HG1-T ENG<RDP> (B) 		8-97323-772-0 01 1 0508- ●
548 CLIP; HOSE
4HG1-T ENG<RDP> 		8-97031-674-0 01 1 0508- ●
551 PIN; SPRING
4HG1-T ENG<RDP> (A) L=25 OD=5 		1-09748-032-0 01 1 0508- ●
551 PIN; SPRING
4HG1-T ENG<RDP> (B) L=32 		8-97011-596-2 04 1 0508- ●
551 PIN; SPRING
4HG1-T ENG<RDP> (C) L=20 		8-97241-340-0 01 1 0508- ●
554 STUD; CONT BOX
4HG1-T ENG<RDP> M8X15,M8X25 L=49 		8-97352-677-0 02 1 0508-0604 ●
554 STUD; CONT BOX
4HG1-T ENG<RDP> M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605- ●
559 PIPE; BREATHER
4HG1-T ENG<RDP> 		8-97305-517-0 01 1 0508-0604 ●
559 PIPE; BREATHER
4HG1-T ENG<RDP> 		8-97358-318-0 01 1 0605- ●
624 PLATE; INTER LOCK
4HG1-T ENG<RDP> 		8-97241-317-3 01 1 0508- ●
630 DETENT ASM
4HG1-T ENG<RDP> 		8-97241-341-0 03 1 0508-0604 ●
630 DETENT ASM
4HG1-T ENG<RDP> 		8-98019-536-0 03 1 0605- ●
631 STOPPER; SPRING
4HG1-T ENG<RDP> 		8-97305-666-0 01 1 0508- ●
635 PLUG; DETENT
4HG1-T ENG<RDP> 		8-97229-313-2 01 1 0508-0611 ●
635 PLUG; DETENT
4HG1-T ENG<RDP> 		8-97380-892-0 01 1 0612- ●
645 DETENT ASM
4HG1-T ENG<RDP> 		8-97241-341-0 01 1 0508-0604 ●
645 DETENT ASM
4HG1-T ENG<RDP> 		8-98019-536-0 01 1 0605- ●

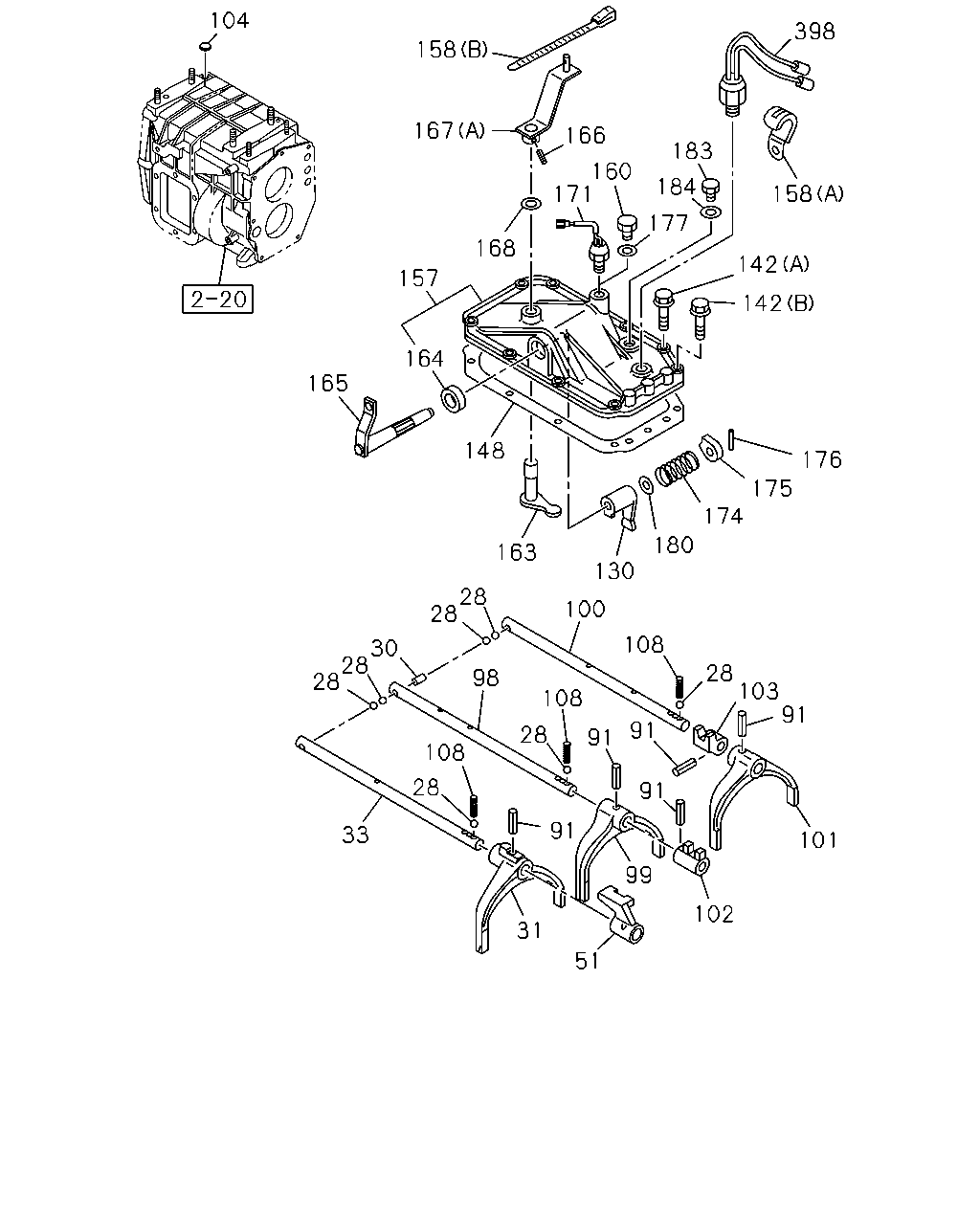

çizim 118910
104 51 102 101 91 103 28 91 91 91 91 28 108 100 28 28 30 28 28 33 98 108 108 28 99 398 158 142 142 176 175 174 180 130 163 148 165 164 158 167 157 166 171 168 160 183 184 177 31
BalonParca AdiParca NoAdetTipApplied Date A B C
28 BALL; INTER LK
4JB1-TC ENG<RDT> 		9-00097-010-0 07 1 0508- ● ●
30 PIN; INTER LK
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-971-0 01 1 1211- ● ●
30 PIN; INTER LK
4JB1-TC ENG<RDT> 		5-33534-001-0 01 1 0508-1210 ● ●
30 PIN; INTER LK
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		5-33534-001-0 01 1 1211- ● ●
31 ARM; SHIFT,LOW & 2ND
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-300-0 01 1 1211- ● ●
31 ARM; SHIFT,LOW & 2ND
4JB1-TC ENG<RDT> 		8-97011-365-1 01 1 0508-1210 ● ●
31 ARM; SHIFT,LOW & 2ND
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-365-1 01 1 1211- ● ●
33 ROD; SHIFT,LOW & 2ND
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-591-0 01 1 1211- ● ●
33 ROD; SHIFT,LOW & 2ND
4JB1-TC ENG<RDT> 		8-97011-370-1 01 1 0508-1210 ● ●
33 ROD; SHIFT,LOW & 2ND
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-370-1 01 1 1211- ● ●
51 BLOCK; SHIFT,1ST & 2ND
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-589-0 01 1 1211- ● ●
51 BLOCK; SHIFT,1ST & 2ND
4JB1-TC ENG<RDT> 		8-97022-837-2 01 1 0508-1210 ● ●
51 BLOCK; SHIFT,1ST & 2ND
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97022-837-2 01 1 1211- ● ●
91 PIN; SPR,SHIFT ARM
IN-HOUSE PRODUCTION VAR.2<TMW> L=25 OD=5 		1-09748-032-0 06 1 1211- ● ●
91 PIN; SPR,SHIFT ARM
4JB1-TC ENG<RDT> L=25 OD=5 		8-94135-771-0 06 1 0508-1210 ● ●
91 PIN; SPR,SHIFT ARM
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=25 OD=5 		8-94135-771-0 06 1 1211- ● ●
98 ROD; SHIFT,TOP & 3RD
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-590-0 01 1 1211- ● ●
98 ROD; SHIFT,TOP & 3RD
4JB1-TC ENG<RDT> 		8-97011-371-1 01 1 0508-1210 ● ●
98 ROD; SHIFT,TOP & 3RD
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-371-1 01 1 1211- ● ●
99 ARM; SHIFT,4TH & 3RD
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-301-0 01 1 1211- ● ●
99 ARM; SHIFT,4TH & 3RD
4JB1-TC ENG<RDT> 		8-97011-366-1 01 1 0508-1210 ● ●
99 ARM; SHIFT,4TH & 3RD
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97011-366-1 01 1 1211- ● ●
100 ROD; SHIFT,REV & 5TH
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-592-0 01 1 1211- ● ●
100 ROD; SHIFT,REV & 5TH
4JB1-TC ENG<RDT> 		8-94316-923-0 01 1 0508-1210 ● ●
100 ROD; SHIFT,REV & 5TH
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94316-923-0 01 1 1211- ● ●
101 ARM; SHIFT,REV & 5TH
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-303-0 01 1 1211- ● ●
101 ARM; SHIFT,REV & 5TH
4JB1-TC ENG<RDT> 		8-97107-545-0 01 1 0508-1210 ● ●
101 ARM; SHIFT,REV & 5TH
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97107-545-0 01 1 1211- ● ●
102 BLOCK; SHIFT,3RD & 4TH
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-588-0 01 1 1211- ● ●
102 BLOCK; SHIFT,3RD & 4TH
4JB1-TC ENG<RDT> 		8-97017-573-1 01 1 0508-1210 ● ●
102 BLOCK; SHIFT,3RD & 4TH
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97017-573-1 01 1 1211- ● ●
103 BLOCK; SHIFT,REV TO OD
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98188-587-0 01 1 1211- ● ●
103 BLOCK; SHIFT,REV TO OD
4JB1-TC ENG<RDT> 		8-94135-719-4 01 1 0508-1210 ● ●
103 BLOCK; SHIFT,REV TO OD
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94135-719-4 01 1 1211- ● ●
104 PLUG; PLATE
IN-HOUSE PRODUCTION VAR.2<TMW> OD=16 		0-92001-416-0 01 1 1211- ● ●
104 PLUG; PLATE
4JB1-TC ENG<RDT> OD=16 		9-09201-316-0 01 1 0508-1210 ●
104 PLUG; PLATE
4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> OD=16 		9-09201-316-0 01 1 0508-1210 ●
104 PLUG; PLATE
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> OD=16 		9-09201-316-0 01 1 1211- ●
104 PLUG; PLATE
EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> OD=16 		9-09201-316-0 01 1 1211- ●
108 SPRING; LOCK BALL
IN-HOUSE PRODUCTION VAR.2<TMW> OD=6.8 L=31.6 		8-98188-917-0 03 1 1211- ● ●
108 SPRING; LOCK BALL
4JB1-TC ENG<RDT> OD=6.8 L=31.6 		9-09740-114-0 03 1 0508-1210 ● ●
108 SPRING; LOCK BALL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> OD=6.8 L=31.6 		9-09740-114-0 03 1 1211- ● ●
130 LEVER; SHIFT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-340-0 01 1 1211- ● ●
130 LEVER; SHIFT,INTERNAL
4JB1-TC ENG<RDT> 		8-94105-141-2 01 1 0508-1210 ● ●
130 LEVER; SHIFT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94105-141-2 01 1 1211- ● ●
130 LEVER; SHIFT,INTERNAL
4HG1-T ENG<RDP> 		8-97306-647-0 01 1 0508- ●
142 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25 FLANGE THA 		0-28050-825-0 08 1 1211- ● ●
142 BOLT; QUAD BOX
IN-HOUSE PRODUCTION VAR.2<TMW> (B) M8X30 FLANGE THA 		0-28050-830-0 02 1 1211- ● ●
142 BOLT; QUAD BOX
4JB1-TC ENG<RDT> (A) M8X25 		8-94128-786-0 08 1 0508-1210 ● ●
142 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25 		8-94128-786-0 08 1 1211- ● ●
142 BOLT; QUAD BOX
4JB1-TC ENG<RDT> (B) M8X30 		8-97029-705-0 02 1 0508-1210 ● ●
142 BOLT; QUAD BOX
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) M8X30 		8-97029-705-0 02 1 1211- ● ●
142 BOLT; QUAD BOX
4HG1-T ENG<RDP> (C) M8X22 FLANGE 		8-94448-815-3 04 1 0508-0604 ●
142 BOLT; QUAD BOX
4HG1-T ENG<RDP> (C) M8X22 FLANGE 		8-97365-376-0 04 1 0605- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-273-0 01 1 1211- ● ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> 		8-94257-162-0 01 1 0508-1210 ● ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94257-162-0 01 1 1211- ● ●
157 BOX; QUAD,TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-265-0 01 1 1211- ● ●
157 BOX; QUAD,TRANS
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-145-0 01 1 0508-1210 ● ●
157 BOX; QUAD,TRANS
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-145-0 01 1 0508-1210 ●
157 BOX; QUAD,TRANS
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-145-0 01 1 1211- ● ●
157 BOX; QUAD,TRANS
4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94340-146-0 01 1 0508- ● ●
158 CLIP; HARNESS
4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0803- ● ●
158 CLIP; HARNESS
4JB1-TC ENG<RDT> (A) ID=8.5 THA 		5-09700-275-0 01 1 0508-0802 ● ●
158 CLIP; HARNESS
4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) ID=8.5 THA 		5-09700-275-0 01 1 0803- ● ●
158 CLIP; HARNESS
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) L=140 		5-09707-031-1 01 1 0508-0802 ● ●
158 CLIP; HARNESS
IN-HOUSE PRODUCTION VAR.2<TMW> (B) L=140 		5-09707-031-1 01 1 0508-0802 ●
158 CLIP; HARNESS
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) L=140 		5-09707-031-1 01 1 0803-0806 ● ●
158 CLIP; HARNESS
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) L=140 		5-09707-031-1 01 1 0807- ● ●
158 CLIP; HARNESS
IN-HOUSE PRODUCTION VAR.2<TMW> (B) L=140 		5-09707-031-1 01 1 0807- ●
160 PLUG; BLIND
4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> M14X9 		9-99202-314-0 01 1 0508-0805 ● ●
160 PLUG; BLIND
4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> M14X9 		8-98042-944-0 01 1 0806- ● ●
163 LEVER; SELECT,INTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-302-0 01 1 1211- ● ●
163 LEVER; SELECT,INTERNAL
4JB1-TC ENG<RDT> 		8-94159-268-1 01 1 0508-1210 ● ●
163 LEVER; SELECT,INTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94159-268-1 01 1 1211- ● ●
163 LEVER; SELECT,INTERNAL
4HG1-T ENG<RDP> 		8-97305-663-0 01 1 0508- ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> OD=27 		8-97304-068-0 02 1 0508- ● ●
165 LEVER; SHIFT
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-282-0 01 1 1211- ● ●
165 LEVER; SHIFT
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97036-221-0 01 1 0508-1210 ● ●
165 LEVER; SHIFT
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97036-221-0 01 1 0508-1210 ●
165 LEVER; SHIFT
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97036-221-0 01 1 1211- ● ●
165 LEVER; SHIFT
4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97035-557-0 01 1 0508- ● ●
166 PIN; SPR,SELECT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> L=25 OD=5 		1-09748-032-0 01 1 1211- ● ●
166 PIN; SPR,SELECT LEVER
4JB1-TC ENG<RDT> L=25 OD=5 		8-94135-771-0 01 1 0508-1210 ● ●
166 PIN; SPR,SELECT LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=25 OD=5 		8-94135-771-0 01 1 1211- ● ●
167 LEVER; SELECT,EXTERNAL
IN-HOUSE PRODUCTION VAR.2<TMW> (A) 		8-98190-276-0 01 1 1211- ● ●
167 LEVER; SELECT,EXTERNAL
4JB1-TC ENG<RDT> (A) 		8-97035-560-1 01 1 0508-1210 ● ●
167 LEVER; SELECT,EXTERNAL
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) 		8-97035-560-1 01 1 1211- ● ●
167 LEVER; SELECT,EXTERNAL
4HG1-T ENG<RDP> (B) 		8-97306-648-0 01 1 0508-0611 ●
167 LEVER; SELECT,EXTERNAL
4HG1-T ENG<RDP> (B) 		8-98039-434-0 01 1 0612- ●
168 WASHER; LK,SELECT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-433-0 01 1 1211- ● ●
168 WASHER; LK,SELECT LEVER
4JB1-TC ENG<RDT> 		8-94249-250-1 01 1 0508-1210 ● ●
168 WASHER; LK,SELECT LEVER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-250-1 01 1 1211- ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97165-946-1 01 1 0709-0802 ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-227-0 01 1 0803-1210 ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-415-0 01 1 1211- ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> 		8-97165-946-1 01 1 0508-0707 ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> 		8-98037-159-0 01 1 0708-0708 ● ●
171 SWITCH; NEUTRAL
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-159-0 01 1 0709- ● ●
171 SWITCH; NEUTRAL
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> 		8-97316-688-1 01 1 0508-0611 ●
171 SWITCH; NEUTRAL
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> 		8-98023-050-0 01 1 0612-1312 ●
171 SWITCH; NEUTRAL
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> 		8-98242-172-1 01 1 1401- ●
174 SPRING; REV
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-419-0 01 1 1211- ● ●
174 SPRING; REV
4JB1-TC ENG<RDT> 		8-97031-927-0 01 1 0508-1210 ● ●
174 SPRING; REV
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97031-927-0 01 1 1211- ● ●
175 RING; STOPPER,SHIFT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-338-0 01 1 1211- ● ●
175 RING; STOPPER,SHIFT LEVER
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-048-2 01 1 0508-1210 ● ●
175 RING; STOPPER,SHIFT LEVER
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-048-2 01 1 0508-1210 ●
175 RING; STOPPER,SHIFT LEVER
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-048-2 01 1 1211- ● ●
176 PIN; SPR,STOPPER
IN-HOUSE PRODUCTION VAR.2<TMW> L=30 OD=4 		1-09748-031-0 02 1 1211- ● ●
176 PIN; SPR,STOPPER
4JB1-TC ENG<RDT> L=30 OD=4 		9-09678-549-0 02 1 0508-1210 ●
176 PIN; SPR,STOPPER
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=30 OD=4 		9-09678-549-0 02 1 0508-1210 ●
176 PIN; SPR,STOPPER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=30 OD=4 		9-09678-549-0 02 1 1211- ●
176 PIN; SPR,STOPPER
EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=30 OD=4 		9-09678-549-0 02 1 1211- ●
176 PIN; SPR,STOPPER
4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> L=30 OD=4 		9-09678-549-0 01 1 0508- ●
177 GASKET; CONT BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8> ID=14.2 OD=20.0 THA 		9-09571-414-0 01 1 0508- ● ●
180 WASHER; REV STOP SPRING
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-423-0 01 1 1211- ● ●
180 WASHER; REV STOP SPRING
4JB1-TC ENG<RDT> 		8-94249-244-0 01 1 0508-1210 ● ●
180 WASHER; REV STOP SPRING
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-94249-244-0 01 1 1211- ● ●
183 PLUG; SCREW,OIL FILTER
IN-HOUSE PRODUCTION VAR.2<TMW> M18 		8-98190-432-0 01 1 1211- ● ●
183 PLUG; SCREW,OIL FILTER
4JB1-TC ENG<RDT> M18 		8-94337-946-1 01 1 0508-1210 ● ●
183 PLUG; SCREW,OIL FILTER
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M18 		8-94337-946-1 01 1 1211- ● ●
184 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5 		8-98189-969-0 01 1 1211- ● ●
184 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> ID=15.3 		8-94336-511-0 01 1 0508-1210 ● ●
184 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.3 		8-94336-511-0 01 1 1211- ● ●
398 SWITCH; REV LAMP
4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98112-229-0 01 1 0803-1210 ● ●
398 SWITCH; REV LAMP
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98190-417-0 01 1 1211- ● ●
398 SWITCH; REV LAMP
4JB1-TC ENG<RDT> 		8-97165-947-1 01 1 0508-0707 ● ●
398 SWITCH; REV LAMP
4JB1-TC ENG<RDT> 		8-98037-160-0 01 1 0708-0802 ● ●
398 SWITCH; REV LAMP
4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98037-160-0 01 1 0803- ● ●
398 SWITCH; REV LAMP
4HG1-T ENG<RDP> 		8-97316-688-1 01 1 0508-0604 ●
398 SWITCH; REV LAMP
4HG1-T ENG<RDP> 		8-98023-050-0 01 1 0605-1312 ●
398 SWITCH; REV LAMP
4HG1-T ENG<RDP> 		8-98242-173-1 01 1 1401- ●

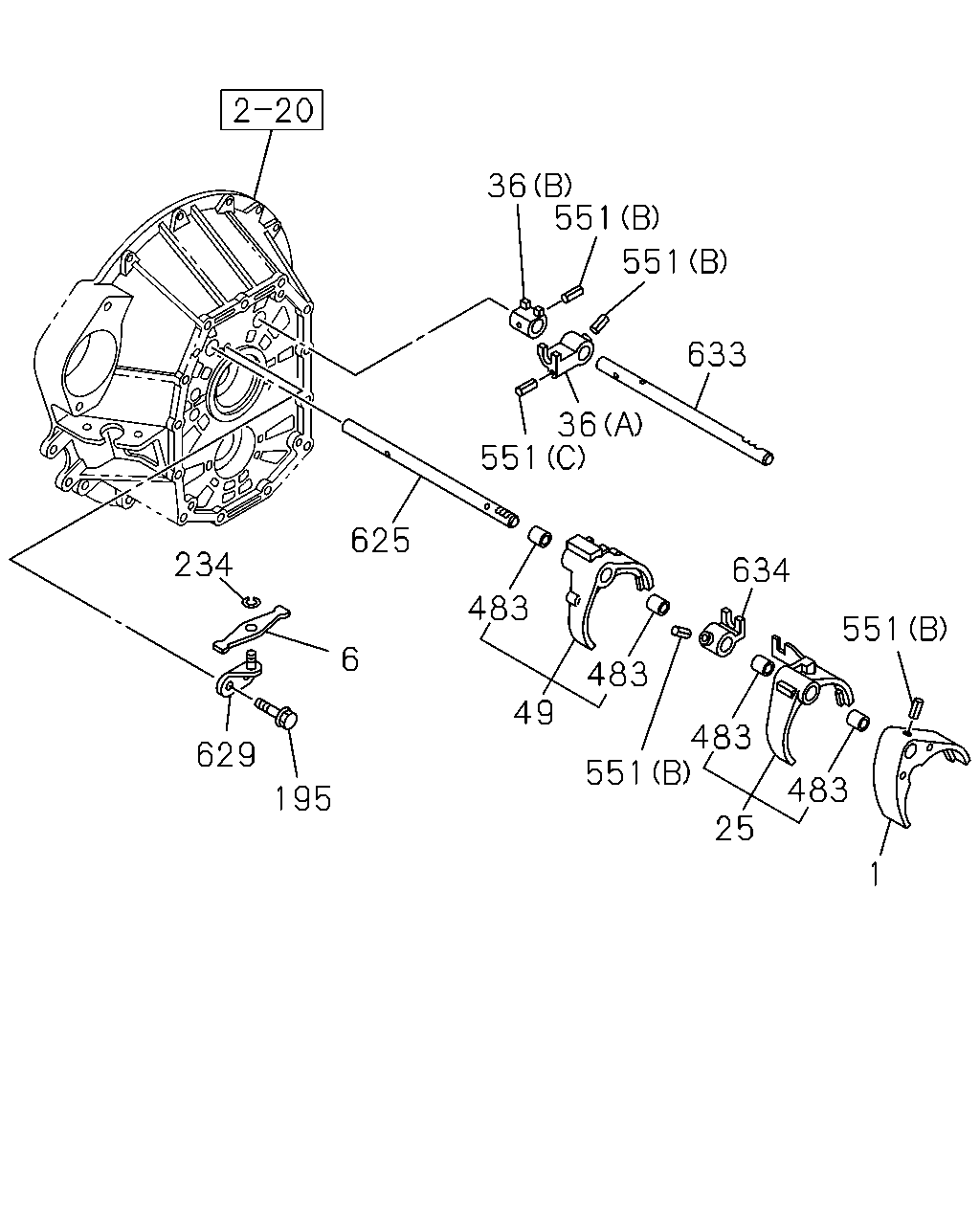

çizim 118911
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV
4HG1-T ENG<RDP> 		8-97241-320-2 01 1 0508- ●
6 LEVER; RELAY
4HG1-T ENG<RDP> 		8-97241-344-0 01 1 0508- ●
25 ARM; SHIFT,2ND & 3RD
4HG1-T ENG<RDP> 		8-97362-731-2 01 1 0508-1407 ●
25 ARM; SHIFT,2ND & 3RD
4HG1-T ENG<RDP> 		8-98255-926-1 01 1 1408- ●
36 BLOCK; SHIFT,4TH & 5TH
4HG1-T ENG<RDP> (A) 		8-97241-329-1 01 1 0508- ●
36 BLOCK; SHIFT,4TH & 5TH
4HG1-T ENG<RDP> (B) 		8-97241-330-0 01 1 0508- ●
49 ARM; SHIFT,4TH & 5TH
4HG1-T ENG<RDP> 		8-97258-716-0 01 1 0508- ●
195 BOLT
4HG1-T ENG<RDP> M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0508-0604 ●
195 BOLT
4HG1-T ENG<RDP> M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605- ●
234 RING; SNAP
4HG1-T ENG<RDP> ID=12 		8-94460-357-0 01 1 0508- ●
483 BUSHING; SHIFT ARM
4HG1-T ENG<RDP> 		8-97241-326-2 04 1 0508- ●
551 PIN; SPRING
4HG1-T ENG<RDP> (A) L=25 OD=5 		1-09748-032-0 01 1 0508- ●
551 PIN; SPRING
4HG1-T ENG<RDP> (B) L=32 		8-97011-596-2 04 1 0508- ●
551 PIN; SPRING
4HG1-T ENG<RDP> (C) L=20 		8-97241-340-0 01 1 0508- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
4HG1-T ENG<RDP> 		8-97362-741-0 01 1 0508- ●
629 BRIDGE; LEVER
4HG1-T ENG<RDP> 		8-97237-107-1 01 1 0508- ●
633 ROD; GEAR SHIFT,4TH,5TH
4HG1-T ENG<RDP> 		8-97362-743-0 01 1 0508- ●
634 BLOCK; SHIFT,LOW,REV
4HG1-T ENG<RDP> 		8-97241-327-1 01 1 0508- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
