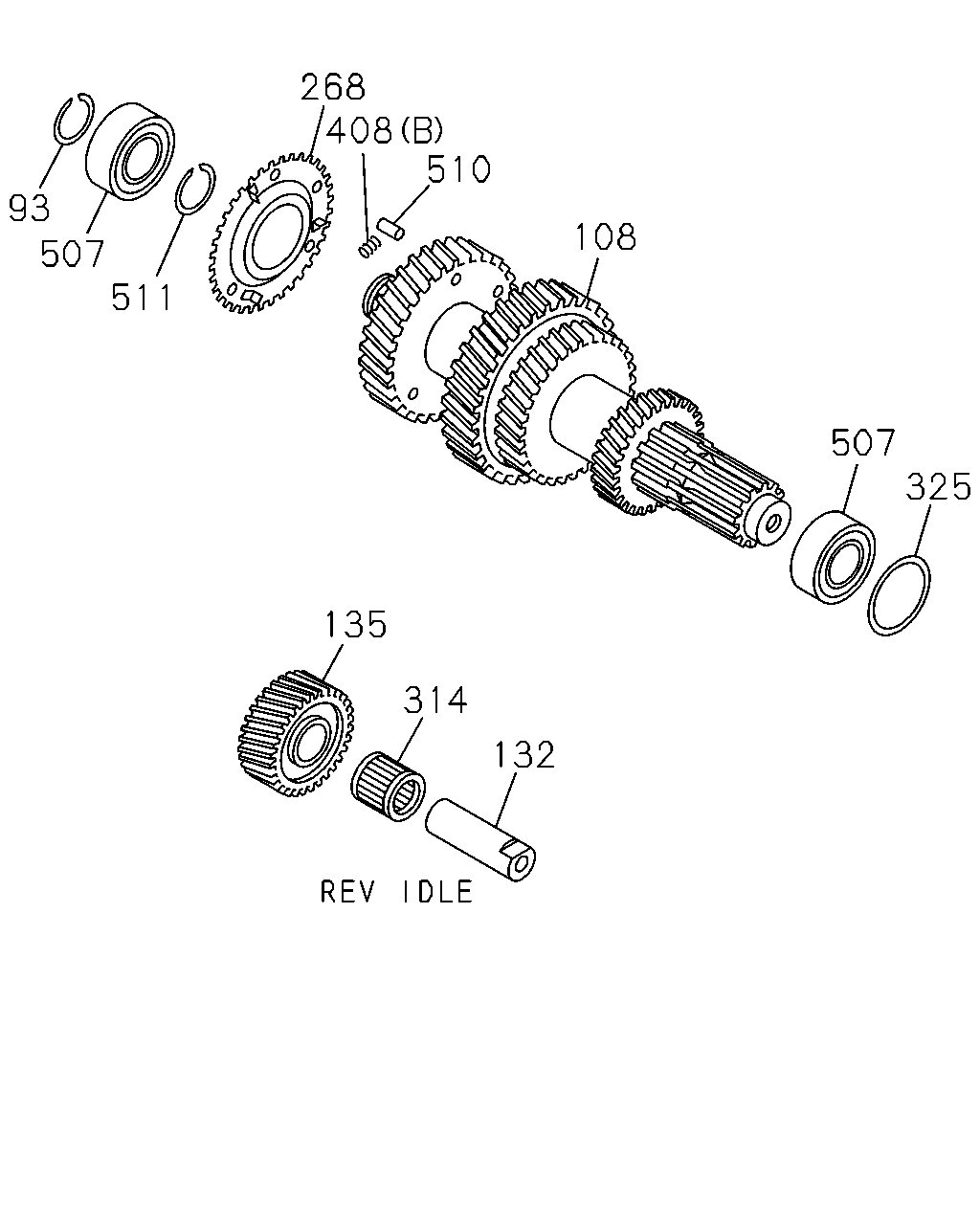

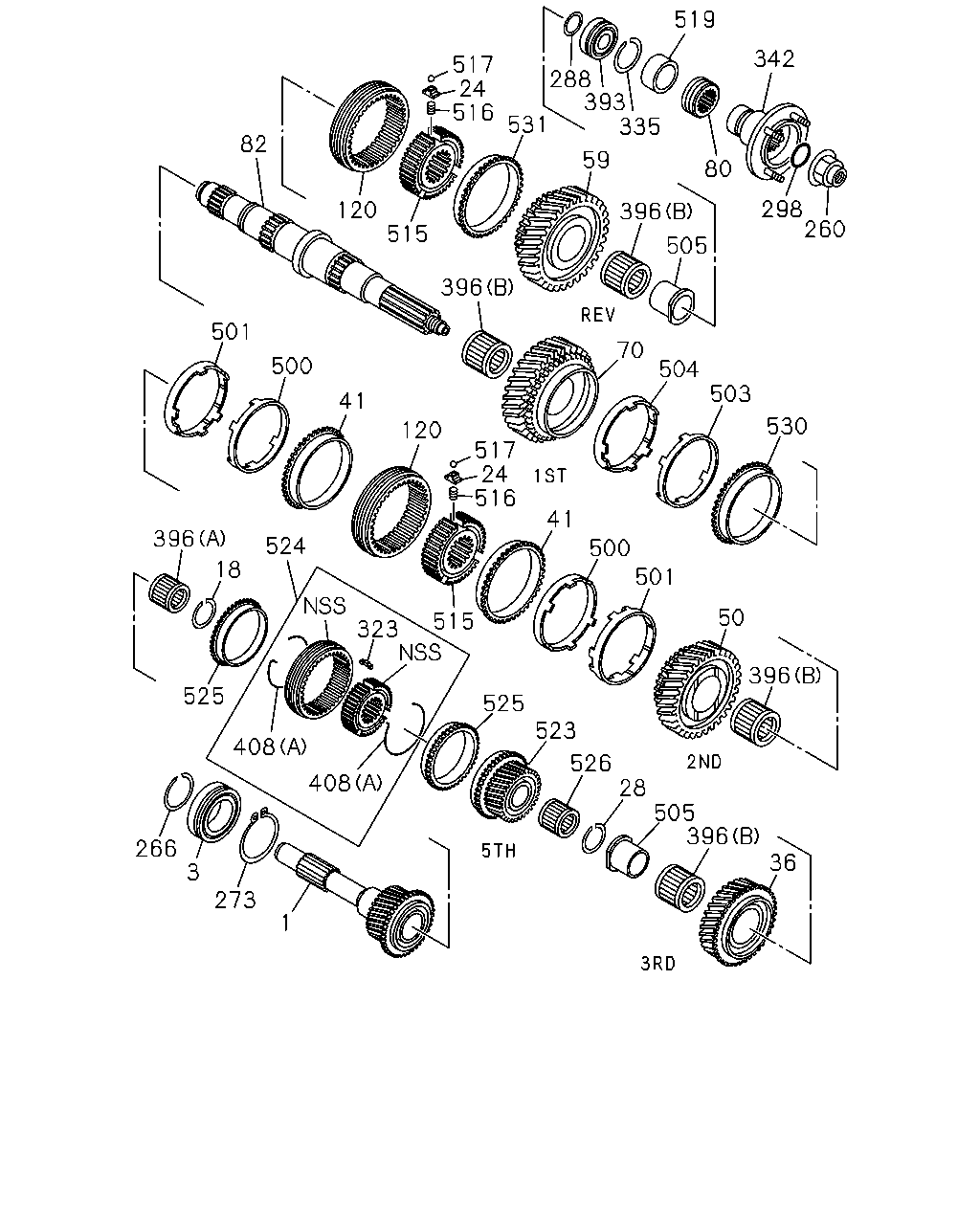

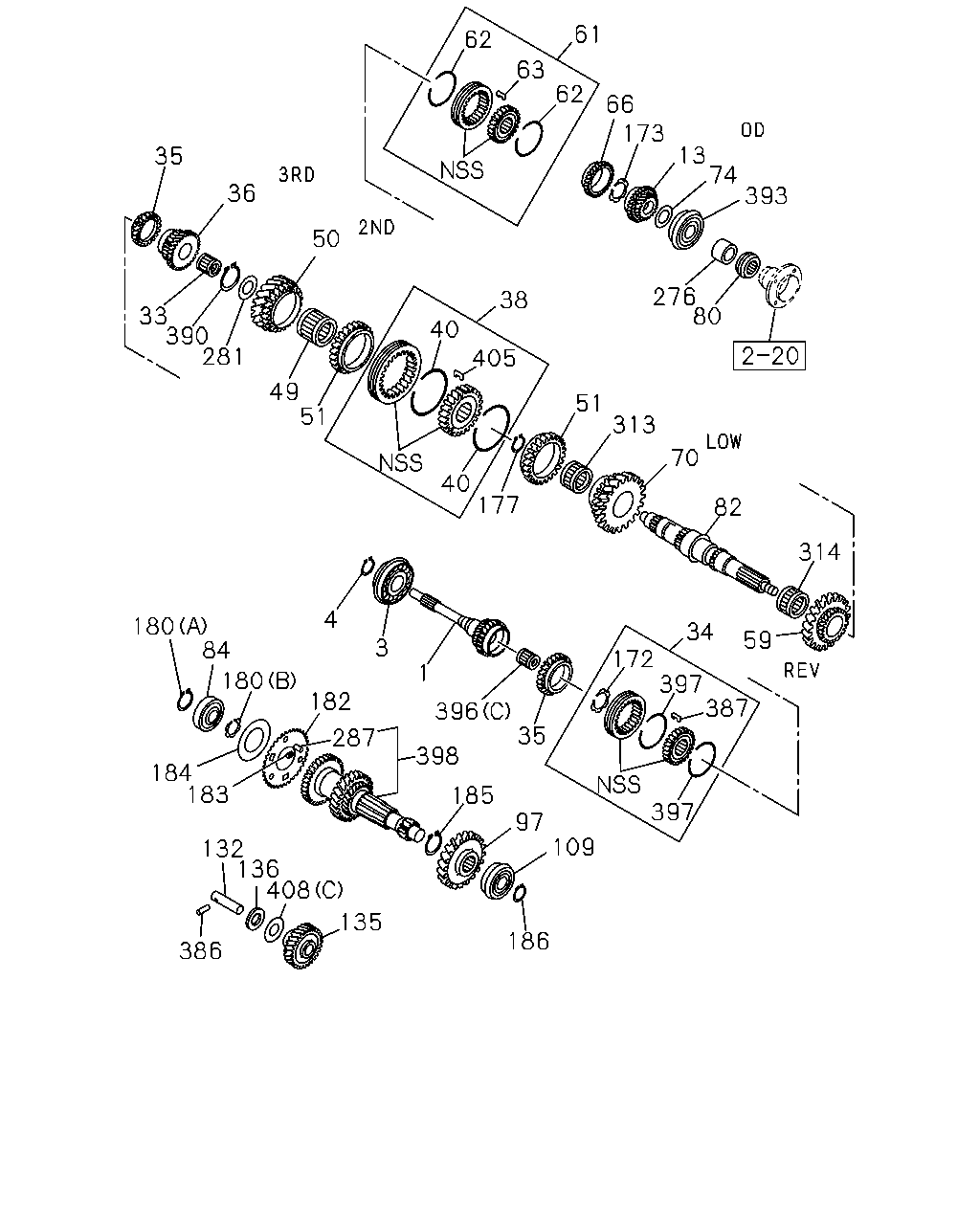

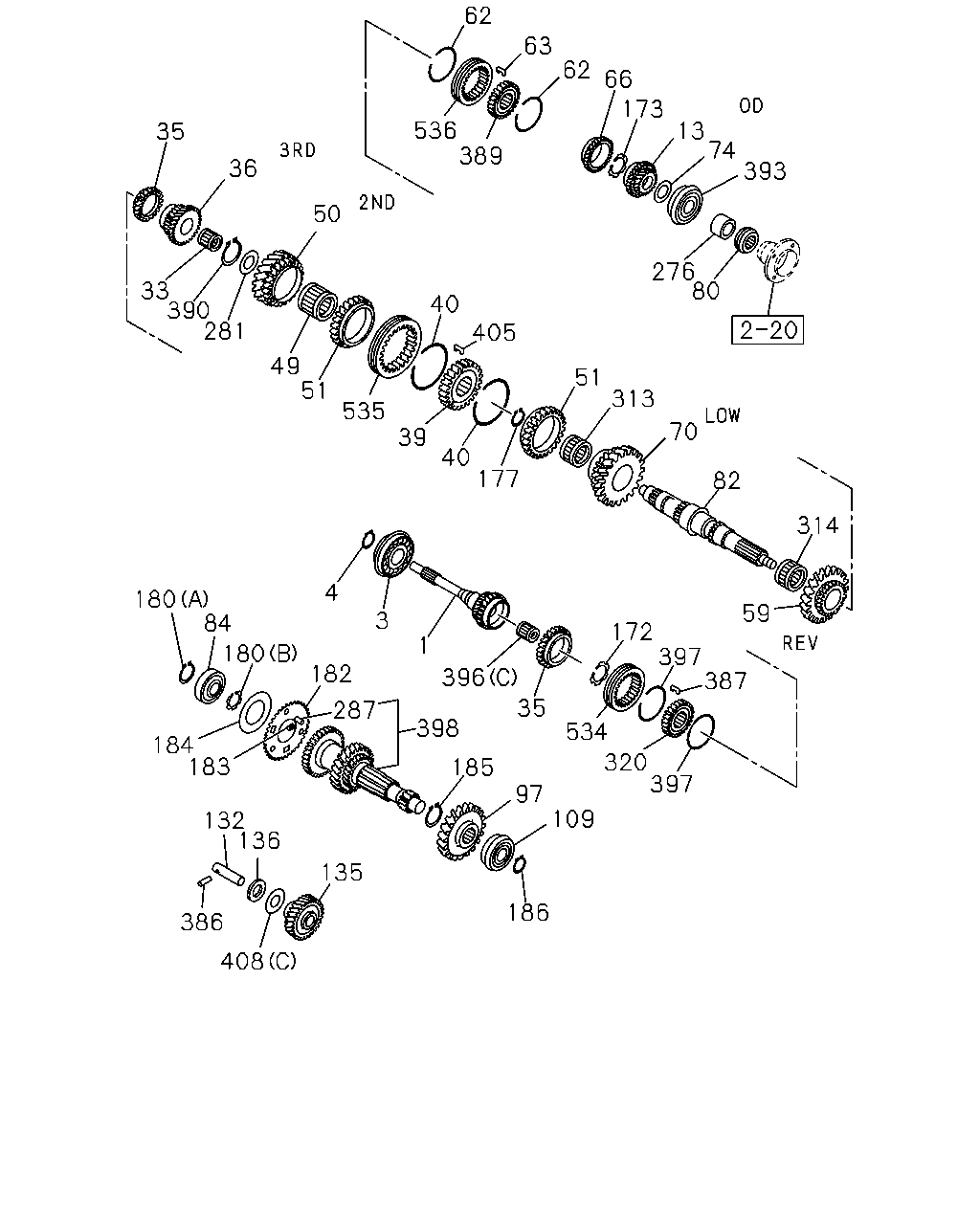

2-26 — MANUAL TRANSMISSION GEAR (#23208) — 464 parça

62 63 62 66 173 536 389 13 74 393 35 36 50 276 80 33 390 281 40 405 49 51 51 313 535 70 39 40 177 82 314 4 180 84 59 3 172 397 387 1 180 182 396 35 287 398 534 184 183 320 397 185 97 109 132 136 135 186 386 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97177-683-0	01	1	0508-1010	●	●
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-98179-968-1	01	1	1011-	●	●
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	0508-	●
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97091-558-1	01	1	0508-		●
1	SHAFT; TOP GEAR,TRANS 4HG1-T ENG<RDP> Z=28	8-97252-924-1	01	1	0508-			●
3	BEARING; TOP GEAR SHAFT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-742-0	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT 4JB1-TC ENG<RDT> NSK	8-94178-732-2	01	1	0508-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94178-732-2	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT 4JB1-TC ENG<RDT> KOYO	8-94462-615-0	01	1	0508-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> KOYO	8-94462-615-0	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT 4HG1-T ENG<RDP> NSK	8-97253-098-1	01	1	0508-			●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JB1-TC ENG<RDT> ID=37.0	9-09180-040-0	01	1	0508-	●	●
13	GEAR; 5TH,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97373-008-0	01	1	0508-	●	●
13	GEAR; 5TH,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-015-0	01	1	0508-	●
13	GEAR; 5TH,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97206-007-0	01	1	0508-		●
33	BEARING; NEEDLE,3RD GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-746-0	01	1	1211-	●	●
33	BEARING; NEEDLE,3RD GEAR 4JB1-TC ENG<RDT>	8-94317-158-0	01	1	0508-1210	●	●
33	BEARING; NEEDLE,3RD GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94317-158-0	01	1	1211-	●	●
35	RING; BLOCK,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	02	1	1211-	●	●
35	RING; BLOCK,4TH & 3RD 4JB1-TC ENG<RDT> Z=36	8-94128-775-2	02	1	0508-1210	●	●
35	RING; BLOCK,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	02	1	1211-	●	●
36	GEAR; 3RD,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-97174-923-0	01	1	0508-1010	●	●
36	GEAR; 3RD,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	0508-	●
36	GEAR; 3RD,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-94316-760-2	01	1	0508-		●
36	GEAR; 3RD,MAINSHAFT 4HG1-T ENG<RDP> Z=34	8-97241-234-0	01	1	0508-			●
39	HUB; CLU,LOW & 2ND 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-689-0	01	1	0508-	●	●
40	SPRING; INSERT,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-960-0	02	1	1211-	●	●
40	SPRING; INSERT,LOW & 2ND 4JB1-TC ENG<RDT>	8-97023-708-0	02	1	0508-1210	●	●
40	SPRING; INSERT,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-708-0	02	1	1211-	●	●
49	BEARING; NEEDLE,2ND GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-747-0	01	1	1211-	●	●
49	BEARING; NEEDLE,2ND GEAR 4JB1-TC ENG<RDT> NSK	5-09811-014-0	01	1	0508-1210	●	●
49	BEARING; NEEDLE,2ND GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09811-014-0	01	1	1211-	●	●
50	GEAR; 2ND,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-97174-955-0	01	1	0508-	●	●
50	GEAR; 2ND,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94316-766-3	01	1	0508-	●
50	GEAR; 2ND,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-94316-764-3	01	1	0508-		●
50	GEAR; 2ND,MAINSHAFT 4HG1-T ENG<RDP> Z=38	8-97241-237-1	01	1	0508-			●
51	RING; BLOCK,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-98190-428-0	02	1	1211-	●	●
51	RING; BLOCK,LOW & 2ND 4JB1-TC ENG<RDT> Z=42	8-97074-619-3	02	1	0508-1210	●	●
51	RING; BLOCK,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97074-619-3	02	1	1211-	●	●
59	GEAR; REV MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-98190-291-1	01	1	1211-	●	●
59	GEAR; REV MAINSHAFT 4JB1-TC ENG<RDT> Z=41	8-97206-006-0	01	1	0508-1210	●	●
59	GEAR; REV MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-97206-006-0	01	1	1211-	●	●
59	GEAR; REV MAINSHAFT 4HG1-T ENG<RDP> Z=41	8-97241-244-0	01	1	0508-			●
62	SPRING; INSERT,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-	●	●
62	SPRING; INSERT,REV & 5TH 4JB1-TC ENG<RDT>	8-97023-710-0	02	1	0508-1210	●	●
62	SPRING; INSERT,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-	●	●
63	INSERT; SYN,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-418-0	03	1	1211-	●	●
63	INSERT; SYN,REV & 5TH 4JB1-TC ENG<RDT>	9-33263-613-0	03	1	0508-1210	●	●
63	INSERT; SYN,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33263-613-0	03	1	1211-	●	●
66	RING; BLOCK,SYN IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	01	1	1211-	●	●
66	RING; BLOCK,SYN 4JB1-TC ENG<RDT> Z=36	8-94128-775-2	01	1	0508-1210	●	●
66	RING; BLOCK,SYN EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	01	1	1211-	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0508-1010	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-98180-095-1	01	1	1011-	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	0508-	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-94316-768-4	01	1	0508-		●
70	GEAR; 1ST,MAINSHAFT 4HG1-T ENG<RDP> Z=43	8-97350-010-0	01	1	0508-			●
74	WASHER; THRUST,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-569-0	01	1	1211-	●	●
74	WASHER; THRUST,REV GEAR 4JB1-TC ENG<RDT>	8-97207-176-0	01	1	0508-1210	●	●
74	WASHER; THRUST,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-176-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-98190-429-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE 4JB1-TC ENG<RDT> Z=4	8-97207-146-0	01	1	0508-1210	●	●
80	GEAR; SPD DRIVE EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-97207-146-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE 4HG1-T ENG<RDP> Z=4	8-97253-556-0	01	1	0508-			●
82	SHAFT; MAIN,TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0508-	●	●
82	SHAFT; MAIN,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0508-	●	●
82	SHAFT; MAIN,TRANS 4HG1-T ENG<RDP> Z=28-42-42-21	8-97253-117-3	01	1	0508-			●
84	BEARING; COUNTER SHAFT,FRT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-745-0	01	1	1211-	●	●
84	BEARING; COUNTER SHAFT,FRT 4JB1-TC ENG<RDT> NSK	5-09800-062-2	01	1	0508-1210	●	●
84	BEARING; COUNTER SHAFT,FRT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09800-062-2	01	1	1211-	●	●
97	GEAR; 5TH,COUNTER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-97372-900-0	01	1	0508-	●	●
97	GEAR; 5TH,COUNTER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	0508-	●
97	GEAR; 5TH,COUNTER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-94316-786-1	01	1	0508-		●
109	BEARING; COUNTER SHAFT,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-744-0	01	1	1211-	●	●
109	BEARING; COUNTER SHAFT,RR 4JB1-TC ENG<RDT>	8-97095-913-1	01	1	0508-1210	●	●
109	BEARING; COUNTER SHAFT,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-913-1	01	1	1211-	●	●
132	SHAFT; REV IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-378-0	01	1	1211-	●	●
132	SHAFT; REV 4JB1-TC ENG<RDT>	9-33351-604-1	01	1	0508-1210	●	●
132	SHAFT; REV EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33351-604-1	01	1	1211-	●	●
132	SHAFT; REV 4HG1-T ENG<RDP>	8-97252-655-0	01	1	0508-			●
135	GEAR; REV IDLER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0508-	●	●
135	GEAR; REV IDLER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0508-	●	●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-97241-293-0	01	1	0508-0512			●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-98031-869-1	01	1	0601-			●
136	WASHER; THRUST,REV IDLE,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-533-0	01	1	1211-	●	●
136	WASHER; THRUST,REV IDLE,RR 4JB1-TC ENG<RDT>	8-97081-579-2	01	1	0508-1210	●	●
136	WASHER; THRUST,REV IDLE,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-579-2	01	1	1211-	●	●
172	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.75	8-94402-405-0	01	1	0508-	●	●
172	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.80	8-94402-406-0	01	1	0508-	●	●
172	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.85	8-94402-407-0	01	1	0508-	●	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG<RDT> T=1.85	8-94151-522-0	01	1	0508-	●	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG<RDT> T=1.90	8-94151-523-0	01	1	0508-	●	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG<RDT> T=1.95	8-94151-524-0	01	1	0508-	●	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG<RDT> T=2.00	8-94157-747-0	01	1	0508-	●	●
177	RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	8-98189-990-0	01	1	1211-	●	●
177	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> ID=44.5	5-09589-010-0	01	1	0508-1210	●	●
177	RING; SNAP,CLU HUB EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	5-09589-010-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-98189-991-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR 4JB1-TC ENG<RDT> (B) ID=38.5	8-94146-483-0	01	1	0508-1210	●	●
180	RING; SNAP,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-94146-483-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR 4JB1-TC ENG<RDT> (A) ID=32.2	9-09180-035-0	01	1	0508-	●	●
182	PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-586-0	01	1	1211-	●	●
182	PLATE; CLUSTER GEAR 4JB1-TC ENG<RDT>	8-94129-632-1	01	1	0508-1210		●
182	PLATE; CLUSTER GEAR 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-94129-632-1	01	1	0508-1210	●
182	PLATE; CLUSTER GEAR 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94129-632-1	01	1	1211-		●
182	PLATE; CLUSTER GEAR 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-984-0	01	1	0508-	●
183	SPRING; PLATE,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-380-0	03	1	1211-	●	●
183	SPRING; PLATE,CLUSTER GEAR 4JB1-TC ENG<RDT>	8-94132-168-0	03	1	0508-1210	●	●
183	SPRING; PLATE,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94132-168-0	03	1	1211-	●	●
184	SPRING; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-350-0	01	1	1211-	●	●
184	SPRING; CLUSTER GEAR 4JB1-TC ENG<RDT>	8-94128-790-1	01	1	0508-1210	●	●
184	SPRING; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-790-1	01	1	1211-	●	●
185	RING; SNAP,CLUSTER GEAR 4JB1-TC ENG<RDT> ID=41.5	9-09180-045-0	01	1	0508-	●	●
186	RING; SNAP,CLUSTER GEAR 4JB1-TC ENG<RDT> ID=29.6	9-09180-032-0	01	1	0508-	●	●
276	SPACER; BRG TO DRIVE GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-906-0	01	1	1211-	●	●
276	SPACER; BRG TO DRIVE GEAR 4JB1-TC ENG<RDT>	8-97207-175-0	01	1	0508-1210	●	●
276	SPACER; BRG TO DRIVE GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-175-0	01	1	1211-	●	●
281	WASHER; THRUST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-466-0	01	1	1211-	●	●
281	WASHER; THRUST,MAINSHAFT 4JB1-TC ENG<RDT>	5-33271-007-0	01	1	0508-1210	●	●
281	WASHER; THRUST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33271-007-0	01	1	1211-	●	●
287	PIN; COUNTER GEAR 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	03	1	0508-1405	●
287	PIN; COUNTER GEAR 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-445-0	03	1	1406-	●	●
287	PIN; COUNTER GEAR 4JB1-TC ENG<RDT>	8-94402-462-0	01	1	0508-1405		●
287	PIN; COUNTER GEAR 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	0508-1405	●
287	PIN; COUNTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	1406-	●	●
313	BEARING; NEEDLE,LOW GEAR IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-98189-748-0	01	1	1211-	●	●
313	BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG<RDT> NSK	8-94317-161-0	01	1	0508-1210	●	●
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94317-161-0	01	1	1211-	●	●
313	BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG<RDT> KOYO	8-97010-547-0	01	1	0508-1210	●	●
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> KOYO	8-97010-547-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-749-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR 4JB1-TC ENG<RDT> NSK	8-97207-174-0	01	1	0508-1210	●	●
314	BEARING; NEEDLE,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-97207-174-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR 4HG1-T ENG<RDP> NSK	8-97253-114-0	01	1	0508-			●
320	HUB; CLU,4TH & 3RD 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-690-0	01	1	0508-	●	●
386	PIN; REV SHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-093-0	01	1	1211-	●	●
386	PIN; REV SHAFT 4JB1-TC ENG<RDT>	8-94128-794-0	01	1	0508-1210	●	●
386	PIN; REV SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-794-0	01	1	1211-	●	●
387	INSERT; SYN,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-	●	●
387	INSERT; SYN,4TH & 3RD 4JB1-TC ENG<RDT>	5-33263-001-0	03	1	0508-1210	●	●
387	INSERT; SYN,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-	●	●
389	HUB; CLU,REV & 5TH 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-144-0	01	1	0508-	●	●
390	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.75	8-94151-520-0	01	1	0508-	●	●
390	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.80	8-94151-521-0	01	1	0508-	●	●
390	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.85	8-94151-522-0	01	1	0508-	●	●
390	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> T=1.90	8-94151-523-0	01	1	0508-	●	●
393	BEARING; MAINSHAFT END IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-743-0	01	1	1211-	●	●
393	BEARING; MAINSHAFT END 4JB1-TC ENG<RDT>	8-97207-512-1	01	1	0508-1210	●	●
393	BEARING; MAINSHAFT END EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-512-1	01	1	1211-	●	●
393	BEARING; MAINSHAFT END 4HG1-T ENG<RDP>	8-97253-105-1	01	1	0508-			●
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-98189-970-0	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG<RDT> (C)	8-97161-658-0	01	1	0508-1210	●	●
396	BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-97161-658-0	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP> (A)	8-97253-102-1	01	1	0508-			●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP> (B)	8-97253-110-0	04	1	0508-			●
397	SPRING; INSERT,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-	●	●
397	SPRING; INSERT,4TH & 3RD 4JB1-TC ENG<RDT>	8-97023-710-0	02	1	0508-1210	●	●
397	SPRING; INSERT,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-	●	●
398	GEAR; COUNTER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97333-915-0	01	1	0508-	●
398	GEAR; COUNTER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97204-104-0	01	1	0508-	●	●
398	GEAR; COUNTER 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0508-	●
398	GEAR; COUNTER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97029-335-0	01	1	0508-		●
405	INSERT; SYN,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-	●	●
405	INSERT; SYN,LOW & 2ND 4JB1-TC ENG<RDT>	5-33263-001-0	03	1	0508-1210	●	●
405	INSERT; SYN,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-	●	●
408	SPRING IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-98189-347-0	01	1	1211-	●	●
408	SPRING 4JB1-TC ENG<RDT> (C)	8-97081-577-0	01	1	0508-1210	●	●
408	SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-97081-577-0	01	1	1211-	●	●
408	SPRING 4HG1-T ENG<RDP> (B)	8-94148-196-0	03	1	0508-			●
408	SPRING 4HG1-T ENG<RDP> (A)	8-97366-040-1	02	1	0508-			●
534	SLEEVE; HUB,4TH-3RD 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-134-0	01	1	0508-	●	●
535	SLEEVE; HUB,LOW-2ND 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-133-0	01	1	0508-	●	●
536	SLEEVE; HUB,REV-5TH 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-135-0	01	1	0508-	●	●

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	RING; SNAP,COUNTER FRT BRG 4HG1-T ENG<RDP> ID=30.7 T=1.9	8-97254-734-0	01	1	0508-			●
93	RING; SNAP,COUNTER FRT BRG 4HG1-T ENG<RDP> ID=30.7 T=2.1	8-97254-740-0	01	1	0508-			●
93	RING; SNAP,COUNTER FRT BRG 4HG1-T ENG<RDP> ID=30.7 T=2.3	8-97254-742-0	01	1	0508-			●
108	SHAFT; COUNTER 4HG1-T ENG<RDP> Z=45-49-33-20	8-97380-630-1	01	1	0508-			●
132	SHAFT; REV IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-378-0	01	1	1211-	●	●
132	SHAFT; REV 4JB1-TC ENG<RDT>	9-33351-604-1	01	1	0508-1210	●	●
132	SHAFT; REV EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33351-604-1	01	1	1211-	●	●
132	SHAFT; REV 4HG1-T ENG<RDP>	8-97252-655-0	01	1	0508-			●
135	GEAR; REV IDLER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0508-	●	●
135	GEAR; REV IDLER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0508-	●	●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-97241-293-0	01	1	0508-0512			●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-98031-869-1	01	1	0601-			●
268	PLATE; ANTI LASH,COUNTER 4HG1-T ENG<RDP>	8-97257-300-1	01	1	0508-			●
314	BEARING; NEEDLE,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-749-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR 4JB1-TC ENG<RDT> NSK	8-97207-174-0	01	1	0508-1210	●	●
314	BEARING; NEEDLE,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-97207-174-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR 4HG1-T ENG<RDP> NSK	8-97253-114-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.29	8-97252-666-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.35	8-97252-667-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.41	8-97252-668-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.47	8-97252-669-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.53	8-97252-670-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.59	8-97252-671-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.65	8-97252-672-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.71	8-97252-673-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.77	8-97252-674-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.83	8-97252-675-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.89	8-97257-622-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.11	8-97306-188-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.17	8-97306-189-0	01	1	0508-			●
325	SHIM; COUNTER SHAFT BRG 4HG1-T ENG<RDP> ID=62.7 T=2.23	8-97306-190-0	01	1	0508-			●
408	SPRING IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-98189-347-0	01	1	1211-	●	●
408	SPRING 4JB1-TC ENG<RDT> (C)	8-97081-577-0	01	1	0508-1210	●	●
408	SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-97081-577-0	01	1	1211-	●	●
408	SPRING 4HG1-T ENG<RDP> (B)	8-94148-196-0	03	1	0508-			●
408	SPRING 4HG1-T ENG<RDP> (A)	8-97366-040-1	02	1	0508-			●
507	BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG<RDP>	8-97253-107-0	02	1	0508-			●
510	PIN; STRAIGHT,ANTI LASH 4HG1-T ENG<RDP>	9-08160-825-0	03	1	0508-			●
511	RING; SNAP,ANTI LASH PLATE 4HG1-T ENG<RDP>	8-97254-767-0	01	1	0508-			●

61 62 63 62 66 173 13 74 393 35 36 50 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 180 84 34 59 3 172 397 387 1 180 182 396 35 287 398 184 183 397 185 97 109 132 136 408 135 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97177-683-0	01	1	0508-1010	●	●
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-98179-968-1	01	1	1011-	●	●
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	0508-	●
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97091-558-1	01	1	0508-		●
1	SHAFT; TOP GEAR,TRANS 4HG1-T ENG<RDP> Z=28	8-97252-924-1	01	1	0508-			●
3	BEARING; TOP GEAR SHAFT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-742-0	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT 4JB1-TC ENG<RDT> NSK	8-94178-732-2	01	1	0508-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94178-732-2	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT 4JB1-TC ENG<RDT> KOYO	8-94462-615-0	01	1	0508-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> KOYO	8-94462-615-0	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT 4HG1-T ENG<RDP> NSK	8-97253-098-1	01	1	0508-			●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JB1-TC ENG<RDT> ID=37.0	9-09180-040-0	01	1	0508-	●	●
13	GEAR; 5TH,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97373-008-0	01	1	0508-	●	●
13	GEAR; 5TH,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-015-0	01	1	0508-	●
13	GEAR; 5TH,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97206-007-0	01	1	0508-		●
33	BEARING; NEEDLE,3RD GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-746-0	01	1	1211-	●	●
33	BEARING; NEEDLE,3RD GEAR 4JB1-TC ENG<RDT>	8-94317-158-0	01	1	0508-1210	●	●
33	BEARING; NEEDLE,3RD GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94317-158-0	01	1	1211-	●	●
34	SYNCHRONIZER; 4TH & 3RD 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-745-2	01	1	0508-	●	●
35	RING; BLOCK,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	02	1	1211-	●	●
35	RING; BLOCK,4TH & 3RD 4JB1-TC ENG<RDT> Z=36	8-94128-775-2	02	1	0508-1210	●	●
35	RING; BLOCK,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	02	1	1211-	●	●
36	GEAR; 3RD,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-97174-923-0	01	1	0508-1010	●	●
36	GEAR; 3RD,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	0508-	●
36	GEAR; 3RD,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-94316-760-2	01	1	0508-		●
36	GEAR; 3RD,MAINSHAFT 4HG1-T ENG<RDP> Z=34	8-97241-234-0	01	1	0508-			●
38	SYNCHRONIZER; LOW & 2ND 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-748-0	01	1	0508-	●	●
40	SPRING; INSERT,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-960-0	02	1	1211-	●	●
40	SPRING; INSERT,LOW & 2ND 4JB1-TC ENG<RDT>	8-97023-708-0	02	1	0508-1210	●	●
40	SPRING; INSERT,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-708-0	02	1	1211-	●	●
49	BEARING; NEEDLE,2ND GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-747-0	01	1	1211-	●	●
49	BEARING; NEEDLE,2ND GEAR 4JB1-TC ENG<RDT> NSK	5-09811-014-0	01	1	0508-1210	●	●
49	BEARING; NEEDLE,2ND GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09811-014-0	01	1	1211-	●	●
50	GEAR; 2ND,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-97174-955-0	01	1	0508-	●	●
50	GEAR; 2ND,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94316-766-3	01	1	0508-	●
50	GEAR; 2ND,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-94316-764-3	01	1	0508-		●
50	GEAR; 2ND,MAINSHAFT 4HG1-T ENG<RDP> Z=38	8-97241-237-1	01	1	0508-			●
51	RING; BLOCK,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-98190-428-0	02	1	1211-	●	●
51	RING; BLOCK,LOW & 2ND 4JB1-TC ENG<RDT> Z=42	8-97074-619-3	02	1	0508-1210	●	●
51	RING; BLOCK,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97074-619-3	02	1	1211-	●	●
59	GEAR; REV MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-98190-291-1	01	1	1211-	●	●
59	GEAR; REV MAINSHAFT 4JB1-TC ENG<RDT> Z=41	8-97206-006-0	01	1	0508-1210	●	●
59	GEAR; REV MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-97206-006-0	01	1	1211-	●	●
59	GEAR; REV MAINSHAFT 4HG1-T ENG<RDP> Z=41	8-97241-244-0	01	1	0508-			●
61	SYNCHRONIZER; REV & 5TH 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97206-010-0	01	1	0508-	●	●
62	SPRING; INSERT,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-	●	●
62	SPRING; INSERT,REV & 5TH 4JB1-TC ENG<RDT>	8-97023-710-0	02	1	0508-1210	●	●
62	SPRING; INSERT,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-	●	●
63	INSERT; SYN,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-418-0	03	1	1211-	●	●
63	INSERT; SYN,REV & 5TH 4JB1-TC ENG<RDT>	9-33263-613-0	03	1	0508-1210	●	●
63	INSERT; SYN,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33263-613-0	03	1	1211-	●	●
66	RING; BLOCK,SYN IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	01	1	1211-	●	●
66	RING; BLOCK,SYN 4JB1-TC ENG<RDT> Z=36	8-94128-775-2	01	1	0508-1210	●	●
66	RING; BLOCK,SYN EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	01	1	1211-	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0508-1010	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-98180-095-1	01	1	1011-	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	0508-	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-94316-768-4	01	1	0508-		●
70	GEAR; 1ST,MAINSHAFT 4HG1-T ENG<RDP> Z=43	8-97350-010-0	01	1	0508-			●
74	WASHER; THRUST,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-569-0	01	1	1211-	●	●
74	WASHER; THRUST,REV GEAR 4JB1-TC ENG<RDT>	8-97207-176-0	01	1	0508-1210	●	●
74	WASHER; THRUST,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-176-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-98190-429-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE 4JB1-TC ENG<RDT> Z=4	8-97207-146-0	01	1	0508-1210	●	●
80	GEAR; SPD DRIVE EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-97207-146-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE 4HG1-T ENG<RDP> Z=4	8-97253-556-0	01	1	0508-			●
82	SHAFT; MAIN,TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0508-	●	●
82	SHAFT; MAIN,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0508-	●	●
82	SHAFT; MAIN,TRANS 4HG1-T ENG<RDP> Z=28-42-42-21	8-97253-117-3	01	1	0508-			●
84	BEARING; COUNTER SHAFT,FRT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-745-0	01	1	1211-	●	●
84	BEARING; COUNTER SHAFT,FRT 4JB1-TC ENG<RDT> NSK	5-09800-062-2	01	1	0508-1210	●	●
84	BEARING; COUNTER SHAFT,FRT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09800-062-2	01	1	1211-	●	●
97	GEAR; 5TH,COUNTER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-97372-900-0	01	1	0508-	●	●
97	GEAR; 5TH,COUNTER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	0508-	●
97	GEAR; 5TH,COUNTER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-94316-786-1	01	1	0508-		●
109	BEARING; COUNTER SHAFT,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-744-0	01	1	1211-	●	●
109	BEARING; COUNTER SHAFT,RR 4JB1-TC ENG<RDT>	8-97095-913-1	01	1	0508-1210	●	●
109	BEARING; COUNTER SHAFT,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-913-1	01	1	1211-	●	●
132	SHAFT; REV IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-378-0	01	1	1211-	●	●
132	SHAFT; REV 4JB1-TC ENG<RDT>	9-33351-604-1	01	1	0508-1210	●	●
132	SHAFT; REV EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33351-604-1	01	1	1211-	●	●
132	SHAFT; REV 4HG1-T ENG<RDP>	8-97252-655-0	01	1	0508-			●
135	GEAR; REV IDLER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0508-	●	●
135	GEAR; REV IDLER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0508-	●	●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-97241-293-0	01	1	0508-0512			●
135	GEAR; REV IDLER 4HG1-T ENG<RDP> Z=25	8-98031-869-1	01	1	0601-			●
136	WASHER; THRUST,REV IDLE,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-533-0	01	1	1211-	●	●
136	WASHER; THRUST,REV IDLE,RR 4JB1-TC ENG<RDT>	8-97081-579-2	01	1	0508-1210	●	●
136	WASHER; THRUST,REV IDLE,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-579-2	01	1	1211-	●	●
172	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.75	8-94402-405-0	01	1	0508-	●	●
172	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.80	8-94402-406-0	01	1	0508-	●	●
172	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.85	8-94402-407-0	01	1	0508-	●	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG<RDT> T=1.85	8-94151-522-0	01	1	0508-	●	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG<RDT> T=1.90	8-94151-523-0	01	1	0508-	●	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG<RDT> T=1.95	8-94151-524-0	01	1	0508-	●	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG<RDT> T=2.00	8-94157-747-0	01	1	0508-	●	●
177	RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	8-98189-990-0	01	1	1211-	●	●
177	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> ID=44.5	5-09589-010-0	01	1	0508-1210	●	●
177	RING; SNAP,CLU HUB EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	5-09589-010-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-98189-991-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR 4JB1-TC ENG<RDT> (B) ID=38.5	8-94146-483-0	01	1	0508-1210	●	●
180	RING; SNAP,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-94146-483-0	01	1	1211-	●	●
180	RING; SNAP,CLUSTER GEAR 4JB1-TC ENG<RDT> (A) ID=32.2	9-09180-035-0	01	1	0508-	●	●
182	PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-586-0	01	1	1211-	●	●
182	PLATE; CLUSTER GEAR 4JB1-TC ENG<RDT>	8-94129-632-1	01	1	0508-1210		●
182	PLATE; CLUSTER GEAR 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-94129-632-1	01	1	0508-1210	●
182	PLATE; CLUSTER GEAR 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94129-632-1	01	1	1211-		●
182	PLATE; CLUSTER GEAR 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-984-0	01	1	0508-	●
183	SPRING; PLATE,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-380-0	03	1	1211-	●	●
183	SPRING; PLATE,CLUSTER GEAR 4JB1-TC ENG<RDT>	8-94132-168-0	03	1	0508-1210	●	●
183	SPRING; PLATE,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94132-168-0	03	1	1211-	●	●
184	SPRING; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-350-0	01	1	1211-	●	●
184	SPRING; CLUSTER GEAR 4JB1-TC ENG<RDT>	8-94128-790-1	01	1	0508-1210	●	●
184	SPRING; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-790-1	01	1	1211-	●	●
185	RING; SNAP,CLUSTER GEAR 4JB1-TC ENG<RDT> ID=41.5	9-09180-045-0	01	1	0508-	●	●
186	RING; SNAP,CLUSTER GEAR 4JB1-TC ENG<RDT> ID=29.6	9-09180-032-0	01	1	0508-	●	●
276	SPACER; BRG TO DRIVE GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-906-0	01	1	1211-	●	●
276	SPACER; BRG TO DRIVE GEAR 4JB1-TC ENG<RDT>	8-97207-175-0	01	1	0508-1210	●	●
276	SPACER; BRG TO DRIVE GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-175-0	01	1	1211-	●	●
281	WASHER; THRUST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-466-0	01	1	1211-	●	●
281	WASHER; THRUST,MAINSHAFT 4JB1-TC ENG<RDT>	5-33271-007-0	01	1	0508-1210	●	●
281	WASHER; THRUST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33271-007-0	01	1	1211-	●	●
287	PIN; COUNTER GEAR 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	03	1	0508-1405	●
287	PIN; COUNTER GEAR 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-445-0	03	1	1406-	●	●
287	PIN; COUNTER GEAR 4JB1-TC ENG<RDT>	8-94402-462-0	01	1	0508-1405		●
287	PIN; COUNTER GEAR 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	0508-1405	●
287	PIN; COUNTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	1406-	●	●
313	BEARING; NEEDLE,LOW GEAR IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-98189-748-0	01	1	1211-	●	●
313	BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG<RDT> NSK	8-94317-161-0	01	1	0508-1210	●	●
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94317-161-0	01	1	1211-	●	●
313	BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG<RDT> KOYO	8-97010-547-0	01	1	0508-1210	●	●
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> KOYO	8-97010-547-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-749-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR 4JB1-TC ENG<RDT> NSK	8-97207-174-0	01	1	0508-1210	●	●
314	BEARING; NEEDLE,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-97207-174-0	01	1	1211-	●	●
314	BEARING; NEEDLE,REV GEAR 4HG1-T ENG<RDP> NSK	8-97253-114-0	01	1	0508-			●
386	PIN; REV SHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-093-0	01	1	1211-	●	●
386	PIN; REV SHAFT 4JB1-TC ENG<RDT>	8-94128-794-0	01	1	0508-1210	●	●
386	PIN; REV SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-794-0	01	1	1211-	●	●
387	INSERT; SYN,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-	●	●
387	INSERT; SYN,4TH & 3RD 4JB1-TC ENG<RDT>	5-33263-001-0	03	1	0508-1210	●	●
387	INSERT; SYN,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-	●	●
390	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.75	8-94151-520-0	01	1	0508-	●	●
390	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.80	8-94151-521-0	01	1	0508-	●	●
390	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> T=1.85	8-94151-522-0	01	1	0508-	●	●
390	RING; SNAP,CLU HUB 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> T=1.90	8-94151-523-0	01	1	0508-	●	●
393	BEARING; MAINSHAFT END IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-743-0	01	1	1211-	●	●
393	BEARING; MAINSHAFT END 4JB1-TC ENG<RDT>	8-97207-512-1	01	1	0508-1210	●	●
393	BEARING; MAINSHAFT END EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-512-1	01	1	1211-	●	●
393	BEARING; MAINSHAFT END 4HG1-T ENG<RDP>	8-97253-105-1	01	1	0508-			●
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-98189-970-0	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG<RDT> (C)	8-97161-658-0	01	1	0508-1210	●	●
396	BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-97161-658-0	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP> (A)	8-97253-102-1	01	1	0508-			●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP> (B)	8-97253-110-0	04	1	0508-			●
397	SPRING; INSERT,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-	●	●
397	SPRING; INSERT,4TH & 3RD 4JB1-TC ENG<RDT>	8-97023-710-0	02	1	0508-1210	●	●
397	SPRING; INSERT,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-	●	●
398	GEAR; COUNTER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97333-915-0	01	1	0508-	●
398	GEAR; COUNTER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97204-104-0	01	1	0508-	●	●
398	GEAR; COUNTER 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0508-	●
398	GEAR; COUNTER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97029-335-0	01	1	0508-		●
405	INSERT; SYN,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-	●	●
405	INSERT; SYN,LOW & 2ND 4JB1-TC ENG<RDT>	5-33263-001-0	03	1	0508-1210	●	●
405	INSERT; SYN,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-	●	●
408	SPRING IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-98189-347-0	01	1	1211-	●	●
408	SPRING 4JB1-TC ENG<RDT> (C)	8-97081-577-0	01	1	0508-1210	●	●
408	SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-97081-577-0	01	1	1211-	●	●
408	SPRING 4HG1-T ENG<RDP> (B)	8-94148-196-0	03	1	0508-			●
408	SPRING 4HG1-T ENG<RDP> (A)	8-97366-040-1	02	1	0508-			●

519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 396 515 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 50 515 323 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97177-683-0	01	1	0508-1010	●	●
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-98179-968-1	01	1	1011-	●	●
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	0508-	●
1	SHAFT; TOP GEAR,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=28	8-97091-558-1	01	1	0508-		●
1	SHAFT; TOP GEAR,TRANS 4HG1-T ENG<RDP> Z=28	8-97252-924-1	01	1	0508-			●
3	BEARING; TOP GEAR SHAFT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-742-0	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT 4JB1-TC ENG<RDT> NSK	8-94178-732-2	01	1	0508-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94178-732-2	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT 4JB1-TC ENG<RDT> KOYO	8-94462-615-0	01	1	0508-1210	●	●
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> KOYO	8-94462-615-0	01	1	1211-	●	●
3	BEARING; TOP GEAR SHAFT 4HG1-T ENG<RDP> NSK	8-97253-098-1	01	1	0508-			●
18	RING; SNAP,CLU HUB 4HG1-T ENG<RDP> ID=30.7 T=1.8	8-97254-728-0	01	1	0508-			●
24	BLOCK; INDEX,SYN 4HG1-T ENG<RDP>	8-97241-313-1	06	1	0508-			●
28	RING; SNAP,3RD GEAR 4HG1-T ENG<RDP> ID=46.5 T=1.8	8-97254-743-0	01	1	0508-			●
36	GEAR; 3RD,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-97174-923-0	01	1	0508-1010	●	●
36	GEAR; 3RD,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	0508-	●
36	GEAR; 3RD,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-94316-760-2	01	1	0508-		●
36	GEAR; 3RD,MAINSHAFT 4HG1-T ENG<RDP> Z=34	8-97241-234-0	01	1	0508-			●
41	RING; BLOCK,2ND & 3RD 4HG1-T ENG<RDP> Z=45	8-97241-306-1	02	1	0508-			●
50	GEAR; 2ND,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-97174-955-0	01	1	0508-	●	●
50	GEAR; 2ND,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94316-766-3	01	1	0508-	●
50	GEAR; 2ND,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-94316-764-3	01	1	0508-		●
50	GEAR; 2ND,MAINSHAFT 4HG1-T ENG<RDP> Z=38	8-97241-237-1	01	1	0508-			●
59	GEAR; REV MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-98190-291-1	01	1	1211-	●	●
59	GEAR; REV MAINSHAFT 4JB1-TC ENG<RDT> Z=41	8-97206-006-0	01	1	0508-1210	●	●
59	GEAR; REV MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-97206-006-0	01	1	1211-	●	●
59	GEAR; REV MAINSHAFT 4HG1-T ENG<RDP> Z=41	8-97241-244-0	01	1	0508-			●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0508-1010	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-98180-095-1	01	1	1011-	●	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	0508-	●
70	GEAR; 1ST,MAINSHAFT 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-94316-768-4	01	1	0508-		●
70	GEAR; 1ST,MAINSHAFT 4HG1-T ENG<RDP> Z=43	8-97350-010-0	01	1	0508-			●
80	GEAR; SPD DRIVE IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-98190-429-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE 4JB1-TC ENG<RDT> Z=4	8-97207-146-0	01	1	0508-1210	●	●
80	GEAR; SPD DRIVE EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-97207-146-0	01	1	1211-	●	●
80	GEAR; SPD DRIVE 4HG1-T ENG<RDP> Z=4	8-97253-556-0	01	1	0508-			●
82	SHAFT; MAIN,TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0508-	●	●
82	SHAFT; MAIN,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0508-	●	●
82	SHAFT; MAIN,TRANS 4HG1-T ENG<RDP> Z=28-42-42-21	8-97253-117-3	01	1	0508-			●
120	SLEEVE 4HG1-T ENG<RDP> Z=45	8-94421-871-1	01	1	0508-			●
120	SLEEVE 4HG1-T ENG<RDP> Z=45	8-97241-296-1	02	1	0508-1311			●
120	SLEEVE 4HG1-T ENG<RDP> Z=45	8-98258-279-0	02	1	1312-			●
260	NUT; MAINSHAFT END 4HG1-T ENG<RDP> M27 H=25	8-97253-126-0	01	1	0508-0604			●
260	NUT; MAINSHAFT END 4HG1-T ENG<RDP> M27 H=25	8-97360-410-0	01	1	0605-			●
266	RING; SNAP,BRG INNER 4HG1-T ENG<RDP>	8-97286-916-0	01	1	0508-			●
273	RING; SNAP,BRG OUTER 4HG1-T ENG<RDP>	8-97254-610-0	01	1	0508-			●
288	SPACER; BRG,MAINSHAFT 4HG1-T ENG<RDP>	8-97252-942-0	01	1	0508-			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=30.6 T=5.7	8-94481-411-0	01	1	0508-0508			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=30.6 T=5.7	8-98028-226-0	01	1	0508-			●
323	INSERT 4HG1-T ENG<RDP>	8-94448-202-2	03	1	0508-			●
335	RING; SNAP,BEARING 4HG1-T ENG<RDP>	8-97254-722-0	01	1	0508-			●
342	FLANGE; OUTPUT 4HG1-T ENG<RDP>	8-97252-814-1	01	1	0508-0604			●
342	FLANGE; OUTPUT 4HG1-T ENG<RDP>	8-98031-640-0	01	1	0605-			●
393	BEARING; MAINSHAFT END IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-743-0	01	1	1211-	●	●
393	BEARING; MAINSHAFT END 4JB1-TC ENG<RDT>	8-97207-512-1	01	1	0508-1210	●	●
393	BEARING; MAINSHAFT END EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-512-1	01	1	1211-	●	●
393	BEARING; MAINSHAFT END 4HG1-T ENG<RDP>	8-97253-105-1	01	1	0508-			●
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-98189-970-0	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG<RDT> (C)	8-97161-658-0	01	1	0508-1210	●	●
396	BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-97161-658-0	01	1	1211-	●	●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP> (A)	8-97253-102-1	01	1	0508-			●
396	BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG<RDP> (B)	8-97253-110-0	04	1	0508-			●
408	SPRING IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-98189-347-0	01	1	1211-	●	●
408	SPRING 4JB1-TC ENG<RDT> (C)	8-97081-577-0	01	1	0508-1210	●	●
408	SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C)	8-97081-577-0	01	1	1211-	●	●
408	SPRING 4HG1-T ENG<RDP> (B)	8-94148-196-0	03	1	0508-			●
408	SPRING 4HG1-T ENG<RDP> (A)	8-97366-040-1	02	1	0508-			●
500	RING; OUTSIDE,3RD & 2ND 4HG1-T ENG<RDP>	8-97241-309-1	02	1	0508-			●
501	RING; INSIDE,3RD & 2ND 4HG1-T ENG<RDP>	8-97241-312-1	02	1	0508-			●
503	RING; OUTSIDE,LOW & REV 4HG1-T ENG<RDP>	8-97241-309-1	01	1	0508-			●
504	RING; INSIDE,LOW & REV 4HG1-T ENG<RDP>	8-97241-312-1	01	1	0508-			●
505	COLLAR; 3RD & REV 4HG1-T ENG<RDP>	8-97253-119-2	02	1	0508-			●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG<RDP>	8-97241-298-3	02	1	0508-			●
516	SPRING; SYNCHRO,INDEX 4HG1-T ENG<RDP>	8-97254-835-0	06	1	0508-			●
517	BALL; SYNCHRO,INDEX 4HG1-T ENG<RDP>	8-97252-935-0	06	1	0508-			●
519	COLLAR; MAINSHAFT END,5TH 4HG1-T ENG<RDP>	8-97252-940-0	01	1	0508-			●
523	GEAR; OD,MAINSHAFT 4HG1-T ENG<RDP> Z=22	8-97241-231-0	01	1	0508-			●
524	SLEEVE & HUB ASM; TOP-4TH,OD 4HG1-T ENG<RDP>	8-97366-526-0	01	1	0508-			●
525	RING; BLOCK,TOP & 4TH,OD 4HG1-T ENG<RDP> Z=45	8-97309-532-0	02	1	0508-			●
526	BEARING; NEEDLE,4TH & 5TH 4HG1-T ENG<RDP>	8-97253-112-0	01	1	0508-			●
530	RING; BLOCK,LOW 4HG1-T ENG<RDP> Z=45	8-97241-306-1	01	1	0508-			●
531	RING; BLOCK,REV 4HG1-T ENG<RDP> Z=45	8-97368-343-0	01	1	0508-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
