Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#23206) — 379 parça

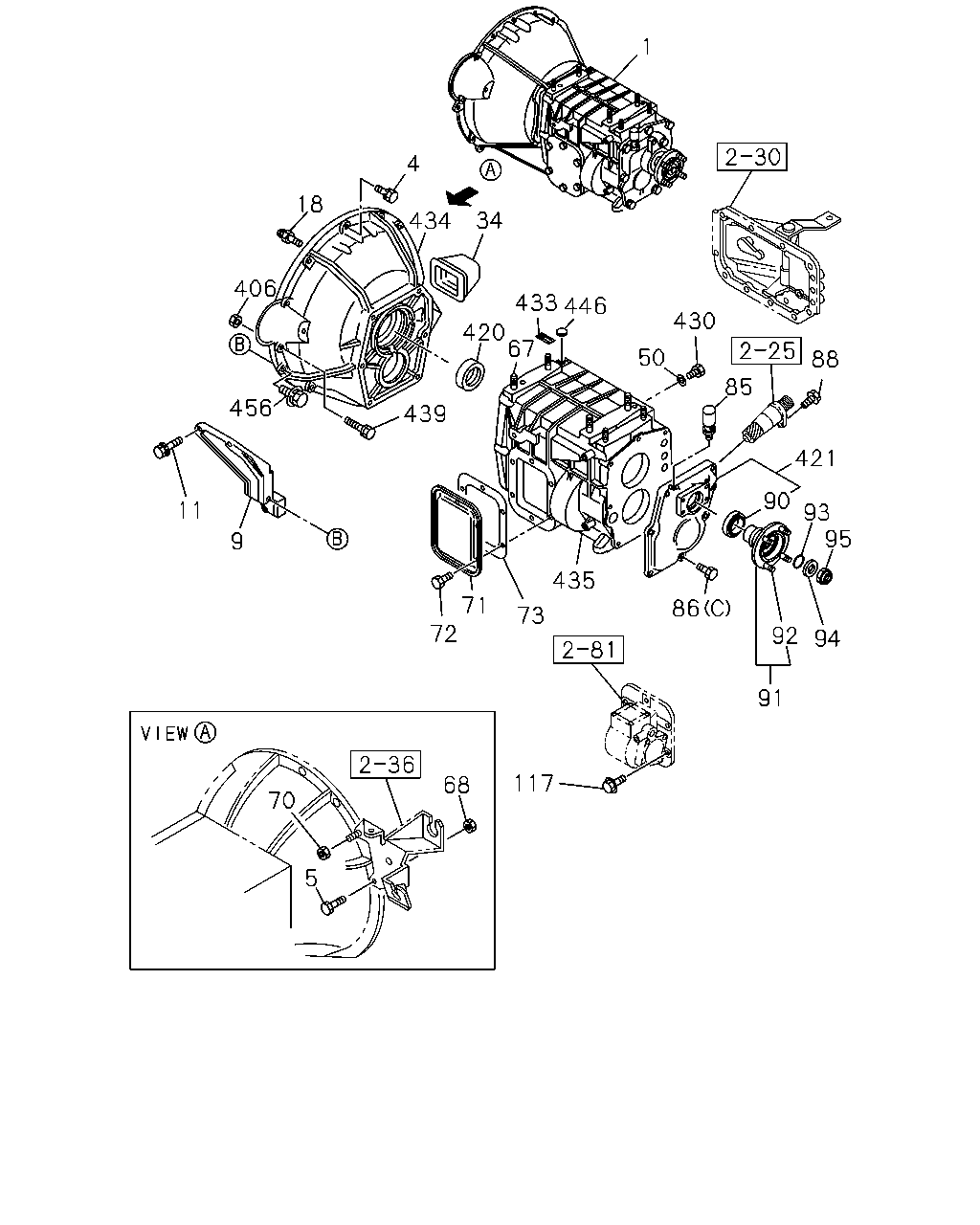

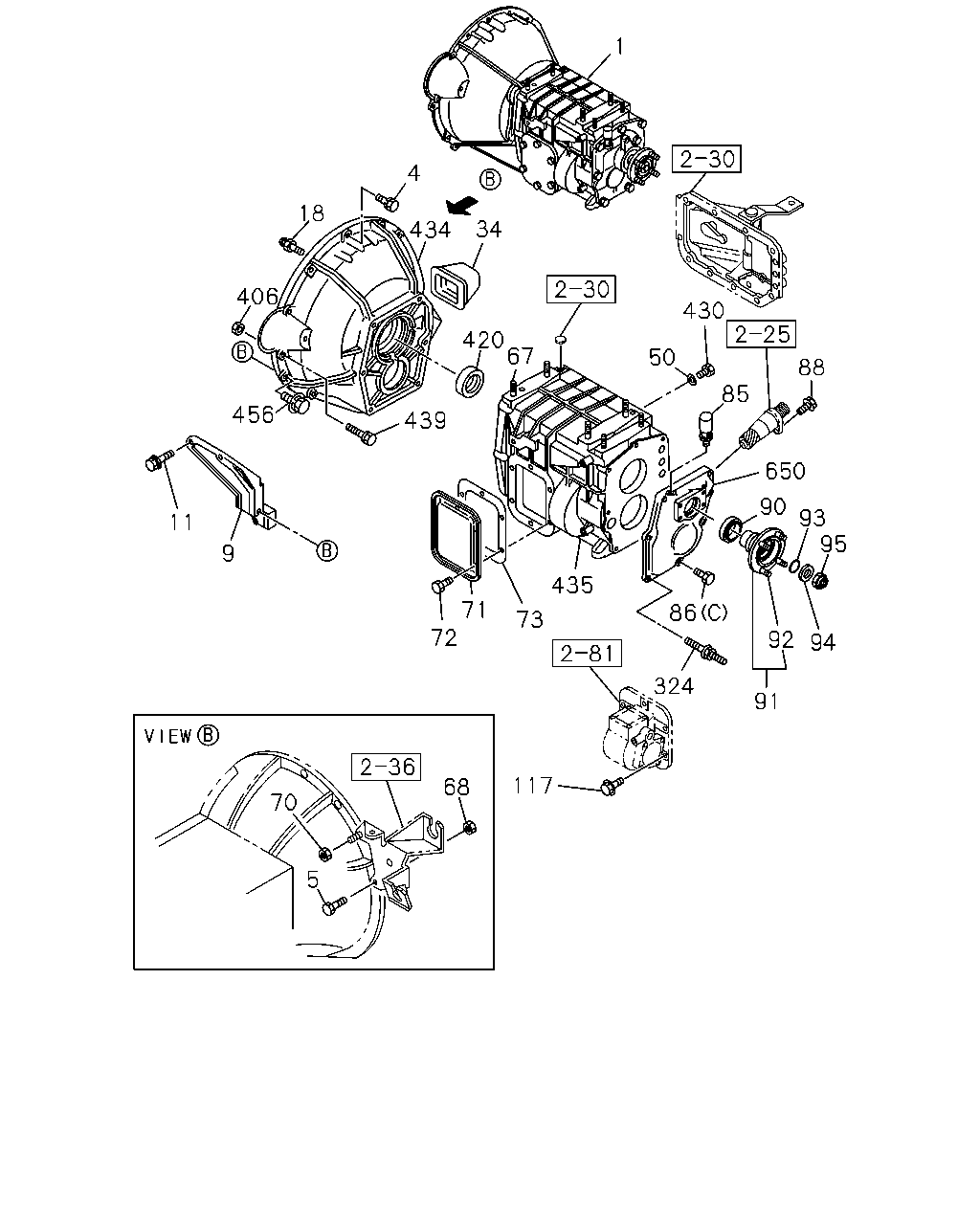

1 4 18 34 434 406 433 446 430 420 67 50 88 85 456 439 421 90 11 93 95 9 435 71 72 86 73 92 94 91 117 68 70 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-581-0	01	1	0508-1210	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-98203-856-0	01	1	1211-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-444-1	01	1	0508-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-582-0	01	1	0508-1210	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-98203-857-0	01	1	1211-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97186-635-2	01	1	0508-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-583-0	01	1	0508-1210		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-660-1	01	1	0508-		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-584-0	01	1	0508-1210		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-98203-859-0	01	1	1211-		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-672-1	01	1	0508-		●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-			●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> EXC. PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-			●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> EXC. EXHAUST BRAKE<NF8>	8-97373-921-0	01	1	0508-			●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXC. EXHAUST BRAKE<NF8>,PTO TRANSMISSION SIDE<V66>	8-97373-921-0	01	1	0508-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X35 FLANGE	0-28181-035-0	03	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X35 FLANGE	0-28151-035-0	03	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X50 FLANGE	0-28181-050-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X50 FLANGE THA	0-28151-050-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28151-030-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28151-030-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28181-035-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28151-035-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X35 FLANGE	0-28081-035-0	02	1	0508-0611	●	●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X35 FLANGE THA	0-28051-035-0	02	1	0612-	●	●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X40 FLANGE	0-28081-040-0	01	1	0508-0611	●	●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X40 FLANGE THA	0-28051-040-0	01	1	0612-	●	●
5	BOLT; REAR PLATE 4JB1-TC ENG<RDT> M10X35 FLANGE	0-28081-035-0	01	1	0508-0611	●	●
5	BOLT; REAR PLATE 4JB1-TC ENG<RDT> M10X35 FLANGE THA	0-28051-035-0	01	1	0612-	●	●
9	STIFFENER; C/BL 4JB1-TC ENG<RDT>	8-97074-108-3	01	1	0508-	●	●
9	STIFFENER; C/BL 4JB1-TC ENG<RDT>	8-97084-390-2	01	1	0508-	●	●
11	BOLT; BRKT 4JB1-TC ENG<RDT> M8X12 FLANGE	0-28080-812-0	02	1	0508-0611	●	●
11	BOLT; BRKT 4JB1-TC ENG<RDT> M8X12 FLANGE THA	0-28050-812-0	02	1	0612-	●	●
18	SUPPORT; DRAW LEVER IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5	8-98189-389-0	01	1	1211-	●	●
18	SUPPORT; DRAW LEVER 4JB1-TC ENG<RDT> L=47.5	8-97225-469-1	01	1	0508-1210	●	●
18	SUPPORT; DRAW LEVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5	8-97225-469-1	01	1	1211-	●	●
34	COVER; DUST,SHIFT FORK IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-416-0	01	1	1211-	●	●
34	COVER; DUST,SHIFT FORK 4JB1-TC ENG<RDT>	8-97034-880-0	01	1	0508-1210	●	●
34	COVER; DUST,SHIFT FORK EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-880-0	01	1	1211-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5	8-98189-969-0	01	1	1211-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> ID=15.3	8-94336-511-0	01	1	0508-1210	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.3	8-94336-511-0	01	1	1211-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=17	8-97115-712-0	01	1	0508-			●
67	STUD; CASE TRANS IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-390-0	06	1	1211-	●	●
67	STUD; CASE TRANS 4JB1-TC ENG<RDT>	9-09631-004-0	06	1	0508-1210	●	●
67	STUD; CASE TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-09631-004-0	06	1	1211-	●	●
68	NUT; REAR PLATE 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-110-0	01	1	0508-0602	●	●
68	NUT; REAR PLATE 4JB1-TC ENG<RDT> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●	●
70	NUT; REAMER BOLT 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-110-0	01	1	0508-0602	●	●
70	NUT; REAMER BOLT 4JB1-TC ENG<RDT> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●	●
71	COVER; SIDE,TRANS CASE IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-244-0	01	1	1211-	●	●
71	COVER; SIDE,TRANS CASE 4JB1-TC ENG<RDT>	9-33141-601-2	01	1	0508-1210	●	●
71	COVER; SIDE,TRANS CASE EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33141-601-2	01	1	1211-	●	●
71	COVER; SIDE,TRANS CASE 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0508-			●
72	BOLT; SIDE COVER IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	0-28051-012-0	06	1	1211-	●	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> M10X12 FLANGE	8-94128-791-0	06	1	0508-1210		●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	0508-1210	●
72	BOLT; SIDE COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	1211-		●
72	BOLT; SIDE COVER EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	1211-	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X20 FLANGE	0-28081-020-0	06	1	0508-0512	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X20 FLANGE THA	0-28051-020-0	06	1	0601-	●
72	BOLT; SIDE COVER 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	06	1	0508-			●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> M10X12 FLANGE	8-94128-791-0	06	1	0508-	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	0508-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-272-0	01	1	1211-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT>	9-33142-601-0	01	1	0508-1210	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33142-601-0	01	1	1211-	●	●
85	BREATHER; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-454-0	01	1	1211-	●	●
85	BREATHER; RR COVER 4JB1-TC ENG<RDT>	8-97165-939-0	01	1	0508-1210	●	●
85	BREATHER; RR COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97165-939-0	01	1	1211-	●	●
86	BOLT; RR COVER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25	8-94128-786-0	04	1	0508-1210	●	●
86	BOLT; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25 FLANGE THA	0-28050-825-0	04	1	1211-	●	●
86	BOLT; RR COVER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C) M8X25	8-94128-786-0	07	1	0508-	●	●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (C) M10X40 FLANGE	0-28181-040-0	10	1	0508-0512			●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-			●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (B) M10X40 FLANGE	8-97305-392-0	02	1	0508-0604			●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-			●
88	SCREW; SPEEDOMETER BUSHING IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 FLANGE THA	0-28050-812-0	01	1	1211-	●	●
88	SCREW; SPEEDOMETER BUSHING 4JB1-TC ENG<RDT> M8X12	8-94128-785-0	01	1	0508-1210	●	●
88	SCREW; SPEEDOMETER BUSHING EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X12	8-94128-785-0	01	1	1211-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-98189-443-0	01	1	1211-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> NOK	8-97257-296-0	01	1	0508-1210	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-97257-296-0	01	1	1211-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> NOK	8-97253-552-1	01	1	0508-			●
91	DRIVER; COUPLING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-298-0	01	1	1211-	●	●
91	DRIVER; COUPLING 4JB1-TC ENG<RDT>	8-97207-215-0	01	1	0508-1210	●	●
91	DRIVER; COUPLING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-215-0	01	1	1211-	●	●
92	BOLT; COUPLING DRIVER IN-HOUSE PRODUCTION VAR.2<TMW> M10X33	8-98189-989-0	04	1	1211-	●	●
92	BOLT; COUPLING DRIVER 4JB1-TC ENG<RDT> M10X33	8-97109-696-1	04	1	0508-1210	●	●
92	BOLT; COUPLING DRIVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X33	8-97109-696-1	04	1	1211-	●	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-967-0	01	1	1211-	●	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT>	8-94178-725-0	01	1	0508-1210	●	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94178-725-0	01	1	1211-	●	●
94	WASHER; COUPLING DRIVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-951-0	01	1	1211-	●	●
94	WASHER; COUPLING DRIVER 4JB1-TC ENG<RDT>	8-94249-240-0	01	1	0508-1210	●	●
94	WASHER; COUPLING DRIVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94249-240-0	01	1	1211-	●	●
95	NUT; MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE	8-98189-932-0	01	1	1211-	●	●
95	NUT; MAINSHAFT 4JB1-TC ENG<RDT> M24 FLANGE	8-97087-750-0	01	1	0508-1210	●	●
95	NUT; MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE	8-97087-750-0	01	1	1211-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 W/LK WASHER	0-50041-025-0	04	1	0508-0512	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 W/LK WASHER THA	0-50541-025-0	04	1	0601-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X30 W/LK WASHER	0-50041-030-0	02	1	0508-0512	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X30 W/LK WASHER	0-50541-030-0	02	1	0601-	●	●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28781-030-0	03	1	0508-0512			●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28751-030-0	03	1	0601-			●
406	NUT; BRKT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M8 FLANGE	0-91150-108-0	01	1	0508-0602	●	●
406	NUT; BRKT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-98189-424-0	01	1	1211-	●	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> NOK	8-94326-441-0	01	1	0508-1210	●	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-94326-441-0	01	1	1211-	●	●
421	COVER; RR,TRANS 4HG1-T ENG<RDP>	8-98020-029-0	01	1	0508-			●
421	COVER; RR,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97112-986-2	01	1	0508-	●	●
430	PLUG; OIL DRAIN IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-430-0	01	1	1211-	●	●
430	PLUG; OIL DRAIN 4JB1-TC ENG<RDT>	8-94336-512-1	01	1	0508-1210	●	●
430	PLUG; OIL DRAIN EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94336-512-1	01	1	1211-	●	●
430	PLUG; OIL DRAIN 4HG1-T ENG<RDP>	9-09662-004-0	01	1	0508-0604			●
430	PLUG; OIL DRAIN 4HG1-T ENG<RDP>	8-97365-374-0	01	1	0605-			●
433	LABEL; TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97076-909-1	01	1	0508-	●
433	LABEL; TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97084-051-1	01	1	0508-		●
434	HOUSING; CLU 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-084-0	01	1	0508-	●
434	HOUSING; CLU 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-879-2	01	1	0508-	●	●
434	HOUSING; CLU 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-108-0	01	1	0508-		●
434	HOUSING; CLU 4HG1-T ENG<RDP>	8-97237-099-5	01	1	0508-			●
435	CASE; TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0508-	●	●
435	CASE; TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0508-	●	●
435	CASE; TRANS 4HG1-T ENG<RDP>	8-97379-375-0	01	1	0508-			●
439	BOLT; BRKT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M8X35 FLANGE	0-28680-835-0	01	1	0508-0512	●	●
439	BOLT; BRKT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M8X35 FLANGE THA	0-28650-835-0	01	1	0601-	●	●
446	PLUG; CASE,TRANS 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> OD=16	9-09201-316-0	01	1	0508-	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M12X35 FLANGE	0-28081-235-0	03	1	0508-0512	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M12X35 FLANGE THA	0-28051-235-0	03	1	0601-	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M12X40 FLANGE	0-28081-240-0	01	1	0508-0512	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M12X40 FLANGE THA	0-28051-240-0	01	1	0601-	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> EXC. PTO TRANSMISSION SIDE<V66> M12X35 FLANGE	0-28081-235-0	04	1	0508-0611	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> EXC. PTO TRANSMISSION SIDE<V66> M12X35 FLANGE THA	0-28051-235-0	04	1	0612-	●	●

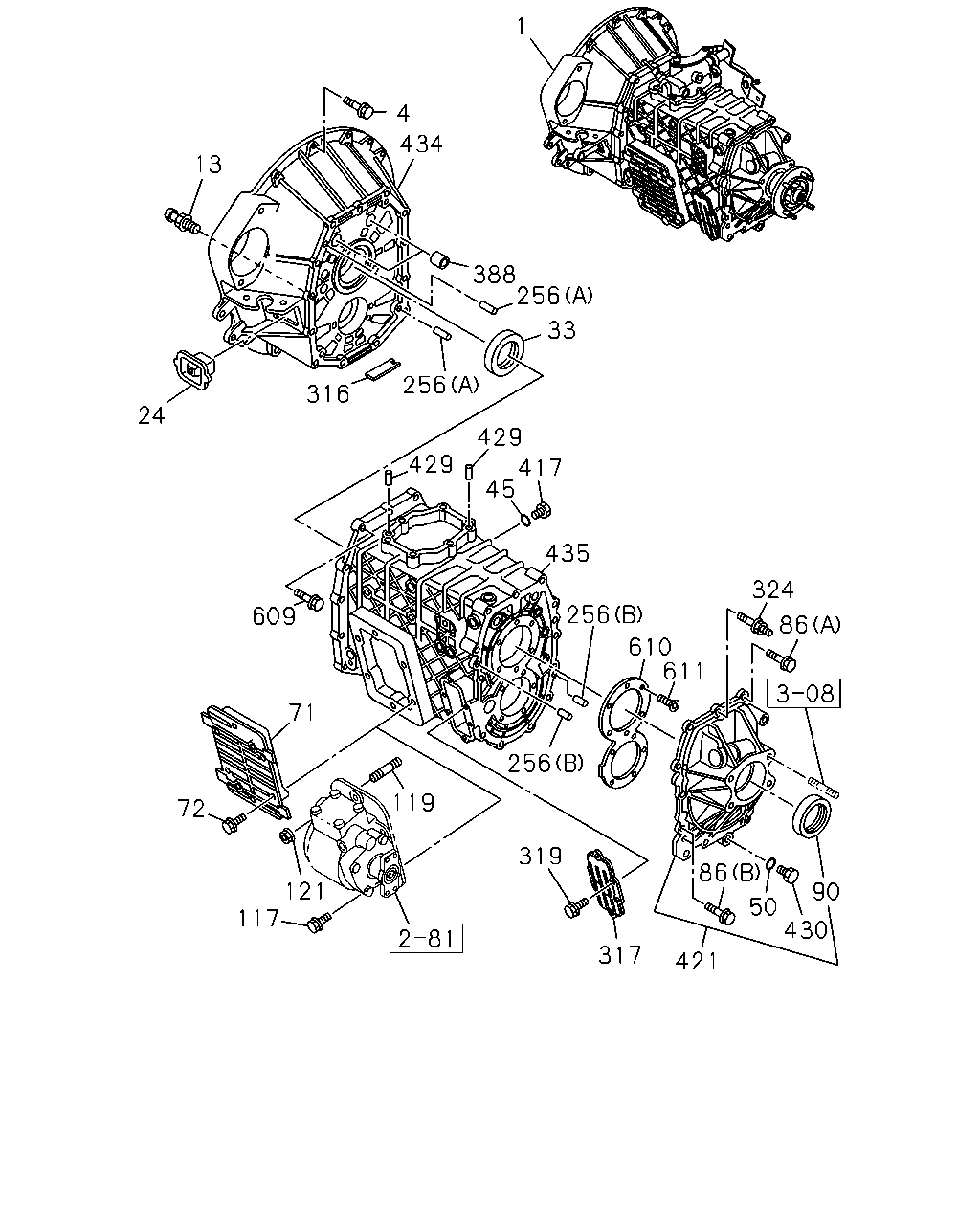

1 4 434 13 388 256 33 256 316 24 429 429 417 45 435 256 256 324 609 86 610 611 71 119 72 86 319 121 117 90 50 430 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-581-0	01	1	0508-1210	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-98203-856-0	01	1	1211-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-444-1	01	1	0508-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-582-0	01	1	0508-1210	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-98203-857-0	01	1	1211-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97186-635-2	01	1	0508-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-583-0	01	1	0508-1210		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-660-1	01	1	0508-		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-584-0	01	1	0508-1210		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-98203-859-0	01	1	1211-		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-672-1	01	1	0508-		●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-			●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> EXC. PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-			●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> EXC. EXHAUST BRAKE<NF8>	8-97373-921-0	01	1	0508-			●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXC. EXHAUST BRAKE<NF8>,PTO TRANSMISSION SIDE<V66>	8-97373-921-0	01	1	0508-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X35 FLANGE	0-28181-035-0	03	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X35 FLANGE	0-28151-035-0	03	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X50 FLANGE	0-28181-050-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X50 FLANGE THA	0-28151-050-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28151-030-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28151-030-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28181-035-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28151-035-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X35 FLANGE	0-28081-035-0	02	1	0508-0611	●	●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X35 FLANGE THA	0-28051-035-0	02	1	0612-	●	●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X40 FLANGE	0-28081-040-0	01	1	0508-0611	●	●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X40 FLANGE THA	0-28051-040-0	01	1	0612-	●	●
13	SUPPORT; SHIFT FORK 4HG1-T ENG<RDP>	8-97255-384-1	01	1	0508-			●
24	COVER; CHECK HOLE,DUST 4HG1-T ENG<RDP>	8-97255-201-0	01	1	0508-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP>	8-97253-550-0	01	1	0508-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=17	8-97115-712-0	01	1	0508-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5	8-98189-969-0	01	1	1211-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> ID=15.3	8-94336-511-0	01	1	0508-1210	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.3	8-94336-511-0	01	1	1211-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=17	8-97115-712-0	01	1	0508-			●
71	COVER; SIDE,TRANS CASE IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-244-0	01	1	1211-	●	●
71	COVER; SIDE,TRANS CASE 4JB1-TC ENG<RDT>	9-33141-601-2	01	1	0508-1210	●	●
71	COVER; SIDE,TRANS CASE EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33141-601-2	01	1	1211-	●	●
71	COVER; SIDE,TRANS CASE 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0508-			●
72	BOLT; SIDE COVER IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	0-28051-012-0	06	1	1211-	●	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> M10X12 FLANGE	8-94128-791-0	06	1	0508-1210		●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	0508-1210	●
72	BOLT; SIDE COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	1211-		●
72	BOLT; SIDE COVER EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	1211-	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X20 FLANGE	0-28081-020-0	06	1	0508-0512	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X20 FLANGE THA	0-28051-020-0	06	1	0601-	●
72	BOLT; SIDE COVER 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	06	1	0508-			●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> M10X12 FLANGE	8-94128-791-0	06	1	0508-	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	0508-	●
86	BOLT; RR COVER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25	8-94128-786-0	04	1	0508-1210	●	●
86	BOLT; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25 FLANGE THA	0-28050-825-0	04	1	1211-	●	●
86	BOLT; RR COVER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C) M8X25	8-94128-786-0	07	1	0508-	●	●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (C) M10X40 FLANGE	0-28181-040-0	10	1	0508-0512			●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-			●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (B) M10X40 FLANGE	8-97305-392-0	02	1	0508-0604			●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-98189-443-0	01	1	1211-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> NOK	8-97257-296-0	01	1	0508-1210	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-97257-296-0	01	1	1211-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> NOK	8-97253-552-1	01	1	0508-			●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 W/LK WASHER	0-50041-025-0	04	1	0508-0512	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 W/LK WASHER THA	0-50541-025-0	04	1	0601-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X30 W/LK WASHER	0-50041-030-0	02	1	0508-0512	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X30 W/LK WASHER	0-50541-030-0	02	1	0601-	●	●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28781-030-0	03	1	0508-0512			●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28751-030-0	03	1	0601-			●
119	STUD; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X25 L=40	9-04411-025-0	03	1	0508-0604			●
119	STUD; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X25 L=40 THA	0-44011-025-0	03	1	0605-			●
121	NUT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10 FLANGE	0-91150-210-0	03	1	0508-0602			●
121	NUT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10 FLANGE THA	0-91180-210-0	03	1	0603-			●
256	PIN; KNOCK 4HG1-T ENG<RDP> (A) OD=10 L=20	8-97135-423-0	02	1	0508-			●
256	PIN; KNOCK 4HG1-T ENG<RDP> (B) ID=6 L=12 THA	9-08160-612-0	02	1	0508-			●
316	MAGNET; TRANS CASE 4HG1-T ENG<RDP>	8-94249-524-2	01	1	0508-			●
317	COVER; CASE 4HG1-T ENG<RDP>	8-97252-626-0	01	1	0508-			●
319	BOLT; COVER 4HG1-T ENG<RDP> M8X20 FLANGE	0-28080-820-0	06	1	0508-0512			●
319	BOLT; COVER 4HG1-T ENG<RDP> M8X20 FLANGE THA	0-28050-820-0	06	1	0601-			●
324	STUD; RR COVER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97320-356-0	03	1	0508-1210	●	●
324	STUD; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-391-0	03	1	1211-	●	●
324	STUD; RR COVER 4HG1-T ENG<RDP> M10X15,M10X40 L=65	8-97309-013-0	01	1	0508-0604			●
324	STUD; RR COVER 4HG1-T ENG<RDP> M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-			●
388	BUSHING; CLU HSG 4HG1-T ENG<RDP>	8-97241-326-2	02	1	0508-			●
417	PLUG; OIL FILLER,TRANS 4HG1-T ENG<RDP>	8-94310-917-0	01	1	0508-0604			●
417	PLUG; OIL FILLER,TRANS 4HG1-T ENG<RDP>	8-97365-373-0	01	1	0605-			●
421	COVER; RR,TRANS 4HG1-T ENG<RDP>	8-98020-029-0	01	1	0508-			●
421	COVER; RR,TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97112-986-2	01	1	0508-	●	●
429	PIN; STRAIGHT 4HG1-T ENG<RDP> OD=10 L=20	8-97135-423-0	02	1	0508-			●
430	PLUG; OIL DRAIN IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-430-0	01	1	1211-	●	●
430	PLUG; OIL DRAIN 4JB1-TC ENG<RDT>	8-94336-512-1	01	1	0508-1210	●	●
430	PLUG; OIL DRAIN EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94336-512-1	01	1	1211-	●	●
430	PLUG; OIL DRAIN 4HG1-T ENG<RDP>	9-09662-004-0	01	1	0508-0604			●
430	PLUG; OIL DRAIN 4HG1-T ENG<RDP>	8-97365-374-0	01	1	0605-			●
434	HOUSING; CLU 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-084-0	01	1	0508-	●
434	HOUSING; CLU 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-879-2	01	1	0508-	●	●
434	HOUSING; CLU 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-108-0	01	1	0508-		●
434	HOUSING; CLU 4HG1-T ENG<RDP>	8-97237-099-5	01	1	0508-			●
435	CASE; TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0508-	●	●
435	CASE; TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0508-	●	●
435	CASE; TRANS 4HG1-T ENG<RDP>	8-97379-375-0	01	1	0508-			●
609	BOLT; HSG TO CASE 4HG1-T ENG<RDP> M10X40 FLANGE	0-28181-040-0	13	1	0508-0512			●
609	BOLT; HSG TO CASE 4HG1-T ENG<RDP> M10X40 FLANGE	0-28151-040-0	13	1	0601-			●
610	RETAINER; BRG 4HG1-T ENG<RDP>	8-97241-315-1	01	1	0508-			●
611	SCREW 4HG1-T ENG<RDP> M10X27	8-97254-834-2	11	1	0508-0604			●
611	SCREW 4HG1-T ENG<RDP> M10X27 TORQUES	8-97365-354-0	11	1	0605-			●

1 4 18 34 434 430 406 420 67 50 88 85 456 439 650 90 93 95 11 9 435 71 72 86 73 92 94 324 91 117 68 70 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-581-0	01	1	0508-1210	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-98203-856-0	01	1	1211-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-444-1	01	1	0508-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-582-0	01	1	0508-1210	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-98203-857-0	01	1	1211-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97186-635-2	01	1	0508-	●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-583-0	01	1	0508-1210		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-660-1	01	1	0508-		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-584-0	01	1	0508-1210		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-98203-859-0	01	1	1211-		●
1	TRANSMISSION ASM; MANUAL 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-672-1	01	1	0508-		●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-			●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> EXC. PTO TRANSMISSION SIDE<V66>	8-97373-914-0	01	1	0508-			●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> EXC. EXHAUST BRAKE<NF8>	8-97373-921-0	01	1	0508-			●
1	TRANSMISSION ASM; MANUAL 4HG1-T ENG<RDP> EXC. EXHAUST BRAKE<NF8>,PTO TRANSMISSION SIDE<V66>	8-97373-921-0	01	1	0508-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X35 FLANGE	0-28181-035-0	03	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X35 FLANGE	0-28151-035-0	03	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X50 FLANGE	0-28181-050-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X50 FLANGE THA	0-28151-050-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28181-030-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28151-030-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> M10X30 FLANGE	0-28151-030-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28181-035-0	02	1	0508-0512			●
4	BOLT; FLYWHEEL HSG 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X35 FLANGE	0-28151-035-0	02	1	0601-			●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X35 FLANGE	0-28081-035-0	02	1	0508-0611	●	●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X35 FLANGE THA	0-28051-035-0	02	1	0612-	●	●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X40 FLANGE	0-28081-040-0	01	1	0508-0611	●	●
4	BOLT; FLYWHEEL HSG 4JB1-TC ENG<RDT> M10X40 FLANGE THA	0-28051-040-0	01	1	0612-	●	●
5	BOLT; REAR PLATE 4JB1-TC ENG<RDT> M10X35 FLANGE	0-28081-035-0	01	1	0508-0611	●	●
5	BOLT; REAR PLATE 4JB1-TC ENG<RDT> M10X35 FLANGE THA	0-28051-035-0	01	1	0612-	●	●
9	STIFFENER; C/BL 4JB1-TC ENG<RDT>	8-97074-108-3	01	1	0508-	●	●
9	STIFFENER; C/BL 4JB1-TC ENG<RDT>	8-97084-390-2	01	1	0508-	●	●
11	BOLT; BRKT 4JB1-TC ENG<RDT> M8X12 FLANGE	0-28080-812-0	02	1	0508-0611	●	●
11	BOLT; BRKT 4JB1-TC ENG<RDT> M8X12 FLANGE THA	0-28050-812-0	02	1	0612-	●	●
18	SUPPORT; DRAW LEVER IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5	8-98189-389-0	01	1	1211-	●	●
18	SUPPORT; DRAW LEVER 4JB1-TC ENG<RDT> L=47.5	8-97225-469-1	01	1	0508-1210	●	●
18	SUPPORT; DRAW LEVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5	8-97225-469-1	01	1	1211-	●	●
34	COVER; DUST,SHIFT FORK IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-416-0	01	1	1211-	●	●
34	COVER; DUST,SHIFT FORK 4JB1-TC ENG<RDT>	8-97034-880-0	01	1	0508-1210	●	●
34	COVER; DUST,SHIFT FORK EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-880-0	01	1	1211-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5	8-98189-969-0	01	1	1211-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> ID=15.3	8-94336-511-0	01	1	0508-1210	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.3	8-94336-511-0	01	1	1211-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> ID=17	8-97115-712-0	01	1	0508-			●
67	STUD; CASE TRANS IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-390-0	06	1	1211-	●	●
67	STUD; CASE TRANS 4JB1-TC ENG<RDT>	9-09631-004-0	06	1	0508-1210	●	●
67	STUD; CASE TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-09631-004-0	06	1	1211-	●	●
68	NUT; REAR PLATE 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-110-0	01	1	0508-0602	●	●
68	NUT; REAR PLATE 4JB1-TC ENG<RDT> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●	●
70	NUT; REAMER BOLT 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-110-0	01	1	0508-0602	●	●
70	NUT; REAMER BOLT 4JB1-TC ENG<RDT> M10 FLANGE THA	0-91180-110-0	01	1	0603-	●	●
71	COVER; SIDE,TRANS CASE IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-244-0	01	1	1211-	●	●
71	COVER; SIDE,TRANS CASE 4JB1-TC ENG<RDT>	9-33141-601-2	01	1	0508-1210	●	●
71	COVER; SIDE,TRANS CASE EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33141-601-2	01	1	1211-	●	●
71	COVER; SIDE,TRANS CASE 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66>	8-97252-625-0	01	1	0508-			●
72	BOLT; SIDE COVER IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	0-28051-012-0	06	1	1211-	●	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> M10X12 FLANGE	8-94128-791-0	06	1	0508-1210		●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	0508-1210	●
72	BOLT; SIDE COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	1211-		●
72	BOLT; SIDE COVER EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	1211-	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X20 FLANGE	0-28081-020-0	06	1	0508-0512	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X20 FLANGE THA	0-28051-020-0	06	1	0601-	●
72	BOLT; SIDE COVER 4HG1-T ENG<RDP> EXC. PTO TRANSMISSION SIDE<V66> M10X20 FLANGE	8-97254-833-0	06	1	0508-			●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> M10X12 FLANGE	8-94128-791-0	06	1	0508-	●
72	BOLT; SIDE COVER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	0508-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-272-0	01	1	1211-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT>	9-33142-601-0	01	1	0508-1210	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33142-601-0	01	1	1211-	●	●
85	BREATHER; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-454-0	01	1	1211-	●	●
85	BREATHER; RR COVER 4JB1-TC ENG<RDT>	8-97165-939-0	01	1	0508-1210	●	●
85	BREATHER; RR COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97165-939-0	01	1	1211-	●	●
86	BOLT; RR COVER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25	8-94128-786-0	04	1	0508-1210	●	●
86	BOLT; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25 FLANGE THA	0-28050-825-0	04	1	1211-	●	●
86	BOLT; RR COVER 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (C) M8X25	8-94128-786-0	07	1	0508-	●	●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (C) M10X40 FLANGE	0-28181-040-0	10	1	0508-0512			●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-			●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (B) M10X40 FLANGE	8-97305-392-0	02	1	0508-0604			●
86	BOLT; RR COVER 4HG1-T ENG<RDP> (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-			●
88	SCREW; SPEEDOMETER BUSHING IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 FLANGE THA	0-28050-812-0	01	1	1211-	●	●
88	SCREW; SPEEDOMETER BUSHING 4JB1-TC ENG<RDT> M8X12	8-94128-785-0	01	1	0508-1210	●	●
88	SCREW; SPEEDOMETER BUSHING EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X12	8-94128-785-0	01	1	1211-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-98189-443-0	01	1	1211-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> NOK	8-97257-296-0	01	1	0508-1210	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-97257-296-0	01	1	1211-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG<RDP> NOK	8-97253-552-1	01	1	0508-			●
91	DRIVER; COUPLING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-298-0	01	1	1211-	●	●
91	DRIVER; COUPLING 4JB1-TC ENG<RDT>	8-97207-215-0	01	1	0508-1210	●	●
91	DRIVER; COUPLING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-215-0	01	1	1211-	●	●
92	BOLT; COUPLING DRIVER IN-HOUSE PRODUCTION VAR.2<TMW> M10X33	8-98189-989-0	04	1	1211-	●	●
92	BOLT; COUPLING DRIVER 4JB1-TC ENG<RDT> M10X33	8-97109-696-1	04	1	0508-1210	●	●
92	BOLT; COUPLING DRIVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X33	8-97109-696-1	04	1	1211-	●	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-967-0	01	1	1211-	●	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT>	8-94178-725-0	01	1	0508-1210	●	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94178-725-0	01	1	1211-	●	●
94	WASHER; COUPLING DRIVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-951-0	01	1	1211-	●	●
94	WASHER; COUPLING DRIVER 4JB1-TC ENG<RDT>	8-94249-240-0	01	1	0508-1210	●	●
94	WASHER; COUPLING DRIVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94249-240-0	01	1	1211-	●	●
95	NUT; MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE	8-98189-932-0	01	1	1211-	●	●
95	NUT; MAINSHAFT 4JB1-TC ENG<RDT> M24 FLANGE	8-97087-750-0	01	1	0508-1210	●	●
95	NUT; MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE	8-97087-750-0	01	1	1211-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 W/LK WASHER	0-50041-025-0	04	1	0508-0512	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X25 W/LK WASHER THA	0-50541-025-0	04	1	0601-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X30 W/LK WASHER	0-50041-030-0	02	1	0508-0512	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE<V66> M10X30 W/LK WASHER	0-50541-030-0	02	1	0601-	●	●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28781-030-0	03	1	0508-0512			●
117	BOLT; PTO FIX 4HG1-T ENG<RDP> PTO TRANSMISSION SIDE<V66> M10X30 FLANGE	0-28751-030-0	03	1	0601-			●
324	STUD; RR COVER 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97320-356-0	03	1	0508-1210	●	●
324	STUD; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-391-0	03	1	1211-	●	●
324	STUD; RR COVER 4HG1-T ENG<RDP> M10X15,M10X40 L=65	8-97309-013-0	01	1	0508-0604			●
324	STUD; RR COVER 4HG1-T ENG<RDP> M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-			●
406	NUT; BRKT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M8 FLANGE	0-91150-108-0	01	1	0508-0602	●	●
406	NUT; BRKT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M8 FLANGE THA	0-91180-108-0	01	1	0603-	●	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-98189-424-0	01	1	1211-	●	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG<RDT> NOK	8-94326-441-0	01	1	0508-1210	●	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-94326-441-0	01	1	1211-	●	●
430	PLUG; OIL DRAIN IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-430-0	01	1	1211-	●	●
430	PLUG; OIL DRAIN 4JB1-TC ENG<RDT>	8-94336-512-1	01	1	0508-1210	●	●
430	PLUG; OIL DRAIN EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94336-512-1	01	1	1211-	●	●
430	PLUG; OIL DRAIN 4HG1-T ENG<RDP>	9-09662-004-0	01	1	0508-0604			●
430	PLUG; OIL DRAIN 4HG1-T ENG<RDP>	8-97365-374-0	01	1	0605-			●
434	HOUSING; CLU 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-084-0	01	1	0508-	●
434	HOUSING; CLU 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-879-2	01	1	0508-	●	●
434	HOUSING; CLU 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-108-0	01	1	0508-		●
434	HOUSING; CLU 4HG1-T ENG<RDP>	8-97237-099-5	01	1	0508-			●
435	CASE; TRANS 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0508-	●	●
435	CASE; TRANS 4JB1-TC ENG<RDT> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0508-	●	●
435	CASE; TRANS 4HG1-T ENG<RDP>	8-97379-375-0	01	1	0508-			●
439	BOLT; BRKT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M8X35 FLANGE	0-28680-835-0	01	1	0508-0512	●	●
439	BOLT; BRKT 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M8X35 FLANGE THA	0-28650-835-0	01	1	0601-	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M12X35 FLANGE	0-28081-235-0	03	1	0508-0512	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M12X35 FLANGE THA	0-28051-235-0	03	1	0601-	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M12X40 FLANGE	0-28081-240-0	01	1	0508-0512	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> PTO TRANSMISSION SIDE<V66> M12X40 FLANGE THA	0-28051-240-0	01	1	0601-	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> EXC. PTO TRANSMISSION SIDE<V66> M12X35 FLANGE	0-28081-235-0	04	1	0508-0611	●	●
456	BOLT; STIFFENER 4JB1-TC ENG<RDT> EXC. PTO TRANSMISSION SIDE<V66> M12X35 FLANGE THA	0-28051-235-0	04	1	0612-	●	●
650	COVER; RR 4JB1-TC ENG<RDT> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-087-0	01	1	0508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
