0-50A — OIL COOLER AND OIL FILTER (#2320) — 109 parça

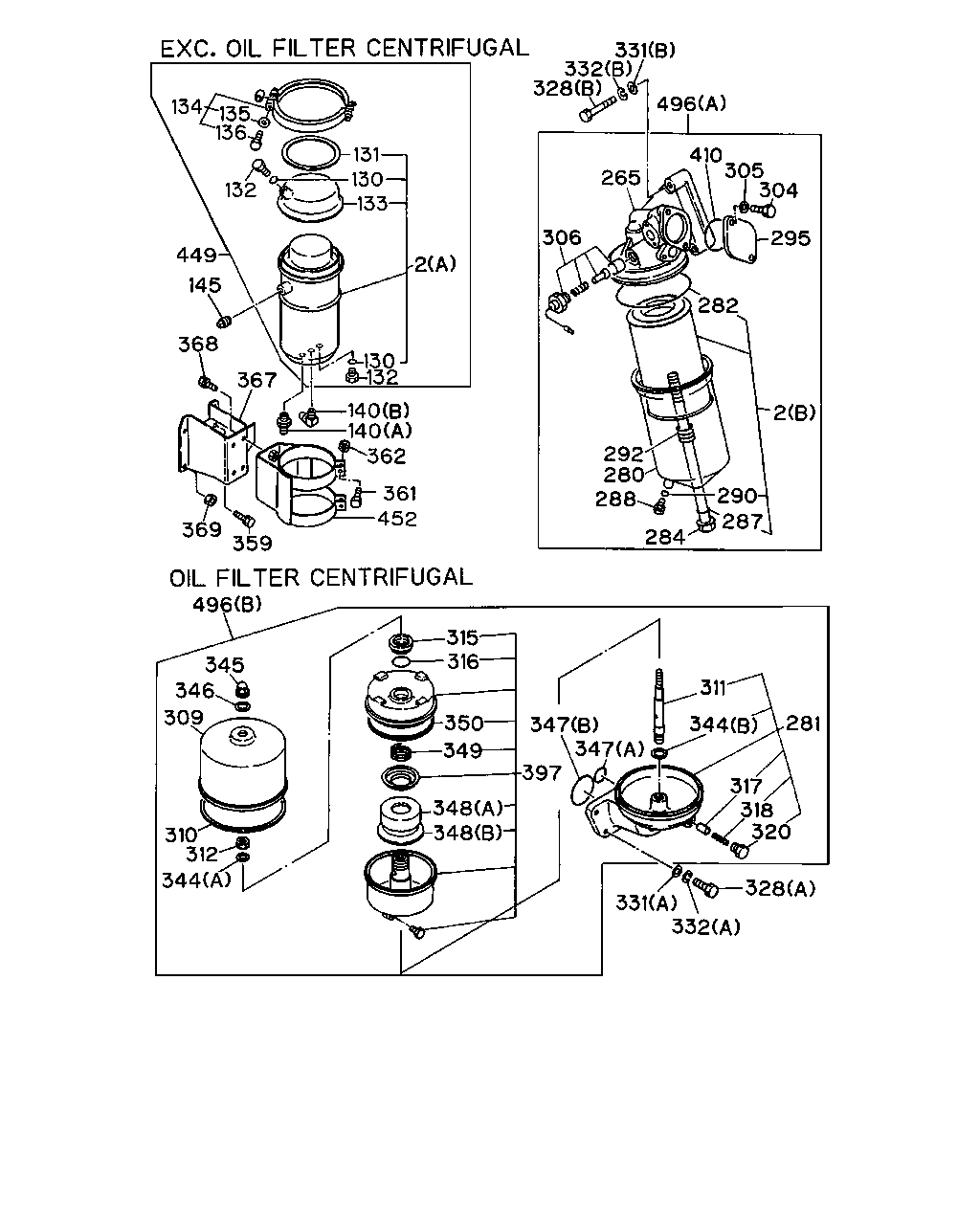

çizim 29014
344 309 310 312 346 345 496 359 369 452 361 362 140 140 367 368 145 449 132 130 2 133 130 131 132 136 135 134 328 332 331 496 265 306 282 410 305 304 295 2 290 284 288 292 280 287 281 311 344 347 347 317 318 320 328 332 331 348 349 348 350 316 315 397
BalonParca AdiParca NoAdetTipApplied Date A B C
2 ELEMENT; OIL FILTER
(B) 		1-87810-314-2 01 1 9002- ● ● ●
2 ELEMENT; OIL FILTER
(A) 		1-13240-056-0 01 1 9002- ● ●
2 ELEMENT; OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> (A) 		1-13240-056-0 01 1 9002- ●
130 GASKET; PARTIAL OIL FILTER
ID=9.8 		1-09623-055-0 02 1 9002- ● ●
130 GASKET; PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> ID=9.8 		1-09623-055-0 02 1 9002- ●
131 GASKET; PARTIAL OIL FILTER 1-13213-006-0 01 1 9002- ● ●
131 GASKET; PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> 		1-13213-006-0 01 1 9002- ●
132 PLUG; PARTIAL OIL FILTER
M10 		1-09000-105-0 02 1 9002- ● ●
132 PLUG; PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> M10 		1-09000-105-0 02 1 9002- ●
133 COVER; PARTIAL OIL FILTER 1-13212-034-0 01 1 9002- ● ●
133 COVER; PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> 		1-13212-034-0 01 1 9002- ●
134 CLAMP; PARTIAL OIL FILTER 1-13219-009-0 01 1 9002- ● ●
134 CLAMP; PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> 		1-13219-009-0 01 1 9002- ●
135 WASHER; PARTIAL OIL FILTER
ID=10.5 		9-09164-510-0 01 1 9002- ● ●
135 WASHER; PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> ID=10.5 		9-09164-510-0 01 1 9002- ●
136 BOLT; PARTIAL OIL FILTER 1-09029-021-0 01 1 9002- ● ●
136 BOLT; PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> 		1-09029-021-0 01 1 9002- ●
140 CONNECTOR; ELBOW,PARTIAL OIL FILTER
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002- ● ●
140 CONNECTOR; ELBOW,PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002- ●
140 CONNECTOR; ELBOW,PARTIAL OIL FILTER
(B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ● ●
140 CONNECTOR; ELBOW,PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> (B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302 ●
140 CONNECTOR; ELBOW,PARTIAL OIL FILTER
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303- ● ●
140 CONNECTOR; ELBOW,PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303- ●
145 PLUG; FILTER 1-09605-024-0 01 1 9307- ●
265 BODY; OIL FILTER 1-13212-082-1 01 1 9002- ● ● ●
280 CASE ASM; OIL FILTER 1-13211-105-0 01 1 9002-9306 ● ●
280 CASE ASM; OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> 		1-13211-105-0 01 1 9002-9306 ●
280 CASE ASM; OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> 		1-13211-117-0 01 1 9002-9306 ●
280 CASE ASM; OIL FILTER 1-13211-105-2 01 1 9307- ●
281 COVER; OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> 		1-13210-016-0 01 1 9002-9306 ●
282 GASKET; BODY TO CASE 1-09623-357-0 01 1 9002- ● ● ●
284 BOLT; CENTER,OIL FILTER 1-13231-054-1 01 1 9002- ● ● ●
287 GASKET; CENTER BOLT
ID=15.5 		9-09920-694-0 01 1 9002- ● ● ●
288 PLUG; OIL DRAIN
M10 		1-09000-105-0 01 1 9002- ● ● ●
290 GASKET; PLUG,OIL DRAIN
ID=9.8 		1-09623-055-0 01 1 9002- ● ● ●
292 SPRING; ELEMENT 1-13219-187-0 01 1 9002- ● ● ●
295 COVER; OIL FILTER 1-13219-122-0 01 1 9002- ● ● ●
304 BOLT; PIPE TO COVER
M14X25 		9-92351-425-0 02 1 9002-9005 ● ● ●
304 BOLT; PIPE TO COVER
M14X25 		0-23801-425-0 02 1 9006- ● ● ●
305 WASHER; PL
ID=10.5 OD=18 		9-09160-510-0 02 1 9002-9306 ● ● ●
306 VALVE; OIL FILTER 1-13260-056-0 01 1 9002-9306 ● ● ●
306 VALVE; OIL FILTER 1-13200-875-0 01 1 9307- ●
309 BODY; OIL FILTER,CENTRIFUGAL
OIL FILTER CENTRIFUGAL<E6S> 		9-13212-151-1 01 1 9002-9306 ●
310 GASKET; BODY TO COVER
OIL FILTER CENTRIFUGAL<E6S> 		1-13213-007-0 01 1 9002-9306 ●
311 SPINDLE; ROTOR
OIL FILTER CENTRIFUGAL<E6S> 		9-13231-054-1 01 1 9002-9306 ●
312 NUT; ROTOR BODY
OIL FILTER CENTRIFUGAL<E6S> 		9-09844-204-0 01 1 9002-9306 ●
315 NUT; ROTOR LK
OIL FILTER CENTRIFUGAL<E6S> 		9-09844-221-0 01 1 9002-9306 ●
316 GASKET; COVER TO BODY
OIL FILTER CENTRIFUGAL<E6S> 		9-09920-742-0 01 1 9002-9306 ●
317 VALVE; CUT OFF
OIL FILTER CENTRIFUGAL<E6S> 		9-13262-012-0 01 1 9002-9306 ●
318 SPRING; CUT OFF
OIL FILTER CENTRIFUGAL<E6S> 		9-09941-151-0 01 1 9002-9306 ●
320 PLUG; CUT OFF
CHEAPER CAB(SAX) 		1-13265-013-0 01 1 9002-9306 ●
328 BOLT; OIL FILTER
(B) M10X60 		9-01656-060-0 03 1 9002-9004 ● ● ●
328 BOLT; OIL FILTER
(B) M10X60 		0-16806-060-0 03 1 9005- ● ● ●
328 BOLT; OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (A) M10X30 W/LK&PL WASHER 		0-50151-030-0 03 1 9002-9306 ●
328 BOLT; OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (A) M14X40 		9-92351-440-0 01 1 9002-9005 ●
328 BOLT; OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (A) M14X40 		0-23801-440-0 01 1 9006-9306 ●
331 WASHER; PL,OIL FILTER
(B) ID=10.5 OD=18 		9-09160-510-0 03 1 9002- ● ● ●
331 WASHER; PL,OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (A) ID=15 		9-09160-514-0 01 1 9002-9306 ●
332 WASHER; LK,OIL FILTER
(B) ID=10.2 		9-09150-510-0 03 1 9002- ● ● ●
332 WASHER; LK,OIL FILTER
CHEAPER CAB(SAX) (A) ID=14.2 		9-09150-514-0 01 1 9002-9306 ●
344 WASHER; THRUST,OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (A) 		1-13239-034-0 01 1 9002-9306 ●
344 WASHER; THRUST,OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (B) 		9-13239-035-0 01 1 9002-9306 ●
345 NUT; CAP,COVER,OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> 		9-09844-222-0 01 1 9002-9306 ●
346 GASKET; CAP NUT
OIL FILTER CENTRIFUGAL<E6S> ID=8.2 OD=13.2 		1-09630-082-0 01 1 9002-9306 ●
347 GASKET; COVER,OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (A) ID=24.4 		1-09623-183-0 01 1 9002-9306 ●
347 GASKET; COVER,OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (B) 		1-09623-373-0 01 1 9002-9306 ●
348 GUIDE; OIL,OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (A) 		9-13249-015-0 01 1 9002-9306 ●
348 GUIDE; OIL,OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> (B) 		9-13249-016-0 01 1 9002-9306 ●
349 SPRING; OIL GUIDE
OIL FILTER CENTRIFUGAL<E6S> 		9-09941-140-0 01 1 9002-9306 ●
350 GASKET; BODY TO COVER
OIL FILTER CENTRIFUGAL<E6S> 		9-09920-743-0 01 1 9002-9306 ●
359 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9002- ● ●
359 BOLT; BRKT TO FRAME
EXC. OIL FILTER CENTRIFUGAL<E6S> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9002- ●
361 BOLT; PARTIAL OIL FILTER
M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9002- ● ●
361 BOLT; PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9002- ●
362 NUT; OIL FILTER
M10 		9-09110-510-0 02 1 9002- ● ●
362 NUT; OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> M10 		9-09110-510-0 02 1 9002- ●
367 BRACKET; PARTIAL FILTER 1-47475-256-7 01 1 9002- ● ●
367 BRACKET; PARTIAL FILTER
EXZ&RHD(EX*5**) 		1-47475-256-7 01 1 9002- ●
368 BOLT; BRKT TO FRAME
M10X35 W/LK WASHER 		0-50041-035-0 04 1 9002- ● ● ●
369 NUT; BRKT TO FRAME
M10 		9-09110-510-0 04 1 9002- ● ● ●
397 ROTOR; OIL FILTER
OIL FILTER CENTRIFUGAL<E6S> 		9-13240-101-0 01 1 9002-9306 ●
410 GASKET
ID=59.6 		9-09565-360-0 01 1 9002- ● ● ●
449 FILTER ASM; OIL PARTIAL 1-13200-560-1 01 1 9002-9306 ● ●
449 FILTER ASM; OIL PARTIAL
EXZ&RHD(EX*5**) 		1-13200-560-1 01 1 9002-9306 ●
449 FILTER ASM; OIL PARTIAL
EXZ&LHD(EX*6**) EXC. OIL FILTER CENTRIFUGAL<E6S> 		1-13200-534-2 01 1 9002-9306 ●
449 FILTER ASM; OIL PARTIAL 1-13200-560-1 01 1 9307- ●
452 BRACKET; PARTIAL OIL FILTER 1-13219-131-5 01 1 9002- ● ●
452 BRACKET; PARTIAL OIL FILTER
EXC. OIL FILTER CENTRIFUGAL<E6S> 		1-13219-131-5 01 1 9002- ●
496 FILTER ASM; OIL
(A) 		1-13200-509-4 01 1 9002-9306 ● ●
496 FILTER ASM; OIL
EXC. OIL FILTER CENTRIFUGAL<E6S> (A) 		1-13200-509-4 01 1 9002-9306 ●
496 FILTER ASM; OIL
(A) 		1-13200-921-1 01 1 9307- ●
496 FILTER ASM; OIL
OIL FILTER CENTRIFUGAL<E6S> (B) 		1-13200-619-1 01 1 9002-9306 ●
496 FILTER ASM; OIL
OIL FILTER CENTRIFUGAL<E6S> (A) 		1-13200-620-2 01 1 9002-9306 ●

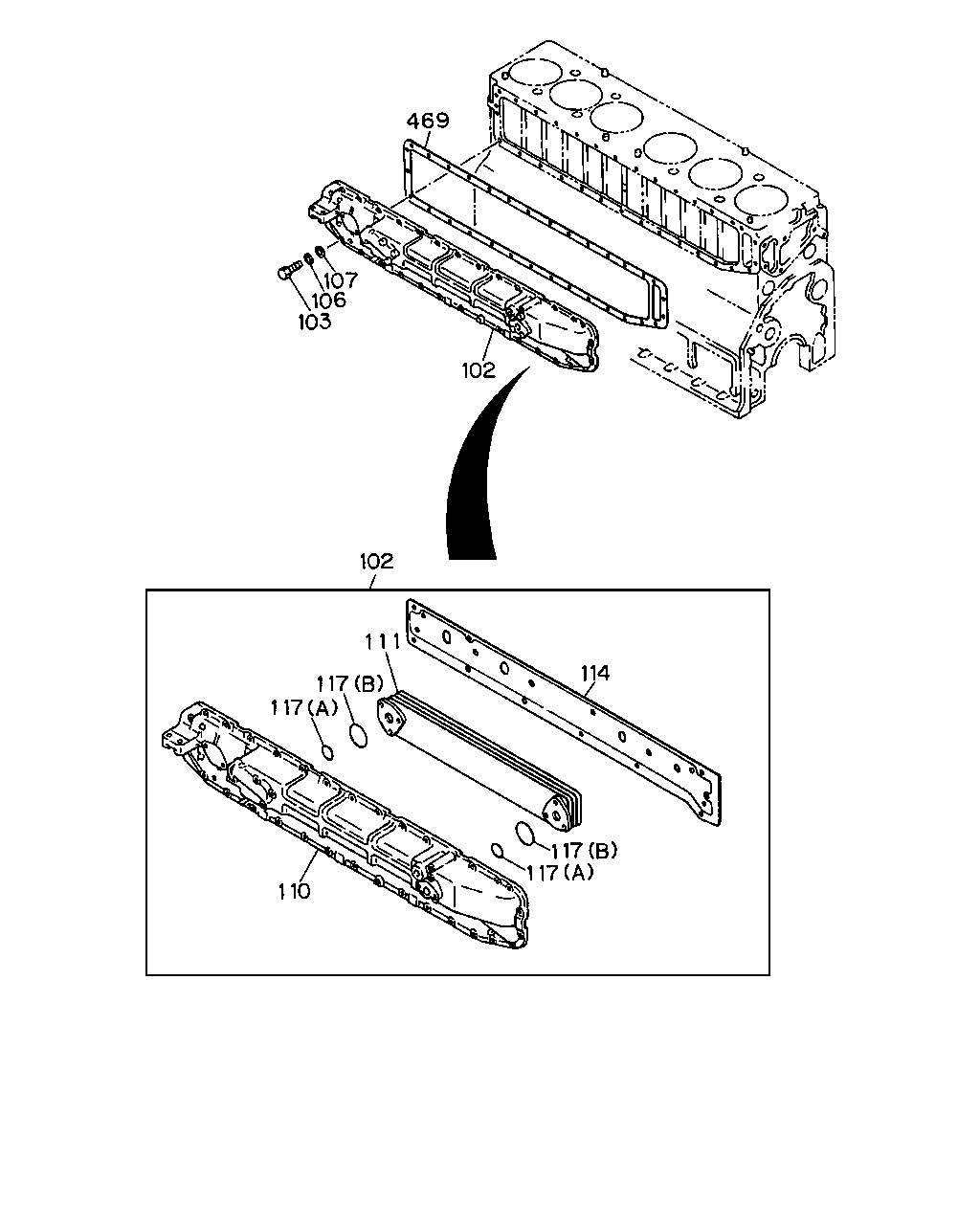

çizim 95481
110 117 117 114 111 117 117 102 102 103 106 107 469
BalonParca AdiParca NoAdetTipApplied Date A B C
102 COOLER ASM; OIL 1-21700-142-5 01 1 9002-9306 ●
102 COOLER ASM; OIL 1-21700-156-2 01 1 9002-9306 ●
102 COOLER ASM; OIL 1-21700-206-2 01 1 9002- ●
103 BOLT; OIL COOLER
M8X70 		0-10805-870-0 01 1 9002- ● ● ●
103 BOLT; OIL COOLER
M8X25 W/LK&PL WASHER 		9-01970-825-0 32 1 9002-9005 ● ● ●
103 BOLT; OIL COOLER
M8X25 W/LK&PL WASHER 		0-50140-825-0 32 1 9006- ● ● ●
106 WASHER; LK,OIL COOLER
ID=8.2 		9-09150-508-0 01 1 9002- ● ● ●
107 WASHER; PL,OIL COOLER
ID=8.4 		9-09160-508-0 01 1 9002- ● ● ●
110 BODY; CASE,OIL COOLER 1-21721-045-4 01 1 9002- ● ● ●
111 CORE; OIL COOLER 1-21723-025-1 01 1 9002-9306 ●
111 CORE; OIL COOLER 1-21723-035-0 01 1 9002-9306 ●
111 CORE; OIL COOLER 1-21723-041-0 01 1 9002- ●
114 PLATE; BAFFLE,OIL COOLER 1-21729-071-0 01 1 9002- ● ● ●
117 GASKET; OIL COOLER
(A) D=27.7 		1-09623-187-0 02 1 9002- ● ● ●
117 GASKET; OIL COOLER
(B) D=39.7 		1-09623-188-0 02 1 9002- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11219-148-0 01 1 9002- ● ● ●
