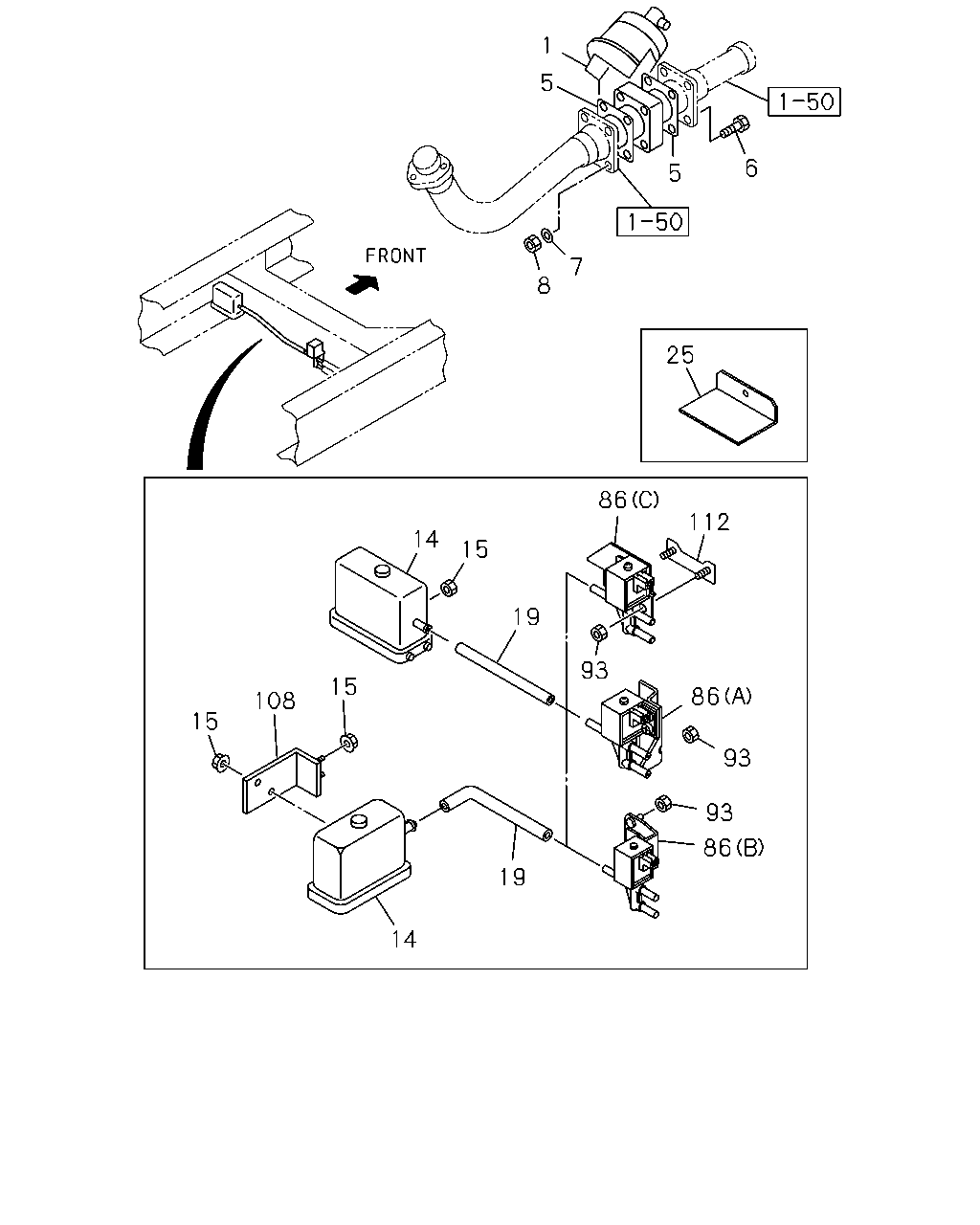

1-56 — EXHAUST BRAKE SYSTEM
(#23198) — 23 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
1
5
6
5
7
8
25
86
112
14
15
19
93
15
86
108
15
93
93
86
19
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BRAKE UNIT; EXH
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8>
8-97187-149-1
01
1
0508-
●
●
1
BRAKE UNIT; EXH
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8>
8-97287-193-2
01
1
0508-1404
●
1
BRAKE UNIT; EXH
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8>
8-98268-705-0
01
1
1405-
●
5
GASKET; EXH BRAKE UNIT
EXHAUST BRAKE<NF8> ID=54
8-94328-354-0
02
1
0508-
●
●
●
6
BOLT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8> M8X70 FLANGE
0-28080-870-0
04
1
0508-0512
●
●
●
6
BOLT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8> M8X70 FLANGE THA
0-28050-870-0
04
1
0601-
●
●
●
7
WASHER; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8> T=1.9
5-09500-012-0
04
1
0508-
●
●
●
8
NUT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8> M8
9-09110-408-0
04
1
0508-
●
●
●
14
FILTER; AIR,EXH BRAKE
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8>
8-97033-888-0
01
1
0508-
●
●
14
FILTER; AIR,EXH BRAKE
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8>
8-97033-888-0
01
1
0508-
●
15
NUT; AIR FILTER
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> M8 FLANGE
0-91150-108-0
02
1
0508-
●
●
15
NUT; AIR FILTER
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> M8 FLANGE
0-91150-108-0
02
1
0508-
●
15
NUT; AIR FILTER
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> M8 FLANGE
0-91150-108-0
02
1
0508-
●
19
HOSE; AIR FILTER
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000
0-08258-300-0
01
1
0508-
●
●
19
HOSE; AIR FILTER
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000
0-08258-300-0
01
1
0508-
●
25
PROTECTOR; HEAT,VLV
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8>
8-97255-215-0
01
1
0508-
●
86
VALVE; MAG,EXH BRK
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> (B)
8-97374-160-2
01
1
0508-
●
86
VALVE; MAG,EXH BRK
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> (C)
8-97374-166-0
01
1
0508-
●
86
VALVE; MAG,EXH BRK
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> (A)
8-97374-157-2
01
1
0508-
●
93
NUT; MAG VLV
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> M8 FLANGE
0-91150-108-0
02
1
0508-
●
●
93
NUT; MAG VLV
4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> M8 FLANGE
0-91150-108-0
02
1
0508-
●
108
BRACKET; AIR FILTER
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8>
8-97106-474-2
01
1
0508-
●
112
PLATE; BRKT
4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8>
8-97091-766-0
01
1
0508-
●
