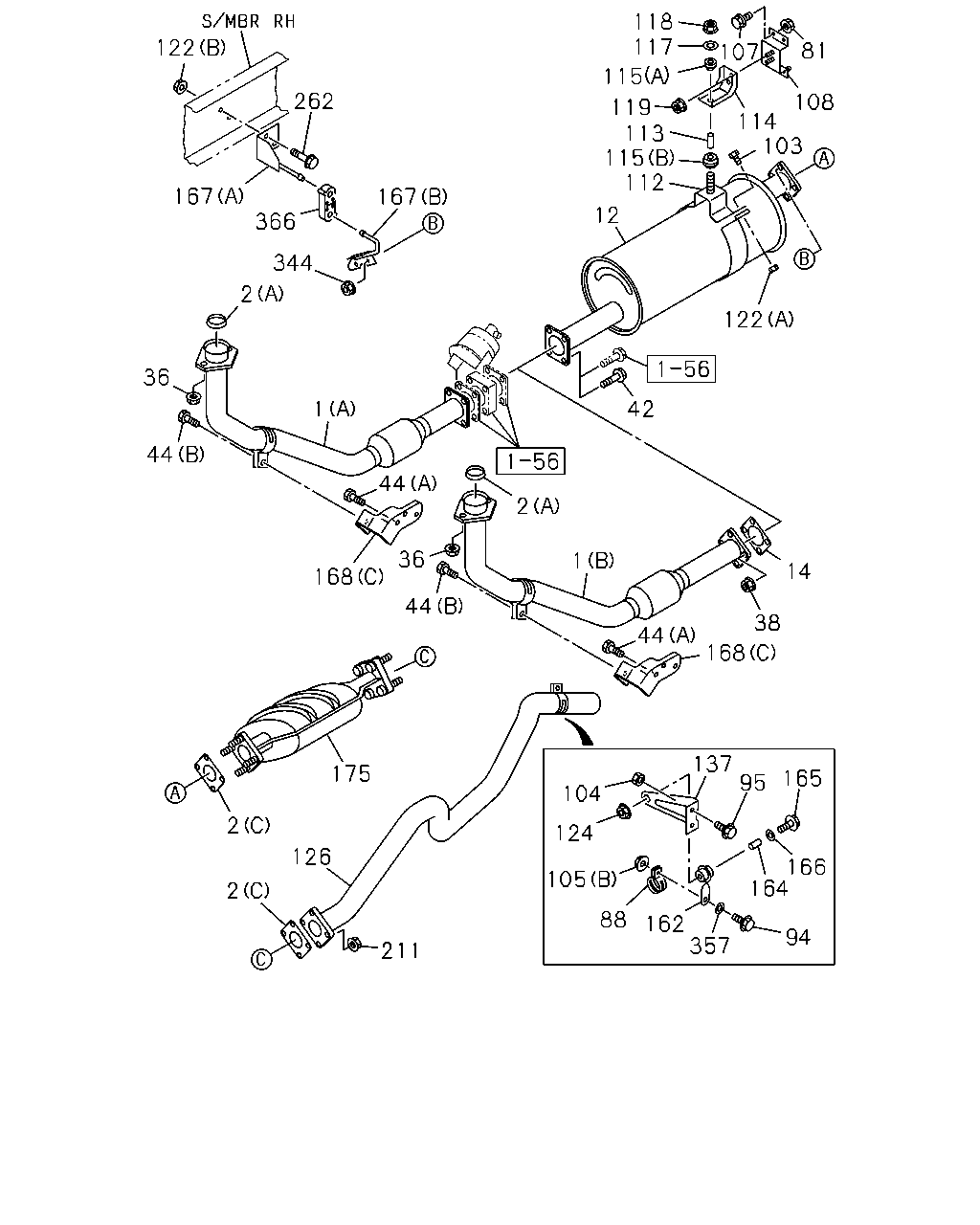

1-50 — EXHAUST PIPE AND SILENCER (#23196) — 187 parça

122 118 117 107 81 115 262 108 119 113 115 112 114 103 167 167 12 366 344 2 122 36 42 1 44 44 2 36 1 14 168 44 38 44 168 137 95 175 165 104 2 124 126 166 164 105 2 88 162 357 94 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> (A)	8-97187-135-0	01	1	0508-	●	●
1	PIPE; EXH 4HG1-T ENG<RDP> EXC. EXHAUST BRAKE<NF8> (D)	8-97187-140-1	01	1	0508-			●
1	PIPE; EXH 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8> (B) THA	8-97917-122-2	01	1	0508-	●	●
1	PIPE; EXH 4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> (C) THA	8-97917-123-3	01	1	0508-			●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG<RDT> (A)	8-97381-456-0	01	1	0508-	●	●
2	GASKET; PIPE TO MANIF (C) ID=71	8-94324-194-1	02	1	0508-	●	●
2	GASKET; PIPE TO MANIF 4HG1-T ENG<RDP> (B)	8-97381-455-0	01	1	0508-			●
12	SILENCER ASM; EXH 4JB1-TC ENG<RDT> THA	8-97940-314-2	01	1	0508-	●	●
12	SILENCER ASM; EXH 4HG1-T ENG<RDP> THA	8-97940-315-2	01	1	0508-			●
14	GASKET; SILENCER TO EXH PIPE EXC. EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	01	1	0508-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	02	1	0508-			●
36	NUT; EXH PIPE 4JB1-TC ENG<RDT> M10 FLANGE	8-97096-192-1	02	1	0508-	●	●
36	NUT; EXH PIPE 4HG1-T ENG<RDP> M10 FLANGE	8-97096-192-1	03	1	0508-			●
38	NUT; SILENCER EXC. EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	04	1	0508-	●	●
38	NUT; SILENCER 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	02	1	0508-0602			●
38	NUT; SILENCER 4HG1-T ENG<RDP> M10 FLANGE THA	0-91180-110-0	02	1	0603-			●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. EXHAUST BRAKE<NF8> M8X35 FLANGE	0-28680-835-0	04	1	0508-0611	●	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. EXHAUST BRAKE<NF8> M8X35 FLANGE THA	0-28650-835-0	04	1	0612-	●	●
44	BOLT; BRKT 4JB1-TC ENG<RDT> (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0508-0512	●	●
44	BOLT; BRKT 4JB1-TC ENG<RDT> (B) M8X40 W/LK WASHER	0-50540-840-0	01	1	0601-	●	●
44	BOLT; BRKT 4HG1-T ENG<RDP> (A) M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	0508-0512			●
44	BOLT; BRKT 4HG1-T ENG<RDP> (A) M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	0601-			●
44	BOLT; BRKT 4JB1-TC ENG<RDT> (A) M8X16 FLANGE	0-28080-816-0	02	1	0508-0611	●	●
44	BOLT; BRKT 4JB1-TC ENG<RDT> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0612-	●	●
44	BOLT; BRKT 4HG1-T ENG<RDP> (B) M8X40 FLANGE	0-28080-840-0	01	1	0508-0611			●
44	BOLT; BRKT 4HG1-T ENG<RDP> (B) M8X40 FLANGE THA	0-28050-840-0	01	1	0612-			●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-			●
81	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0508-0602	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●
88	CLAMP; EXH PIPE 4JB1-TC ENG<RDT> THA	8-97919-446-0	01	1	0508-	●	●
88	CLAMP; EXH PIPE 4HG1-T ENG<RDP> THA	8-97917-235-0	01	1	0508-			●
88	CLAMP; EXH PIPE 4HG1-T ENG<RDP> THA	8-97917-235-0	01	1	0508-			●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0508-	●	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0508-			●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●	●
95	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0508-0701	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER THA	0-50540-845-0	01	1	0702-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0508-0602			●
105	NUT; CLAMP (A) M10 FLANGE THA	0-91180-110-0	02	1	0603-			●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0508-	●	●	●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0508-0611	●	●
107	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0612-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	8-97187-346-0	01	1	0508-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR	8-94378-511-1	01	1	0508-		●
112	BRACKET; HANGER 4JB1-TC ENG<RDT>	8-97323-894-0	01	1	0508-	●	●
112	BRACKET; HANGER 4HG1-T ENG<RDP>	8-97076-020-0	01	1	0508-			●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	01	1	0508-	●	●	●
114	BRACKET; EXH SILENCER	8-97073-758-0	01	1	0508-	●
114	BRACKET; EXH SILENCER	8-94329-857-0	01	1	0508-		●
114	BRACKET; EXH SILENCER	8-94329-996-0	01	1	0508-			●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0508-	●	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0508-	●	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0508-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0508-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
122	NUT; HANGER BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0508-	●	●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	0508-	●	●	●
124	NUT; SUPPORT RUBBER M10	9-09110-410-0	01	1	0508-0512		●	●
124	NUT; SUPPORT RUBBER M10 THA	0-91110-510-0	01	1	0601-		●	●
126	PIPE; EXH,RR THA	8-97917-016-1	01	1	0508-	●
126	PIPE; EXH,RR THA	8-97917-014-1	01	1	0508-		●
126	PIPE; EXH,RR THA	8-97917-015-1	01	1	0508-			●
137	BRACKET; TAIL PIPE 4JB1-TC ENG<RDT>	9-22121-146-1	01	1	0508-	●
137	BRACKET; TAIL PIPE	8-97169-014-0	01	1	0508-		●
137	BRACKET; TAIL PIPE	8-94468-175-0	01	1	0508-			●
162	RUBBER; SUPPORT,TAIL PIPE L=180	8-97222-646-0	01	1	0508-	●
162	RUBBER; SUPPORT,TAIL PIPE L=148	8-97145-971-0	01	1	0508-		●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0508-			●
164	COLLAR; DIST,TAIL PIPE L=23	9-22151-175-0	01	1	0508-	●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0508-		●	●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28080-845-0	01	1	0508-0512	●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE THA	0-28050-845-0	01	1	0601-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0508-0512		●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE THA	0-28051-070-0	01	1	0601-		●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	9-09164-808-0	01	1	0508-0605	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0508-0605		●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●	●
167	HANGER; EXH PIPE (A)	8-97187-323-0	01	1	0508-	●
167	HANGER; EXH PIPE (B)	8-97187-324-1	01	1	0508-	●	●
167	HANGER; EXH PIPE (A)	8-97144-952-0	01	1	0508-		●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG<RDT> (C)	8-97084-346-2	01	1	0508-	●	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (A)	8-97075-343-1	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	0508-			●
175	CONVERTER; CATALYST 4JB1-TC ENG<RDT>	8-97140-417-2	01	1	0508-	●	●
211	NUT; CONV M10 FLANGE	0-91150-110-0	04	1	0508-0602	●	●
211	NUT; CONV M10 FLANGE THA	0-91180-110-0	04	1	0603-	●	●
262	BOLT; HANGER TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●
262	BOLT; HANGER TO BODY M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●
344	NUT; SILENCER M10 FLANGE	0-91150-110-0	04	1	0508-0602	●	●
344	NUT; SILENCER M10 FLANGE THA	0-91180-110-0	04	1	0603-	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0508-0605	●	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●
366	RUBBER; SUPPORT,EXH PIPE	8-97166-498-1	01	1	0508-	●	●

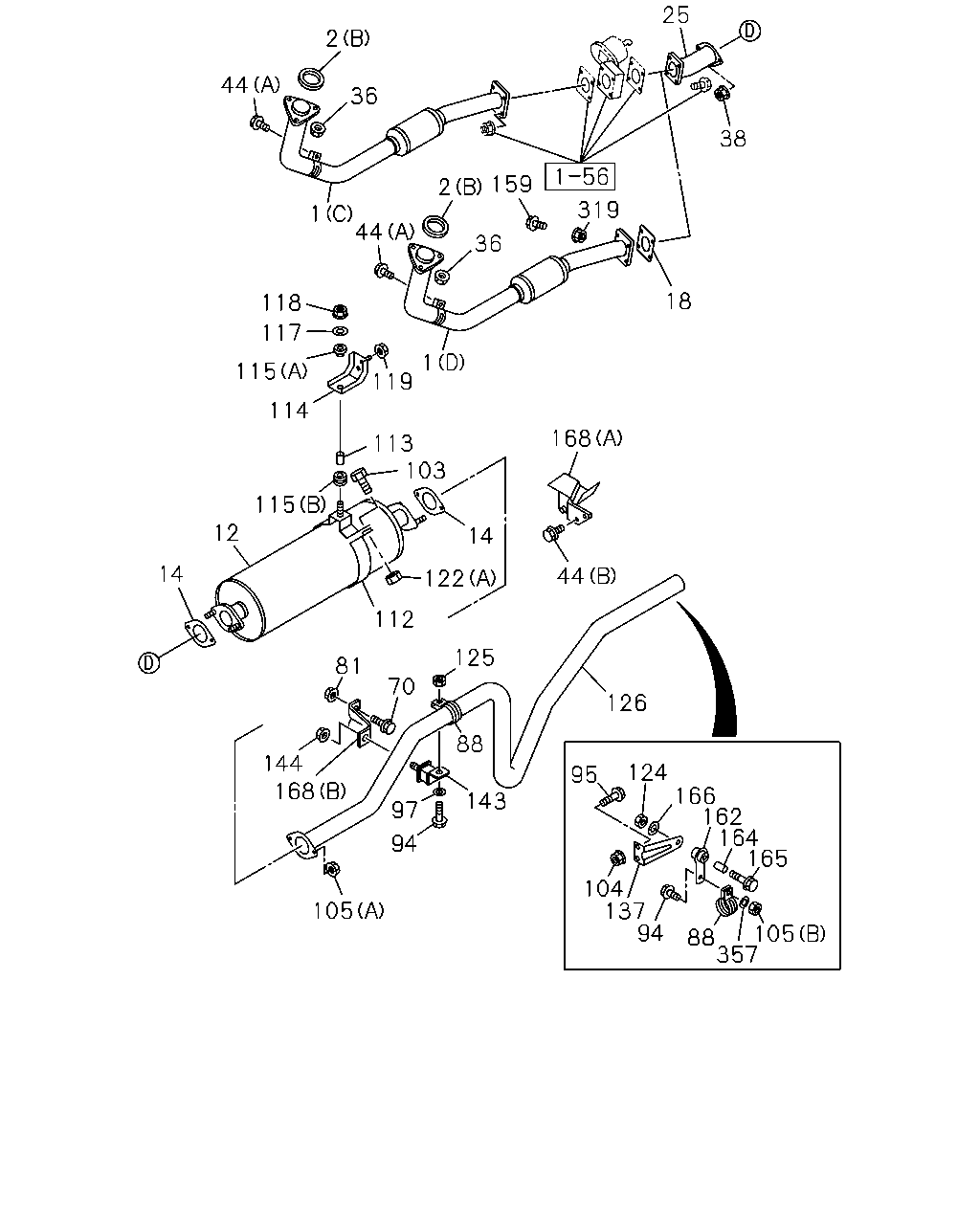

25 2 44 36 38 159 2 319 1 44 36 18 118 117 1 115 119 114 168 113 103 115 12 14 14 44 122 112 125 81 70 126 88 144 168 124 166 162 164 165 95 143 97 94 104 137 94 88 105 357 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4JB1-TC ENG<RDT> EXHAUST BRAKE<NF8> (A)	8-97187-135-0	01	1	0508-	●	●
1	PIPE; EXH 4HG1-T ENG<RDP> EXC. EXHAUST BRAKE<NF8> (D)	8-97187-140-1	01	1	0508-			●
1	PIPE; EXH 4JB1-TC ENG<RDT> EXC. EXHAUST BRAKE<NF8> (B) THA	8-97917-122-2	01	1	0508-	●	●
1	PIPE; EXH 4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> (C) THA	8-97917-123-3	01	1	0508-			●
2	GASKET; PIPE TO MANIF 4JB1-TC ENG<RDT> (A)	8-97381-456-0	01	1	0508-	●	●
2	GASKET; PIPE TO MANIF (C) ID=71	8-94324-194-1	02	1	0508-	●	●
2	GASKET; PIPE TO MANIF 4HG1-T ENG<RDP> (B)	8-97381-455-0	01	1	0508-			●
12	SILENCER ASM; EXH 4JB1-TC ENG<RDT> THA	8-97940-314-2	01	1	0508-	●	●
12	SILENCER ASM; EXH 4HG1-T ENG<RDP> THA	8-97940-315-2	01	1	0508-			●
14	GASKET; SILENCER TO EXH PIPE EXC. EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	01	1	0508-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	02	1	0508-			●
18	GASKET; EXH PIPE TO PIPE EXC. EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	01	1	0508-			●
25	PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG<RDP> EXHAUST BRAKE<NF8> THA	8-97917-125-1	01	1	0508-			●
36	NUT; EXH PIPE 4JB1-TC ENG<RDT> M10 FLANGE	8-97096-192-1	02	1	0508-	●	●
36	NUT; EXH PIPE 4HG1-T ENG<RDP> M10 FLANGE	8-97096-192-1	03	1	0508-			●
38	NUT; SILENCER EXC. EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	04	1	0508-	●	●
38	NUT; SILENCER 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	02	1	0508-0602			●
38	NUT; SILENCER 4HG1-T ENG<RDP> M10 FLANGE THA	0-91180-110-0	02	1	0603-			●
44	BOLT; BRKT 4JB1-TC ENG<RDT> (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0508-0512	●	●
44	BOLT; BRKT 4JB1-TC ENG<RDT> (B) M8X40 W/LK WASHER	0-50540-840-0	01	1	0601-	●	●
44	BOLT; BRKT 4HG1-T ENG<RDP> (A) M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	0508-0512			●
44	BOLT; BRKT 4HG1-T ENG<RDP> (A) M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	0601-			●
44	BOLT; BRKT 4JB1-TC ENG<RDT> (A) M8X16 FLANGE	0-28080-816-0	02	1	0508-0611	●	●
44	BOLT; BRKT 4JB1-TC ENG<RDT> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0612-	●	●
44	BOLT; BRKT 4HG1-T ENG<RDP> (B) M8X40 FLANGE	0-28080-840-0	01	1	0508-0611			●
44	BOLT; BRKT 4HG1-T ENG<RDP> (B) M8X40 FLANGE THA	0-28050-840-0	01	1	0612-			●
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0508-0611			●
70	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-			●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-			●
81	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0508-0602	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	0603-	●	●
88	CLAMP; EXH PIPE 4JB1-TC ENG<RDT> THA	8-97919-446-0	01	1	0508-	●	●
88	CLAMP; EXH PIPE 4HG1-T ENG<RDP> THA	8-97917-235-0	01	1	0508-			●
88	CLAMP; EXH PIPE 4HG1-T ENG<RDP> THA	8-97917-235-0	01	1	0508-			●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0508-	●	●	●
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0508-			●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0508-0611	●	●	●
95	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-	●	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0508-0605			●
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-			●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0508-0701	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER THA	0-50540-845-0	01	1	0702-	●	●	●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0508-0602			●
105	NUT; CLAMP (A) M10 FLANGE THA	0-91180-110-0	02	1	0603-			●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0508-	●	●	●
112	BRACKET; HANGER 4JB1-TC ENG<RDT>	8-97323-894-0	01	1	0508-	●	●
112	BRACKET; HANGER 4HG1-T ENG<RDP>	8-97076-020-0	01	1	0508-			●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	01	1	0508-	●	●	●
114	BRACKET; EXH SILENCER	8-97073-758-0	01	1	0508-	●
114	BRACKET; EXH SILENCER	8-94329-857-0	01	1	0508-		●
114	BRACKET; EXH SILENCER	8-94329-996-0	01	1	0508-			●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0508-	●	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0508-	●	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0508-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0508-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0508-	●	●	●
122	NUT; HANGER BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0508-	●	●
122	NUT; HANGER BRKT (A) M8	9-09110-408-0	01	1	0508-	●	●	●
124	NUT; SUPPORT RUBBER M10	9-09110-410-0	01	1	0508-0512		●	●
124	NUT; SUPPORT RUBBER M10 THA	0-91110-510-0	01	1	0601-		●	●
125	NUT; CLAMP M8	9-09110-408-0	01	1	0508-			●
126	PIPE; EXH,RR THA	8-97917-016-1	01	1	0508-	●
126	PIPE; EXH,RR THA	8-97917-014-1	01	1	0508-		●
126	PIPE; EXH,RR THA	8-97917-015-1	01	1	0508-			●
137	BRACKET; TAIL PIPE 4JB1-TC ENG<RDT>	9-22121-146-1	01	1	0508-	●
137	BRACKET; TAIL PIPE	8-97169-014-0	01	1	0508-		●
137	BRACKET; TAIL PIPE	8-94468-175-0	01	1	0508-			●
143	RUBBER; SUPPORT	8-97371-655-1	01	1	0508-			●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0508-			●
159	BOLT; HEAT PROTECTOR EXC. EXHAUST BRAKE<NF8> M8X35 FLANGE	0-28680-835-0	04	1	0508-0512			●
159	BOLT; HEAT PROTECTOR EXC. EXHAUST BRAKE<NF8> M8X35 FLANGE THA	0-28650-835-0	04	1	0601-			●
162	RUBBER; SUPPORT,TAIL PIPE L=180	8-97222-646-0	01	1	0508-	●
162	RUBBER; SUPPORT,TAIL PIPE L=148	8-97145-971-0	01	1	0508-		●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0508-			●
164	COLLAR; DIST,TAIL PIPE L=23	9-22151-175-0	01	1	0508-	●
164	COLLAR; DIST,TAIL PIPE L=37.5 THA	9-22151-217-0	01	1	0508-		●	●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE	0-28080-845-0	01	1	0508-0512	●
165	BOLT; SUPPORT RUBBER M8X45 FLANGE THA	0-28050-845-0	01	1	0601-	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0508-0512		●	●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE THA	0-28051-070-0	01	1	0601-		●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	9-09164-808-0	01	1	0508-0605	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=8.4 OD=26	0-91614-808-0	01	1	0606-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0508-0605		●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●	●
168	BRACKET; EXH PIPE,FRT 4JB1-TC ENG<RDT> (C)	8-97084-346-2	01	1	0508-	●	●
168	BRACKET; EXH PIPE,FRT 4HG1-T ENG<RDP> (A)	8-97075-343-1	01	1	0508-			●
168	BRACKET; EXH PIPE,FRT (B)	8-94468-174-1	01	1	0508-			●
319	NUT; PROTECTOR EXC. EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	04	1	0508-			●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0508-0605	●	●	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
