1-45 — WATER SEDIMENTER; FUEL (#23195) — 48 parça

1 9 7 5 36 87 14 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4JB1-TC ENG<RDT>	8-97081-814-3	01	1	0508-	●	●
1	SEDIMENTER; FUEL 4HG1-T ENG<RDP>	8-97081-814-3	01	1	0508-			●
5	GASKET; UPR COVER,SEDIMENTER 4JB1-TC ENG<RDT>	5-09623-075-0	01	1	0508-	●	●
5	GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG<RDP>	5-09623-075-0	01	1	0508-			●
7	PLUG; DRAIN,SEDIMENTER 4JB1-TC ENG<RDT>	8-94132-674-0	01	1	0508-	●	●
7	PLUG; DRAIN,SEDIMENTER 4HG1-T ENG<RDP>	8-94132-674-0	01	1	0508-			●
9	GASKET; DRAIN PLUG & CONNECTOR 4JB1-TC ENG<RDT>	8-94132-675-0	01	1	0508-	●	●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG<RDP>	8-94132-675-0	01	1	0508-			●
14	GASKET; SENSOR TO CENTER BOLT 4JB1-TC ENG<RDT>	8-94447-156-0	01	1	0508-	●	●
14	GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG<RDP>	8-94447-156-0	01	1	0508-			●
36	RING; BODY TO CASE 4JB1-TC ENG<RDT>	5-13234-001-0	01	1	0508-	●	●
36	RING; BODY TO CASE 4HG1-T ENG<RDP>	5-13234-001-0	01	1	0508-			●
37	PLUG; SENSOR 4JB1-TC ENG<RDT>	8-94453-746-0	01	1	0508-	●	●
37	PLUG; SENSOR 4HG1-T ENG<RDP>	8-94453-746-0	01	1	0508-			●
87	CASE ASM; SEDIMENTER 4JB1-TC ENG<RDT>	8-97219-363-1	01	1	0508-	●	●
87	CASE ASM; SEDIMENTER 4HG1-T ENG<RDP>	8-97219-363-1	01	1	0508-			●

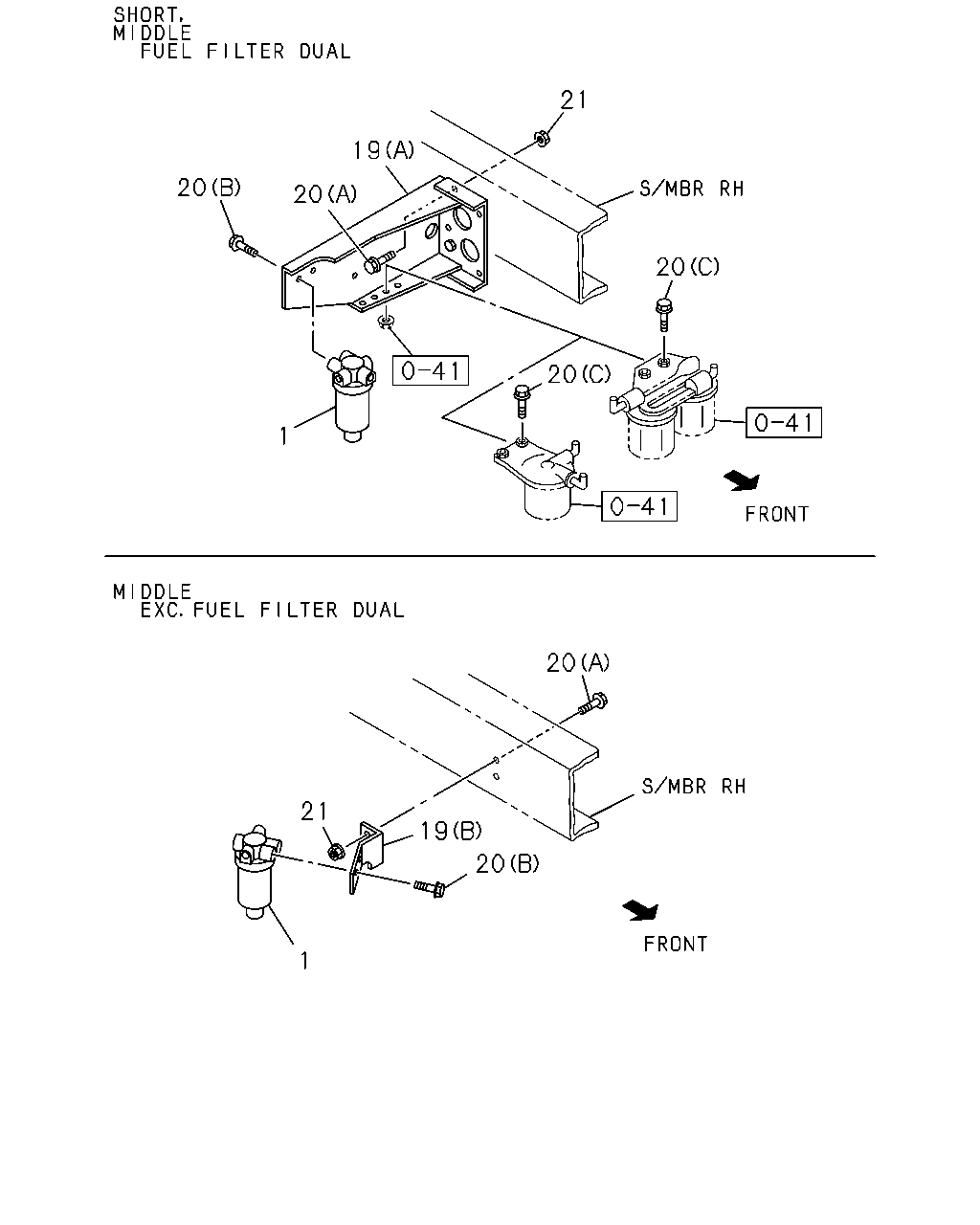

21 19 20 20 20 20 1 20 21 19 20 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4JB1-TC ENG<RDT>	8-97081-814-3	01	1	0508-	●	●
1	SEDIMENTER; FUEL 4HG1-T ENG<RDP>	8-97081-814-3	01	1	0508-			●
19	BRACKET; FUEL SEDIMENTER 4JB1-TC ENG<RDT> (A)	8-98017-562-0	01	1	0508-	●
19	BRACKET; FUEL SEDIMENTER 4JB1-TC ENG<RDT> (A)	8-97090-296-3	01	1	0508-		●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> (A)	8-97090-296-3	01	1	0508-			●
19	BRACKET; FUEL SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> (B)	8-94366-685-0	01	1	0508-			●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (A),(C) M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●	●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (A),(C) M10X30 FLANGE	0-28081-030-0	02	1	0508-0512	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> (A),(C) M10X30 FLANGE	0-28081-030-0	02	1	0508-0512			●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (A),(C) M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (A),(C) M10X30 FLANGE	0-28051-030-0	02	1	0601-	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> (A),(C) M10X30 FLANGE	0-28051-030-0	02	1	0601-			●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (A) M10X30 FLANGE	0-28081-030-0	03	1	0508-0512		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> (A) M10X30 FLANGE	0-28081-030-0	03	1	0508-0512			●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> (A) M8X30 FLANGE	0-28080-830-0	02	1	0508-0512			●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> (A) M8X30 FLANGE THA	0-28050-830-0	02	1	0601-			●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (A) M8X25 FLANGE	0-28080-825-0	01	1	0508-0701	●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (A) M8X25 FLANGE THA	0-28050-825-0	01	1	0702-	●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (B) M8X20 FLANGE	0-28680-820-0	02	1	0508-0611	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> (B) M8X20 FLANGE	0-28680-820-0	02	1	0508-0611			●
20	BOLT; BRKT TO SEDIMENTER 4JB1-TC ENG<RDT> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	0612-	●	●
20	BOLT; BRKT TO SEDIMENTER 4HG1-T ENG<RDP> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	0612-			●
21	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M8 FLANGE	0-91150-108-0	01	1	0508-	●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> EXC. FUEL FILTER DUAL<S6B> M8 FLANGE	0-91150-108-0	02	1	0508-			●
21	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-110-0	02	1	0508-0602	●
21	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE THA	0-91180-110-0	02	1	0603-	●
21	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-110-0	03	1	0508-0602		●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> M10 FLANGE	0-91150-110-0	03	1	0508-0602			●
21	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE THA	0-91180-110-0	03	1	0603-		●
21	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> FUEL FILTER DUAL<S6B> M10 FLANGE THA	0-91180-110-0	03	1	0603-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
