◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶

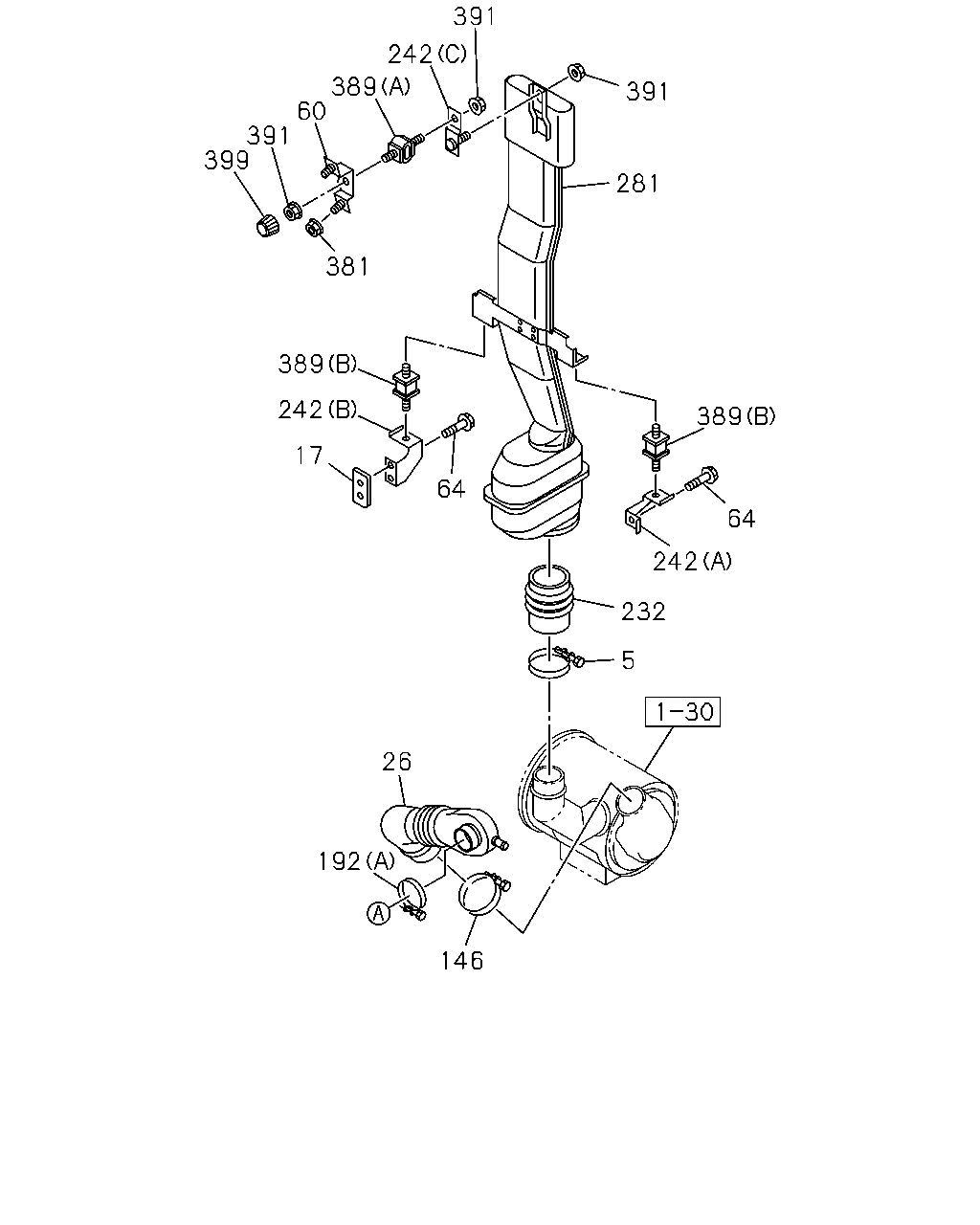

1-31 — AIR DUCT (#23191) — 100 parça

391 242 389 60 391 391 399 281 381 389 242 389 17 64 64 242 232 5 26 192 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT 4JB1-TC ENG<RDT> ID=87	8-97087-432-0	01	1	0508-	●	●
5	CLIP; AIR DUCT 4HG1-T ENG<RDP> D=101.6	9-09915-502-1	01	1	0508-			●
17	GASKET; AIR DUCT 4JB1-TC ENG<RDT>	8-97853-699-2	01	1	0508-	●	●
17	GASKET; AIR DUCT 4HG1-T ENG<RDP>	8-97853-699-2	01	1	0508-			●
26	DUCT; AIR INT 4JB1-TC ENG<RDT>	8-97205-771-0	01	1	0508-	●	●
60	BRACKET; AIR DUCT,UPR 4JB1-TC ENG<RDT> THA	8-97916-584-0	01	1	0508-	●	●
60	BRACKET; AIR DUCT,UPR 4HG1-T ENG<RDP> THA	8-97916-585-0	01	1	0508-			●
64	BOLT; BRKT,AIR DUCT 4JB1-TC ENG<RDT> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-	●	●
64	BOLT; BRKT,AIR DUCT 4HG1-T ENG<RDP> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-			●
146	CLIP; HOSE,ACL 4JB1-TC ENG<RDT> ID=87	8-97087-432-0	01	1	0508-	●	●
146	CLIP; HOSE,ACL 4HG1-T ENG<RDP> ID=95	9-09915-733-1	01	1	0508-			●
192	CLIP; HOSE 4JB1-TC ENG<RDT> (B) ID=58-76 THA	1-09707-203-0	02	1	0508-0811	●	●
192	CLIP; HOSE 4JB1-TC ENG<RDT> (B) ID=55-75	8-98133-349-0	02	1	0812-	●	●
192	CLIP; HOSE 4JB1-TC ENG<RDT> (A) ID=44-57	1-09707-207-0	07	1	0508-0810	●	●
192	CLIP; HOSE 4JB1-TC ENG<RDT> (A) ID=40-50	8-98133-347-0	07	1	0811-	●	●
232	HOSE; CONN 4JB1-TC ENG<RDT>	5-14231-115-1	01	1	0508-	●	●
232	HOSE; CONN 4HG1-T ENG<RDP>	8-97109-423-0	01	1	0508-0802			●
232	HOSE; CONN 4HG1-T ENG<RDP>	8-98115-594-0	01	1	0803-			●
242	BRACKET; AIR DUCT 4JB1-TC ENG<RDT> (C) THA	8-97916-580-0	01	1	0508-	●	●
242	BRACKET; AIR DUCT 4JB1-TC ENG<RDT> (A) THA	8-97916-581-0	01	1	0508-	●	●
242	BRACKET; AIR DUCT 4JB1-TC ENG<RDT> (B) THA	8-97916-583-0	01	1	0508-	●	●
242	BRACKET; AIR DUCT 4HG1-T ENG<RDP> (B) THA	8-97916-575-0	01	1	0508-			●
242	BRACKET; AIR DUCT 4HG1-T ENG<RDP> (A) THA	8-97916-582-0	01	1	0508-			●
281	DUCT; AIR,VERTICAL INT 4JB1-TC ENG<RDT>	8-97076-959-2	01	1	0508-	●	●
281	DUCT; AIR,VERTICAL INT 4HG1-T ENG<RDP>	8-97125-174-2	01	1	0508-			●
381	NUT; BRKT,AIR DUCT 4JB1-TC ENG<RDT> M6 FLANGE	1-09984-018-0	02	1	0508-	●	●
381	NUT; BRKT,AIR DUCT 4HG1-T ENG<RDP> M6 FLANGE	1-09984-018-0	02	1	0508-			●
389	RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG<RDT> (A)	8-97080-149-0	01	1	0508-	●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG<RDP> (A)	8-97080-149-0	01	1	0508-			●
389	RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG<RDT> (B)	8-97081-886-0	02	1	0508-	●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG<RDP> (B)	8-97081-886-0	02	1	0508-			●
391	NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG<RDT> M8 FLANGE	8-94279-517-0	07	1	0508-0910	●	●
391	NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG<RDT> M8 W/LK WASHER THA	8-97581-234-0	07	1	0911-	●	●
391	NUT; SUPPORT RUBBER,UPR 4HG1-T ENG<RDP> M8 FLANGE	8-94279-517-0	06	1	0508-0910			●
391	NUT; SUPPORT RUBBER,UPR 4HG1-T ENG<RDP> M8 W/LK WASHER THA	8-97581-234-0	06	1	0911-			●
399	CAP; BRKT,AIR DUCT 4JB1-TC ENG<RDT>	8-94273-605-0	02	1	0508-	●	●
399	CAP; BRKT,AIR DUCT 4HG1-T ENG<RDP>	8-94273-605-0	02	1	0508-			●

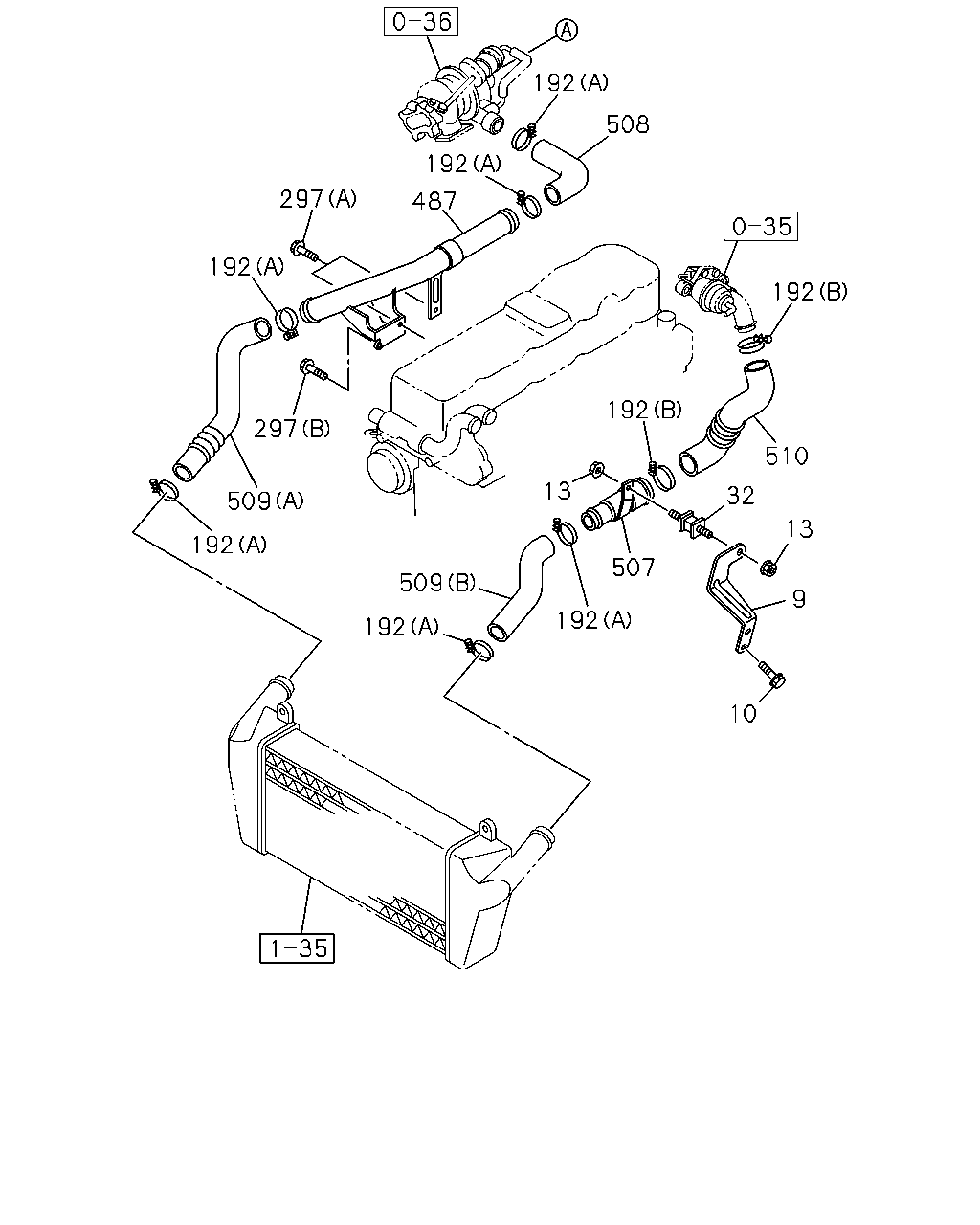

192 508 192 297 487 192 192 192 297 510 13 32 509 13 192 507 509 9 192 192 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BRACKET; INT PIPE 4JB1-TC ENG<RDT>	8-97226-059-0	01	1	0508-	●	●
10	BOLT; BRKT FIX 4JB1-TC ENG<RDT> M8X12 FLANGE	0-28080-812-0	01	1	0508-0611	●	●
10	BOLT; BRKT FIX 4JB1-TC ENG<RDT> M8X12 FLANGE THA	0-28050-812-0	01	1	0612-	●	●
13	NUT; BRKT FIX 4JB1-TC ENG<RDT> M8 FLANGE	0-91150-108-0	02	1	0508-	●	●
32	RUBBER; AIR DUCT MTG 4JB1-TC ENG<RDT>	8-94158-155-1	01	1	0508-	●	●
192	CLIP; HOSE 4JB1-TC ENG<RDT> (B) ID=58-76 THA	1-09707-203-0	02	1	0508-0811	●	●
192	CLIP; HOSE 4JB1-TC ENG<RDT> (B) ID=55-75	8-98133-349-0	02	1	0812-	●	●
192	CLIP; HOSE 4JB1-TC ENG<RDT> (A) ID=44-57	1-09707-207-0	07	1	0508-0810	●	●
192	CLIP; HOSE 4JB1-TC ENG<RDT> (A) ID=40-50	8-98133-347-0	07	1	0811-	●	●
297	BOLT; DUCT 4JB1-TC ENG<RDT> (B) M10X12 FLANGE	0-28081-012-0	01	1	0508-0512	●	●
297	BOLT; DUCT 4JB1-TC ENG<RDT> (B) M10X12 FLANGE	0-28051-012-0	01	1	0601-	●	●
297	BOLT; DUCT 4JB1-TC ENG<RDT> (A) M8X12 FLANGE	0-28080-812-0	02	1	0508-0611	●	●
297	BOLT; DUCT 4JB1-TC ENG<RDT> (A) M8X12 FLANGE THA	0-28050-812-0	02	1	0612-	●	●
487	PIPE; TURBO TO CHARGE AIR COOLER 4JB1-TC ENG<RDT>	8-97216-223-0	01	1	0508-	●	●
507	PIPE; CHARGE AIR COOLER TO INL MANIF 4JB1-TC ENG<RDT>	8-97228-660-0	01	1	0508-	●	●
508	HOSE; AIR,TURBO TO PIPE 4JB1-TC ENG<RDT>	8-97217-911-3	01	1	0508-	●	●
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JB1-TC ENG<RDT> (A)	8-97221-914-3	01	1	0508-	●	●
509	HOSE; AIR,PIPE TO CHARGE AIR COOLER 4JB1-TC ENG<RDT> (B)	8-97228-657-1	01	1	0508-	●	●
510	HOSE; AIR,PIPE TO INL MANIF 4JB1-TC ENG<RDT>	8-97228-658-2	01	1	0508-	●	●

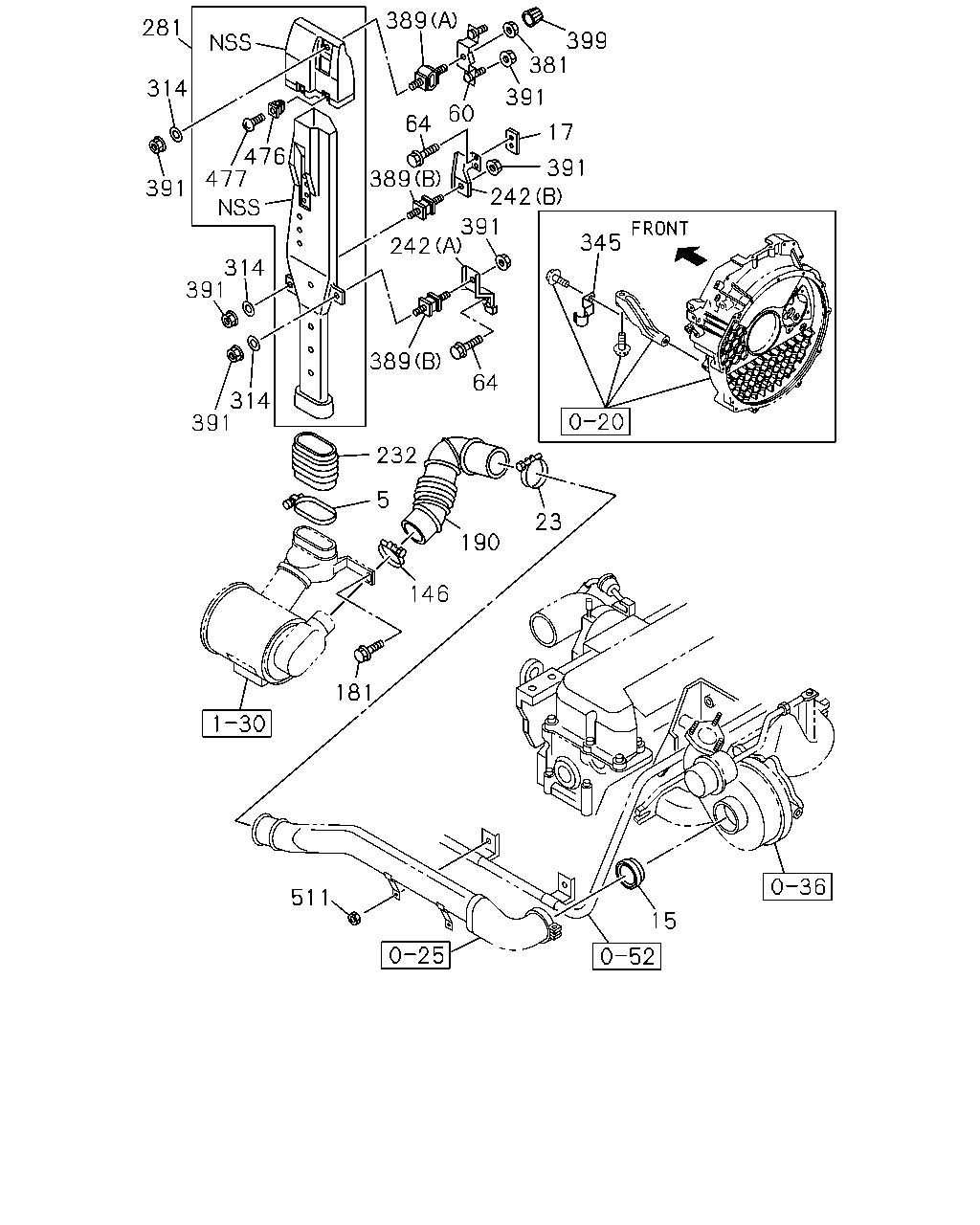

389 281 399 381 314 391 60 64 17 476 477 391 389 391 242 391 345 242 314 391 389 64 314 391 232 5 23 190 146 181 511 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT 4JB1-TC ENG<RDT> ID=87	8-97087-432-0	01	1	0508-	●	●
5	CLIP; AIR DUCT 4HG1-T ENG<RDP> D=101.6	9-09915-502-1	01	1	0508-			●
15	INSULATOR 4HG1-T ENG<RDP>	8-94454-802-0	01	1	0508-			●
17	GASKET; AIR DUCT 4JB1-TC ENG<RDT>	8-97853-699-2	01	1	0508-	●	●
17	GASKET; AIR DUCT 4HG1-T ENG<RDP>	8-97853-699-2	01	1	0508-			●
23	CLIP; HOSE 4HG1-T ENG<RDP> ID=87	8-97087-432-0	01	1	0508-			●
60	BRACKET; AIR DUCT,UPR 4JB1-TC ENG<RDT> THA	8-97916-584-0	01	1	0508-	●	●
60	BRACKET; AIR DUCT,UPR 4HG1-T ENG<RDP> THA	8-97916-585-0	01	1	0508-			●
64	BOLT; BRKT,AIR DUCT 4JB1-TC ENG<RDT> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-	●	●
64	BOLT; BRKT,AIR DUCT 4HG1-T ENG<RDP> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0508-			●
146	CLIP; HOSE,ACL 4JB1-TC ENG<RDT> ID=87	8-97087-432-0	01	1	0508-	●	●
146	CLIP; HOSE,ACL 4HG1-T ENG<RDP> ID=95	9-09915-733-1	01	1	0508-			●
181	BOLT; AIR DUCT TO RAD 4HG1-T ENG<RDP> M8X25 FLANGE	0-28680-825-0	01	1	0508-0611			●
181	BOLT; AIR DUCT TO RAD 4HG1-T ENG<RDP> M8X25 FLANGE THA	0-28650-825-0	01	1	0612-			●
190	HOSE; CONN,DUCT TO ACL 4HG1-T ENG<RDP>	8-97178-749-1	01	1	0508-			●
232	HOSE; CONN 4JB1-TC ENG<RDT>	5-14231-115-1	01	1	0508-	●	●
232	HOSE; CONN 4HG1-T ENG<RDP>	8-97109-423-0	01	1	0508-0802			●
232	HOSE; CONN 4HG1-T ENG<RDP>	8-98115-594-0	01	1	0803-			●
242	BRACKET; AIR DUCT 4JB1-TC ENG<RDT> (C) THA	8-97916-580-0	01	1	0508-	●	●
242	BRACKET; AIR DUCT 4JB1-TC ENG<RDT> (A) THA	8-97916-581-0	01	1	0508-	●	●
242	BRACKET; AIR DUCT 4JB1-TC ENG<RDT> (B) THA	8-97916-583-0	01	1	0508-	●	●
242	BRACKET; AIR DUCT 4HG1-T ENG<RDP> (B) THA	8-97916-575-0	01	1	0508-			●
242	BRACKET; AIR DUCT 4HG1-T ENG<RDP> (A) THA	8-97916-582-0	01	1	0508-			●
281	DUCT; AIR,VERTICAL INT 4JB1-TC ENG<RDT>	8-97076-959-2	01	1	0508-	●	●
281	DUCT; AIR,VERTICAL INT 4HG1-T ENG<RDP>	8-97125-174-2	01	1	0508-			●
314	WASHER; PL,AIR INT DUCT 4HG1-T ENG<RDP> ID=10.2 T=3.2	8-94279-642-0	03	1	0508-1204			●
314	WASHER; PL,AIR INT DUCT 4HG1-T ENG<RDP> ID=10.5 OD=32	0-91614-810-0	03	1	1205-			●
345	CLIP; PCV HOSE 4HG1-T ENG<RDP>	8-97369-959-0	01	1	0508-			●
381	NUT; BRKT,AIR DUCT 4JB1-TC ENG<RDT> M6 FLANGE	1-09984-018-0	02	1	0508-	●	●
381	NUT; BRKT,AIR DUCT 4HG1-T ENG<RDP> M6 FLANGE	1-09984-018-0	02	1	0508-			●
389	RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG<RDT> (A)	8-97080-149-0	01	1	0508-	●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG<RDP> (A)	8-97080-149-0	01	1	0508-			●
389	RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG<RDT> (B)	8-97081-886-0	02	1	0508-	●	●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1-T ENG<RDP> (B)	8-97081-886-0	02	1	0508-			●
391	NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG<RDT> M8 FLANGE	8-94279-517-0	07	1	0508-0910	●	●
391	NUT; SUPPORT RUBBER,UPR 4JB1-TC ENG<RDT> M8 W/LK WASHER THA	8-97581-234-0	07	1	0911-	●	●
391	NUT; SUPPORT RUBBER,UPR 4HG1-T ENG<RDP> M8 FLANGE	8-94279-517-0	06	1	0508-0910			●
391	NUT; SUPPORT RUBBER,UPR 4HG1-T ENG<RDP> M8 W/LK WASHER THA	8-97581-234-0	06	1	0911-			●
399	CAP; BRKT,AIR DUCT 4JB1-TC ENG<RDT>	8-94273-605-0	02	1	0508-	●	●
399	CAP; BRKT,AIR DUCT 4HG1-T ENG<RDP>	8-94273-605-0	02	1	0508-			●
476	GROMMET; SCREW,COVER 4HG1-T ENG<RDP>	1-09983-081-0	04	1	0508-			●
477	SCREW; COVER 4HG1-T ENG<RDP> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0508-0604			●
477	SCREW; COVER 4HG1-T ENG<RDP> M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-			●
511	NUT; PIPE 4HG1-T ENG<RDP> M8 FLANGE	0-91150-108-0	02	1	0508-			●
