1-30 — AIR CLEANER (#23190) — 61 parça

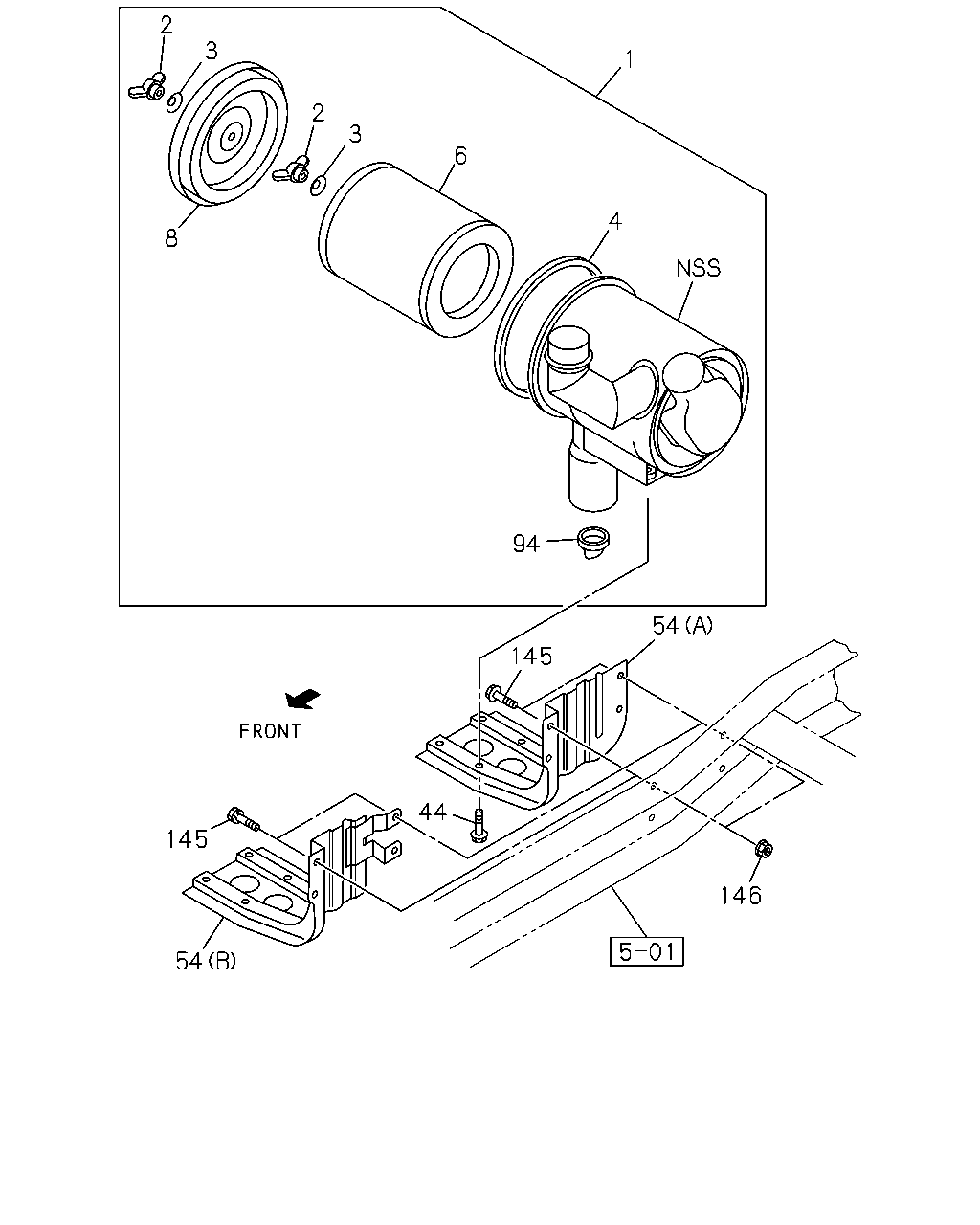

2 3 1 2 3 6 4 8 94 54 145 44 145 146 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR 4HG1-T ENG<RDP>	8-97162-699-2	01	1	0508-	●
1	CLEANER ASM; AIR 4JB1-TC ENG<RDT> THA	8-97940-318-0	01	1	0508-		●	●
2	NUT; WING,ELEMENT 4JB1-TC ENG<RDT> THA	1-14217-068-0	02	1	0508-		●	●
2	NUT; WING,ELEMENT 4HG1-T ENG<RDP> THA	1-14217-068-0	02	1	0508-	●
3	WASHER; SEAL,WING NUT 4JB1-TC ENG<RDT> THA	1-14219-225-0	02	1	0508-		●	●
3	WASHER; SEAL,WING NUT 4HG1-T ENG<RDP> THA	1-14219-225-0	02	1	0508-	●
4	GASKET; COVER TO BODY 4JB1-TC ENG<RDT> THA	8-94156-051-0	01	1	0508-		●	●
6	FILTER; ACL 4JB1-TC ENG<RDT> THA	8-94156-052-0	01	1	0508-		●	●
6	FILTER; ACL 4HG1-T ENG<RDP> THA	8-94156-052-0	01	1	0508-	●
6	FILTER; ACL 4JB1-TC ENG<RDT> BEST VALUE PARTS THA	5-87610-029-3	01	1	0508-		●	●
6	FILTER; ACL 4HG1-T ENG<RDP> BEST VALUE PARTS THA	5-87610-029-3	01	1	0508-	●
8	COVER ASM; ACL 4HG1-T ENG<RDP>	8-97093-023-0	01	1	0508-	●
8	COVER ASM; ACL 4JB1-TC ENG<RDT> THA	8-94156-050-0	01	1	0508-		●	●
44	BOLT; ACL 4JB1-TC ENG<RDT> M8X16 FLANGE	0-28080-816-0	04	1	0508-0611		●	●
44	BOLT; ACL 4JB1-TC ENG<RDT> M8X16 FLANGE THA	0-28050-816-0	04	1	0612-		●	●
44	BOLT; ACL 4HG1-T ENG<RDP> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0508-0701	●
44	BOLT; ACL 4HG1-T ENG<RDP> M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0702-	●
54	BRACKET; ACL 4JB1-TC ENG<RDT> (A) THA	8-97916-488-0	01	1	0508-		●
54	BRACKET; ACL 4JB1-TC ENG<RDT> (B) THA	8-97916-490-0	01	1	0508-			●
54	BRACKET; ACL 4HG1-T ENG<RDP> (C) THA	8-97916-489-0	01	1	0508-	●
94	VALVE; VACUATOR 4HG1-T ENG<RDP> THA	8-94447-157-0	01	1	0508-	●
94	VALVE; VACUATOR 4JB1-TC ENG<RDT> THA	8-94160-187-0	01	1	0508-		●	●
145	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X35 FLANGE	0-28681-035-0	04	1	0508-0611		●	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE	0-28681-035-0	04	1	0508-0611	●
145	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-		●	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-	●
146	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-110-0	04	1	0508-0602		●	●
146	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE THA	0-91180-110-0	04	1	0603-		●	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	02	1	0508-0602	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE THA	0-91180-110-0	02	1	0603-	●

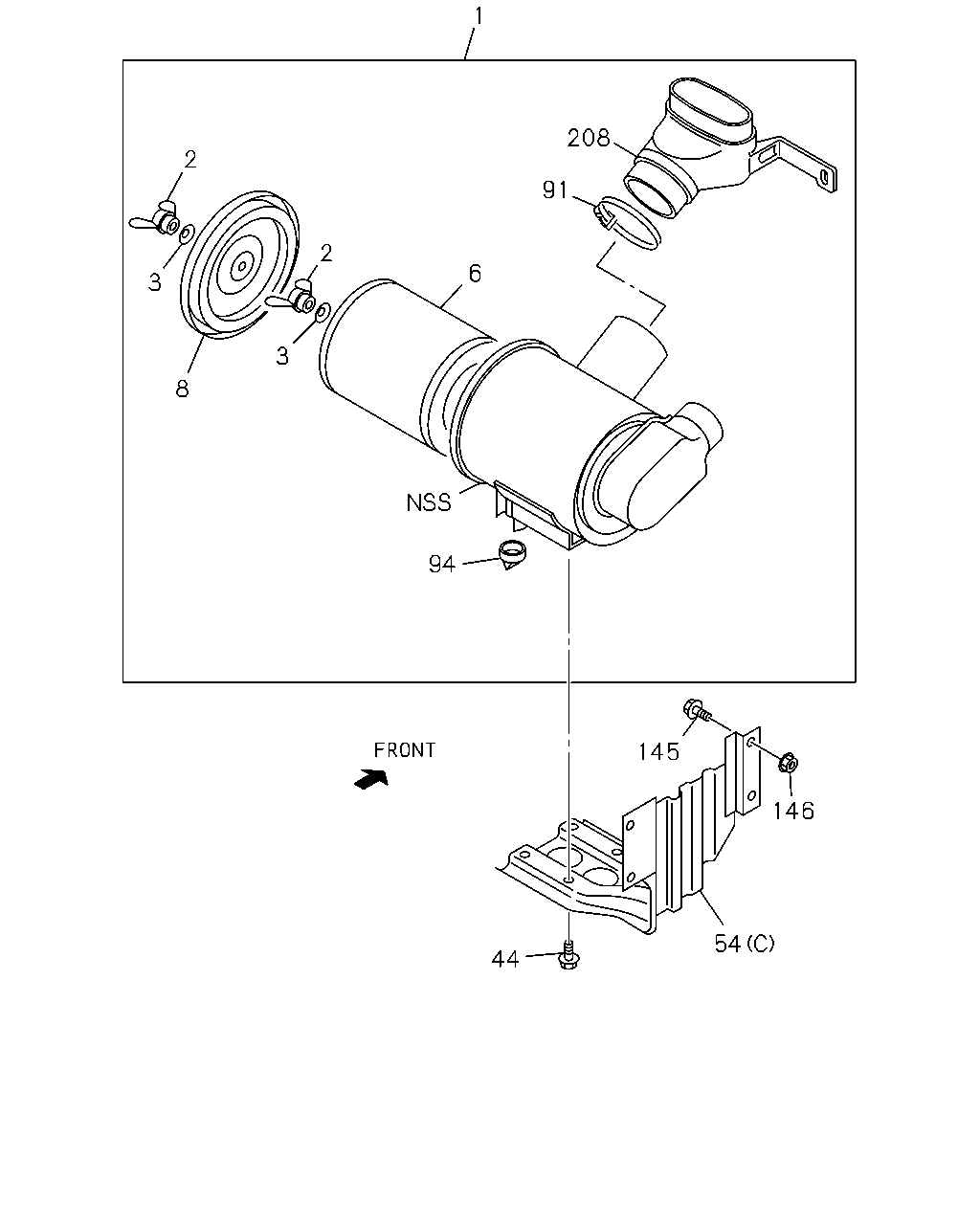

1 208 2 91 2 6 3 3 8 94 145 146 54 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR 4HG1-T ENG<RDP>	8-97162-699-2	01	1	0508-	●
1	CLEANER ASM; AIR 4JB1-TC ENG<RDT> THA	8-97940-318-0	01	1	0508-		●	●
2	NUT; WING,ELEMENT 4JB1-TC ENG<RDT> THA	1-14217-068-0	02	1	0508-		●	●
2	NUT; WING,ELEMENT 4HG1-T ENG<RDP> THA	1-14217-068-0	02	1	0508-	●
3	WASHER; SEAL,WING NUT 4JB1-TC ENG<RDT> THA	1-14219-225-0	02	1	0508-		●	●
3	WASHER; SEAL,WING NUT 4HG1-T ENG<RDP> THA	1-14219-225-0	02	1	0508-	●
6	FILTER; ACL 4JB1-TC ENG<RDT> THA	8-94156-052-0	01	1	0508-		●	●
6	FILTER; ACL 4HG1-T ENG<RDP> THA	8-94156-052-0	01	1	0508-	●
6	FILTER; ACL 4JB1-TC ENG<RDT> BEST VALUE PARTS THA	5-87610-029-3	01	1	0508-		●	●
6	FILTER; ACL 4HG1-T ENG<RDP> BEST VALUE PARTS THA	5-87610-029-3	01	1	0508-	●
8	COVER ASM; ACL 4HG1-T ENG<RDP>	8-97093-023-0	01	1	0508-	●
8	COVER ASM; ACL 4JB1-TC ENG<RDT> THA	8-94156-050-0	01	1	0508-		●	●
44	BOLT; ACL 4JB1-TC ENG<RDT> M8X16 FLANGE	0-28080-816-0	04	1	0508-0611		●	●
44	BOLT; ACL 4JB1-TC ENG<RDT> M8X16 FLANGE THA	0-28050-816-0	04	1	0612-		●	●
44	BOLT; ACL 4HG1-T ENG<RDP> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0508-0701	●
44	BOLT; ACL 4HG1-T ENG<RDP> M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0702-	●
54	BRACKET; ACL 4JB1-TC ENG<RDT> (A) THA	8-97916-488-0	01	1	0508-		●
54	BRACKET; ACL 4JB1-TC ENG<RDT> (B) THA	8-97916-490-0	01	1	0508-			●
54	BRACKET; ACL 4HG1-T ENG<RDP> (C) THA	8-97916-489-0	01	1	0508-	●
91	CLAMP 4HG1-T ENG<RDP>	8-97093-696-2	01	1	0508-	●
94	VALVE; VACUATOR 4HG1-T ENG<RDP> THA	8-94447-157-0	01	1	0508-	●
94	VALVE; VACUATOR 4JB1-TC ENG<RDT> THA	8-94160-187-0	01	1	0508-		●	●
145	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X35 FLANGE	0-28681-035-0	04	1	0508-0611		●	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE	0-28681-035-0	04	1	0508-0611	●
145	BOLT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-		●	●
145	BOLT; BRKT TO FRAME 4HG1-T ENG<RDP> M10X35 FLANGE THA	0-28651-035-0	04	1	0612-	●
146	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE	0-91150-110-0	04	1	0508-0602		●	●
146	NUT; BRKT TO FRAME 4JB1-TC ENG<RDT> M10 FLANGE THA	0-91180-110-0	04	1	0603-		●	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE	0-91150-110-0	02	1	0508-0602	●
146	NUT; BRKT TO FRAME 4HG1-T ENG<RDP> M10 FLANGE THA	0-91180-110-0	02	1	0603-	●
208	DUCT; ACL 4HG1-T ENG<RDP>	8-97074-904-1	01	1	0508-	●
