Sayfa 0-42B - Isuzu EPC

0-42B — FUEL PUMP AND PIPE (#2319) — 195 parça

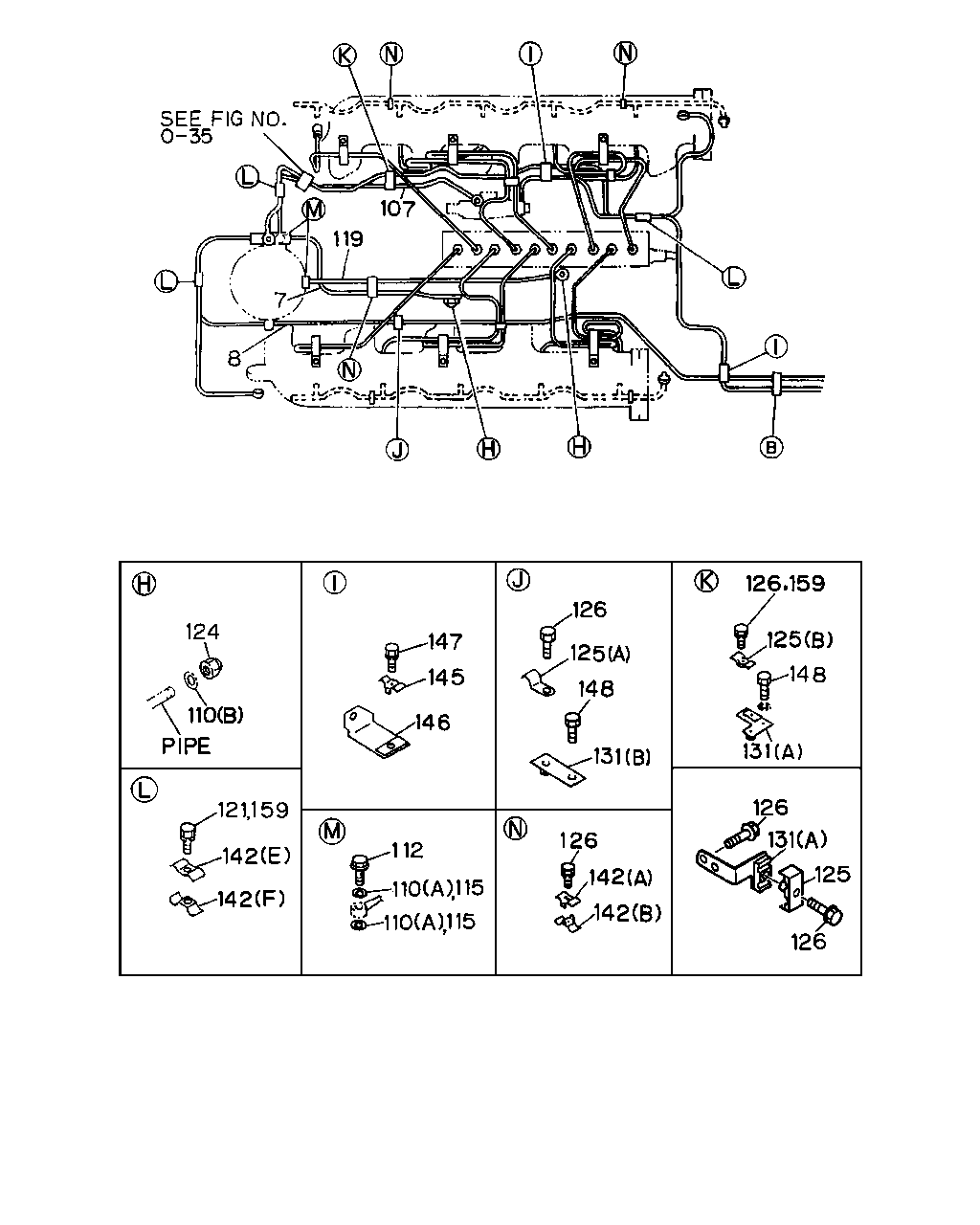

119 107 7 8 124 110 146 147 145 126 148 125 131 126 159 125 148 131 126 131 125 126 142 126 142 112 110 110 115 115 142 142 121 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	PIPE ASM; FUEL OVERFLOW	1-15414-115-0	01	1	9002-9306	●
7	PIPE ASM; FUEL OVERFLOW	1-15413-732-0	01	1	9307-		●
7	PIPE ASM; FUEL OVERFLOW	1-15413-614-0	01	1	9002-			●
8	PIPE ASM; FUEL OVERFLOW	1-15414-552-1	01	1	9002-9306	●
8	PIPE ASM; FUEL OVERFLOW	1-15414-542-1	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW	1-15414-550-1	01	1	9002-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-692-0	01	1	9002-9306	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15414-332-0	01	1	9307-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-612-0	01	1	9002-			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	01	1	9002-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-9306	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9307-		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-			●
112	BOLT; JOINT,FUEL FILTER EXC. INTAKE HEATER<SL2> M14X27 FLANGE	1-09675-086-0	01	1	9002-9306	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-			●
112	BOLT; JOINT,FUEL FILTER WITHTHREAD ON HEAD M14X27 M10-HOLE ON HEAD	1-09675-087-0	02	1	9002-9306			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-9306	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15414-116-1	01	1	9002-9306	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15413-731-0	01	1	9307-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15414-117-0	01	1	9002-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15413-613-0	01	1	9002-			●
121	BOLT; CLIP M6X22	0-28020-622-0	01	1	9002-9005	●		●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	01	1	9006-9503	●		●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	01	1	9504-			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9002-9306	●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9307-	●	●	●
125	CLIP; FUEL PIPE (A) ID=9.7 L=20	1-09700-878-1	01	1	9002-	●	●	●
125	CLIP; FUEL PIPE (A) ID=9.7 L=20	1-09700-878-1	01	1	9002-9306			●
125	CLIP; FUEL PIPE (B) ID=10 & 6 L=20	1-09700-404-0	01	1	9002-9503	●		●
125	CLIP; FUEL PIPE (B) ID=10 & 6 L=20	1-09700-404-0	01	1	9504-			●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9307-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	06	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	06	1	9006-9306	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	05	1	9307-9410		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	03	1	9411-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	04	1	9002-9005			●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	04	1	9006-9410			●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9411-			●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9411-		●	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-185-0	01	1	9002-	●		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	01	1	9002-	●	●	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-150-1	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP (C)	1-22518-037-3	01	1	9307-		●
142	CLIP; FUEL PIPE (E) ID=10 & 6 L=20	1-09700-404-0	05	1	9002-	●		●
142	CLIP; FUEL PIPE (F) ID=10 & 6 L=20 W/NUT	1-09700-405-0	05	1	9002-	●		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	03	1	9002-9410	●	●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	03	1	9411-		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9002-9410	●	●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	03	1	9411-		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	02	1	9002-9410			●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	02	1	9411-			●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9002-9410			●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	02	1	9411-			●
142	CLIP; FUEL PIPE (E) ID=10 & 6 L=20	1-09700-404-0	04	1	9307-		●
142	CLIP; FUEL PIPE (F) ID=10 & 6 L=20 W/NUT	1-09700-405-0	04	1	9307-		●
145	CLIP; FUEL PIPE ID=10 & 10 L=25	9-09716-114-0	01	1	9002-			●
146	BRACKET; FUEL END	1-22518-037-3	01	1	9002-			●
147	BOLT; CLIP,FUEL PIPE M6X20	0-28020-620-0	01	1	9002-9005			●
147	BOLT; CLIP,FUEL PIPE M6X20 FLANGE	0-28080-620-0	01	1	9006-			●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9004	●		●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	01	1	9307-		●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-	●		●
159	BOLT; CLIP M6X22	0-28020-622-0	05	1	9002-9005	●		●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	04	1	9307-		●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	05	1	9006-	●		●

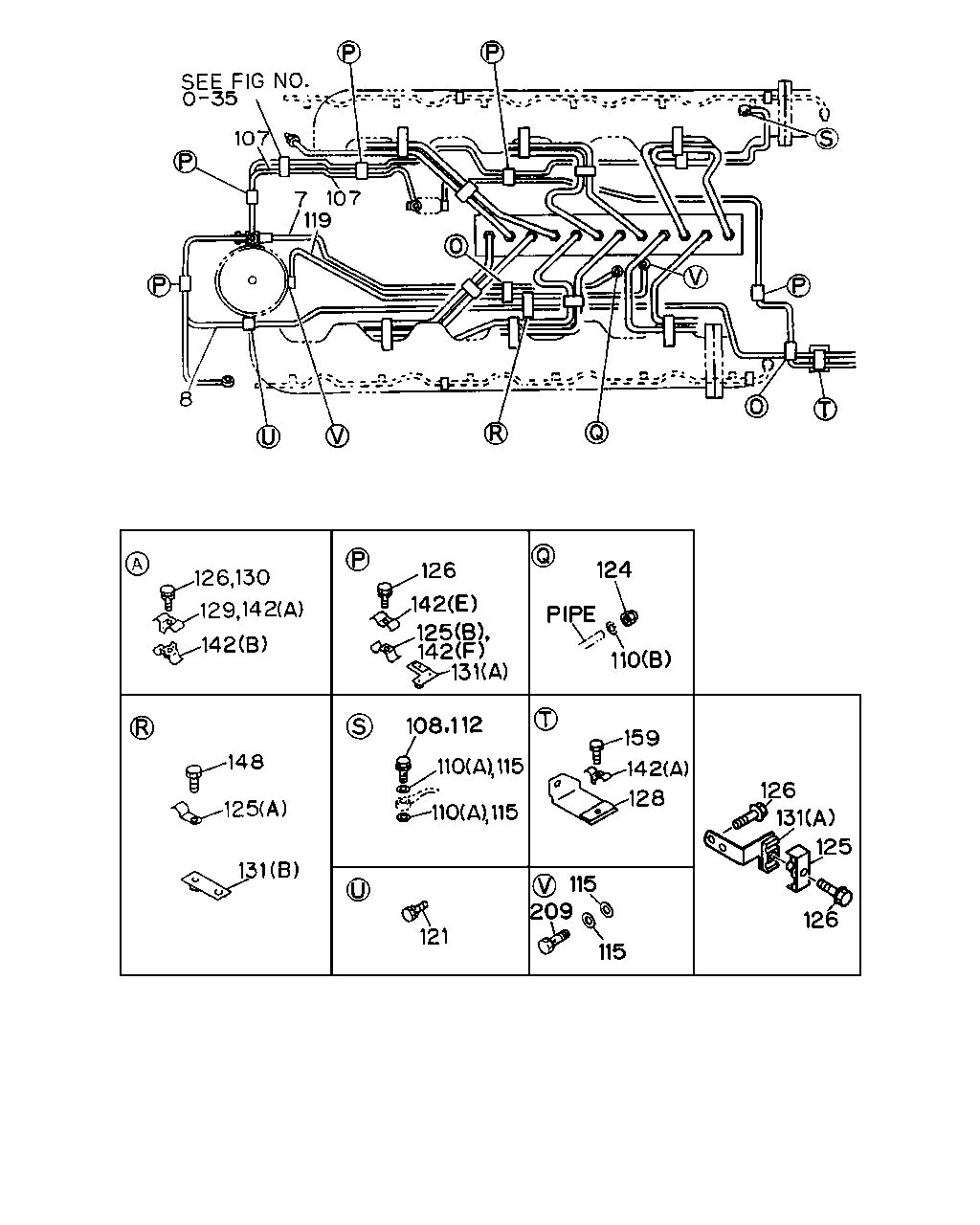

107 119 7 107 8 126 130 129 142 142 126 142 125 142 131 124 110 108 112 110 115 110 115 121 148 125 131 159 142 128 115 209 115 126 125 131 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	PIPE ASM; FUEL OVERFLOW	1-15414-115-0	01	1	9002-9306	●
7	PIPE ASM; FUEL OVERFLOW	1-15413-732-0	01	1	9307-		●
7	PIPE ASM; FUEL OVERFLOW	1-15413-614-0	01	1	9002-			●
8	PIPE ASM; FUEL OVERFLOW	1-15414-552-1	01	1	9002-9306	●
8	PIPE ASM; FUEL OVERFLOW	1-15414-542-1	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW	1-15414-550-1	01	1	9002-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-692-0	01	1	9002-9306	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15414-332-0	01	1	9307-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-612-0	01	1	9002-			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	01	1	9002-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-9306	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9307-		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-			●
112	BOLT; JOINT,FUEL FILTER EXC. INTAKE HEATER<SL2> M14X27 FLANGE	1-09675-086-0	01	1	9002-9306	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-			●
112	BOLT; JOINT,FUEL FILTER WITHTHREAD ON HEAD M14X27 M10-HOLE ON HEAD	1-09675-087-0	02	1	9002-9306			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-9306	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15414-116-1	01	1	9002-9306	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15413-731-0	01	1	9307-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15414-117-0	01	1	9002-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15413-613-0	01	1	9002-			●
121	BOLT; CLIP M6X22	0-28020-622-0	01	1	9002-9005	●		●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	01	1	9006-9503	●		●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	01	1	9504-			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9002-9306	●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9307-	●	●	●
125	CLIP; FUEL PIPE (A) ID=9.7 L=20	1-09700-878-1	01	1	9002-	●	●	●
125	CLIP; FUEL PIPE (A) ID=9.7 L=20	1-09700-878-1	01	1	9002-9306			●
125	CLIP; FUEL PIPE (B) ID=10 & 6 L=20	1-09700-404-0	01	1	9002-9503	●		●
125	CLIP; FUEL PIPE (B) ID=10 & 6 L=20	1-09700-404-0	01	1	9504-			●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9307-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	06	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	06	1	9006-9306	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	05	1	9307-9410		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	03	1	9411-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	04	1	9002-9005			●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	04	1	9006-9410			●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9411-			●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9411-		●	●
128	BRACKET; FUEL RETURN CLIP	1-22518-037-3	01	1	9002-9306	●
129	CLIP; FUEL RETURN PIPE ID=10 & 10 L=25	9-09716-114-0	01	1	9002-9306	●
130	BOLT; CLIP RETURN PIPE M6X20	0-28020-620-0	01	1	9002-9005	●
130	BOLT; CLIP RETURN PIPE M6X20 FLANGE	0-28080-620-0	01	1	9006-9306	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-185-0	01	1	9002-	●		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	01	1	9002-	●	●	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-150-1	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP (C)	1-22518-037-3	01	1	9307-		●
142	CLIP; FUEL PIPE (E) ID=10 & 6 L=20	1-09700-404-0	05	1	9002-	●		●
142	CLIP; FUEL PIPE (F) ID=10 & 6 L=20 W/NUT	1-09700-405-0	05	1	9002-	●		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	03	1	9002-9410	●	●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	03	1	9411-		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9002-9410	●	●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	03	1	9411-		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	02	1	9002-9410			●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	02	1	9411-			●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9002-9410			●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	02	1	9411-			●
142	CLIP; FUEL PIPE (E) ID=10 & 6 L=20	1-09700-404-0	04	1	9307-		●
142	CLIP; FUEL PIPE (F) ID=10 & 6 L=20 W/NUT	1-09700-405-0	04	1	9307-		●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9004	●		●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	01	1	9307-		●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-	●		●
159	BOLT; CLIP M6X22	0-28020-622-0	05	1	9002-9005	●		●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	04	1	9307-		●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	05	1	9006-	●		●
209	BOLT; EYE,FUEL FILTER INTAKE HEATER<SL2> M14X27 M10-HOLE ON HEAD	1-09675-087-0	01	1	9002-9306	●

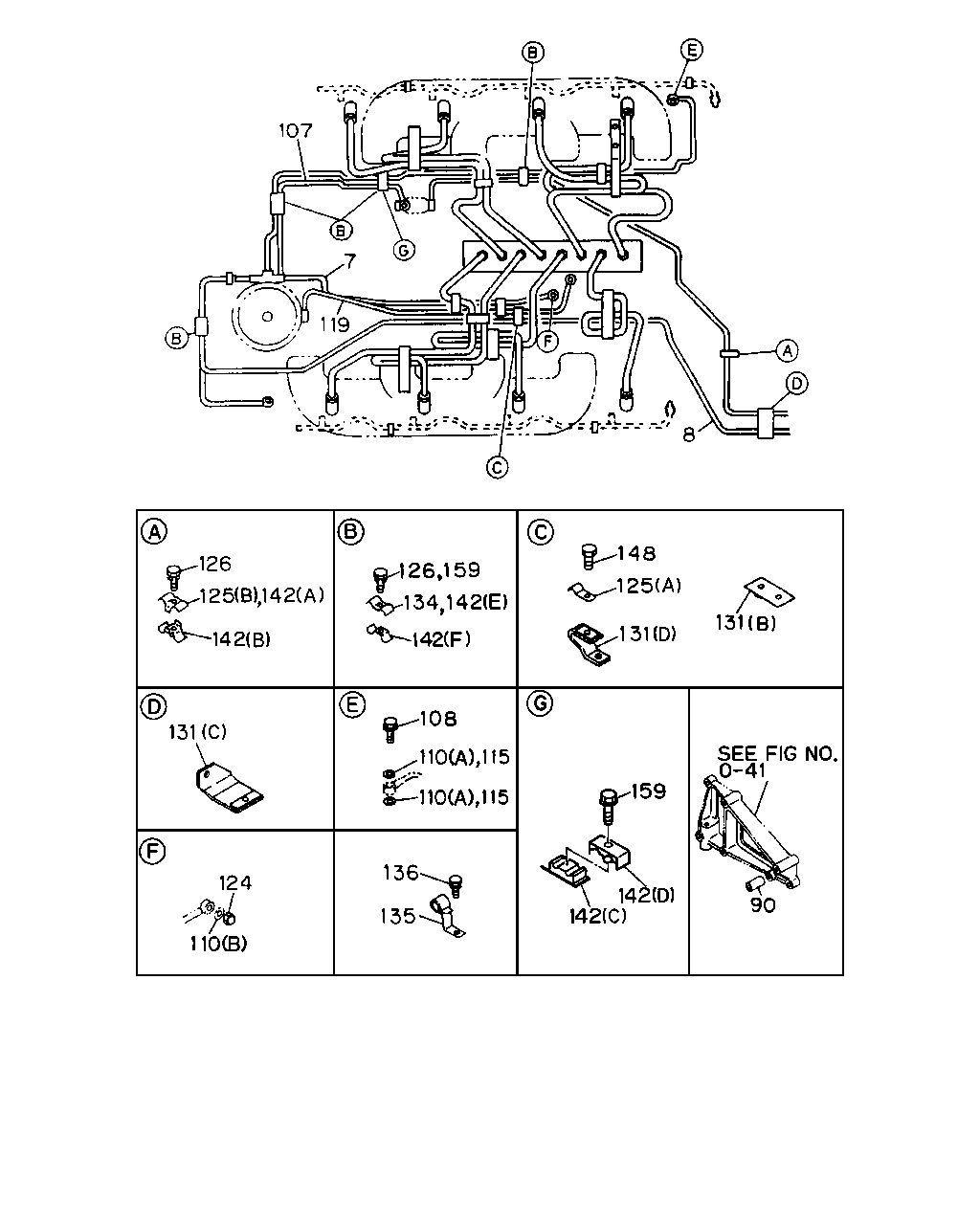

107 7 119 8 148 131 125 131 159 126 134 142 142 126 142 125 142 131 108 110 115 110 115 124 110 136 135 142 142 159 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	PIPE ASM; FUEL OVERFLOW	1-15414-115-0	01	1	9002-9306	●
7	PIPE ASM; FUEL OVERFLOW	1-15413-732-0	01	1	9307-		●
7	PIPE ASM; FUEL OVERFLOW	1-15413-614-0	01	1	9002-			●
8	PIPE ASM; FUEL OVERFLOW	1-15414-552-1	01	1	9002-9306	●
8	PIPE ASM; FUEL OVERFLOW	1-15414-542-1	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW	1-15414-550-1	01	1	9002-			●
90	TUBE; DIST	1-13219-121-0	01	1	9307-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-692-0	01	1	9002-9306	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15414-332-0	01	1	9307-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-612-0	01	1	9002-			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	01	1	9002-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-9306	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9307-		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-9306	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15414-116-1	01	1	9002-9306	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15413-731-0	01	1	9307-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15414-117-0	01	1	9002-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15413-613-0	01	1	9002-			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9002-9306	●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9307-	●	●	●
125	CLIP; FUEL PIPE (A) ID=9.7 L=20	1-09700-878-1	01	1	9002-	●	●	●
125	CLIP; FUEL PIPE (A) ID=9.7 L=20	1-09700-878-1	01	1	9002-9306			●
125	CLIP; FUEL PIPE (B) ID=10 & 6 L=20	1-09700-404-0	01	1	9002-9503	●		●
125	CLIP; FUEL PIPE (B) ID=10 & 6 L=20	1-09700-404-0	01	1	9504-			●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	9-09716-114-0	01	1	9307-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	06	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	06	1	9006-9306	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	05	1	9307-9410		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	03	1	9411-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	04	1	9002-9005			●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	04	1	9006-9410			●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9411-			●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9411-		●	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-185-0	01	1	9002-	●		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	01	1	9002-	●	●	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-150-1	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP (C)	1-22518-037-3	01	1	9307-		●
134	CLIP; FUEL FEED NOZZLE ID=10 & 6 L=20	1-09700-404-0	01	1	9307-		●
135	CLIP; HARNESS ID=11	1-09700-474-0	01	1	9307-		●
136	BOLT; HARNESS CLIP M6X22 FLANGE	0-28080-622-0	01	1	9307-		●
142	CLIP; FUEL PIPE (E) ID=10 & 6 L=20	1-09700-404-0	05	1	9002-	●		●
142	CLIP; FUEL PIPE (F) ID=10 & 6 L=20 W/NUT	1-09700-405-0	05	1	9002-	●		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	03	1	9002-9410	●	●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	03	1	9411-		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9002-9410	●	●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	03	1	9411-		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	02	1	9002-9410			●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	02	1	9411-			●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9002-9410			●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	02	1	9411-			●
142	CLIP; FUEL PIPE (E) ID=10 & 6 L=20	1-09700-404-0	04	1	9307-		●
142	CLIP; FUEL PIPE (F) ID=10 & 6 L=20 W/NUT	1-09700-405-0	04	1	9307-		●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9004	●		●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	01	1	9307-		●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-	●		●
159	BOLT; CLIP M6X22	0-28020-622-0	05	1	9002-9005	●		●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	04	1	9307-		●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	05	1	9006-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
