1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#23189) — 56 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀
[111A] RADIATOR HOSE (7 parça)

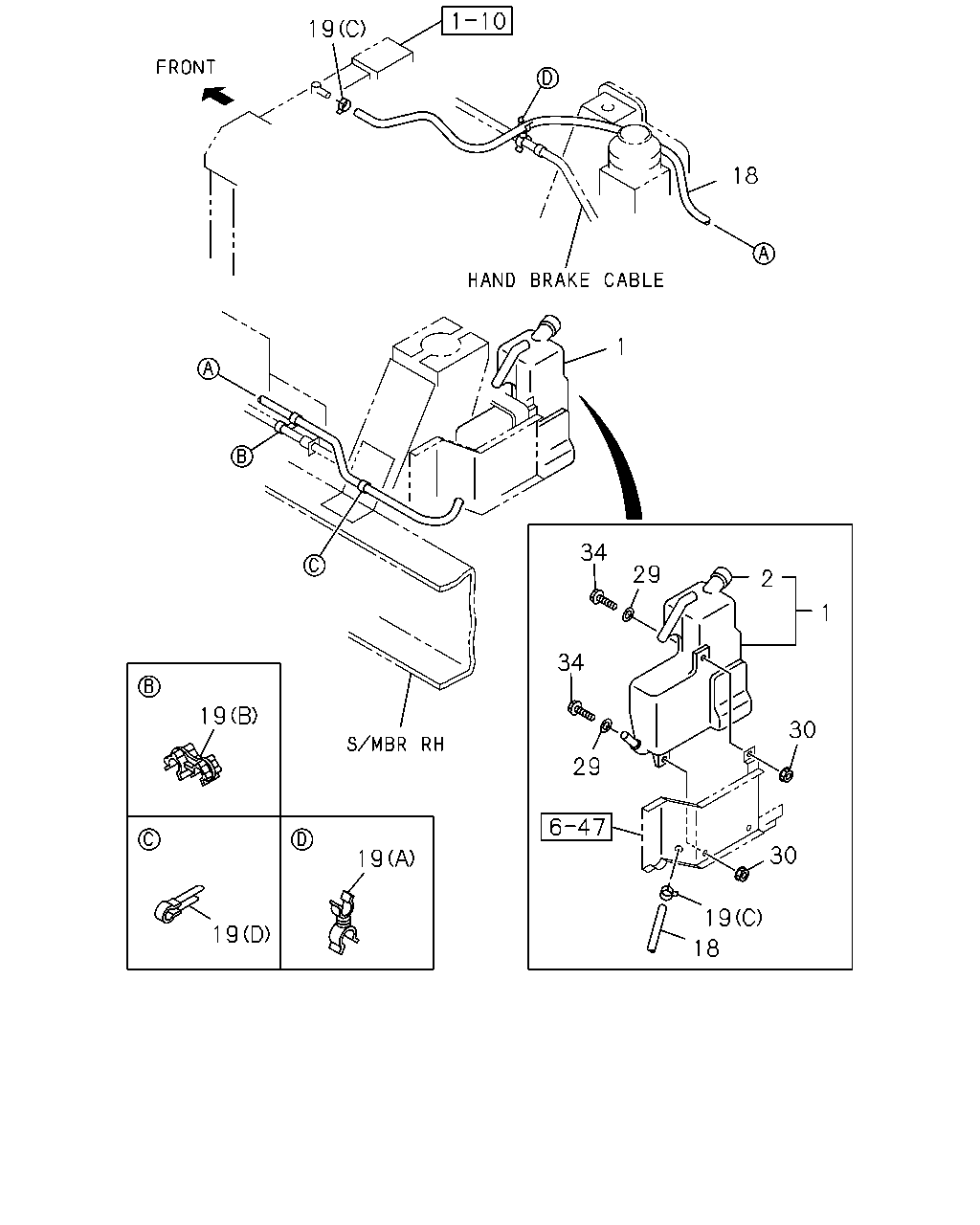

[111A] SURGE TANK;4HG1 (24 parça)

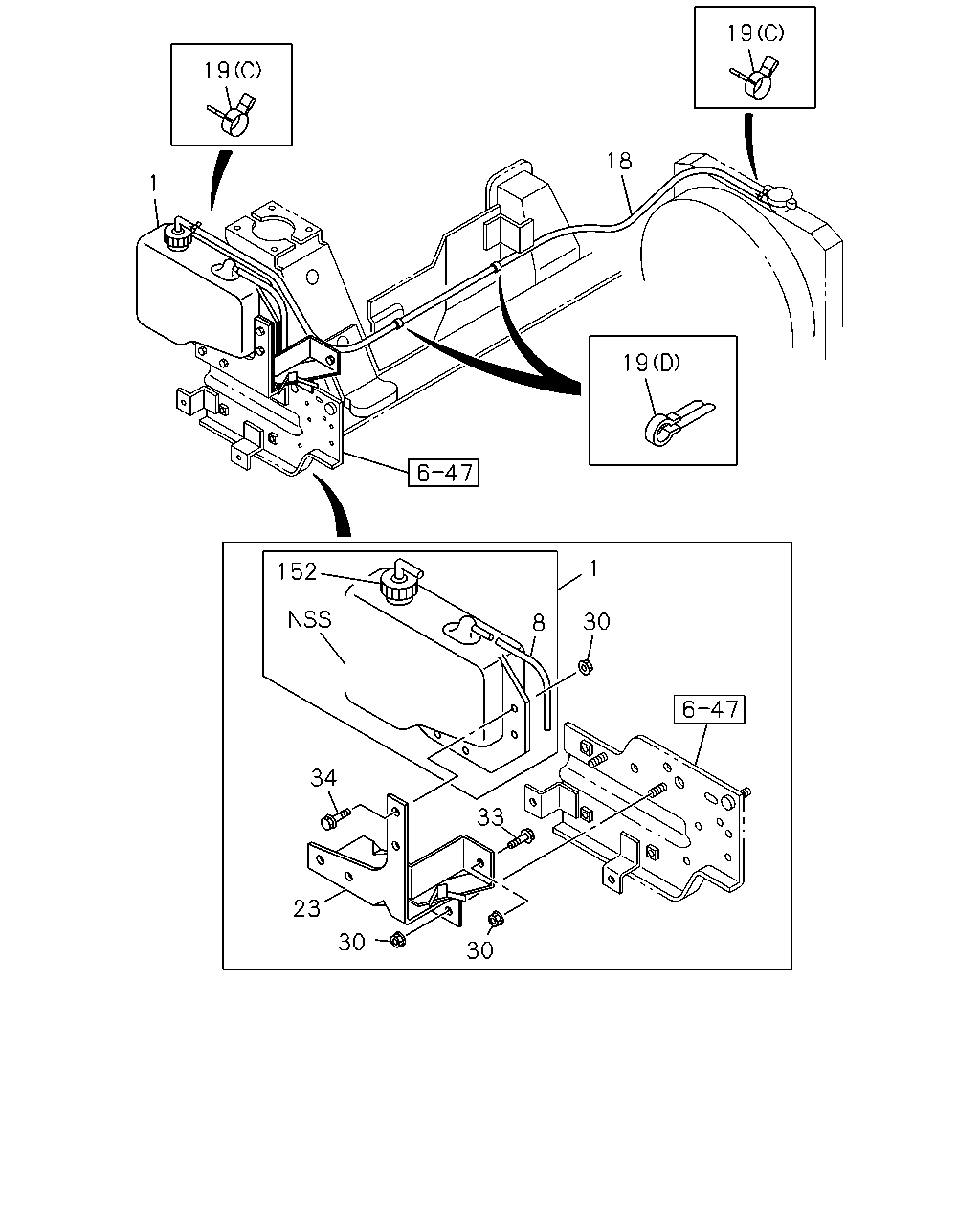

[111A] SURGE TANK;4JB1 (25 parça)
▶
56
56
128
55
56
56
56
128
56
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
55
HOSE; WATER,RAD OUTLET
4JB1-TC ENG<RDT> THA
8-97917-745-0
01
1
0508-
●
●
55
HOSE; WATER,RAD OUTLET
4HG1-T ENG<RDP> THA
8-97917-007-0
01
1
0508-
●
56
CLIP; WATER HOSE,RAD
4JB1-TC ENG<RDT> (C) ID=48
5-09704-049-0
03
1
0508-
●
●
56
CLIP; WATER HOSE,RAD
4HG1-T ENG<RDP> (A) ID=40
8-97245-216-0
02
1
0508-
●
56
CLIP; WATER HOSE,RAD
4HG1-T ENG<RDP> (B) ID=50
8-97245-217-0
01
1
0508-
●
128
HOSE; WATER,RAD INL
4JB1-TC ENG<RDT> THA
8-97917-355-0
01
1
0508-
●
●
128
HOSE; WATER,RAD INL
4HG1-T ENG<RDP> THA
8-97912-469-0
01
1
0508-
●
19
18
1
34
29
2
1
34
19
30
29
30
19
19
19
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; SURGE,RAD
4JB1-TC ENG<RDT>
8-97205-136-1
01
1
0508-
●
●
1
TANK; SURGE,RAD
4HG1-T ENG<RDP>
8-97210-844-0
01
1
0508-1010
●
1
TANK; SURGE,RAD
4HG1-T ENG<RDP>
8-98178-177-0
01
1
1011-
●
2
CAP; SURGE TANK
4HG1-T ENG<RDP>
8-97217-796-0
01
1
0508-1010
●
2
CAP; SURGE TANK
4HG1-T ENG<RDP>
8-98178-074-0
01
1
1011-
●
18
HOSE; RAD TO SURGE TANK
4JB1-TC ENG<RDT> L=1740
8-97225-444-1
01
1
0508-
●
●
18
HOSE; RAD TO SURGE TANK
4HG1-T ENG<RDP> L=1595
8-97162-125-1
01
1
0508-
●
19
CLIP; HOSE,SURGE TANK
4JB1-TC ENG<RDT> (D) ID=14 L=47
5-09700-319-0
02
1
0508-
●
●
19
CLIP; HOSE,SURGE TANK
4HG1-T ENG<RDP> EXC. POWER STEERING<N40> (D) ID=14 L=47
5-09700-319-0
02
1
0508-
●
19
CLIP; HOSE,SURGE TANK
(C) ID=12
8-94238-610-0
02
1
0508-0911
●
●
●
19
CLIP; HOSE,SURGE TANK
(C) ID=12
8-98150-358-0
02
1
0912-
●
●
●
19
CLIP; HOSE,SURGE TANK
4HG1-T ENG<RDP> POWER STEERING<N40> (D) ID=14 L=47
5-09700-319-0
01
1
0508-
●
19
CLIP; HOSE,SURGE TANK
4HG1-T ENG<RDP> POWER STEERING<N40> (B) ID=10 & 12
8-94416-613-0
01
1
0508-
●
19
CLIP; HOSE,SURGE TANK
4HG1-T ENG<RDP> POWER STEERING<N40> (A) ID=10 & 11
8-94438-996-0
01
1
0508-
●
29
WASHER; PL,RESERVE TANK
4HG1-T ENG<RDP> ID=6.4 OD=18
9-09160-706-0
03
1
0508-0605
●
29
WASHER; PL,RESERVE TANK
4HG1-T ENG<RDP> ID=6.4 OD=18
0-91610-706-0
03
1
0606-
●
30
NUT
4JB1-TC ENG<RDT> M8 FLANGE
0-91150-208-0
07
1
0508-0602
●
●
30
NUT
4JB1-TC ENG<RDT> M8 FLANGE THA
0-91180-208-0
07
1
0603-
●
●
30
NUT
4HG1-T ENG<RDP> M6 FLANGE
0-91150-106-0
03
1
0508-0605
●
30
NUT
4HG1-T ENG<RDP> M6 FLANGE THA
0-91180-106-0
03
1
0606-
●
34
BOLT; RESERVE TANK
4HG1-T ENG<RDP> M6X20 FLANGE
0-28080-620-0
03
1
0508-0512
●
34
BOLT; RESERVE TANK
4HG1-T ENG<RDP> M6X20 FLANGE
0-28050-620-0
03
1
0601-
●
34
BOLT; RESERVE TANK
4JB1-TC ENG<RDT> M8X25 FLANGE
0-28680-825-0
04
1
0508-0611
●
●
34
BOLT; RESERVE TANK
4JB1-TC ENG<RDT> M8X25 FLANGE THA
0-28650-825-0
04
1
0612-
●
●
19
19
18
1
19
1
152
30
8
34
33
23
30
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; SURGE,RAD
4JB1-TC ENG<RDT>
8-97205-136-1
01
1
0508-
●
●
1
TANK; SURGE,RAD
4HG1-T ENG<RDP>
8-97210-844-0
01
1
0508-1010
●
1
TANK; SURGE,RAD
4HG1-T ENG<RDP>
8-98178-177-0
01
1
1011-
●
8
HOSE; VINYL
4JB1-TC ENG<RDT> L=500
1-09366-179-0
01
1
0508-
●
●
18
HOSE; RAD TO SURGE TANK
4JB1-TC ENG<RDT> L=1740
8-97225-444-1
01
1
0508-
●
●
18
HOSE; RAD TO SURGE TANK
4HG1-T ENG<RDP> L=1595
8-97162-125-1
01
1
0508-
●
19
CLIP; HOSE,SURGE TANK
4JB1-TC ENG<RDT> (D) ID=14 L=47
5-09700-319-0
02
1
0508-
●
●
19
CLIP; HOSE,SURGE TANK
4HG1-T ENG<RDP> EXC. POWER STEERING<N40> (D) ID=14 L=47
5-09700-319-0
02
1
0508-
●
19
CLIP; HOSE,SURGE TANK
(C) ID=12
8-94238-610-0
02
1
0508-0911
●
●
●
19
CLIP; HOSE,SURGE TANK
(C) ID=12
8-98150-358-0
02
1
0912-
●
●
●
19
CLIP; HOSE,SURGE TANK
4HG1-T ENG<RDP> POWER STEERING<N40> (D) ID=14 L=47
5-09700-319-0
01
1
0508-
●
19
CLIP; HOSE,SURGE TANK
4HG1-T ENG<RDP> POWER STEERING<N40> (B) ID=10 & 12
8-94416-613-0
01
1
0508-
●
19
CLIP; HOSE,SURGE TANK
4HG1-T ENG<RDP> POWER STEERING<N40> (A) ID=10 & 11
8-94438-996-0
01
1
0508-
●
23
BRACKET; RESERVE TANK
4JB1-TC ENG<RDT>
8-97225-271-1
01
1
0508-
●
●
30
NUT
4JB1-TC ENG<RDT> M8 FLANGE
0-91150-208-0
07
1
0508-0602
●
●
30
NUT
4JB1-TC ENG<RDT> M8 FLANGE THA
0-91180-208-0
07
1
0603-
●
●
30
NUT
4HG1-T ENG<RDP> M6 FLANGE
0-91150-106-0
03
1
0508-0605
●
30
NUT
4HG1-T ENG<RDP> M6 FLANGE THA
0-91180-106-0
03
1
0606-
●
33
BOLT; BRKT
4JB1-TC ENG<RDT> M8X25 FLANGE
0-28680-825-0
01
1
0508-0611
●
●
33
BOLT; BRKT
4JB1-TC ENG<RDT> M8X25 FLANGE THA
0-28650-825-0
01
1
0612-
●
●
34
BOLT; RESERVE TANK
4HG1-T ENG<RDP> M6X20 FLANGE
0-28080-620-0
03
1
0508-0512
●
34
BOLT; RESERVE TANK
4HG1-T ENG<RDP> M6X20 FLANGE
0-28050-620-0
03
1
0601-
●
34
BOLT; RESERVE TANK
4JB1-TC ENG<RDT> M8X25 FLANGE
0-28680-825-0
04
1
0508-0611
●
●
34
BOLT; RESERVE TANK
4JB1-TC ENG<RDT> M8X25 FLANGE THA
0-28650-825-0
04
1
0612-
●
●
152
CAP ASM; SURGE TANK
4JB1-TC ENG<RDT>
8-97217-799-0
01
1
0508-
●
●
