Isuzu WW
▶
TRUCKS
▶
NKR
▶
51040 - NKR(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#23187) — 62 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
◀

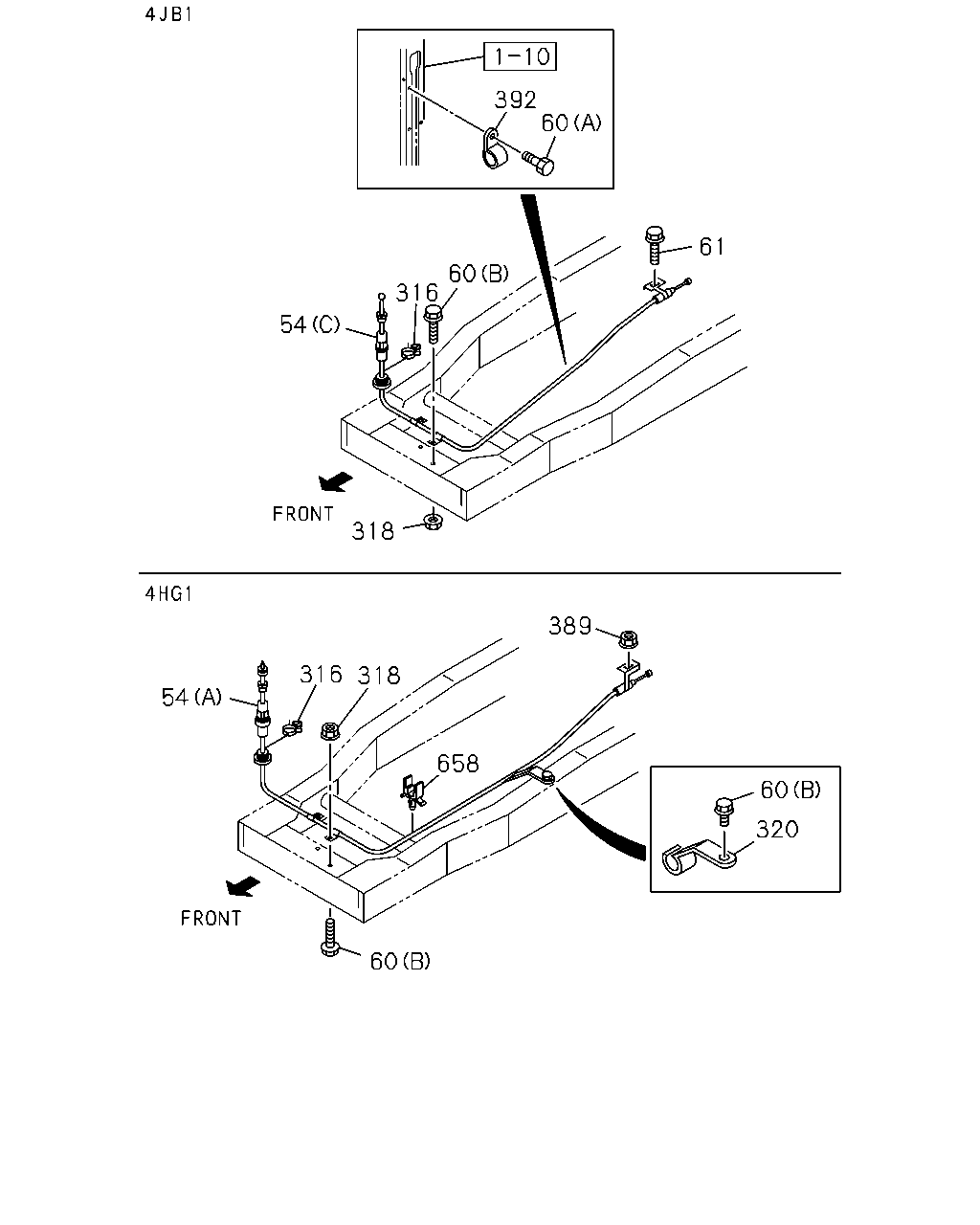

[101A] ENG CONT CABLE (24 parça)

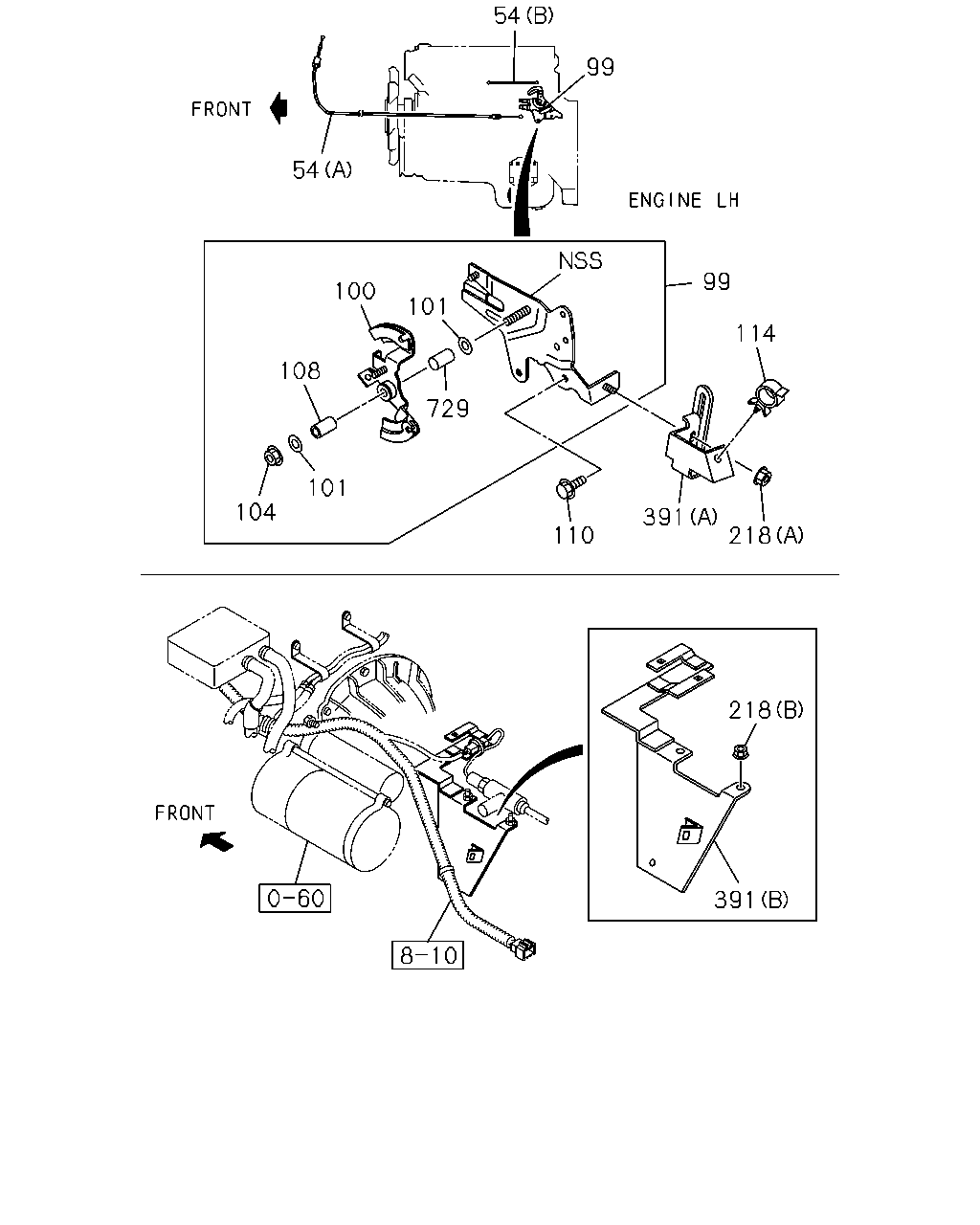

[101A] ENG CONT BRACKET (17 parça)

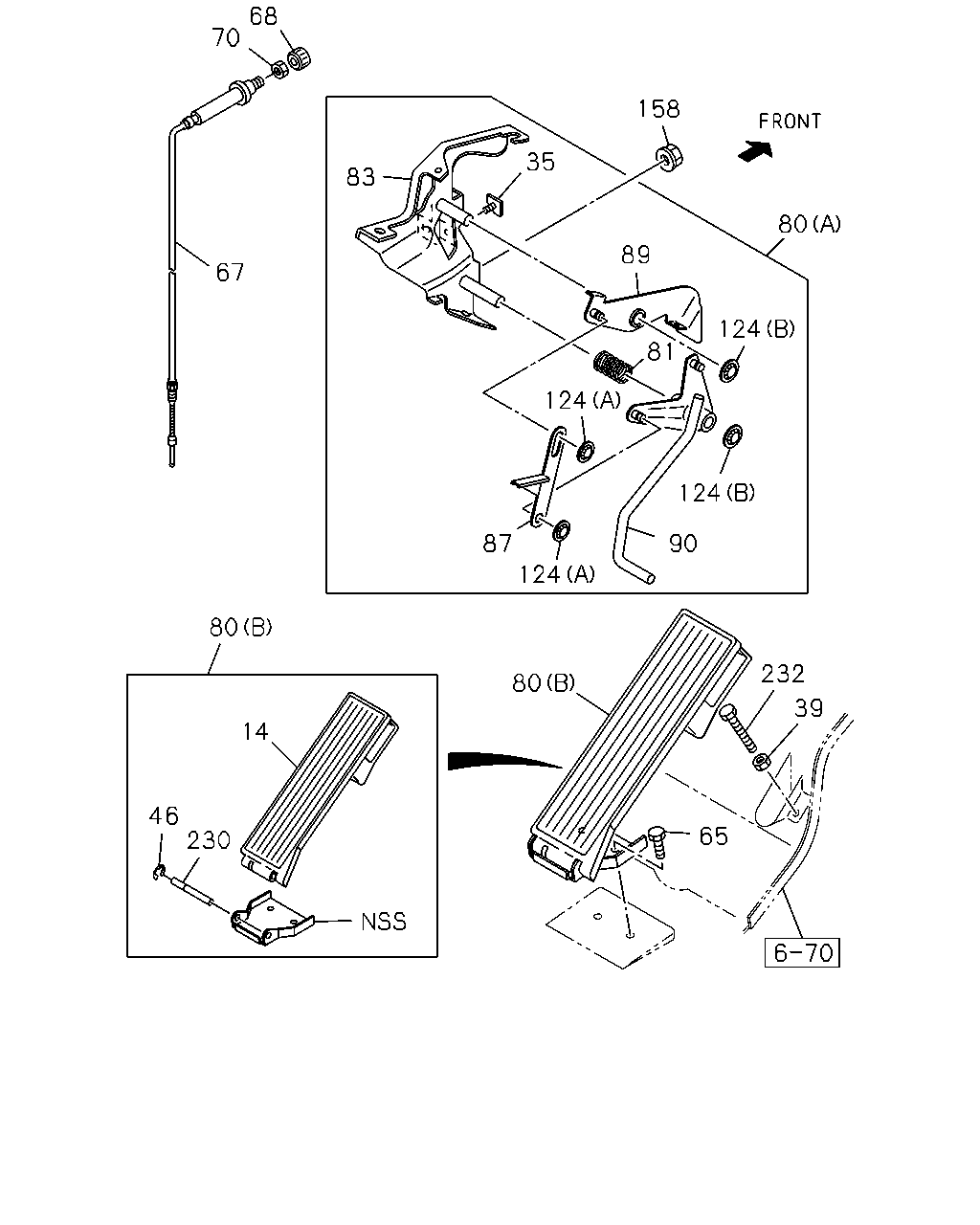

[101A] ACCEL PEDAL (21 parça)
▶
392
60
61
60
316
54
318
389
316
318
54
658
60
320
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
54
CABLE; ENG CONT
4JB1-TC ENG<RDT> (C) L=2330
8-97387-019-0
01
1
0508-
●
●
54
CABLE; ENG CONT
4HG1-T ENG<RDP> (A) L=2703
8-97071-711-5
01
1
0508-
●
54
CABLE; ENG CONT
4HG1-T ENG<RDP> (B) L=293
8-97115-730-0
01
1
0508-
●
60
BOLT; CABLE
4JB1-TC ENG<RDT> (A) M6X12 FLANGE
0-28080-612-0
01
1
0508-0611
●
●
60
BOLT; CABLE
4JB1-TC ENG<RDT> (A) M6X12 FLANGE THA
0-28050-612-0
01
1
0612-
●
●
60
BOLT; CABLE
4JB1-TC ENG<RDT> (B) M8X20 FLANGE
0-28680-820-0
02
1
0508-0611
●
●
60
BOLT; CABLE
4HG1-T ENG<RDP> (B) M8X20 FLANGE
0-28680-820-0
02
1
0508-0611
●
60
BOLT; CABLE
4JB1-TC ENG<RDT> (B) M8X20 FLANGE THA
0-28650-820-0
02
1
0612-
●
●
60
BOLT; CABLE
4HG1-T ENG<RDP> (B) M8X20 FLANGE THA
0-28650-820-0
02
1
0612-
●
60
BOLT; CABLE
4HG1-T ENG<RDP> (B) M8X20 FLANGE
0-28680-820-0
01
1
0508-0611
●
60
BOLT; CABLE
4HG1-T ENG<RDP> (B) M8X20 FLANGE THA
0-28650-820-0
01
1
0612-
●
61
BOLT; BRKT TO FRAME ENG CONT CABLE
4JB1-TC ENG<RDT> M6X12 FLANGE
0-28080-612-0
01
1
0508-0611
●
●
61
BOLT; BRKT TO FRAME ENG CONT CABLE
4JB1-TC ENG<RDT> M6X12 FLANGE THA
0-28050-612-0
01
1
0612-
●
●
316
CLIP; LAMP BRKT
ID=9 THA
5-09707-027-0
01
1
0508-
●
●
●
318
NUT; LAMP BRKT
4JB1-TC ENG<RDT> M8 W/LK WASHER
8-94327-073-0
02
1
0508-0805
●
●
318
NUT; LAMP BRKT
4HG1-T ENG<RDP> M8 W/LK WASHER
8-94327-073-0
02
1
0508-0805
●
318
NUT; LAMP BRKT
4JB1-TC ENG<RDT> M8 W/LK WASHER THA
8-97581-234-0
02
1
0806-
●
●
318
NUT; LAMP BRKT
4HG1-T ENG<RDP> M8 W/LK WASHER THA
8-97581-234-0
02
1
0806-
●
320
CLIP; FRAME
4HG1-T ENG<RDP>
8-94178-110-0
01
1
0508-
●
389
NUT; ACCEL CONT CABLE FIX
4HG1-T ENG<RDP> M6 FLANGE
0-91150-106-0
01
1
0508-0605
●
389
NUT; ACCEL CONT CABLE FIX
4HG1-T ENG<RDP> M6 FLANGE THA
0-91180-106-0
01
1
0606-
●
392
CLIP; ACCEL CONT CABLE
4JB1-TC ENG<RDT> ID=16
9-09525-552-0
01
1
0508-0606
●
●
392
CLIP; ACCEL CONT CABLE
4JB1-TC ENG<RDT> ID=16 L=28
0-95235-552-0
01
1
0607-
●
●
658
CLIP; ENG CONT CABLE
4HG1-T ENG<RDP> ID=10 H=40
8-94462-219-0
01
1
0508-
●
54
99
54
99
100
101
114
108
729
101
104
391
110
218
218
391
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
54
CABLE; ENG CONT
4JB1-TC ENG<RDT> (C) L=2330
8-97387-019-0
01
1
0508-
●
●
54
CABLE; ENG CONT
4HG1-T ENG<RDP> (A) L=2703
8-97071-711-5
01
1
0508-
●
54
CABLE; ENG CONT
4HG1-T ENG<RDP> (B) L=293
8-97115-730-0
01
1
0508-
●
99
BRACKET ASM; ENG CONT,INL MANIF
4HG1-T ENG<RDP>
8-97118-729-0
01
1
0508-
●
100
SHAFT ASM; ENG CONT
4HG1-T ENG<RDP>
8-97118-737-0
01
1
0508-
●
101
WASHER; ENG CONT
4HG1-T ENG<RDP>
8-94142-117-0
02
1
0508-
●
104
NUT; ENG CONT
4HG1-T ENG<RDP> M8 FLANGE
0-91150-108-0
01
1
0508-0602
●
104
NUT; ENG CONT
4HG1-T ENG<RDP> M8 FLANGE THA
0-91180-108-0
01
1
0603-
●
108
BUSHING; ENG CONT
4HG1-T ENG<RDP>
8-97120-004-0
01
1
0508-
●
110
BOLT; BRKT TO HANGER
4HG1-T ENG<RDP> M8X16 FLANGE
0-28080-816-0
03
1
0508-0611
●
110
BOLT; BRKT TO HANGER
4HG1-T ENG<RDP> M8X16 FLANGE THA
0-28050-816-0
03
1
0612-
●
114
CLIP; HARNESS CONNECTOR
4HG1-T ENG<RDP> ID=7-10 THA
8-94472-578-0
01
1
0508-
●
218
NUT; BRKT
4HG1-T ENG<RDP> (B) M8 FLANGE
0-91150-108-0
01
1
0508-
●
218
NUT; BRKT
M/T MYY5T<RSM> (A) M8 FLANGE
0-91150-108-0
02
1
0508-
●
391
BRACKET; ENG CONT
4HG1-T ENG<RDP> (A)
8-97172-882-0
01
1
0508-
●
391
BRACKET; ENG CONT
4HG1-T ENG<RDP> (B)
8-97357-141-0
01
1
0508-
●
729
COLLAR; JOINT
4HG1-T ENG<RDP>
8-97118-760-0
01
1
0508-
●
68
70
158
35
83
80
89
67
124
81
124
124
87
90
124
80
232
80
39
14
46
230
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
14
PAD; PEDAL,ACCEL
8-97853-062-2
01
1
0508-
●
●
●
35
STOPPER; ACCEL PEDAL
8-97302-305-0
01
1
0508-
●
●
●
39
NUT; ACCEL PEDAL STOPPER
M8
9-09110-408-0
01
1
0508-
●
●
●
46
RING; SNAP,ACCEL CONT PEDAL
ID=4
9-09185-404-0
01
1
0508-0604
●
●
●
46
RING; SNAP,ACCEL CONT PEDAL
ID=4
0-91805-504-0
01
1
0605-
●
●
●
65
BOLT
M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
0508-
●
●
●
67
CABLE ASM; IDLE CONT
L=439
8-97853-058-1
01
1
0508-
●
●
●
68
KNOB; IDLE CONT
8-97853-765-1
01
1
0508-
●
●
●
70
NUT; CONT CABLE
M18
8-97853-233-0
01
1
0508-
●
●
●
80
LINK ASM; ENG CONT
(A)
8-97853-057-9
01
1
0508-
●
●
●
80
LINK ASM; ENG CONT
(B)
8-97853-061-2
01
1
0508-
●
●
●
81
SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
0508-
●
●
●
83
BRACKET; CONT LINK
8-97853-201-4
01
1
0508-
●
●
●
87
LINK; ENG CONT
8-97853-204-1
01
1
0508-
●
●
●
89
LEVER; RELAY
8-97868-042-0
01
1
0508-
●
●
●
90
LEVER; RELAY,ENG CONT
8-97868-039-0
01
1
0508-
●
●
●
124
NUT; LEVER
(A) ID=4.9 PUSH NUT
8-94279-042-0
02
1
0508-
●
●
●
124
NUT; LEVER
(B) ID=9.9 PUSH NUT
8-97012-098-0
02
1
0508-
●
●
●
158
NUT; BRKT
M8 FLANGE
8-94279-060-0
02
1
0508-
●
●
●
230
PIN; JOINT,ACCEL PEDAL TO BRKT
8-97853-064-0
01
1
0508-
●
●
●
232
BOLT; STOPPER,ACCEL PEDAL
M8X45
8-97378-461-0
01
1
0508-
●
●
●
