◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82 - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#23183) — 187 parça

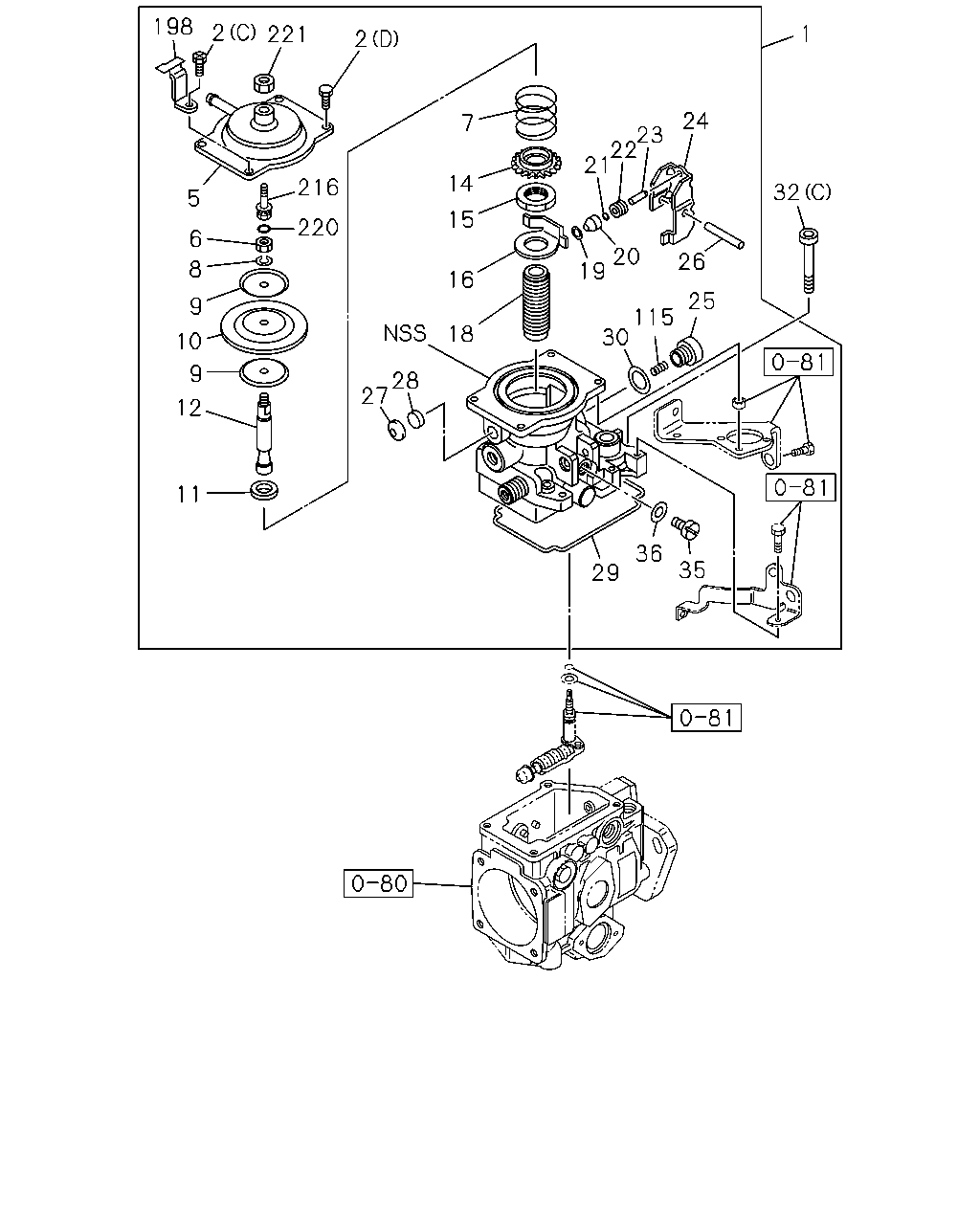

çizim 118847
198 2 1 221 2 24 7 23 22 21 14 216 32 5 15 220 6 20 19 26 8 16 25 9 115 30 18 10 9 28 27 12 11 36 35 29
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97214-459-1 01 1 -
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97231-935-0 01 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(A) ASM PART: A = 8-97178-485-5 		1-15779-202-0 02 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(D) ASM PART: B = 8-97192-330-8 		8-94313-264-0 02 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(C), M6X12 ASM PART: B = 8-97192-330-8 		8-94313-267-0 02 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(B), M6X20 ASM PART: A = 8-97178-485-5 		9-81325-187-0 01 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97178-485-5 		1-15619-283-0 01 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: B = 8-97192-330-8 		8-97214-503-0 01 1 -
6 NUT; DIAPH,BOOST COMPENSATOR
THA ASM PART: A = 8-97178-485-5, B = 8-97192-330-8 		9-88410-525-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		8-97085-017-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97185-286-0 01 1 -
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94122-725-0 01 1 -
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
ID=6.1 ASM PART: A = 8-97178-485-5 		9-09150-506-0 01 1 -
9 PLATE; DIAPH,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94122-723-0 02 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97178-485-5 		1-15712-004-0 01 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
THA ASM PART: B = 8-97192-330-8 		8-94122-724-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.70, THA ASM PART: B = 8-97192-330-8 		8-94122-729-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.90, THA ASM PART: B = 8-97192-330-8 		8-94122-730-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.10, THA ASM PART: B = 8-97192-330-8 		8-94122-731-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.30, THA ASM PART: B = 8-97192-330-8 		8-94122-732-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.50, THA ASM PART: B = 8-97192-330-8 		8-94122-733-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.70, THA ASM PART: B = 8-97192-330-8 		8-94122-734-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.90, THA ASM PART: B = 8-97192-330-8 		8-94122-735-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.10, THA ASM PART: B = 8-97192-330-8 		8-94122-736-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.30, THA ASM PART: B = 8-97192-330-8 		8-94122-737-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.70, THA ASM PART: B = 8-97192-330-8 		8-94122-738-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.90, THA ASM PART: B = 8-97192-330-8 		8-94122-739-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.10, THA ASM PART: B = 8-97192-330-8 		8-94122-740-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.30, THA ASM PART: B = 8-97192-330-8 		8-94122-741-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.50, THA ASM PART: B = 8-97192-330-8 		8-94122-742-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.80, THA ASM PART: B = 8-97192-330-8 		8-94122-743-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.00, THA ASM PART: B = 8-97192-330-8 		8-94122-744-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.20, THA ASM PART: B = 8-97192-330-8 		8-94122-745-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.40, THA ASM PART: B = 8-97192-330-8 		8-94122-746-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.60, THA ASM PART: B = 8-97192-330-8 		8-94122-747-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=3.80, THA ASM PART: B = 8-97192-330-8 		8-94122-748-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.00, THA ASM PART: B = 8-97192-330-8 		8-94122-749-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.20, THA ASM PART: B = 8-97192-330-8 		8-94122-750-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.40, THA ASM PART: B = 8-97192-330-8 		8-94122-751-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.60, THA ASM PART: B = 8-97192-330-8 		8-94122-752-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=4.80, THA ASM PART: B = 8-97192-330-8 		8-94122-753-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.00, THA ASM PART: B = 8-97192-330-8 		8-94122-754-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.20, THA ASM PART: B = 8-97192-330-8 		8-94122-755-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.40, THA ASM PART: B = 8-97192-330-8 		8-94122-756-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.50, THA ASM PART: B = 8-97192-330-8 		8-94122-757-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.60, THA ASM PART: B = 8-97192-330-8 		8-94122-758-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=1.80, THA ASM PART: B = 8-97192-330-8 		8-94169-510-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=1.90, THA ASM PART: B = 8-97192-330-8 		8-94169-511-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.00, THA ASM PART: B = 8-97192-330-8 		8-94169-512-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.10, THA ASM PART: B = 8-97192-330-8 		8-94169-513-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.20, THA ASM PART: B = 8-97192-330-8 		8-94169-514-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.30, THA ASM PART: B = 8-97192-330-8 		8-94169-515-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.40, THA ASM PART: B = 8-97192-330-8 		8-94169-516-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.50, THA ASM PART: B = 8-97192-330-8 		8-94169-517-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=2.60, THA ASM PART: B = 8-97192-330-8 		8-94169-518-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.70, THA ASM PART: B = 8-97192-330-8 		8-97046-102-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.80, THA ASM PART: B = 8-97192-330-8 		8-97046-103-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=5.90, THA ASM PART: B = 8-97192-330-8 		8-97046-104-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.00, THA ASM PART: B = 8-97192-330-8 		8-97046-105-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.10, THA ASM PART: B = 8-97192-330-8 		8-97046-106-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.20, THA ASM PART: B = 8-97192-330-8 		8-97046-107-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.30, THA ASM PART: B = 8-97192-330-8 		8-97046-108-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.40, THA ASM PART: B = 8-97192-330-8 		8-97046-109-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.50, THA ASM PART: B = 8-97192-330-8 		8-97046-110-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.60, THA ASM PART: B = 8-97192-330-8 		8-97046-111-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.70, THA ASM PART: B = 8-97192-330-8 		8-97046-112-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.80, THA ASM PART: B = 8-97192-330-8 		8-97046-113-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=6.90, THA ASM PART: B = 8-97192-330-8 		8-97046-114-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.00, THA ASM PART: B = 8-97192-330-8 		8-97046-115-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.10 ASM PART: B = 8-97192-330-8 		8-97169-970-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.20 ASM PART: B = 8-97192-330-8 		8-97169-971-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.30 ASM PART: B = 8-97192-330-8 		8-97169-972-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.40 ASM PART: B = 8-97192-330-8 		8-97169-973-0 01 1 -
11 SPACER; DIAPH,BOOST COMPENSATOR
L=7.50 ASM PART: B = 8-97192-330-8 		8-97169-974-0 01 1 -
12 PIN; ADJ,DIAPH,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-97120-314-0 01 1 -
14 NUT; DIAPH ADJ,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94122-726-0 01 1 -
15 NUT; BUSHING LK,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94122-720-0 01 1 -
16 PLATE; BUSHING,ADJ
THA ASM PART: B = 8-97192-330-8 		8-94122-719-0 01 1 -
18 BUSHING; ADJ PIN,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94151-391-0 01 1 -
19 GASKET; BUSHING,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94257-686-0 01 1 -
20 BUSHING; CONT PIN,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97218-966-0 01 1 -
21 GASKET; CONT PIN,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94257-684-0 01 1 -
22 NUT; BUSHING,CONT PIN,BOOST COMPENSATO
THA ASM PART: B = 8-97192-330-8 		8-94257-683-0 01 1 -
23 PIN; CONT,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94151-392-0 01 1 -
24 LEVER; BOOST COMPENSATOR,GOV
ASM PART: B = 8-97192-330-8 		8-97218-967-0 01 1 -
25 PLUG; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		1-15729-254-0 01 1 -
25 PLUG; HSG,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97214-502-0 01 1 -
26 PIN; CONT LEVER,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94257-693-0 01 1 -
27 PLUG; ELEMENT
THA ASM PART: B = 8-97192-330-8 		8-94151-395-0 01 1 -
28 ELEMENT; BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94159-096-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		8-97085-018-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97136-413-0 01 1 -
30 GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		1-15729-850-0 01 1 -
30 GASKET; HSG PLUG,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94144-588-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(A) ASM PART: A = 8-97178-485-5 		1-15729-251-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(C), THA ASM PART: B = 8-97192-330-8 		8-94242-298-0 04 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(B) ASM PART: A = 8-97178-485-5 		9-88410-094-0 03 1 -
35 PLUG; CONT LEVER PIN,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94257-694-0 02 1 -
36 GASKET; LEVER PIN,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		5-15729-099-0 02 1 -
115 SPRING; COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97214-505-0 01 1 -
198 BRACKET; DIAPH
ASM PART: B = 8-97192-330-8 		8-97214-507-0 01 1 -
216 SCREW; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		8-94171-179-0 01 1 -
216 SCREW; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97214-478-0 01 1 -
220 GASKET; ADJ SCREW,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-94122-761-0 01 1 -
221 NUT; ADJ SCREW LOCK,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		1-15729-006-0 01 1 -
221 NUT; ADJ SCREW LOCK,BOOST COMPENSATOR
THA ASM PART: A = 8-97178-485-5 		9-88410-525-0 01 1 -

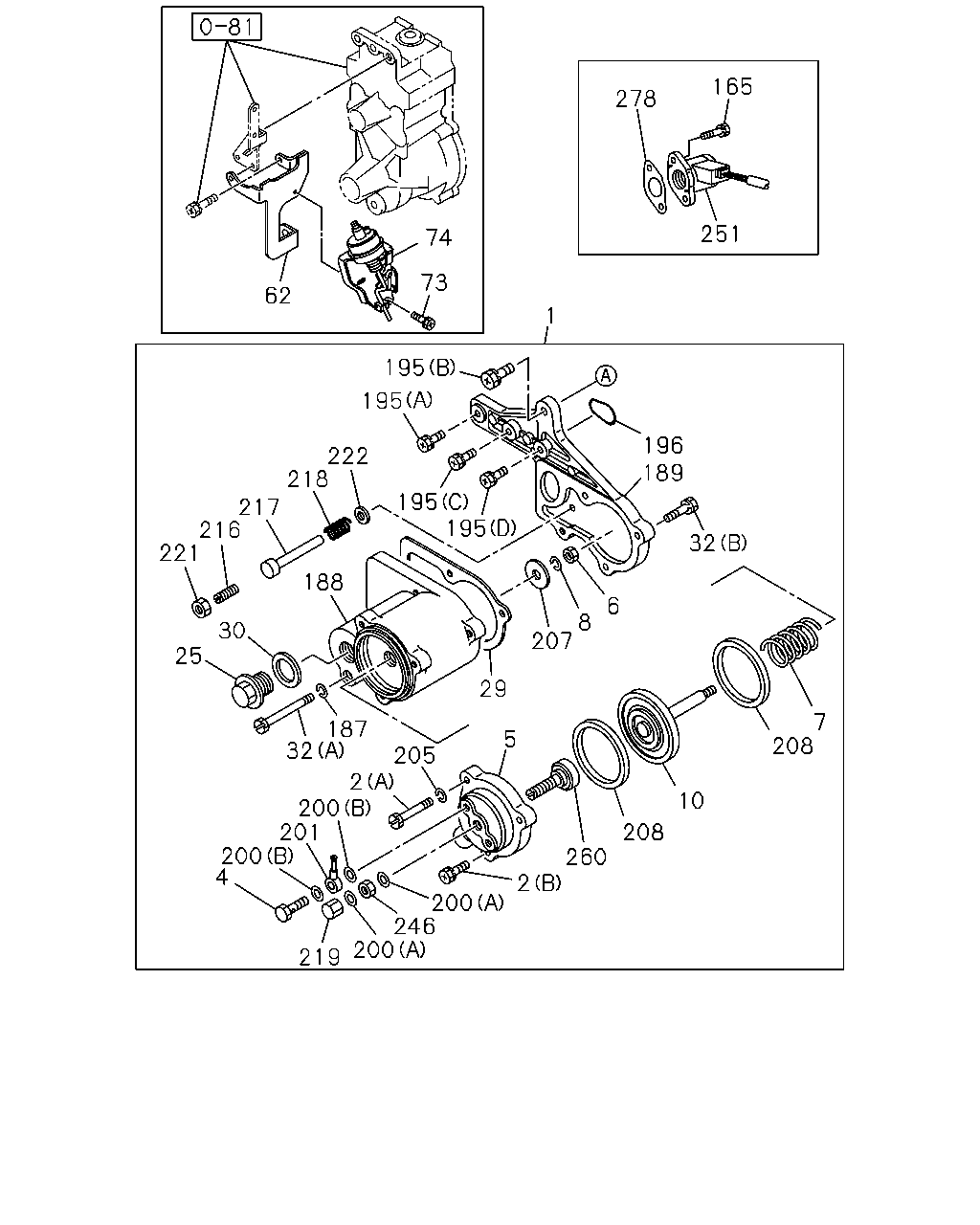

çizim 118852
165 278 251 74 73 62 1 195 196 189 222 218 217 216 221 195 32 188 6 8 207 30 25 29 7 208 187 32 5 205 2 200 201 200 4 10 208 260 2 200 246 200 219 195 195
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97214-459-1 01 1 -
1 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97231-935-0 01 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(A) ASM PART: A = 8-97178-485-5 		1-15779-202-0 02 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(D) ASM PART: B = 8-97192-330-8 		8-94313-264-0 02 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(C), M6X12 ASM PART: B = 8-97192-330-8 		8-94313-267-0 02 1 -
2 BOLT; COVER FIX,BOOST COMPENSATOR
(B), M6X20 ASM PART: A = 8-97178-485-5 		9-81325-187-0 01 1 -
4 BOLT; EYE,BOOST PIPE,COMPENSATOR
ASM PART: A = 8-97178-485-5 		1-15729-325-0 01 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97178-485-5 		1-15619-283-0 01 1 -
5 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: B = 8-97192-330-8 		8-97214-503-0 01 1 -
6 NUT; DIAPH,BOOST COMPENSATOR
THA ASM PART: A = 8-97178-485-5, B = 8-97192-330-8 		9-88410-525-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		8-97085-017-0 01 1 -
7 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97185-286-0 01 1 -
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94122-725-0 01 1 -
8 WASHER; LK,DIAPH,BOOST COMPENSATOR
ID=6.1 ASM PART: A = 8-97178-485-5 		9-09150-506-0 01 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97178-485-5 		1-15712-004-0 01 1 -
10 DIAPHRAGM; BOOST COMPENSATOR,GOV
THA ASM PART: B = 8-97192-330-8 		8-94122-724-0 01 1 -
25 PLUG; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		1-15729-254-0 01 1 -
25 PLUG; HSG,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97214-502-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		8-97085-018-0 01 1 -
29 GASKET; HSG,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97136-413-0 01 1 -
30 GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		1-15729-850-0 01 1 -
30 GASKET; HSG PLUG,BOOST COMPENSATOR
THA ASM PART: B = 8-97192-330-8 		8-94144-588-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(A) ASM PART: A = 8-97178-485-5 		1-15729-251-0 01 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(C), THA ASM PART: B = 8-97192-330-8 		8-94242-298-0 04 1 -
32 BOLT; BOOST COMPENSATOR FIX,INJ PUMP
(B) ASM PART: A = 8-97178-485-5 		9-88410-094-0 03 1 -
62 BRACKET; ACTUATOR
ASM PART: A = 8-97178-485-5 		8-97085-019-0 01 1 -
73 BOLT; ACTUATOR
ASM PART: A = 8-97178-485-5 		8-94121-627-0 02 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97037-274-4 01 1 -
165 BOLT; SENSOR
ASM PART: A = 8-97178-485-5 		1-83579-438-0 02 1 -
187 WASHER; LK,BOOST COMPENSATOR FIX
ASM PART: A = 8-97178-485-5 		8-94128-928-0 01 1 -
188 HOUSING; BOOST COMPENSATOR,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15721-163-0 01 1 -
189 SPACER; BOOST COMPENSATOR HSG
ASM PART: A = 8-97178-485-5 		1-15729-851-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(C), M6X25 ASM PART: A = 8-97178-485-5 		1-15729-242-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(B), M8X30 ASM PART: A = 8-97178-485-5 		1-15729-243-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(D) ASM PART: A = 8-97178-485-5 		9-81325-321-0 01 1 -
195 BOLT; SPACER FIX,BOOST COMPENSATOR
(A) ASM PART: A = 8-97178-485-5 		9-88410-094-0 01 1 -
196 GASKET; SPACER,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		8-94424-220-0 01 1 -
200 GASKET; EYE BOLT,BOOST COMPENSATOR
(B) ASM PART: A = 8-97178-485-5 		1-15729-849-0 02 1 -
200 GASKET; EYE BOLT,BOOST COMPENSATOR
(A) ASM PART: A = 8-97178-485-5 		1-15729-868-0 02 1 -
201 JOINT; HOSE
ASM PART: A = 8-97178-485-5 		8-94171-178-0 01 1 -
205 WASHER; LK,COVER FIX,BOOST COMPENSATOR
ID=6.1 ASM PART: A = 8-97178-485-5 		9-09150-506-0 02 1 -
207 DISC; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		1-15729-248-0 01 1 -
208 GASKET; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		1-15779-129-0 02 1 -
216 SCREW; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		8-94171-179-0 01 1 -
216 SCREW; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		8-97214-478-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=125.0 ASM PART: A = 8-97178-485-5 		1-15729-245-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=127.5 ASM PART: A = 8-97178-485-5 		8-94172-282-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=128.0 ASM PART: A = 8-97178-485-5 		8-94172-283-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=127.0 ASM PART: A = 8-97178-485-5 		8-94172-284-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=126.0 ASM PART: A = 8-97178-485-5 		8-94172-285-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=129.0 ASM PART: A = 8-97178-485-5 		8-94172-286-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=128.5 ASM PART: A = 8-97178-485-5 		8-94172-287-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=125.5 ASM PART: A = 8-97178-485-5 		8-94172-288-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=126.5 ASM PART: A = 8-97178-485-5 		8-94172-289-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=119.5 ASM PART: A = 8-97178-485-5 		8-94172-290-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=120.0 ASM PART: A = 8-97178-485-5 		8-94172-291-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=120.5 ASM PART: A = 8-97178-485-5 		8-94172-292-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=121.0 ASM PART: A = 8-97178-485-5 		8-94172-293-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=121.5 ASM PART: A = 8-97178-485-5 		8-94172-294-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=122.0 ASM PART: A = 8-97178-485-5 		8-94172-295-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=122.5 ASM PART: A = 8-97178-485-5 		8-94172-296-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=123.0 ASM PART: A = 8-97178-485-5 		8-94172-297-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=123.5 ASM PART: A = 8-97178-485-5 		8-94172-298-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=129.5 ASM PART: A = 8-97178-485-5 		8-94443-435-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=130.0 ASM PART: A = 8-97178-485-5 		8-94443-436-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=130.5 ASM PART: A = 8-97178-485-5 		8-94443-437-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=131.0 ASM PART: A = 8-97178-485-5 		8-94443-438-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=131.5 ASM PART: A = 8-97178-485-5 		8-94443-439-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=132.0 ASM PART: A = 8-97178-485-5 		8-94443-440-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=132.5 ASM PART: A = 8-97178-485-5 		8-94443-441-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=133.0 ASM PART: A = 8-97178-485-5 		8-94443-442-0 01 1 -
217 ROD; PUSH,BOOST COMPENSATOR
L=133.5 ASM PART: A = 8-97178-485-5 		8-94443-443-0 01 1 -
218 SPRING; PUSH ROD,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		8-94171-176-0 01 1 -
219 NUT; CAP,ADJ SCREW,BOOST COMPENSATOR
CAP NUT ASM PART: A = 8-97178-485-5 		1-15729-093-0 01 1 -
221 NUT; ADJ SCREW LOCK,BOOST COMPENSATOR
ASM PART: B = 8-97192-330-8 		1-15729-006-0 01 1 -
221 NUT; ADJ SCREW LOCK,BOOST COMPENSATOR
THA ASM PART: A = 8-97178-485-5 		9-88410-525-0 01 1 -
222 WASHER; PUSH ROD,BOOST COMPENSATOR
ASM PART: A = 8-97178-485-5 		1-83539-045-0 01 1 -
246 NUT; SET BOLT
THA ASM PART: A = 8-97178-485-5 		9-88410-525-0 01 1 -
251 SENSOR; RACK,GOV
ASM PART: A = 8-97178-485-5 		8-97129-636-0 01 1 -
260 SCREW; DIAPHRAGM
ASM PART: A = 8-97178-485-5 		1-15729-386-0 01 1 -
278 GASKET; SENSOR
ASM PART: A = 8-97178-485-5 		8-97121-637-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
