Sayfa 0-81 - Isuzu EPC

0-81 — GOVERNOR; INJECTION PUMP (#23182) — 346 parça

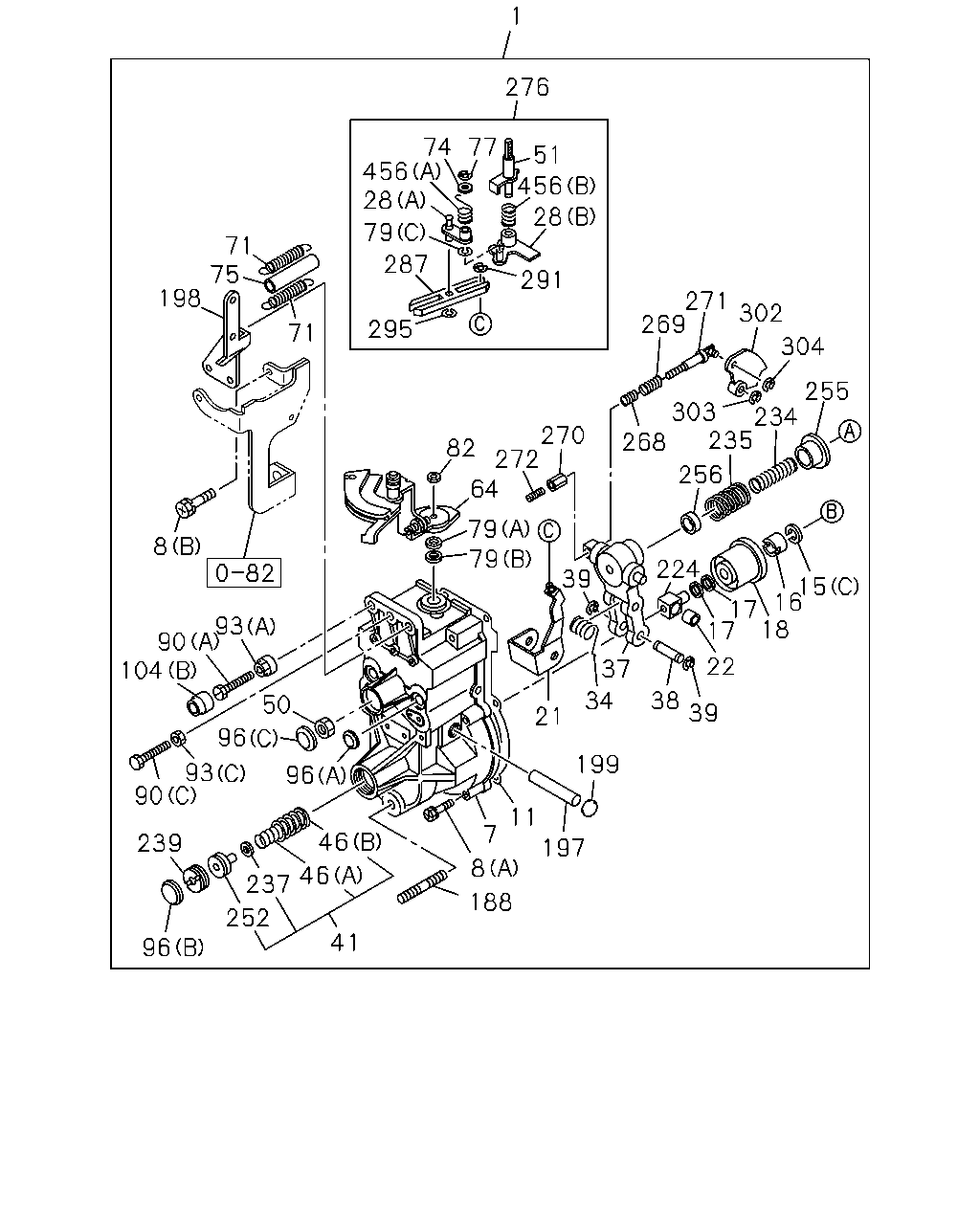

1 276 74 456 28 77 51 456 28 79 71 75 198 287 291 271 269 302 295 71 304 255 303 234 270 272 64 82 256 79 79 8 224 39 15 16 17 17 18 90 104 22 37 38 39 34 50 21 199 90 11 7 46 239 197 8 46 237 188 252 41 96 268 235 96 96 93 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5	8-97142-962-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 8-97178-485-5	1-15729-535-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97178-485-5	5-15729-033-0	05	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97178-485-5	1-15779-107-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (C) ASM PART: A = 8-97178-485-5	5-15729-034-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: B = 8-97192-330-8	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: B = 8-97192-330-8	8-94227-614-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97178-485-5	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97178-485-5	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97178-485-5	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97178-485-5	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97178-485-5	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: B = 8-97192-330-8	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: B = 8-97192-330-8	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: B = 8-97192-330-8	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: B = 8-97192-330-8	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: B = 8-97192-330-8	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: B = 8-97192-330-8	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: B = 8-97192-330-8	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: B = 8-97192-330-8	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: B = 8-97192-330-8	8-94231-126-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97178-485-5	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97178-485-5	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97178-485-5	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97178-485-5	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97178-485-5	5-15729-372-0	01	1	-
18	SLEEVE; GOV ASM PART: B = 8-97192-330-8	8-97214-475-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-97178-485-5	8-97223-398-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 8-97178-485-5	8-94368-298-1	01	1	-
28	LEVER; SUPPORTING,GOV (A) ASM PART: A = 8-97178-485-5	1-15725-472-0	01	1	-
28	LEVER; SUPPORTING,GOV (B) ASM PART: A = 8-97178-485-5	1-15725-485-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97178-485-5	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-97178-485-5	8-97214-455-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-370-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 8-97178-485-5	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97178-485-5	8-97085-009-0	01	1	-
46	SPRING; GOV,INJ PUMP (C) ASM PART: B = 8-97192-330-8	8-94473-128-0	02	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97178-485-5	8-97115-982-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97178-485-5	8-97115-983-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-147-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: B = 8-97192-330-8	8-94473-129-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-876-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97192-330-8	8-97231-938-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-97178-485-5	8-97026-934-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 042 ASM PART: B = 8-97192-330-8	8-97086-120-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 043 ASM PART: B = 8-97192-330-8	8-97086-121-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97178-485-5	8-97026-929-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: B = 8-97192-330-8	8-97214-511-0	01	1	-
74	WASHER; LEVER SPR ID=6.4 ASM PART: A = 8-97178-485-5	9-09160-506-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-963-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97178-485-5	9-88410-201-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97178-485-5	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97178-485-5	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97178-485-5	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97178-485-5	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97178-485-5	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97178-485-5	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97178-485-5	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97178-485-5	1-15729-517-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97178-485-5	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97178-485-5	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97178-485-5	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97178-485-5	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97178-485-5	8-97066-844-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97192-330-8	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97178-485-5	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (E), THA ASM PART: B = 8-97192-330-8	8-94313-253-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (D), L=53.0 ASM PART: B = 8-97192-330-8	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (D), L=55.0 ASM PART: B = 8-97192-330-8	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (D), L=57.0 ASM PART: B = 8-97192-330-8	8-94316-276-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: B = 8-97192-330-8	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: B = 8-97192-330-8	8-94426-047-1	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5	8-97026-924-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97178-485-5	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97178-485-5	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97178-485-5	8-94171-148-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (C), L=16.5 ASM PART: B = 8-97192-330-8	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=18.0 ASM PART: B = 8-97192-330-8	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=21.0 ASM PART: B = 8-97192-330-8	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=24.0 ASM PART: B = 8-97192-330-8	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=27.0 ASM PART: B = 8-97192-330-8	8-94316-266-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5	8-97085-022-0	01	1	-
188	STUD; COVER ASM PART: A = 8-97178-485-5	1-15729-790-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 8-97178-485-5	5-15725-008-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-97178-485-5	8-97085-014-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 8-97178-485-5	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-457-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-456-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97178-485-5	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97178-485-5	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97178-485-5	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5	8-94472-271-0	AR	1	-
239	SCREW; GOV ASM PART: A = 8-97178-485-5	8-94171-144-0	01	1	-
252	SCREW; GUIDE ASM PART: A = 8-97178-485-5	1-15779-003-1	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-173-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 8-97178-485-5	1-15779-214-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5	5-15723-070-1	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97178-485-5	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-97178-485-5	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97178-485-5	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-97178-485-5	1-15725-534-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-97178-485-5	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 8-97178-485-5	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: A = 8-97178-485-5	9-81325-445-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-97178-485-5	8-97214-458-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-97178-485-5	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-97178-485-5	9-09185-404-0	01	1	-
456	SPRING; LEVER,GOV (A) ASM PART: A = 8-97178-485-5	1-15723-295-0	01	1	-
456	SPRING; LEVER,GOV (B) ASM PART: A = 8-97178-485-5	8-94413-728-0	01	1	-

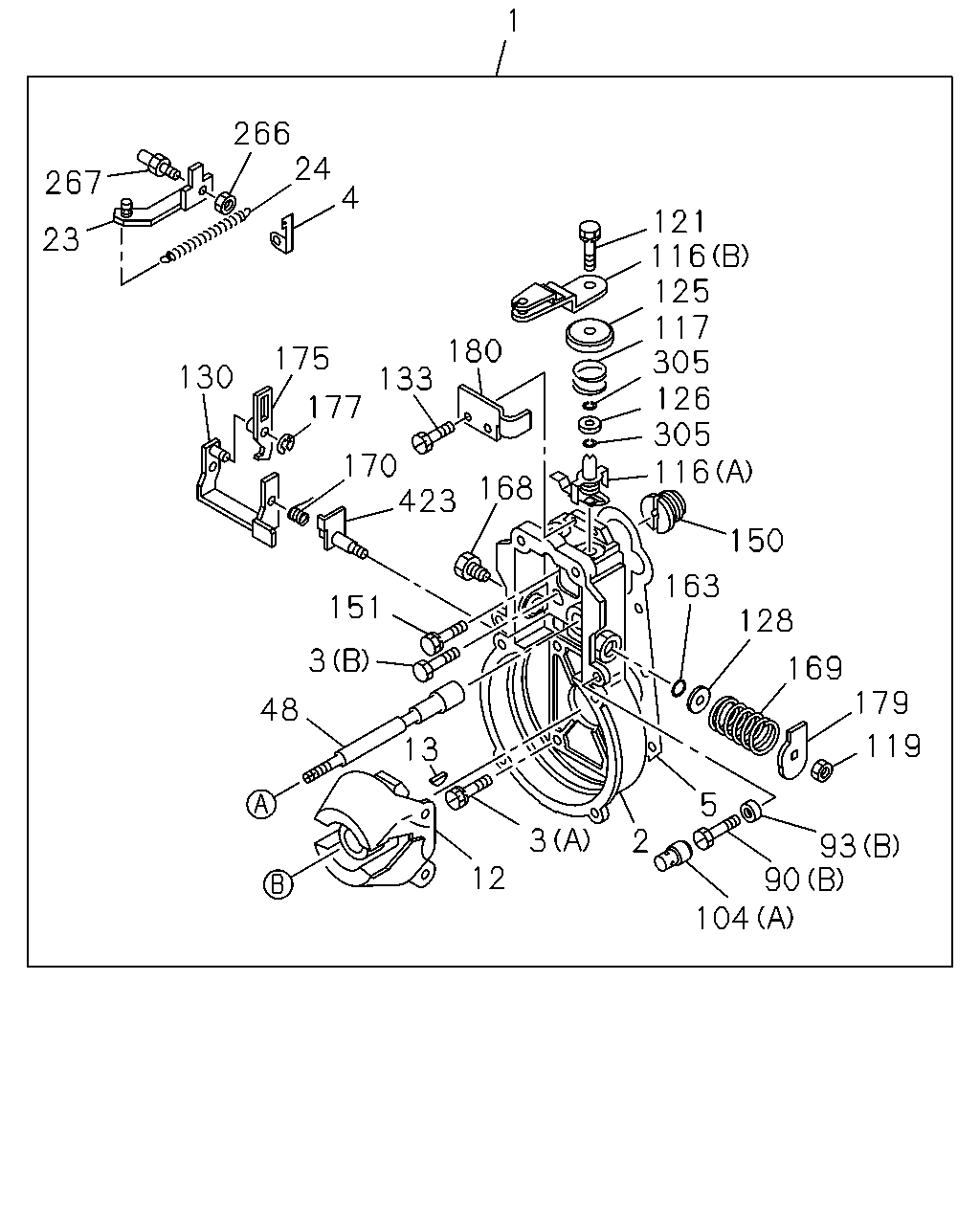

1 266 24 4 267 121 116 125 117 305 126 305 116 23 180 175 130 133 177 170 423 168 150 163 151 128 3 169 179 48 119 13 5 3 2 93 90 104 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	1-15721-265-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97178-485-5	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97178-485-5	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-97178-485-5	1-15779-591-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97178-485-5	1-15779-106-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97178-485-5	5-15722-017-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: B = 8-97192-330-8	8-94228-403-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97178-485-5	5-19619-049-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97178-485-5	1-15725-928-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97178-485-5	5-15723-035-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-146-1	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: B = 8-97192-330-8	8-94248-002-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (E), THA ASM PART: B = 8-97192-330-8	8-94313-253-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (D), L=53.0 ASM PART: B = 8-97192-330-8	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (D), L=55.0 ASM PART: B = 8-97192-330-8	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (D), L=57.0 ASM PART: B = 8-97192-330-8	8-94316-276-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: B = 8-97192-330-8	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: B = 8-97192-330-8	8-94426-047-1	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5	8-97026-924-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (C), L=16.5 ASM PART: B = 8-97192-330-8	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=18.0 ASM PART: B = 8-97192-330-8	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=21.0 ASM PART: B = 8-97192-330-8	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=24.0 ASM PART: B = 8-97192-330-8	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=27.0 ASM PART: B = 8-97192-330-8	8-94316-266-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97178-485-5	8-97121-631-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97178-485-5	8-97121-632-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 8-97178-485-5	8-94336-925-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-236-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X12 W/LK WASHER ASM PART: A = 8-97178-485-5	9-01910-612-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: A = 8-97178-485-5	8-94171-168-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-853-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 8-97178-485-5	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 8-97178-485-5	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 8-97178-485-5	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 8-97178-485-5	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 8-97178-485-5	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 8-97178-485-5	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 8-97178-485-5	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 8-97178-485-5	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 8-97178-485-5	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV ASM PART: A = 8-97178-485-5	1-15725-496-0	01	1	-
133	BOLT; BRKT FIX,GOV ASM PART: A = 8-97178-485-5	1-15729-834-0	02	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 8-97178-485-5	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97178-485-5	1-15629-859-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97178-485-5	1-15729-796-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-97178-485-5	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97178-485-5	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-97176-488-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-97178-485-5	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-97178-485-5	8-94171-132-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 8-97178-485-5	8-97121-643-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: A = 8-97178-485-5	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97178-485-5	1-15729-858-0	01	1	-
305	SHIM; STOP LEVER,GOV T=0.20 ASM PART: A = 8-97178-485-5	8-97089-308-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: A = 8-97178-485-5	8-97089-309-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: A = 8-97178-485-5	8-97089-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.60 ASM PART: A = 8-97178-485-5	8-97089-311-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.80 ASM PART: A = 8-97178-485-5	8-97089-312-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=1.00 ASM PART: A = 8-97178-485-5	9-81325-553-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5	1-15729-820-0	01	1	-

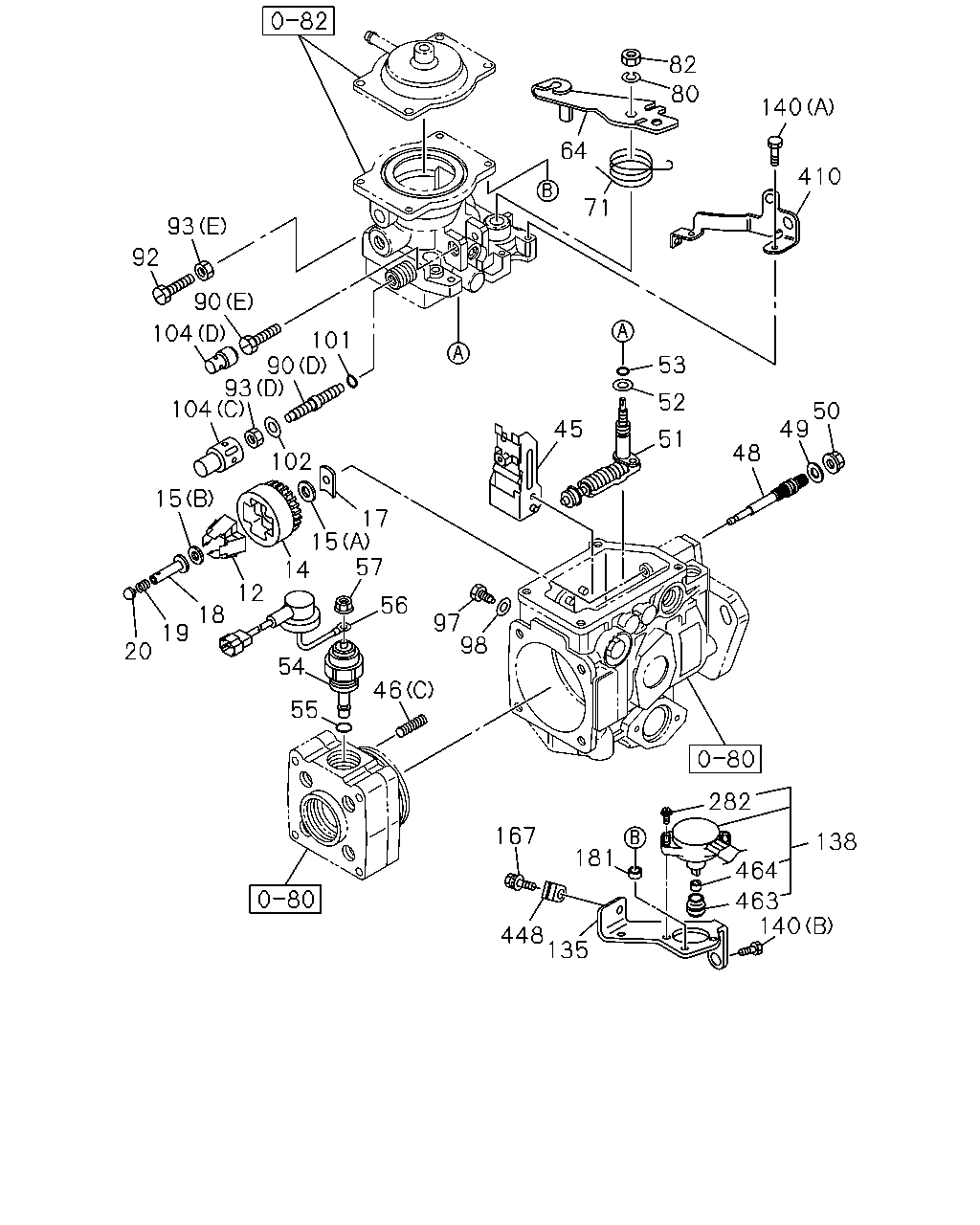

82 80 140 64 410 71 93 92 90 104 101 90 93 104 53 52 50 49 45 51 48 102 15 17 15 14 57 12 56 18 97 98 19 20 54 46 55 282 167 138 181 464 463 140 448 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97178-485-5	5-15722-017-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: B = 8-97192-330-8	8-94228-403-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: B = 8-97192-330-8	8-94227-613-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (C) ASM PART: A = 8-97178-485-5	5-15729-034-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: B = 8-97192-330-8	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: B = 8-97192-330-8	8-94227-614-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97178-485-5	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97178-485-5	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97178-485-5	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97178-485-5	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97178-485-5	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: B = 8-97192-330-8	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: B = 8-97192-330-8	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: B = 8-97192-330-8	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: B = 8-97192-330-8	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: B = 8-97192-330-8	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: B = 8-97192-330-8	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: B = 8-97192-330-8	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: B = 8-97192-330-8	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: B = 8-97192-330-8	8-94231-126-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97178-485-5	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97178-485-5	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97178-485-5	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97178-485-5	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97178-485-5	5-15729-372-0	01	1	-
18	SLEEVE; GOV ASM PART: B = 8-97192-330-8	8-97214-475-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: B = 8-97192-330-8	8-94408-519-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: B = 8-97192-330-8	8-94372-499-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: B = 8-97192-330-8	8-94372-500-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: B = 8-97192-330-8	8-94372-501-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: B = 8-97192-330-8	8-94372-502-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: B = 8-97192-330-8	8-94408-520-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: B = 8-97192-330-8	8-94408-521-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: B = 8-97192-330-8	8-94408-522-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: B = 8-97192-330-8	8-94408-523-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: B = 8-97192-330-8	8-94408-524-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: B = 8-97192-330-8	8-94408-525-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: B = 8-97192-330-8	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: B = 8-97192-330-8	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: B = 8-97192-330-8	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: B = 8-97192-330-8	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: B = 8-97192-330-8	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: B = 8-97192-330-8	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: B = 8-97192-330-8	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: B = 8-97192-330-8	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: B = 8-97192-330-8	8-94408-534-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: B = 8-97192-330-8	8-94408-535-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: B = 8-97192-330-8	8-94428-868-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: B = 8-97192-330-8	8-94428-869-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: B = 8-97192-330-8	8-94428-870-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: B = 8-97192-330-8	8-94428-871-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: B = 8-97192-330-8	8-94428-872-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: B = 8-97192-330-8	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: B = 8-97192-330-8	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: B = 8-97192-330-8	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: B = 8-97192-330-8	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: B = 8-97192-330-8	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: B = 8-97192-330-8	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: B = 8-97192-330-8	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: B = 8-97192-330-8	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: B = 8-97192-330-8	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: B = 8-97192-330-8	8-94428-882-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: B = 8-97192-330-8	8-97163-167-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: B = 8-97192-330-8	8-97163-168-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: B = 8-97192-330-8	8-97163-169-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: B = 8-97192-330-8	8-97163-170-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: B = 8-97192-330-8	8-97224-539-0	01	1	-
46	SPRING; GOV,INJ PUMP (C) ASM PART: B = 8-97192-330-8	8-94473-128-0	02	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97178-485-5	8-97115-982-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97178-485-5	8-97115-983-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-146-1	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: B = 8-97192-330-8	8-94248-002-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: B = 8-97192-330-8	8-94227-606-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97178-485-5	8-94171-147-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: B = 8-97192-330-8	8-94473-129-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97178-485-5	1-15729-876-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97192-330-8	8-97231-938-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: B = 8-97192-330-8	8-94227-590-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: B = 8-97192-330-8	8-94227-585-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: B = 8-97192-330-8	8-94242-275-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: B = 8-97192-330-8	8-94239-373-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: B = 8-97192-330-8	8-94470-582-0	01	1	-
57	NUT; VLV ASM PART: B = 8-97192-330-8	8-97138-042-1	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-97178-485-5	8-97026-934-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 042 ASM PART: B = 8-97192-330-8	8-97086-120-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 043 ASM PART: B = 8-97192-330-8	8-97086-121-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97178-485-5	8-97026-929-0	02	1	-
71	SPRING; CONT LEVER,GOV ASM PART: B = 8-97192-330-8	8-97214-511-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: B = 8-97192-330-8	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97192-330-8	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97178-485-5	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (E), THA ASM PART: B = 8-97192-330-8	8-94313-253-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (D), L=53.0 ASM PART: B = 8-97192-330-8	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (D), L=55.0 ASM PART: B = 8-97192-330-8	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (D), L=57.0 ASM PART: B = 8-97192-330-8	8-94316-276-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV THA ASM PART: B = 8-97192-330-8	8-94313-253-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: B = 8-97192-330-8	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: B = 8-97192-330-8	8-94426-047-1	02	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5	8-97026-924-0	01	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: B = 8-97192-330-8	8-94227-601-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: B = 8-97192-330-8	8-94227-602-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: B = 8-97192-330-8	8-94227-598-0	01	1	-
102	WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: B = 8-97192-330-8	8-94227-593-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (C), L=16.5 ASM PART: B = 8-97192-330-8	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=18.0 ASM PART: B = 8-97192-330-8	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=21.0 ASM PART: B = 8-97192-330-8	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=24.0 ASM PART: B = 8-97192-330-8	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (D), L=27.0 ASM PART: B = 8-97192-330-8	8-94316-266-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5	8-97085-022-0	01	1	-
135	BRACKET; POTENTIO METER ASM PART: B = 8-97192-330-8	8-97231-937-0	01	1	-
138	POTENTIO METER ASM PART: B = 8-97192-330-8	8-97214-513-0	01	1	-
140	BOLT; BRKT,INJ PUMP (B) ASM PART: B = 8-97192-330-8	8-94313-203-0	01	1	-
140	BOLT; BRKT,INJ PUMP (A), M6X12 ASM PART: B = 8-97192-330-8	8-94313-267-0	01	1	-
167	BOLT; PLATE ASM PART: B = 8-97192-330-8	8-94174-987-0	01	1	-
181	SPACER; BRKT ASM PART: B = 8-97192-330-8	8-97214-506-0	02	1	-
282	SCREW; POTENTIO METER ASM PART: B = 8-97192-330-8	8-97148-143-0	02	1	-
410	BRACKET; GOV ASM PART: B = 8-97192-330-8	8-97231-936-0	01	1	-
448	PLATE; BRKT ASM PART: B = 8-97192-330-8	8-97182-233-0	01	1	-
463	BOOT; POTENTIO METER ASM PART: B = 8-97192-330-8	8-97148-144-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=15 DEGREES ASM PART: B = 8-97192-330-8	8-97168-229-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=30 DEGREES ASM PART: B = 8-97192-330-8	8-97168-230-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=45 DEGREES ASM PART: B = 8-97192-330-8	8-97168-231-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=60 DEGREES ASM PART: B = 8-97192-330-8	8-97168-232-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=75 DEGREES ASM PART: B = 8-97192-330-8	8-97168-233-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=90 DEGREES ASM PART: B = 8-97192-330-8	8-97214-514-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=105 DEGREES ASM PART: B = 8-97192-330-8	8-97214-515-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=120 DEGREES ASM PART: B = 8-97192-330-8	8-97214-516-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=135 DEGREES ASM PART: B = 8-97192-330-8	8-97214-517-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=150 DEGREES ASM PART: B = 8-97192-330-8	8-97214-518-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=165 DEGREES ASM PART: B = 8-97192-330-8	8-97214-519-0	01	1	-
464	JOINT; POTENTIO METER ANGLE=0 DEGREES ASM PART: B = 8-97192-330-8	8-97214-520-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
