0-80 — INJECTION PUMP (#23181) — 265 parça

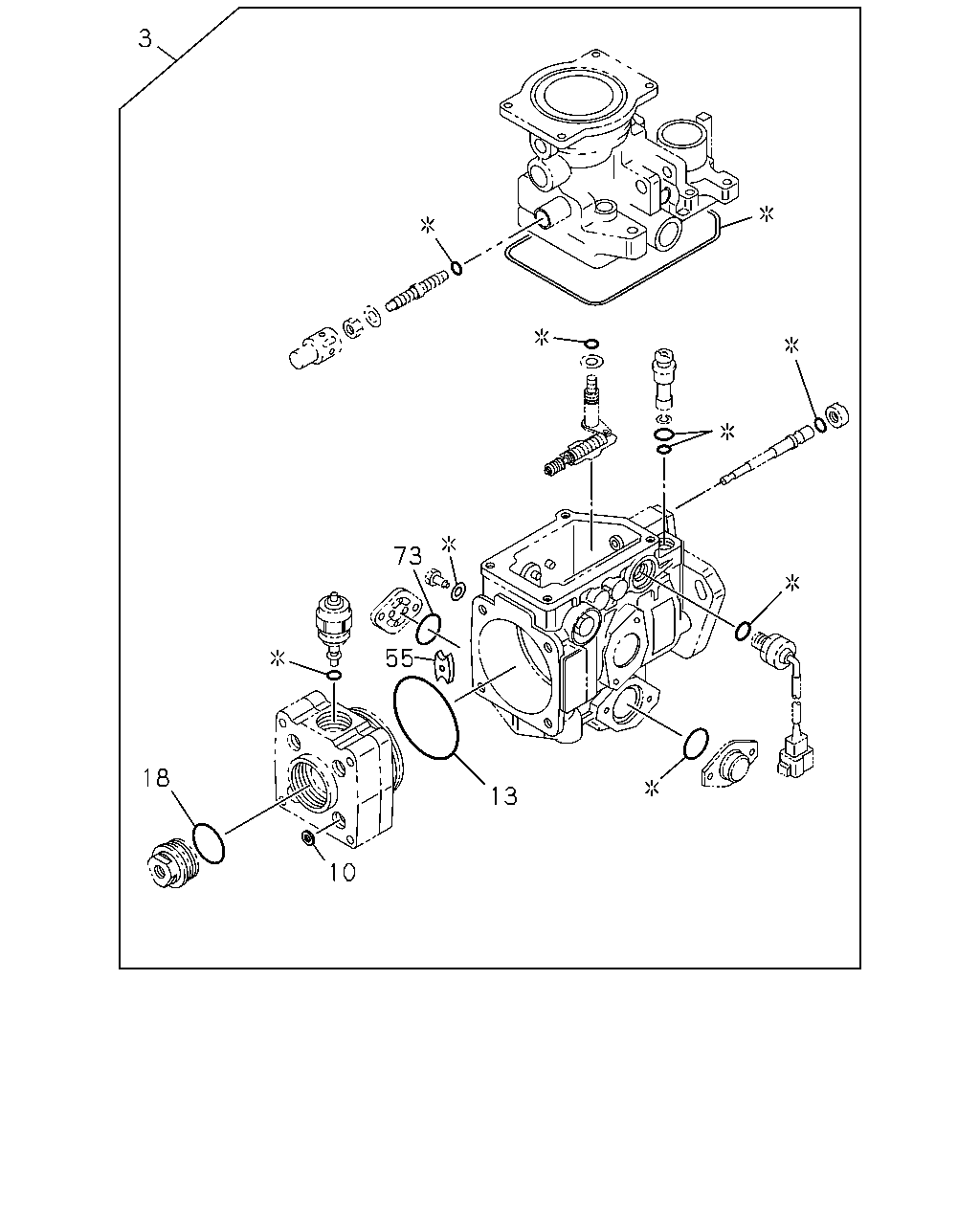

çizim 118844
3 73 55 18 13 10
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; FUEL INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97383-766-0 01 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94247-716-0 04 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97178-485-5 		9-81245-018-0 04 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-527-0 01 1 -
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97224-536-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-637-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94169-528-0 02 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 8-97178-485-5 		8-94386-596-0 01 1 -
73 GASKET; COVER TO HSG
ASM PART: B = 8-97192-330-8 		8-97383-765-0 01 1 -

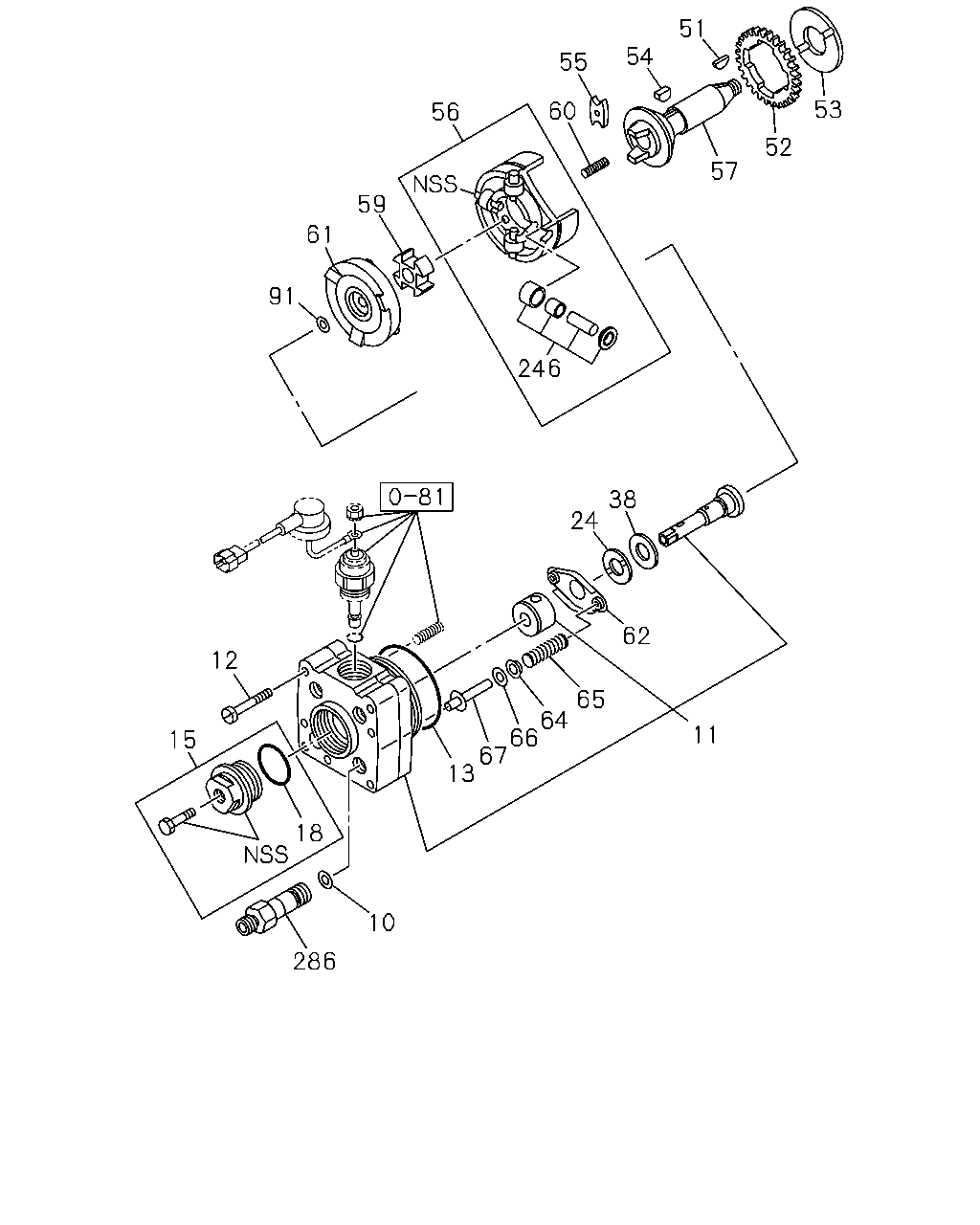

çizim 118845
51 54 55 53 60 56 52 57 59 61 91 246 38 24 62 12 65 64 66 67 13 11 15 18 10 286
BalonParca AdiParca NoAdetTipApplied Date
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94247-716-0 04 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97178-485-5 		9-81245-018-0 04 1 -
11 HEAD ASM; DISTR,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97214-499-0 01 1 -
12 SCREW; DISTR HD,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94257-670-0 04 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-527-0 01 1 -
15 PLUG ASM; DISTR,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97231-942-0 01 1 -
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97224-536-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-637-0 01 1 -
24 WASHER; PLUNGER,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-515-0 01 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-514-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-009-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94239-370-0 01 1 -
52 GEAR; GOV DRIVE,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-483-0 01 1 -
53 WASHER; GOV DRIVE GEAR,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94317-488-0 01 1 -
54 KEY; FEED PUMP,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-481-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94169-528-0 02 1 -
56 ROLLER ASM; TIMER,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97224-529-0 01 1 -
57 SHAFT; DRIVE,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97217-211-0 01 1 -
59 DISC; DRIVE,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97144-349-1 01 1 -
60 SPRING; DRIVE DISC,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97214-524-0 01 1 -
61 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97214-495-0 01 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15639-022-0 04 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-516-1 01 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-125-0 04 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-517-0 02 1 -
65 SPRING KIT; PLUNGER,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97214-522-0 01 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.50 ASM PART: B = 8-97192-330-8 		8-94227-518-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.80 ASM PART: B = 8-97192-330-8 		8-94227-519-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.00 ASM PART: B = 8-97192-330-8 		8-94227-520-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.20 ASM PART: B = 8-97192-330-8 		8-94227-521-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.50 ASM PART: B = 8-97192-330-8 		8-94227-522-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.80 ASM PART: B = 8-97192-330-8 		8-94227-523-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.00 ASM PART: B = 8-97192-330-8 		8-94227-524-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.90 ASM PART: B = 8-97192-330-8 		8-94433-204-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.10 ASM PART: B = 8-97192-330-8 		8-94433-205-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.30 ASM PART: B = 8-97192-330-8 		8-94433-206-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.40 ASM PART: B = 8-97192-330-8 		8-94433-207-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.60 ASM PART: B = 8-97192-330-8 		8-94433-208-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.70 ASM PART: B = 8-97192-330-8 		8-94433-209-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.40 ASM PART: B = 8-97192-330-8 		8-97146-139-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.60 ASM PART: B = 8-97192-330-8 		8-97146-140-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.70 ASM PART: B = 8-97192-330-8 		8-97146-141-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.90 ASM PART: B = 8-97192-330-8 		8-97146-142-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.10 ASM PART: B = 8-97192-330-8 		8-97189-360-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.20 ASM PART: B = 8-97192-330-8 		8-97189-361-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.30 ASM PART: B = 8-97192-330-8 		8-97189-362-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.40 ASM PART: B = 8-97192-330-8 		8-97189-363-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.50 ASM PART: B = 8-97192-330-8 		8-97189-364-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.60 ASM PART: B = 8-97192-330-8 		8-97189-365-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.70 ASM PART: B = 8-97192-330-8 		8-97189-366-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.80 ASM PART: B = 8-97192-330-8 		8-97189-367-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.90 ASM PART: B = 8-97192-330-8 		8-97189-368-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.00 ASM PART: B = 8-97192-330-8 		8-97189-369-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.10 ASM PART: B = 8-97192-330-8 		8-97189-370-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.20 ASM PART: B = 8-97192-330-8 		8-97189-371-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.30 ASM PART: B = 8-97192-330-8 		8-97189-372-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.40 ASM PART: B = 8-97192-330-8 		8-97189-373-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.20 ASM PART: B = 8-97192-330-8 		8-97189-374-0 AR 1 -
67 PIN; GUIDE,PLUNGER SPRING
ASM PART: B = 8-97192-330-8 		8-97328-703-0 02 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.74 ASM PART: B = 8-97192-330-8 		8-94111-658-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.76 ASM PART: B = 8-97192-330-8 		8-94111-659-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.78 ASM PART: B = 8-97192-330-8 		8-94111-660-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.80 ASM PART: B = 8-97192-330-8 		8-94111-661-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.82 ASM PART: B = 8-97192-330-8 		8-94111-662-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.84 ASM PART: B = 8-97192-330-8 		8-94111-663-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.86 ASM PART: B = 8-97192-330-8 		8-94111-664-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.88 ASM PART: B = 8-97192-330-8 		8-94111-665-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.90 ASM PART: B = 8-97192-330-8 		8-94227-528-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.92 ASM PART: B = 8-97192-330-8 		8-94227-529-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.94 ASM PART: B = 8-97192-330-8 		8-94227-530-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.96 ASM PART: B = 8-97192-330-8 		8-94227-531-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.98 ASM PART: B = 8-97192-330-8 		8-94227-532-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.00 ASM PART: B = 8-97192-330-8 		8-94227-533-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.02 ASM PART: B = 8-97192-330-8 		8-94227-534-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.04 ASM PART: B = 8-97192-330-8 		8-94227-535-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.06 ASM PART: B = 8-97192-330-8 		8-94227-536-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.08 ASM PART: B = 8-97192-330-8 		8-94227-537-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.10 ASM PART: B = 8-97192-330-8 		8-94227-538-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.12 ASM PART: B = 8-97192-330-8 		8-94227-539-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.14 ASM PART: B = 8-97192-330-8 		8-94227-540-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.16 ASM PART: B = 8-97192-330-8 		8-94227-541-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.18 ASM PART: B = 8-97192-330-8 		8-94227-542-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.20 ASM PART: B = 8-97192-330-8 		8-94227-543-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.22 ASM PART: B = 8-97192-330-8 		8-94227-544-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.24 ASM PART: B = 8-97192-330-8 		8-94227-545-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.26 ASM PART: B = 8-97192-330-8 		8-94227-546-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.28 ASM PART: B = 8-97192-330-8 		8-94227-547-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.30 ASM PART: B = 8-97192-330-8 		8-94227-548-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.32 ASM PART: B = 8-97192-330-8 		8-94227-549-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.34 ASM PART: B = 8-97192-330-8 		8-94227-550-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.36 ASM PART: B = 8-97192-330-8 		8-94227-551-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.38 ASM PART: B = 8-97192-330-8 		8-94227-552-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.40 ASM PART: B = 8-97192-330-8 		8-94227-553-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.42 ASM PART: B = 8-97192-330-8 		8-94227-554-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.44 ASM PART: B = 8-97192-330-8 		8-94227-555-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.46 ASM PART: B = 8-97192-330-8 		8-94227-556-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.48 ASM PART: B = 8-97192-330-8 		8-94227-557-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.50 ASM PART: B = 8-97192-330-8 		8-94227-558-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.52 ASM PART: B = 8-97192-330-8 		8-94227-559-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.54 ASM PART: B = 8-97192-330-8 		8-94227-560-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.56 ASM PART: B = 8-97192-330-8 		8-94227-561-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.58 ASM PART: B = 8-97192-330-8 		8-94227-562-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.60 ASM PART: B = 8-97192-330-8 		8-94227-563-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.62 ASM PART: B = 8-97192-330-8 		8-94227-564-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.64 ASM PART: B = 8-97192-330-8 		8-94227-565-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.66 ASM PART: B = 8-97192-330-8 		8-94227-566-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.68 ASM PART: B = 8-97192-330-8 		8-94227-567-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.70 ASM PART: B = 8-97192-330-8 		8-94227-568-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.72 ASM PART: B = 8-97192-330-8 		8-94227-569-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.74 ASM PART: B = 8-97192-330-8 		8-94227-570-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.76 ASM PART: B = 8-97192-330-8 		8-94227-571-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.78 ASM PART: B = 8-97192-330-8 		8-94227-572-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.80 ASM PART: B = 8-97192-330-8 		8-94227-573-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.82 ASM PART: B = 8-97192-330-8 		8-94227-574-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.84 ASM PART: B = 8-97192-330-8 		8-94227-575-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.86 ASM PART: B = 8-97192-330-8 		8-94227-576-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.88 ASM PART: B = 8-97192-330-8 		8-94227-577-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.90 ASM PART: B = 8-97192-330-8 		8-94227-578-0 AR 1 -
246 ROLLER KIT; INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97218-980-0 01 1 -
286 VALVE; PRESSURE,CONT
ASM PART: B = 8-97192-330-8 		8-97227-581-1 04 1 -

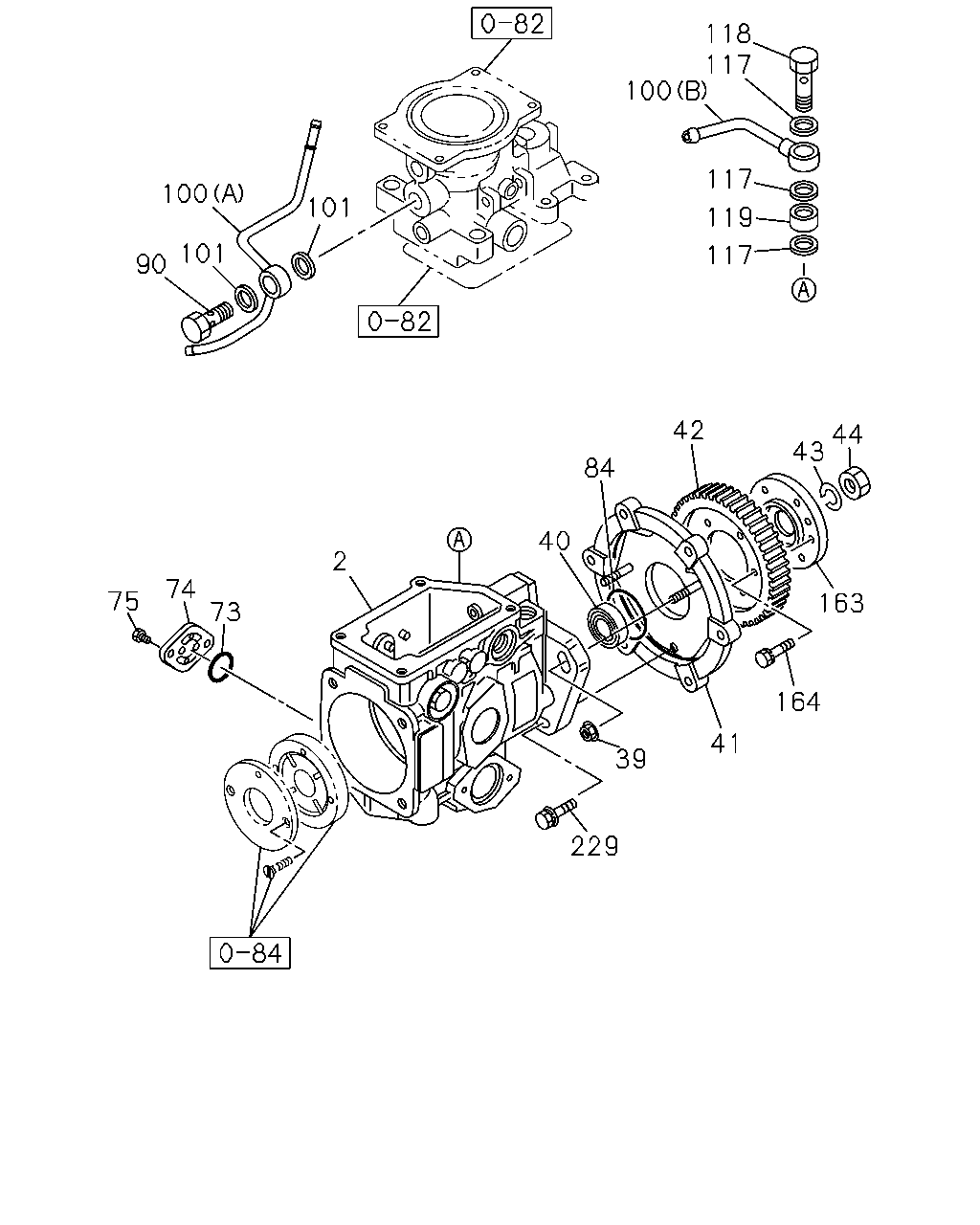

çizim 118848
118 117 100 117 100 101 119 101 117 90 42 44 43 84 40 2 74 75 163 73 164 41 39 229
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING ASM; PUMP,FUEL INJ
ASM PART: B = 8-97192-330-8 		8-97231-939-0 01 1 -
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97224-536-0 01 1 -
39 NUT; MTG BRKT FIX
ASM PART: B = 8-97192-330-8 		8-97119-344-0 02 1 -
40 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97147-034-0 01 1 -
41 BRACKET; INJ PUMP HSG
ASM PART: B = 8-97192-330-8 		8-97214-512-1 01 1 -
42 GEAR; DRIVE,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97229-619-0 01 1 -
43 WASHER; LK,DRIVE GEAR,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94226-554-0 01 1 -
44 NUT; DRIVE GEAR FIX,INJ PUMP
M14 ASM PART: B = 8-97192-330-8 		8-94226-565-0 01 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 8-97178-485-5 		8-94386-596-0 01 1 -
73 GASKET; COVER TO HSG
ASM PART: B = 8-97192-330-8 		8-97383-765-0 01 1 -
74 COVER; HSG,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-94171-109-0 01 1 -
74 COVER; HSG,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97231-934-0 01 1 -
75 SCREW; COVER TO HSG
ASM PART: A = 8-97178-485-5 		1-15619-003-0 02 1 -
75 SCREW; COVER TO HSG
ASM PART: B = 8-97192-330-8 		8-97231-933-0 02 1 -
84 GASKET; BRKT TO HSG
ASM PART: B = 8-97192-330-8 		8-94247-722-0 01 1 -
90 VALVE; OVERFLOW,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97214-509-0 01 1 -
100 PIPE; FUEL INJ PUMP
(B) ASM PART: B = 8-97192-330-8 		8-97102-545-1 01 1 -
100 PIPE; FUEL INJ PUMP
(A) ASM PART: B = 8-97192-330-8 		8-97214-510-0 01 1 -
101 GASKET; OVERFLOW VLV,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97249-545-0 02 1 -
117 GASKET; EYE BOLT,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97249-545-0 03 1 -
118 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97330-001-0 01 1 -
119 SPACER; FUEL INL,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-662-0 01 1 -
163 COUPLING; INJ PUMP
THA ASM PART: B = 8-97192-330-8 		8-94227-337-1 01 1 -
164 BOLT; GEAR TO COUPLING
M6X18 ASM PART: B = 8-97192-330-8 		9-01910-618-0 06 1 -
229 BOLT; BRKT
ASM PART: B = 8-97192-330-8 		8-97049-904-0 01 1 -

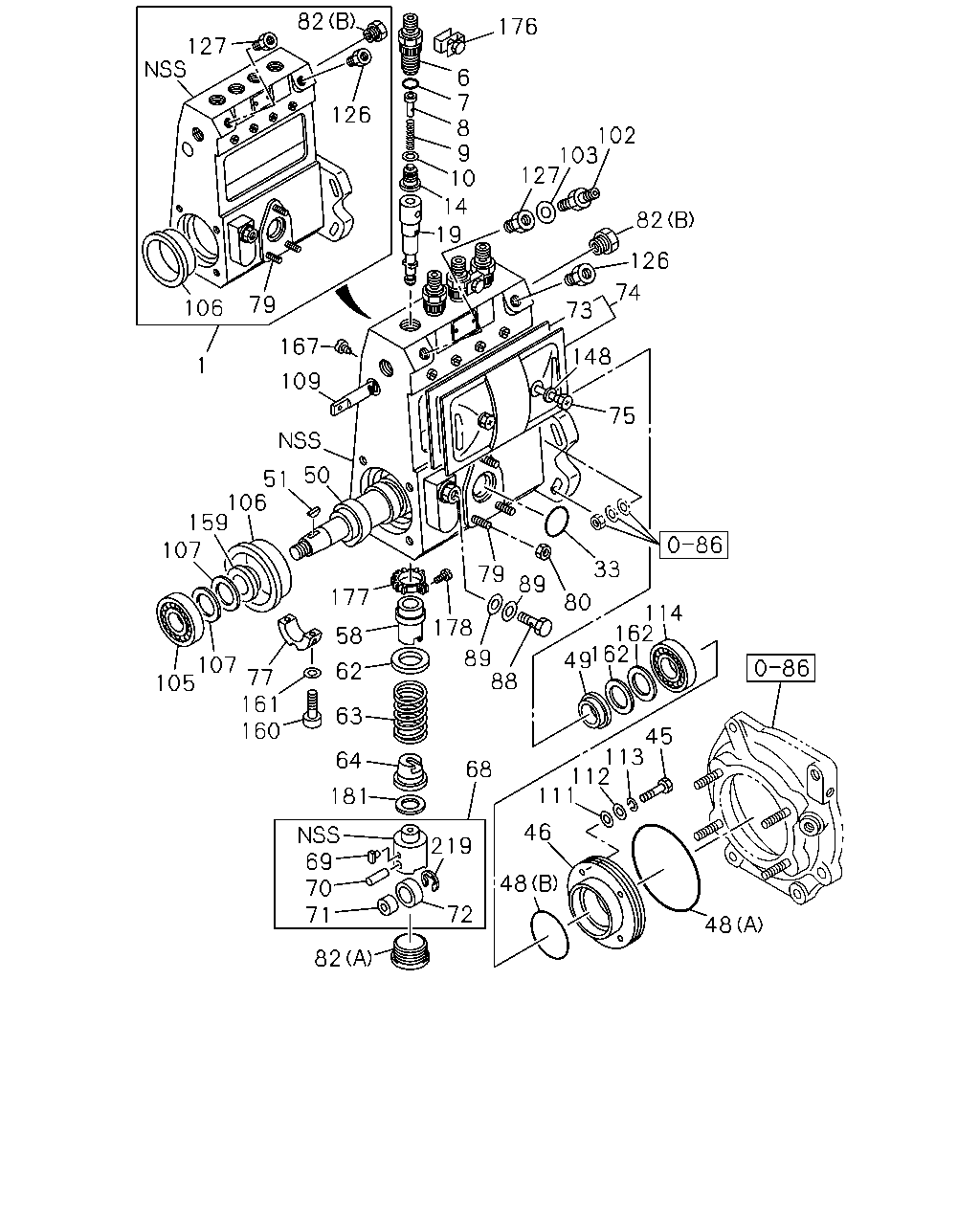

çizim 118858
82 176 127 6 7 8 9 10 126 102 103 127 14 82 19 126 74 79 106 73 167 148 1 109 75 50 51 106 159 107 33 79 89 177 80 114 162 162 49 178 58 89 88 107 105 62 77 161 160 63 45 113 112 111 64 68 181 46 69 70 71 219 48 72 48 82
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; PUMP,FUEL INJ
ASM PART: A = 8-97178-485-5 		8-97214-452-0 01 1 -
6 HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97354-038-0 04 1 -
7 GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 8-97178-485-5 		8-97354-039-0 04 1 -
8 STOPPER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97084-987-0 04 1 -
9 SPRING; DELIVERY VLV
ASM PART: A = 8-97178-485-5 		1-15643-012-0 04 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94247-716-0 04 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97178-485-5 		9-81245-018-0 04 1 -
14 VALVE; DELIVERY,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15619-406-0 04 1 -
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97224-536-0 01 1 -
19 PLUNGER ASM; INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97214-453-0 04 1 -
33 GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-058-0 01 1 -
45 BOLT; FRT COVER TO HSG
ASM PART: A = 8-97178-485-5 		8-97085-000-0 04 1 -
46 COVER; FRT,PUMP HSG
ASM PART: A = 8-97178-485-5 		8-97084-999-0 01 1 -
48 GASKET; FRT COVER TO HSG
(B) ASM PART: A = 8-97178-485-5 		1-15629-076-0 01 1 -
48 GASKET; FRT COVER TO HSG
(A) ASM PART: A = 8-97178-485-5 		8-97085-113-0 01 1 -
49 RING; FRT BRG,CM/SHF
ASM PART: A = 8-97178-485-5 		8-97084-990-0 01 1 -
50 CAMSHAFT; INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97214-454-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-009-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94239-370-0 01 1 -
58 SLEEVE; CONT,INJ PUMP
ASM PART: A = 8-97178-485-5 		9-81231-523-0 04 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15639-022-0 04 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-516-1 01 1 -
63 SPRING; PLUNGER,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15634-007-0 04 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-125-0 04 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-94227-517-0 02 1 -
68 TAPPET; CM/SHF,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15612-080-0 04 1 -
69 GUIDE; TAPPET,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-018-0 04 1 -
70 PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-123-0 04 1 -
71 BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-122-0 04 1 -
72 ROLLER; TAPPET,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-121-0 04 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 8-97178-485-5 		8-94386-596-0 01 1 -
73 GASKET; COVER TO HSG
ASM PART: B = 8-97192-330-8 		8-97383-765-0 01 1 -
74 COVER; HSG,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-94171-109-0 01 1 -
74 COVER; HSG,INJ PUMP
ASM PART: B = 8-97192-330-8 		8-97231-934-0 01 1 -
75 SCREW; COVER TO HSG
ASM PART: A = 8-97178-485-5 		1-15619-003-0 02 1 -
75 SCREW; COVER TO HSG
ASM PART: B = 8-97192-330-8 		8-97231-933-0 02 1 -
77 BEARING; CM/SHF CENTER,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15619-264-0 02 1 -
79 STUD; FUEL FEED PUMP TO HSG
ASM PART: A = 8-97178-485-5 		9-81215-115-0 03 1 -
80 NUT; FUEL FEED PUMP FIX
ASM PART: A = 8-97178-485-5 		8-94171-110-0 03 1 -
82 PLUG; HSG,INJ PUMP
(B) ASM PART: A = 8-97178-485-5 		1-15619-073-0 01 1 -
82 PLUG; HSG,INJ PUMP
(A) ASM PART: A = 8-97178-485-5 		1-15619-160-0 04 1 -
88 BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15619-092-0 01 1 -
89 GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15719-093-0 02 1 -
102 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15619-290-0 01 1 -
103 GASKET; OVERFLOW VLV,INJ PUMP
ID=14.2 OD=19.2 ASM PART: A = 8-97178-485-5 		1-09630-085-0 01 1 -
105 BEARING; CM/SHF RR,INJ PUMP
NSK ASM PART: A = 8-97178-485-5 		1-15629-002-0 01 1 -
105 BEARING; CM/SHF RR,INJ PUMP
TOYO ASM PART: A = 8-97178-485-5 		1-15629-003-0 01 1 -
106 RING; HSG,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15619-159-0 01 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.30 ASM PART: A = 8-97178-485-5 		1-15629-007-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=1.00 ASM PART: A = 8-97178-485-5 		1-15629-008-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.70 ASM PART: A = 8-97178-485-5 		1-15629-105-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.10 ASM PART: A = 8-97178-485-5 		9-81225-049-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.12 ASM PART: A = 8-97178-485-5 		9-81225-050-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.14 ASM PART: A = 8-97178-485-5 		9-81225-051-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.16 ASM PART: A = 8-97178-485-5 		9-81225-052-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.18 ASM PART: A = 8-97178-485-5 		9-81225-053-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.50 ASM PART: A = 8-97178-485-5 		9-81225-054-0 AR 1 -
109 RACK; CONT,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97121-614-0 01 1 -
111 GASKET; FRT COVER FIX
ASM PART: A = 8-97178-485-5 		1-15629-024-0 04 1 -
112 SHIM; FRT COVER FIX
ASM PART: A = 8-97178-485-5 		8-97085-001-0 04 1 -
113 WASHER; LK,FRT COVER TO HSG
ASM PART: A = 8-97178-485-5 		8-94128-928-0 04 1 -
114 BEARING; CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97178-485-5 		8-97084-989-0 01 1 -
126 ADAPTER; EYE BOLT,PUMP HSG
ASM PART: A = 8-97178-485-5 		1-15619-190-0 01 1 -
127 ADAPTER; FUEL PIPE
ASM PART: A = 8-97178-485-5 		1-15619-190-0 01 1 -
148 GASKET; COVER FIX BOLT
ASM PART: A = 8-97178-485-5 		9-81215-144-0 02 1 -
159 RING; RR BEARING,CM/SHF,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-004-0 01 1 -
160 SCREW; CENTER BRG,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15629-017-0 04 1 -
161 GASKET; SCREW,CENTER BRG
ASM PART: A = 8-97178-485-5 		9-81225-043-0 04 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.10 ASM PART: A = 8-97178-485-5 		8-97084-991-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.12 ASM PART: A = 8-97178-485-5 		8-97084-992-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.14 ASM PART: A = 8-97178-485-5 		8-97084-993-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.16 ASM PART: A = 8-97178-485-5 		8-97084-994-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.18 ASM PART: A = 8-97178-485-5 		8-97084-995-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.30 ASM PART: A = 8-97178-485-5 		8-97084-996-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.50 ASM PART: A = 8-97178-485-5 		8-97084-997-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=1.00 ASM PART: A = 8-97178-485-5 		8-97084-998-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.70 ASM PART: A = 8-97178-485-5 		8-97121-620-0 AR 1 -
167 BOLT; CONT RACK,INJ PUMP
ASM PART: A = 8-97178-485-5 		1-15639-003-0 01 1 -
176 PLATE; LK,DELIVERY VLV HOLDER
ASM PART: A = 8-97178-485-5 		1-15649-034-0 02 1 -
177 PINION; CONT SLEEVE,INJ PUMP
ASM PART: A = 8-97178-485-5 		9-81225-057-0 04 1 -
178 SCREW; PINION,INJ PUMP
ASM PART: A = 8-97178-485-5 		9-81235-003-0 04 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.60 ASM PART: A = 8-97178-485-5 		5-15619-001-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.70 ASM PART: A = 8-97178-485-5 		5-15619-002-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.80 ASM PART: A = 8-97178-485-5 		5-15619-003-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.90 ASM PART: A = 8-97178-485-5 		5-15619-004-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.00 ASM PART: A = 8-97178-485-5 		5-15619-005-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.10 ASM PART: A = 8-97178-485-5 		5-15619-007-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.20 ASM PART: A = 8-97178-485-5 		5-15619-008-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.30 ASM PART: A = 8-97178-485-5 		5-15619-009-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.40 ASM PART: A = 8-97178-485-5 		5-15619-010-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.55 ASM PART: A = 8-97178-485-5 		5-15619-011-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.65 ASM PART: A = 8-97178-485-5 		5-15619-012-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.75 ASM PART: A = 8-97178-485-5 		5-15619-013-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.85 ASM PART: A = 8-97178-485-5 		5-15619-015-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.20 ASM PART: A = 8-97178-485-5 		5-15619-025-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.25 ASM PART: A = 8-97178-485-5 		5-15619-026-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.35 ASM PART: A = 8-97178-485-5 		5-15619-027-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.30 ASM PART: A = 8-97178-485-5 		5-15619-034-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.40 ASM PART: A = 8-97178-485-5 		5-15619-035-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.50 ASM PART: A = 8-97178-485-5 		5-15619-036-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.45 ASM PART: A = 8-97178-485-5 		5-15619-037-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.50 ASM PART: A = 8-97178-485-5 		5-15619-106-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.60 ASM PART: A = 8-97178-485-5 		5-15619-107-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.35 ASM PART: A = 8-97178-485-5 		5-15619-108-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.45 ASM PART: A = 8-97178-485-5 		5-15619-109-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.55 ASM PART: A = 8-97178-485-5 		5-15619-110-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.95 ASM PART: A = 8-97178-485-5 		9-81235-042-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.05 ASM PART: A = 8-97178-485-5 		9-81235-043-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.15 ASM PART: A = 8-97178-485-5 		9-81235-044-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.25 ASM PART: A = 8-97178-485-5 		9-81235-045-0 AR 1 -
219 RING; SNAP,ROLLER
ASM PART: A = 8-97178-485-5 		1-15629-124-0 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
