Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10653 - EXZ
▶
0 - Engine, Emission, Engine Electrical
▶
0-42A - FUEL PUMP AND PIPE
▶

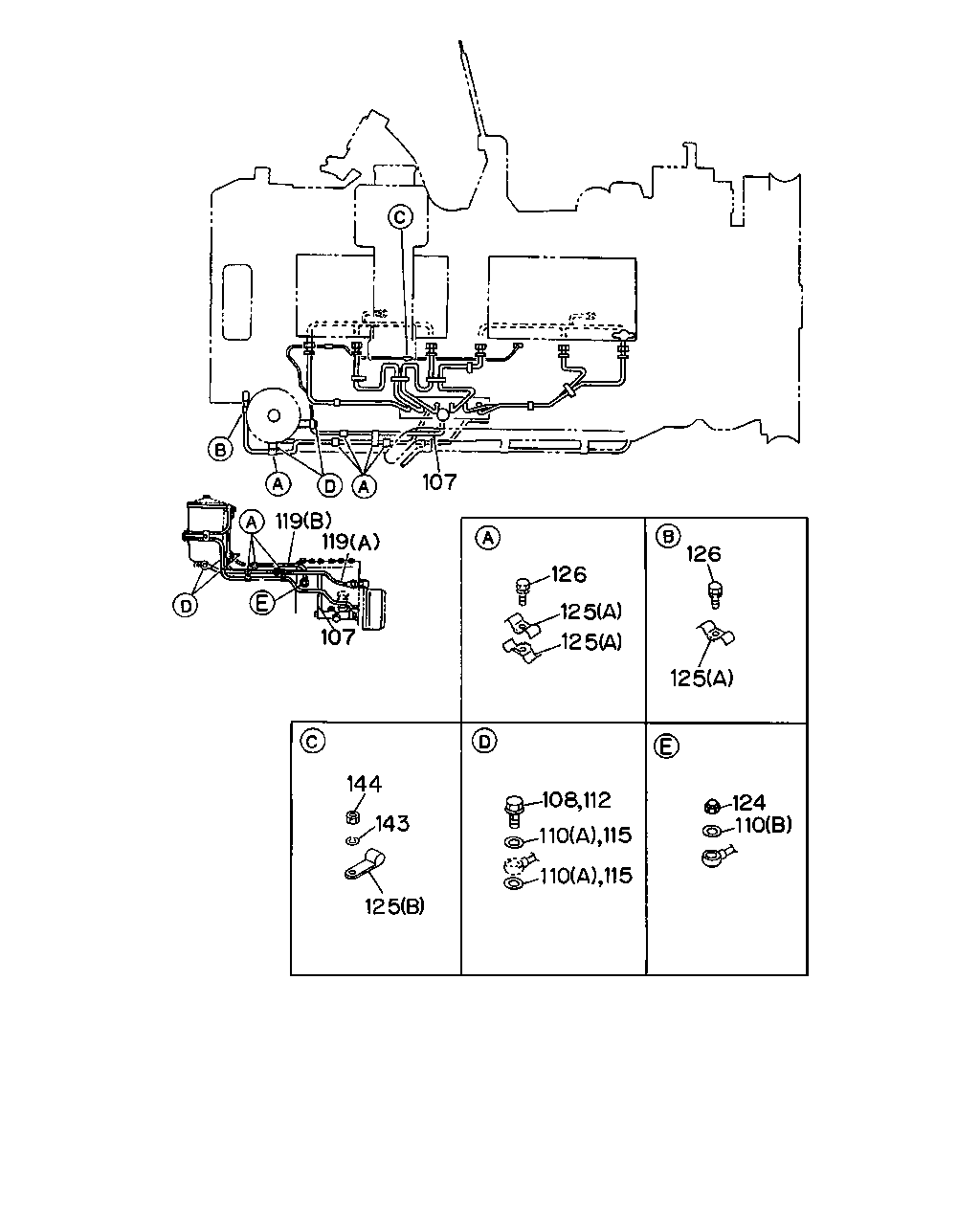

0-42A — FUEL PUMP AND PIPE
(#2318) — 20 parça
Tümü
A - 6RB1 STD ENG
B - 6RA1TC ENG
C - 6RB1TC ENG
107
119
119
107
144
143
125
110
115
110
115
108
112
110
124
125
126
125
125
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15413-048-0
01
1
9002-
●
●
●
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
9002-
●
●
●
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
9002-
●
●
●
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
9002-9306
●
●
●
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
01
1
9002-
●
●
●
112
BOLT; JOINT,FUEL FILTER
EXC. INTAKE HEATER<SL2> M14X27 FLANGE
1-09675-086-0
01
1
9002-9306
●
●
●
112
BOLT; JOINT,FUEL FILTER
INTAKE HEATER<SL2> M14X27 M10-HOLE ON HEAD
1-09675-087-0
01
1
9002-9306
●
●
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
9307-
●
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9002-9306
●
●
●
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
9307-
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A)
1-15413-385-1
01
1
9002-
●
●
●
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B)
1-15413-433-0
01
1
9002-
●
●
●
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
9002-9306
●
●
●
125
CLIP; FUEL PIPE
(B) ID=7 L=28
9-09524-652-0
01
1
9002-
●
●
●
125
CLIP; FUEL PIPE
(A) WO/NUT
9-09716-114-0
07
1
9002-
●
125
CLIP; FUEL PIPE
(A) W/NUT
9-09716-124-0
05
1
9002-
●
126
BOLT; CLIP,FUEL PIPE
M6X25
9-01910-625-0
07
1
9002-9005
●
●
●
126
BOLT; CLIP,FUEL PIPE
M6X25 W/LK WASHER
0-50040-625-0
07
1
9006-
●
●
●
143
WASHER; LK,BRKT,FUEL & OIL
ID=6.1
9-09150-506-0
01
1
9002-
●
●
●
144
NUT; CLIP
M6
9-09110-406-0
01
1
9002-
●
●
●
