Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#23174) — 89 parça

3 3 2 3 1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-3	01	1	0508-	●
2	BOLT; EYE,OIL PIPE (C) M10X23 FLANGE	8-94332-831-1	01	1	0508-		●
2	BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0508-	●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	0508-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0508-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0508-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0508-1101	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-	●

89 202 202 86 89 65 202 340 83 202 65 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
27	BOLT; OIL PIPE FIX M8X12,M10X20 L=42	8-97118-911-0	01	1	0508-	●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE THA	1-09675-078-0	01	1	0508-0805	●
65	BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	8-97372-239-0	01	1	0806-	●
65	BOLT; JOINT,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0508-	●
83	PIPE; OIL,C/BL TO VAC PUMP THA	8-97916-358-0	01	1	0508-	●
86	PIPE; OIL,VAC PUMP RETURN THA	8-94455-311-1	01	1	0508-	●
89	CLIP; VAC HOSE ID=17.1	8-94122-679-0	01	1	0508-	●
202	GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0508-	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0508-1312	●
202	GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
340	HOSE; VAC PUMP,RETURN THA	8-97916-768-0	01	1	0508-	●

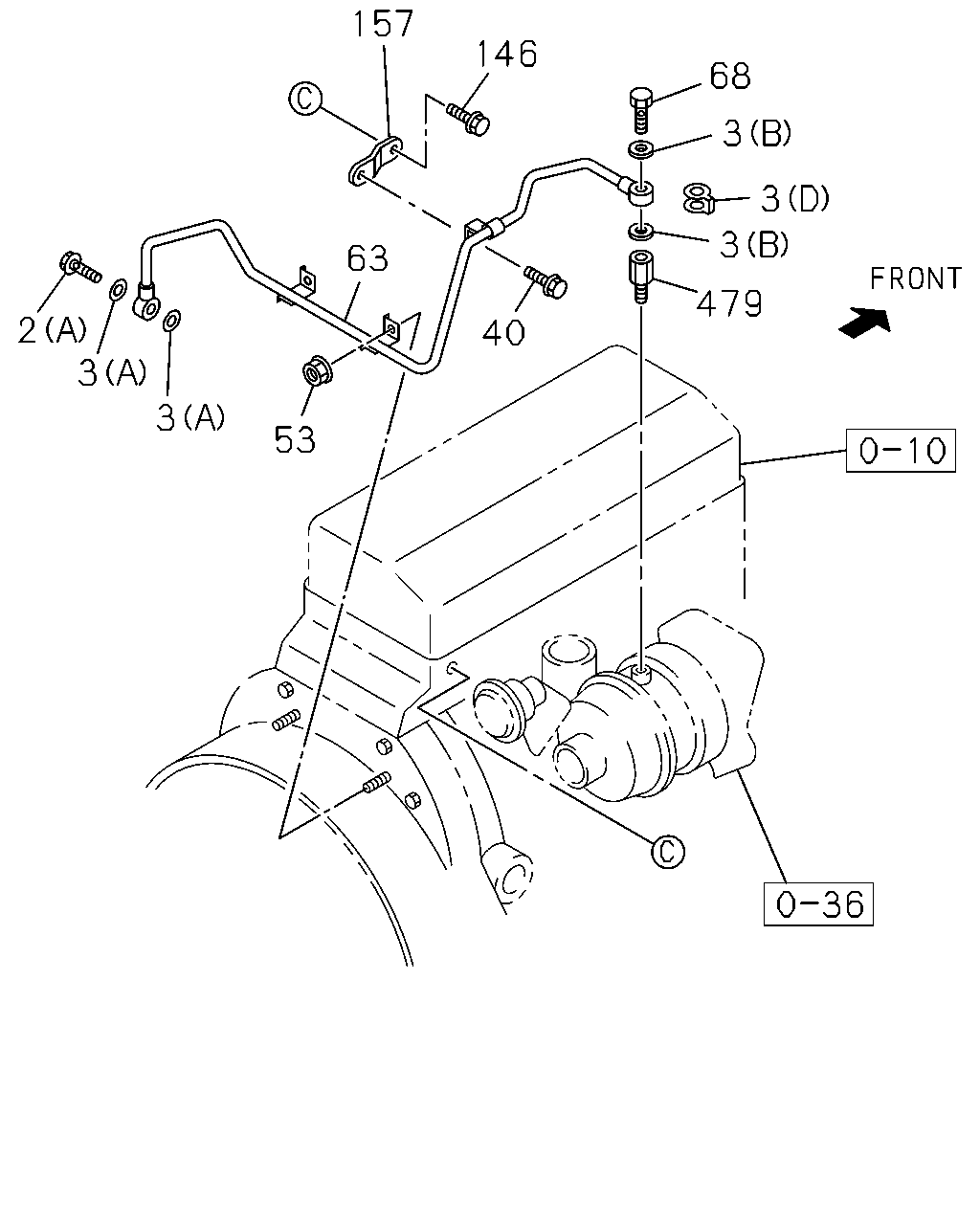

157 146 68 3 3 3 63 479 2 3 40 3 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (C) M10X23 FLANGE	8-94332-831-1	01	1	0508-		●
2	BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0508-	●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	0508-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0508-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0508-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0508-1101	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-	●
40	BOLT; OIL PIPE M6X10 FLANGE	0-28080-610-0	01	1	0508-0512		●
40	BOLT; OIL PIPE M6X10 FLANGE THA	0-28050-610-0	01	1	0601-		●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0508-0512	●
40	BOLT; OIL PIPE M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●
53	NUT; OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0508-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	0508-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0508-	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M12X28 FLANGE	8-97166-518-1	01	1	0508-	●
146	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0508-0512	●
146	BOLT; BRKT M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●
157	BRACKET; OIL PIPE	8-97181-586-0	01	1	0508-	●
479	ADAPTER	8-94436-891-0	01	1	0508-	●

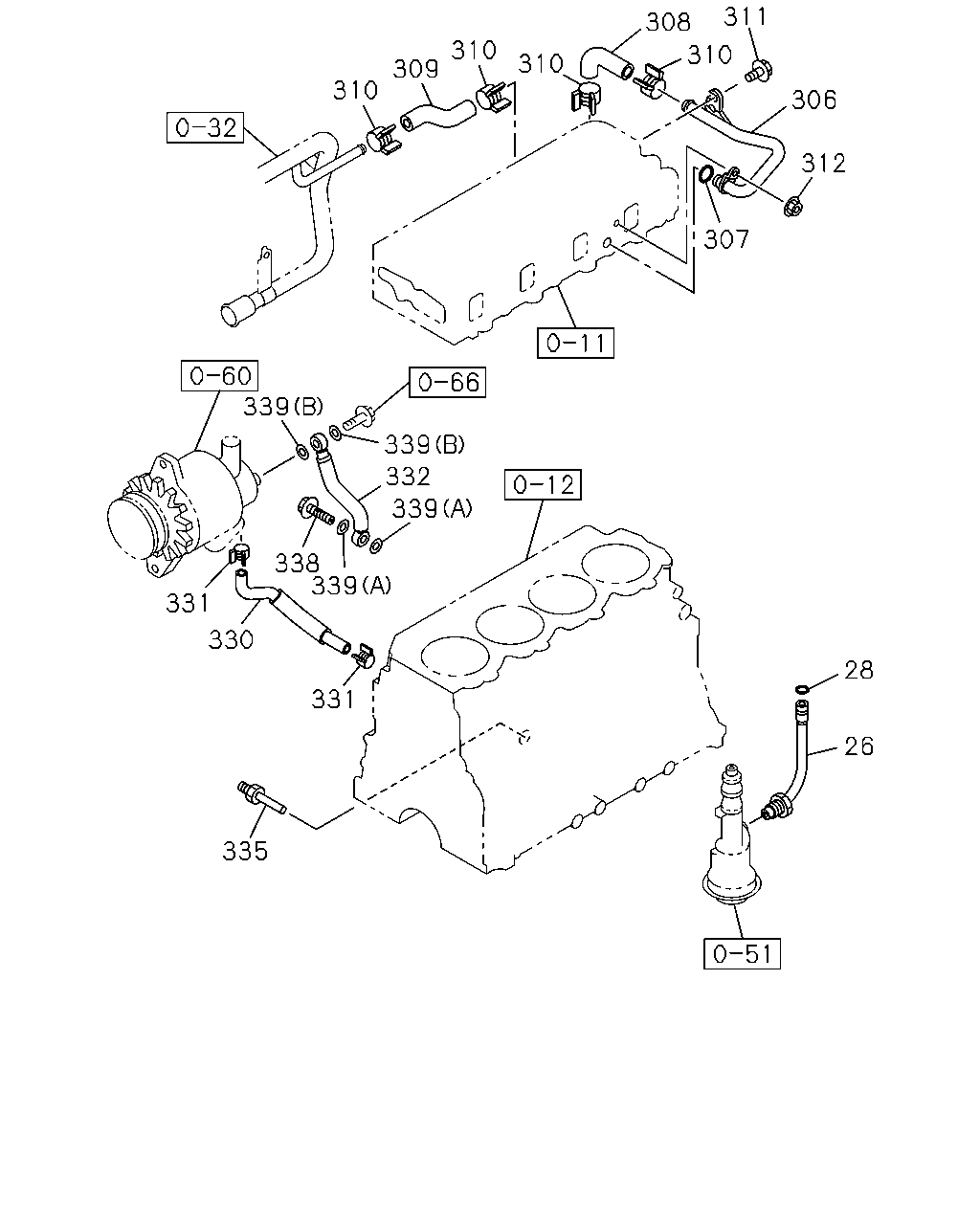

311 308 310 310 310 309 310 306 312 307 339 339 332 339 338 339 331 330 28 331 26 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
26	PIPE; OIL,PUMP TO C/BL THA	8-97920-470-0	01	1	0508-0801	●
26	PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	0802-	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0508-	●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97169-754-1	01	1	0508-	●
307	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97264-168-0	01	1	0508-	●
308	HOSE; OIL COOLER FEED	8-94174-464-1	01	1	0508-	●
309	HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	0508-	●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	0508-	●
311	BOLT; PIPE FIX M8X14 FLANGE	0-28080-814-0	01	1	0508-	●
312	NUT; PIPE FIX M8 FLANGE THA	5-09440-005-0	01	1	0508-0805	●
312	NUT; PIPE FIX M8 FLANGE THA	8-97581-233-0	01	1	0806-	●
330	HOSE; VAC PUMP,RETURN	8-97207-067-0	01	1	0508-	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0508-	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-94310-221-1	01	1	0508-	●
335	STOPPER; OIL PIPE	8-97203-568-0	01	1	0508-	●
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	01	1	0508-	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	02	1	0508-	●
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0508-	●

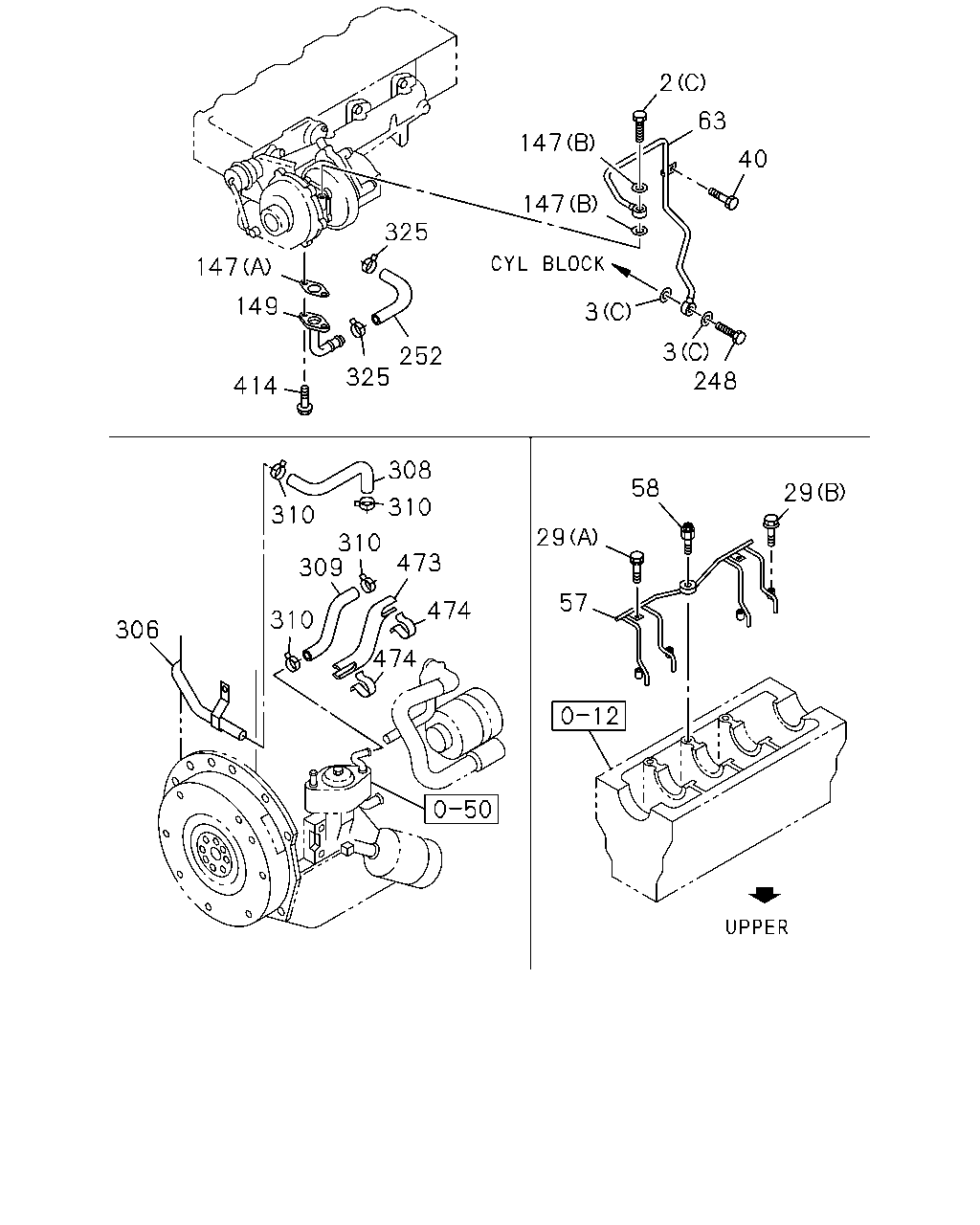

2 63 147 40 147 325 147 149 3 3 248 252 325 414 308 58 29 310 310 29 310 309 473 57 474 310 306 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (C) M10X23 FLANGE	8-94332-831-1	01	1	0508-		●
2	BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0508-	●
2	BOLT; EYE,OIL PIPE (B) M10X24	9-09906-205-1	01	1	0508-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	0508-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0508-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	0508-1101	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-	●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0508-0512		●
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	0601-		●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0508-0512		●
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0601-		●
40	BOLT; OIL PIPE M6X10 FLANGE	0-28080-610-0	01	1	0508-0512		●
40	BOLT; OIL PIPE M6X10 FLANGE THA	0-28050-610-0	01	1	0601-		●
40	BOLT; OIL PIPE M8X12 FLANGE	0-28080-812-0	01	1	0508-0512	●
40	BOLT; OIL PIPE M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●
57	PIPE; OIL,OIL JET	8-94469-709-3	01	1	0508-		●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97311-976-1	01	1	0508-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97224-297-0	01	1	0508-		●
63	PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0508-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94362-672-1	01	1	0508-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	0508-		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97192-313-0	01	1	0508-		●
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M14X27 FLANGE	1-09675-086-0	01	1	0508-		●
252	HOSE; RUBBER,TURBOCHARGER RETURN	8-97176-141-0	01	1	0508-		●
306	PIPE ASM; CYL HD TO OIL COOLER	8-97169-754-1	01	1	0508-		●
308	HOSE; OIL COOLER FEED	8-94174-464-1	01	1	0508-		●
309	HOSE; OIL COOLER RETURN	8-97224-318-1	01	1	0508-		●
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	04	1	0508-		●
325	CLIP; RUBBER HOSE,OIL RETURN ID=20.8	8-94125-862-1	02	1	0508-		●
414	BOLT; OIL PIPE M6X16 FLANGE	0-28080-616-0	02	1	0508-0512		●
414	BOLT; OIL PIPE M6X16 FLANGE THA	0-28050-616-0	02	1	0601-		●
473	INSULATOR; HOSE	8-97101-331-0	02	1	0508-		●
474	CLIP; INSULATOR	8-97101-337-0	04	1	0508-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
