Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10653 - EXZ
▶
0 - Engine, Emission, Engine Electrical
▶
0-41B - FUEL FILTER AND BRACKET
▶

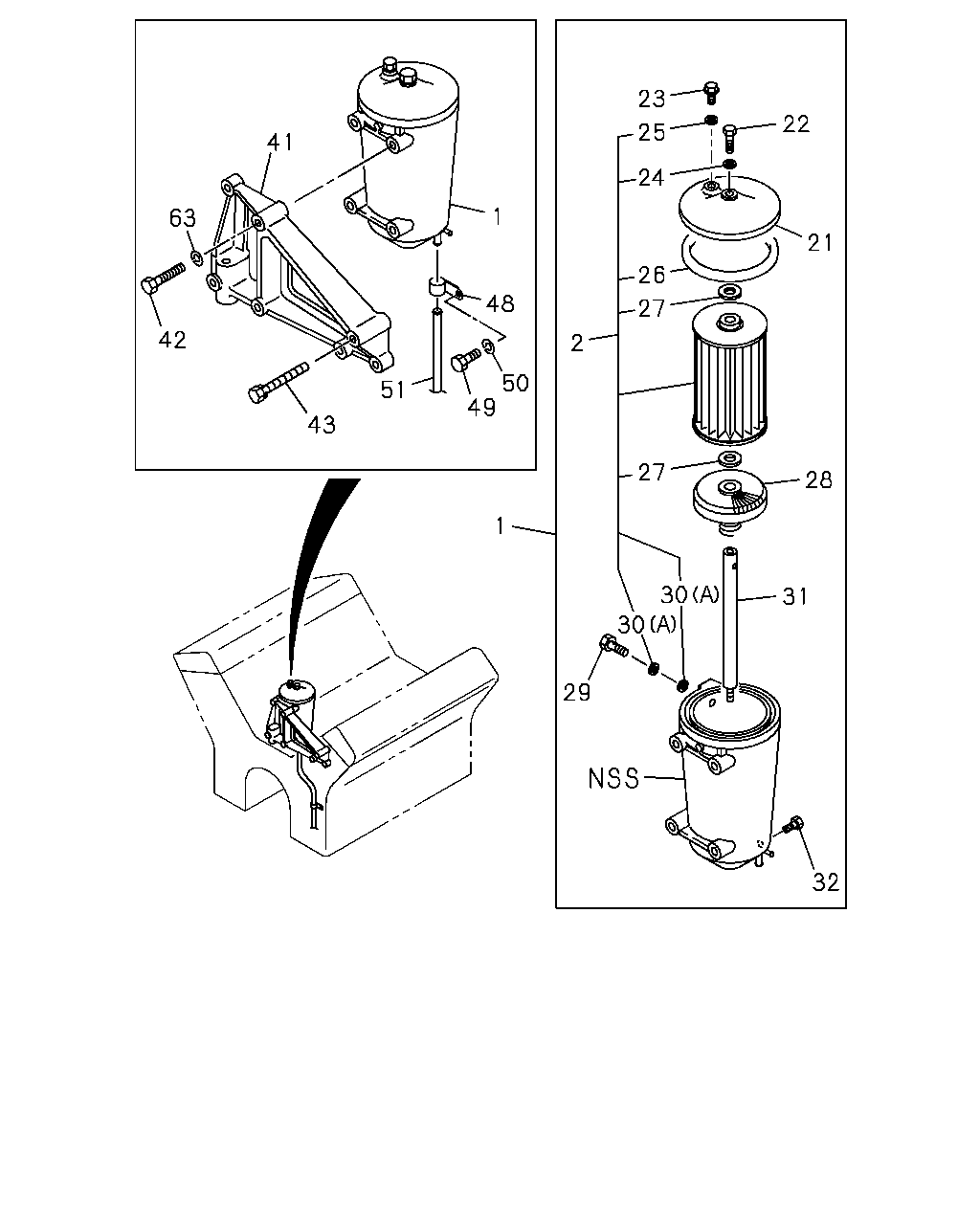

0-41B — FUEL FILTER AND BRACKET
(#2317) — 37 parça
Tümü
A - 10PD1 STD ENG
B - 12PD1 STD ENG
C - 8PD1 STD ENG
32
29
30
31
30
28
27
1
2
27
26
21
22
24
25
23
1
48
50
49
51
43
42
63
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
FILTER ASM; FUEL
1-13200-651-0
01
1
9002-9306
●
●
1
FILTER ASM; FUEL
1-13200-627-2
01
1
9307-
●
●
2
ELEMENT KIT; FUEL FILTER
1-87810-976-0
01
1
9002-
●
●
●
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
9002-
●
●
●
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
9002-
●
●
●
23
PLUG; COVER
1-13219-074-0
01
1
9002-
●
●
●
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
9002-
●
●
●
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
9002-
●
●
●
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
9002-
●
●
●
27
GASKET; ELEMENT
1-09630-007-0
02
1
9002-
●
●
●
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
9002-
●
●
●
29
VALVE; OVERFLOW
1-13260-065-0
01
1
9002-
●
●
●
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
9002-9409
●
●
●
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
9410-
●
●
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
9002-
●
●
●
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
9002-
●
●
●
41
BRACKET; FUEL FILTER
1-19755-090-0
01
1
9002-
●
●
41
BRACKET; FUEL FILTER
1-19755-117-1
01
1
9307-
●
42
BOLT; FUEL FILTER
M10X28
0-28081-028-0
01
1
9002-9306
●
42
BOLT; FUEL FILTER
M10X60
9-01056-060-0
03
1
9002-9004
●
42
BOLT; FUEL FILTER
M10X60
0-10806-060-0
03
1
9005-9306
●
42
BOLT; FUEL FILTER
M10X28
0-28081-028-0
03
1
9002-9306
●
42
BOLT; FUEL FILTER
M10X30 W/LK WASHER
0-50041-030-0
01
1
9002-9306
●
42
BOLT; FUEL FILTER
M10X60
0-10806-060-0
03
1
9307-
●
42
BOLT; FUEL FILTER
M10X28
0-28081-028-0
01
1
9307-
●
42
BOLT; FUEL FILTER
M10X45 W/LK&PL WASHER
0-50141-045-0
04
1
9307-
●
43
BOLT; BRKT
M10X75 FLANGE
8-94399-669-1
02
1
9002-
●
●
43
BOLT; BRKT
M10X40 FLANGE
0-28181-040-0
02
1
9002-
●
●
●
43
BOLT; BRKT
M10X90 FLANGE
0-28181-090-0
01
1
9307-
●
43
BOLT; BRKT
M10X145
1-09020-078-1
01
1
9307-
●
48
CLIP; VINYL PIPE
9-09915-274-1
01
1
9002-
●
●
●
49
BOLT; CLIP
M10X14
9-02341-014-0
01
1
9002-9204
●
●
49
BOLT; CLIP
M10X14
0-23801-014-0
01
1
9205-9306
●
●
49
BOLT; CLIP
M10X16 W/LK WASHER
1-09033-012-0
01
1
9307-
●
●
50
WASHER; LK,CLIP
ID=10.2
9-09150-510-0
01
1
9002-9306
●
●
51
PIPE; VINYL
L=750 SERVICED BY L=10000
9-09914-909-0
01
1
9002-
●
●
●
63
WASHER; LK,FUEL FILTER
ID=10.2
9-09150-510-0
03
1
9307-
●
