Isuzu WW
▶
TRUCKS
▶
NKR
▶
51040 - NKR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#23164) — 32 parça
Tümü
A - 4JB1-TC ENG
B - 4HG1-T ENG
◀

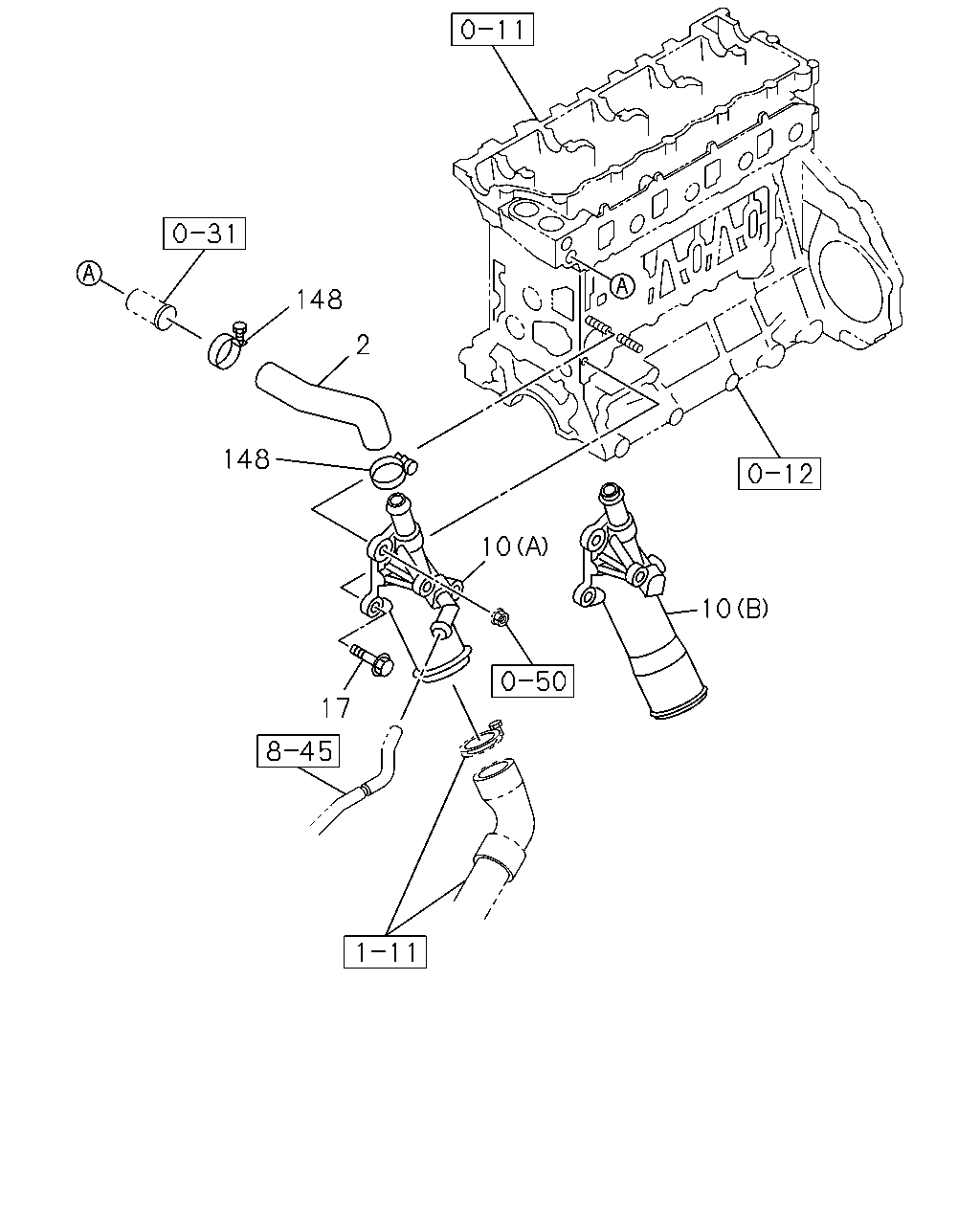

[032A] 4HG1 (7 parça)
[032A] 4JB1 (25 parça)
▶
148
2
148
10
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOSE; WATER,BY-PASS
8-97037-464-0
01
1
0508-
●
2
HOSE; WATER,BY-PASS
8-97209-948-0
01
1
0508-
●
10
PIPE; SUCTION
(A)
8-97216-157-1
01
1
0508-1010
●
10
PIPE; SUCTION
(A)
8-98166-992-0
01
1
1011-1202
●
10
PIPE; SUCTION
(B)
8-98212-009-0
01
1
1203-
●
17
BOLT; SUCTION PIPE
M8X48 FLANGE
8-94458-473-1
01
1
0508-
●
148
CLIP; BYPASS HOSE
ID=30
9-09915-315-1
02
1
0508-
●
73
74
102
69
72
97
97
102
23
72
155
37
102
11
102
102
2
102
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOSE; WATER,BY-PASS
8-97037-464-0
01
1
0508-
●
2
HOSE; WATER,BY-PASS
8-97209-948-0
01
1
0508-
●
11
PIPE; INL,WATER PUMP
8-97213-400-1
01
1
0508-
●
23
GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94365-676-3
01
1
0508-
●
30
CLIP; HARNESS
ID=12
8-97367-983-1
01
1
0508-
●
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA
8-94321-135-1
01
1
0508-
●
69
NUT; WATER PIPE
M6 FLANGE
0-91150-106-0
01
1
0508-0602
●
69
NUT; WATER PIPE
M6 FLANGE THA
0-91180-106-0
01
1
0603-
●
72
BOLT; WATER PIPE
(A) M8X20 FLANGE
0-28080-820-0
01
1
0508-0512
●
72
BOLT; WATER PIPE
(A) M8X20 FLANGE THA
0-28050-820-0
01
1
0601-
●
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER
0-50040-845-0
01
1
0508-0909
●
72
BOLT; WATER PIPE
(B) M8X45 W/LK WASHER THA
0-50540-845-0
01
1
0910-
●
73
PROTECTOR; HEAT,WATER PIPE
8-97043-743-1
01
1
0508-1403
●
73
PROTECTOR; HEAT,WATER PIPE
8-97520-577-0
01
1
1404-
●
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50140-816-0
03
1
0508-0512
●
74
BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER
0-50640-816-0
03
1
0601-
●
97
BOLT; WATER PIPE
(A) M6X12 FLANGE
0-28080-612-0
01
1
0508-0512
●
97
BOLT; WATER PIPE
(A) M6X12 FLANGE THA
0-28050-612-0
01
1
0601-
●
97
BOLT; WATER PIPE
(B) M6X20 FLANGE
0-28680-620-0
01
1
0508-0512
●
97
BOLT; WATER PIPE
(B) M6X20 FLANGE THA
0-28650-620-0
01
1
0601-1010
●
97
BOLT; WATER PIPE
(B) M6X16 FLANGE THA
0-28050-616-0
01
1
1011-
●
102
CLIP; WATER HOSE
(A) ID=20.8
8-94125-862-1
02
1
0508-
●
102
CLIP; WATER HOSE
(B) ID=12.8
8-94367-943-0
04
1
0508-
●
155
PIPE ASM; WATER
8-97207-954-0
01
1
0508-1010
●
155
PIPE ASM; WATER
8-98169-766-0
01
1
1011-
●
